Product description

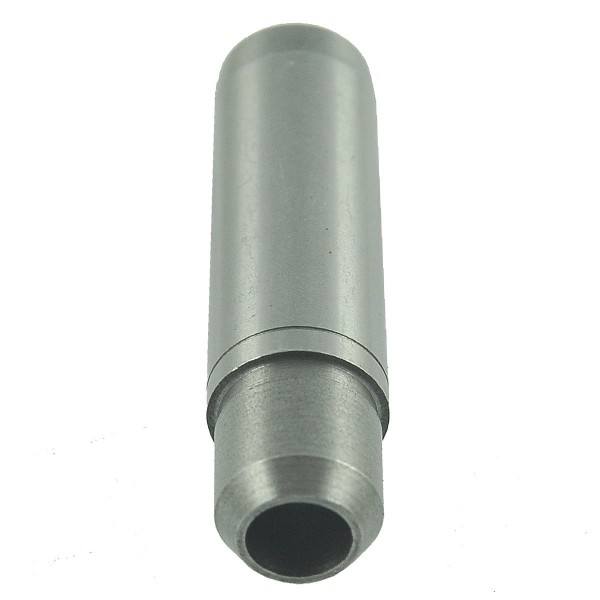

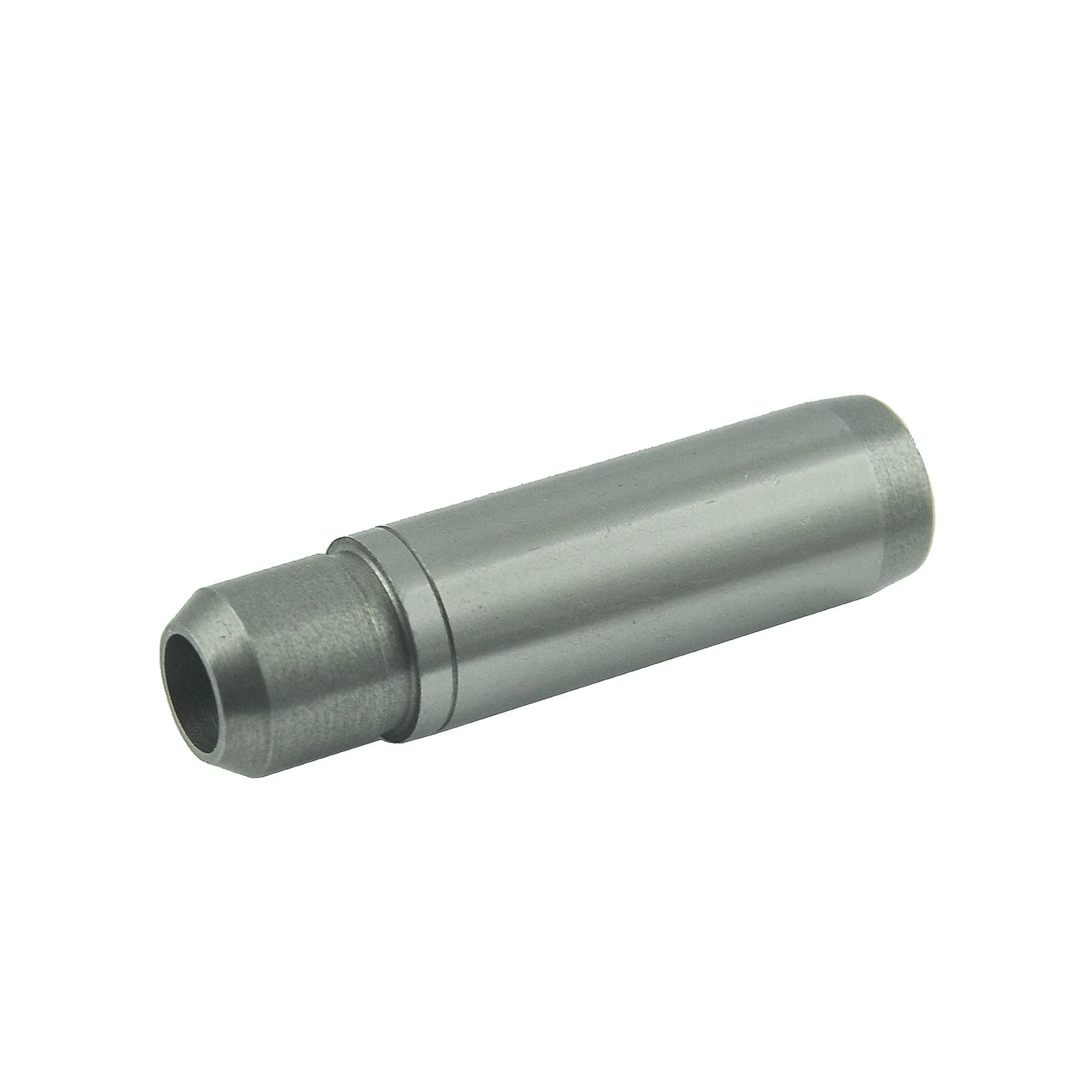

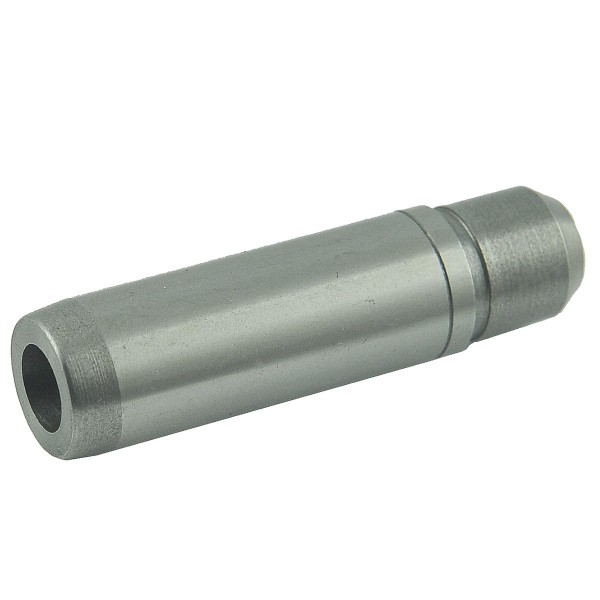

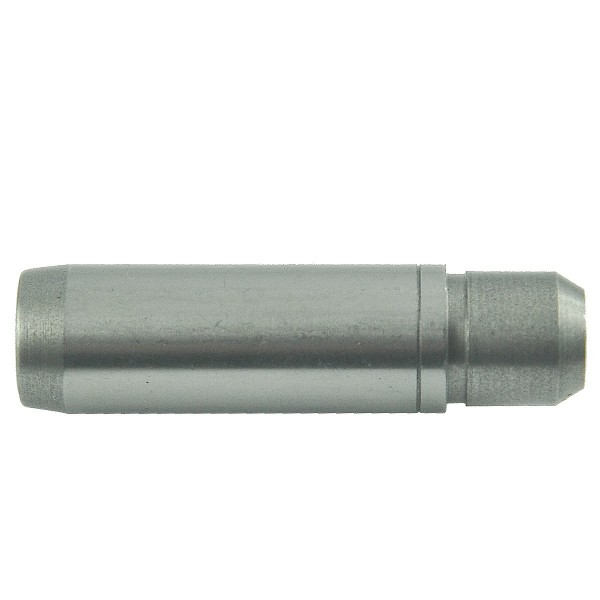

Valve guide IN / EX ( 9-24-103-02 ) with a total length of 48 mm , inner diameter of 8 mm , outer diameter of 14 mm for Iseki tractors of the Iseki TX1300, Iseki TX1500 series with Mitsubishi KE70, Mitsubishi KE75 and other engines.
The valve guide is an element whose main task is to guide the valve stem and remove some of the heat from the valve head to the cylinder head. The valve guide holds the valve in the correct position during engine operation and provides the appropriate pressure for the correct operation of the valves. The correct position of the valve relative to the valve seat and the greatest possible accuracy of this fit are desirable, but it should also be remembered that too small a clearance can cause the valve to seize.
Dimensions :
- length: 48 mm,
- outer diameter: 14 mm,
- inner diameter: 8 mm,
- part number: 9-15-125-20.
Engine models:
Mitsubishi:
- Mitsubishi KE70,
- Mitsubishi KE75.
Tractor models :
Iseki :
- Iseki TX1300,
- Iseki TX1500.
Mitsubishi :
- Mitsubishi D1300,
- Mitsubishi D1500.
Satoh :
- Satoh ST1300,
- Satoh ST1510.
The first signs of valve guide wear are increased fuel or oil consumption, reduced engine power or uneven engine operation. Damaged guides should be replaced with new ones as soon as possible, because damaged guides can damage the valve system.
Magazine : K18: A18:S04
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
