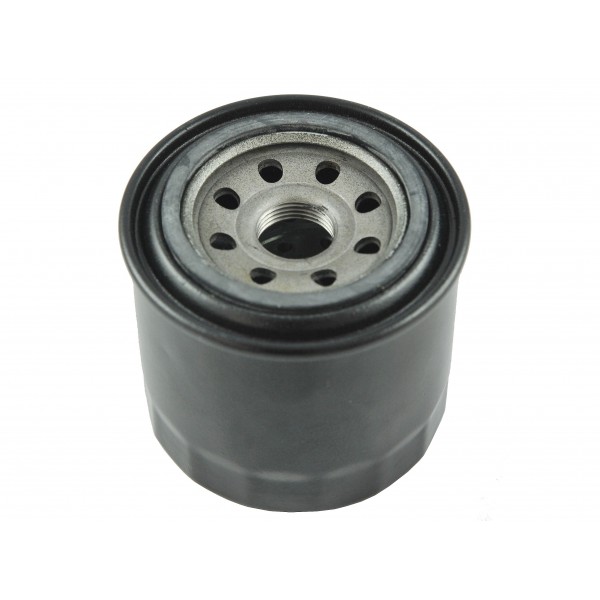

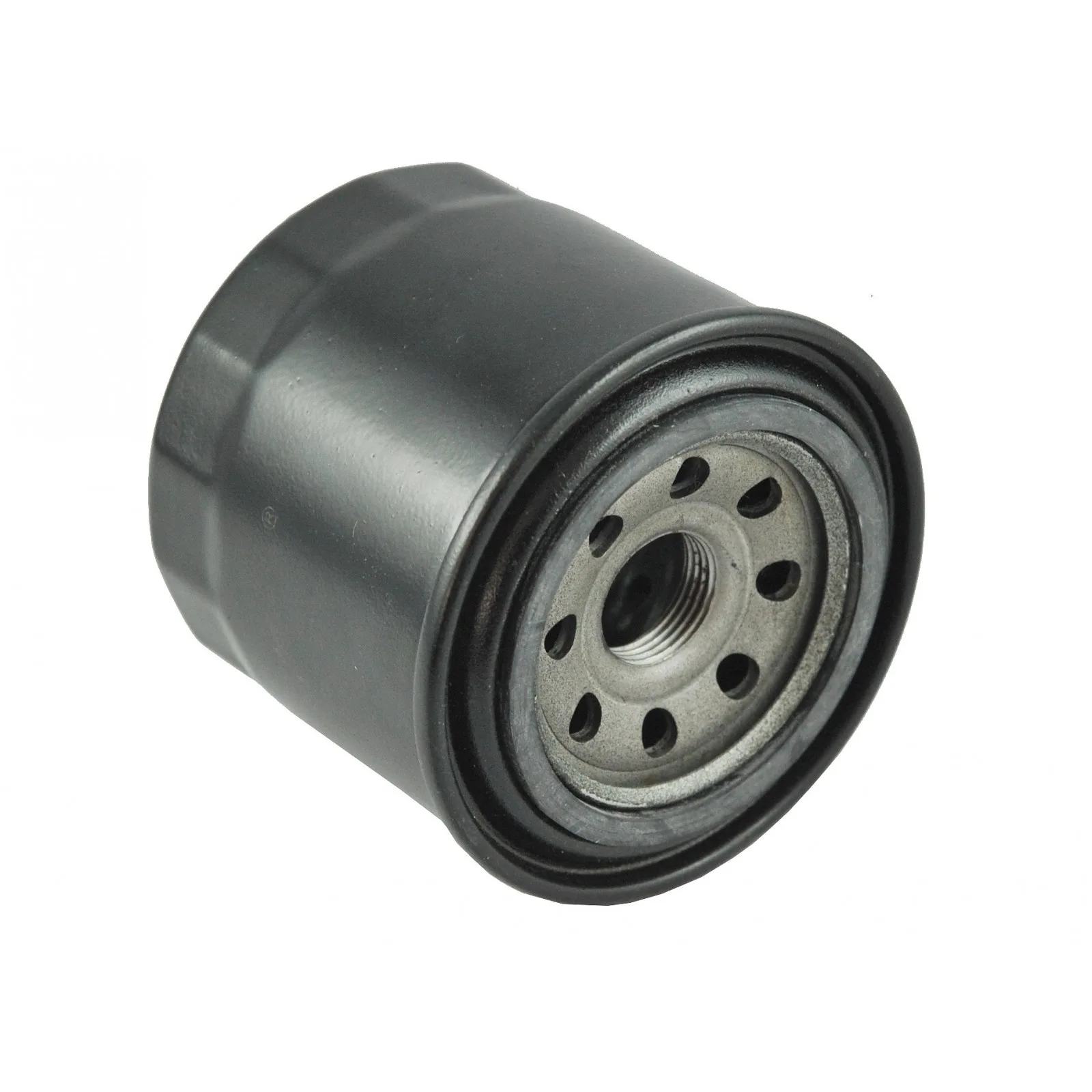

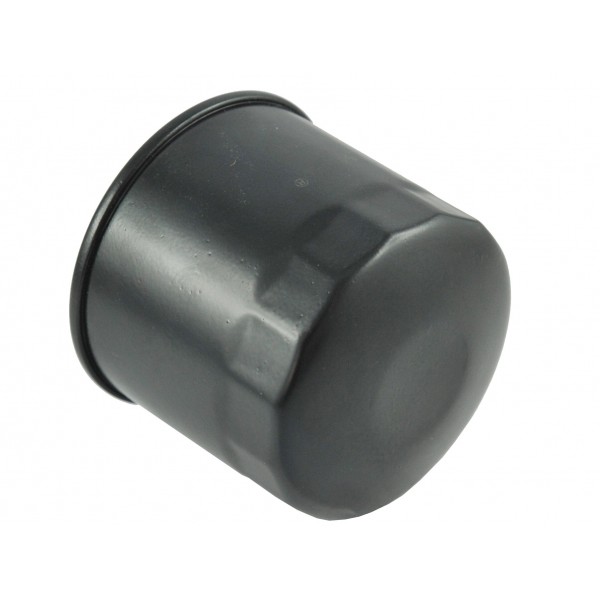

Engine oil filter M20 x 1.5 80 x 80 mm / Mitsubishi K3A/B/C/D/E / KE70/75/80/85/95/130 / K4A/B/C/D/E/F S4L / 2DR5
Engine oil filter with M20X1.5 thread, dimensions 80 x 80 mm, for Japanese tractors and mini tractors with Mitsubishi engines of the K3A/B/C/D/E series, KE70/75/80/85/95/130 , K4A/B/ C/D/E/F, Mitsubishi S4L , Mitsubishi 2DR5 . The filter fits min. for Mitsubishi D , MT and Yanmar AF and F series tractors and others such as Iseki TU or Kubota GT and X.
The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.
Dimensions :
- Height: 80 mm,
- Diameter: 80 mm,
- Base diameter: 84 mm,
- Seal diameter: external: 63 mm, internal: 54 mm,
- Thread: M20X1.5, 18.40 mm,
- Comparison numbers: MM409-218, K9665400 , MM409-347, MD017-440, MD134-953, 31A40-02100, 34140-70100, MM409-365 , MM409365 , EK-6036 .
Tractor models :
Mitsubishi :
- Mitsubishi D2000,
- Mitsubishi D2300,
- Mitsubishi MT630,
- Mitsubishi MT245,
- Mitsubishi MT265.
Yanmar :
- Yanmar EF222,
- Yanmar F180,
- Yanmar FX235,
- Yanmar FX335,
- Yanmar F16D,
- Yanmar AF330.
- Yanmar AF210,
Kubota :
Isek and:
Engine models:
- Mitsubishi K3A,
- Mitsubishi K3B,
- Mitsubishi K3C,
- Mitsubishi K3D,
- Mitsubishi K3E,
- Mitsubishi KE70,
- Mitsubishi KE75,
- Mitsubishi KE80,
- Mitsubishi KE85,
- Mitsubishi KE95,
- Mitsubishi KE130,
- Mitsubishi K4A,
- Mitsubishi K4B,
- Mitsubishi K4C,
- Mitsubishi K4D,
- Mitsubishi K4E,
- Mitsubishi K4F,
- Mitsubishi S4L,
- Mitsubishi 2DR5.
The filter is most often mounted on the side of the engine, and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption, and in extreme cases, a clogged oil filter may lead to engine overheating and damage to the head gasket. Always replace the oil filter together with the oil change at the frequency specified in the machine's operating instructions.
Warehouse :
M01:F42
Specification
Magazyn: M01: F42
State
New
Production
Substitute
Parts
Filtry
Engine model
- Mitsubishi K3A
- Mitsubishi K3B
- Mitsubishi K3D
- Mitsubishi K3E
- Mitsubishi K4E
- Mitsubishi Ke70
- Mitsubishi S4L
Mitsubishi 2DR5
Mitsubishi K3C
Mitsubishi K4A
Mitsubishi K4B
Mitsubishi K4C
Mitsubishi K4F
Mitsubishi KE80
Mitsubishi KE85
Mitsubishi KE95
Mitsubishi Ke130
Tractor models
- Iseki TU220
- Kubota GT8
- Yanmar F-180
- Yanmar F16D
- Yanmar FX235
Kubota X20
Mitsubishi D2000
Mitsubishi D2300
Mitsubishi MT245
Mitsubishi MT265
Mitsubishi MT630
Yanmar AF210
Yanmar AF330
Yanmar EF222
Yanmar FX335
Height (mm)
80
Diameter (mm)
80
Base diameter (mm)
84
Thread
M20 x 1.5
Comparison numbers
31A40-02100
34140-70100
EK-6036
K9665400
MD017-440
MD134-953
MM409-218
MM409-347
MM409-365
MM409365
Filter type
Engine oil filter
Inner seal diameter (mm)
54
Outer seal diameter (mm)
63
