zł40.00
To order
Condition
New
Production
Substitute
Parts
Filtry
Height (mm)
83
Diameter (mm)
89
Base diameter (mm)
92
Weight (kg)
0.340

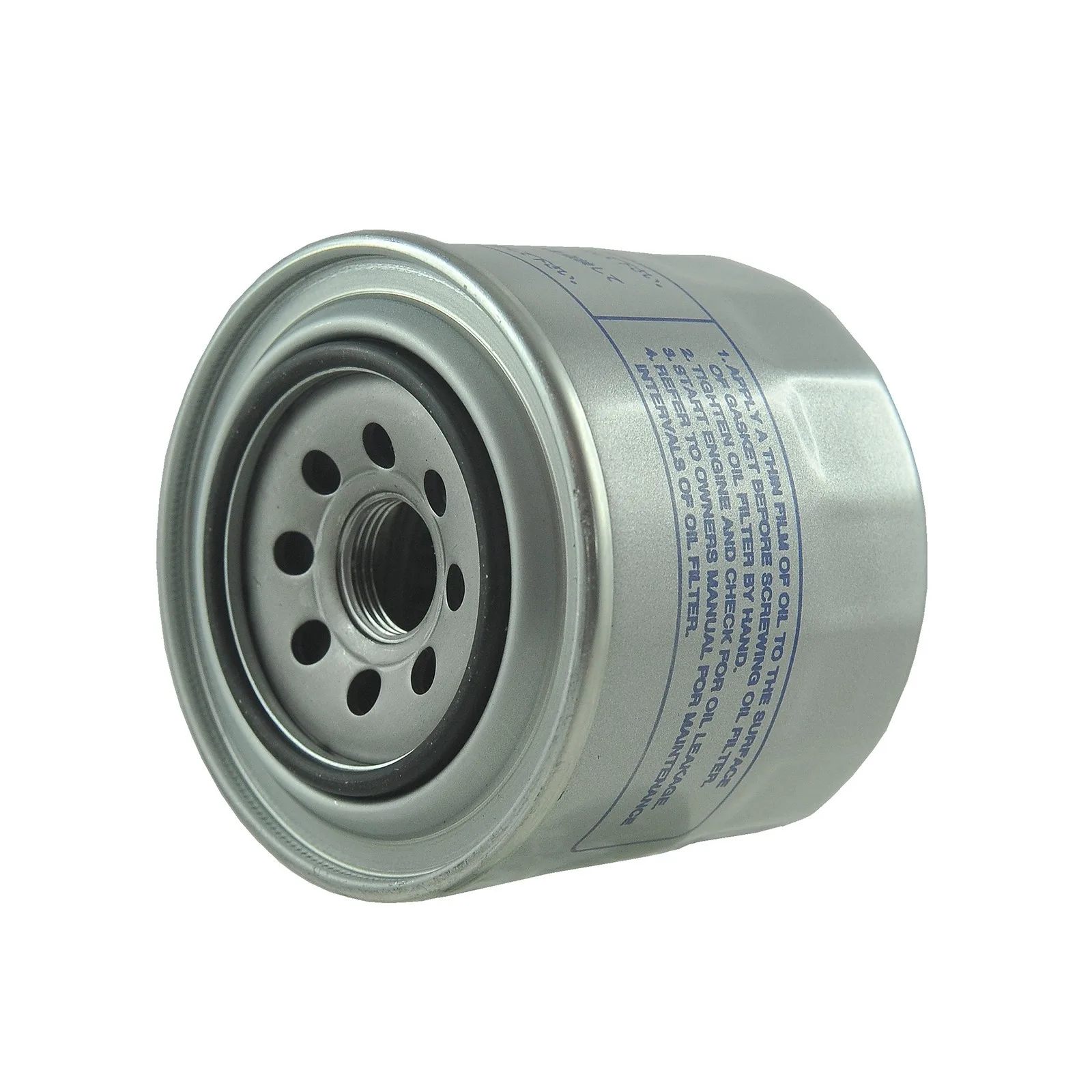

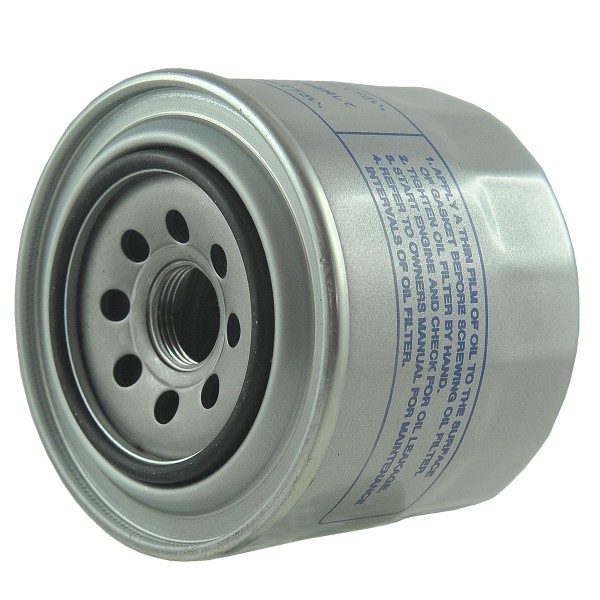

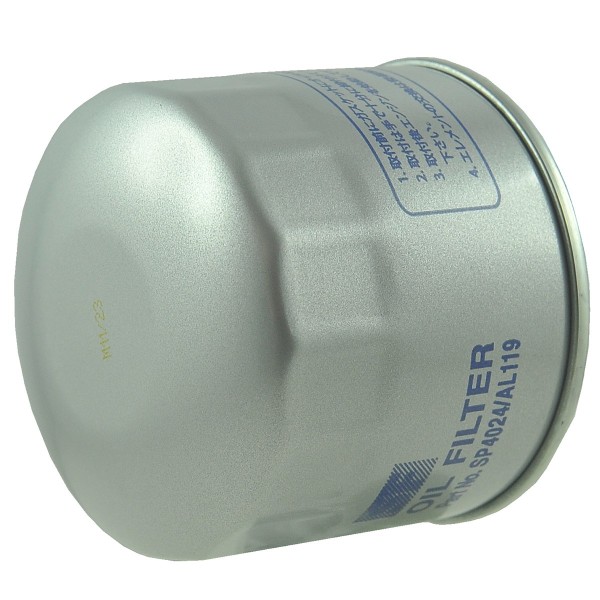

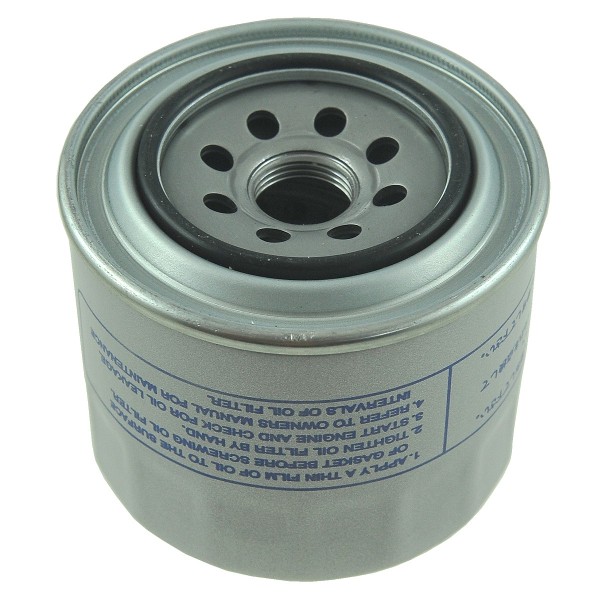

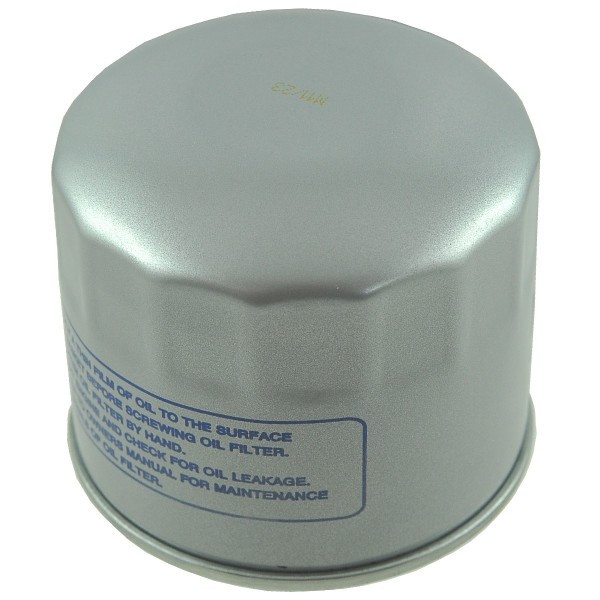

Engine oil filter / M20 x 1.5 / T7314 / SP4024
SP 4024
3661200111483
Do you have any questions?
Engine oil filter / M20 x 1.5 / T7314 / SP4024
Engine oil filter with M20 x 1.5 thread, 92 mm diameter and 82 mm height for tractors and machines with Mitsubishi and other engines.
The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal oil filter , screw-on, is a filter whose main task is to remove the smallest impurities from the oil, even 1/50 mm in size. The filter construction is very simple and consists of a metal can with a thread and a paper insert inside arranged in a so-called accordion to increase the filtration surface. Contamination of the oil for which we use the filter is most often caused by organic impurities, from the breakdown of the oil itself during operation, from fuel residues or are by-products of oxidation. Mineral impurities are air pollutants and metal particles that appear in the engine during operation. The non-return valve is a filter element whose task is to prevent impurities caught by the filter from getting back into the engine from the oil while the engine is turned off.
Dimensions :
- height: 82 mm,
- diameter: 89 mm,
- base diameter: 92 mm,
- gasket diameter: outer: 64 mm, inner: 55 mm,
- thread: M20 x 1.5,
- number of anti-return valves: 1 pc.
- weight: 0.340 kg,
- reference numbers: P550173, T7314, W815/80,
- part numbers: SP4024.
Machine models:
Bobcat :
- Bobcat 742B.
Yanmar :
- Yanmar B50,
- Yanmar V3.
The filter is most often mounted on the side of the engine and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption and in extreme cases a clogged oil filter can lead to engine overheating and damage to the head gasket. The oil filter should always be replaced together with the oil change at the frequency specified in the machine's operating instructions.
Warehouse :
M01:F42
Specification
Magazyn: M01:F42
Condition
New
Production
Substitute
Parts
Filtry
Height (mm)
83
Diameter (mm)
89
Base diameter (mm)
92
Weight (kg)
0.340
Thread
M20 x 1.5
Machine models
Bobcat 742B
Yanmar B50
Yanmar V3
Yanmar B50
Yanmar V3
Comparison numbers
P550173
T7314
W815/80
T7314
W815/80
Part number
SP4024
Filter type
Engine oil filter
Inner seal diameter (mm)
55
Outer seal diameter (mm)
64
