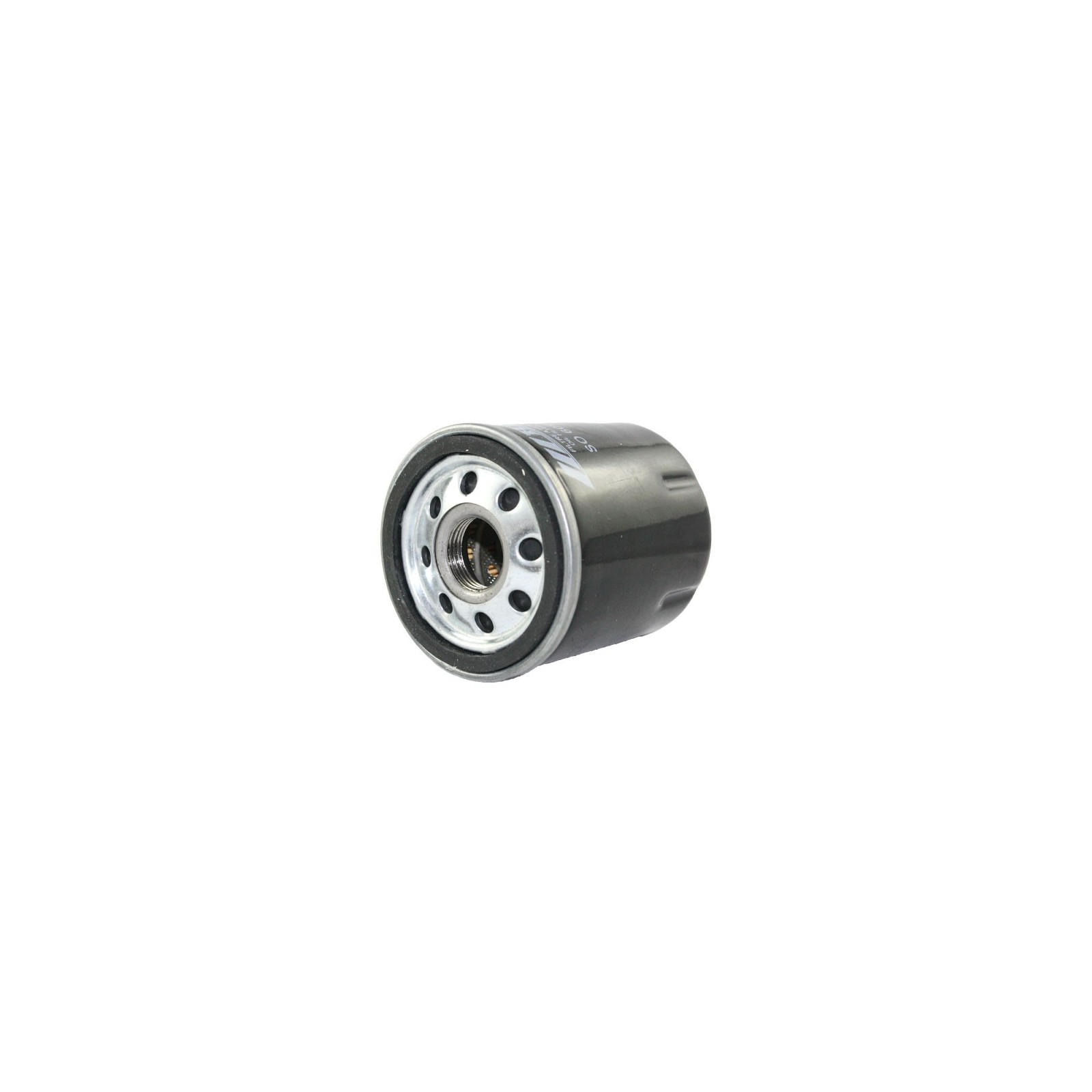

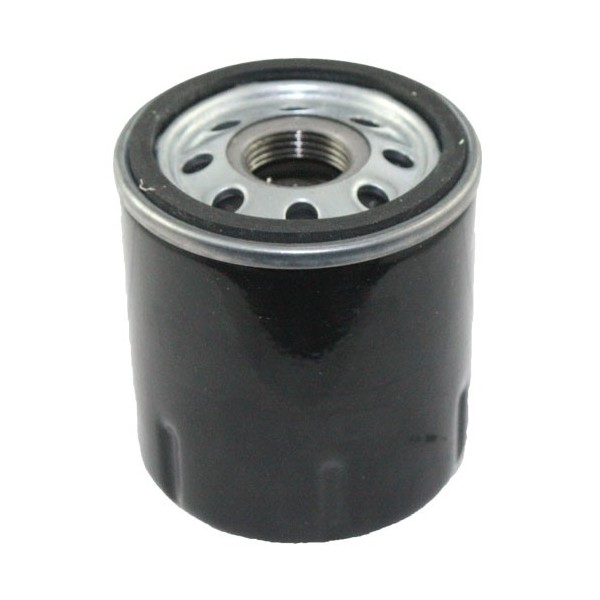

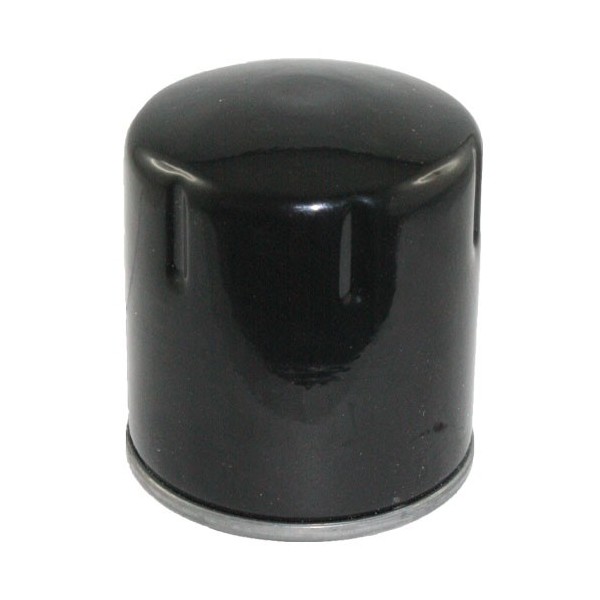

Kubota engine oil filter M20x1.5, 66x77 mm Kubota 15853-9917-0, 15853-3243-0

Kubota engine oil filter M20x1.5, 66x77 mm

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.

Dimensions:

• Height: 77 mm.
• Diameter: 66 mm.
• Base diameter: 67.50 mm.

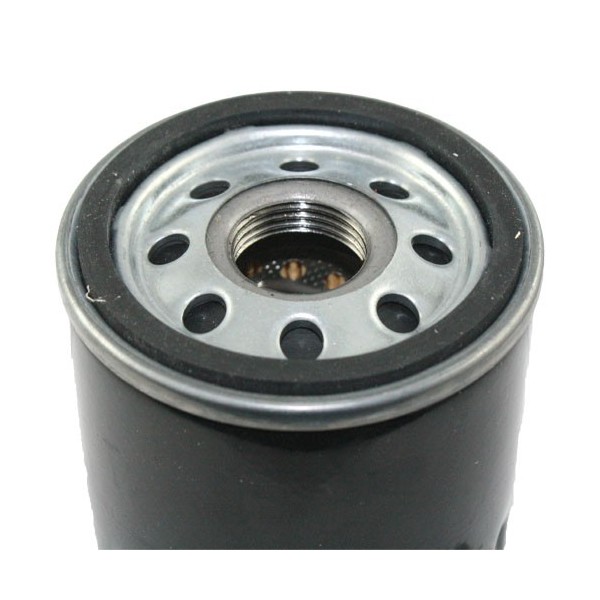

• Thread: M20x1.5, 18.50 mm.
• Weight: 0.257 mm.

Replacement for:

• Kubota 15853-9917-0
• Kubota 15853-3243-0
• Clark 6565200

Magazine: M01:F42
