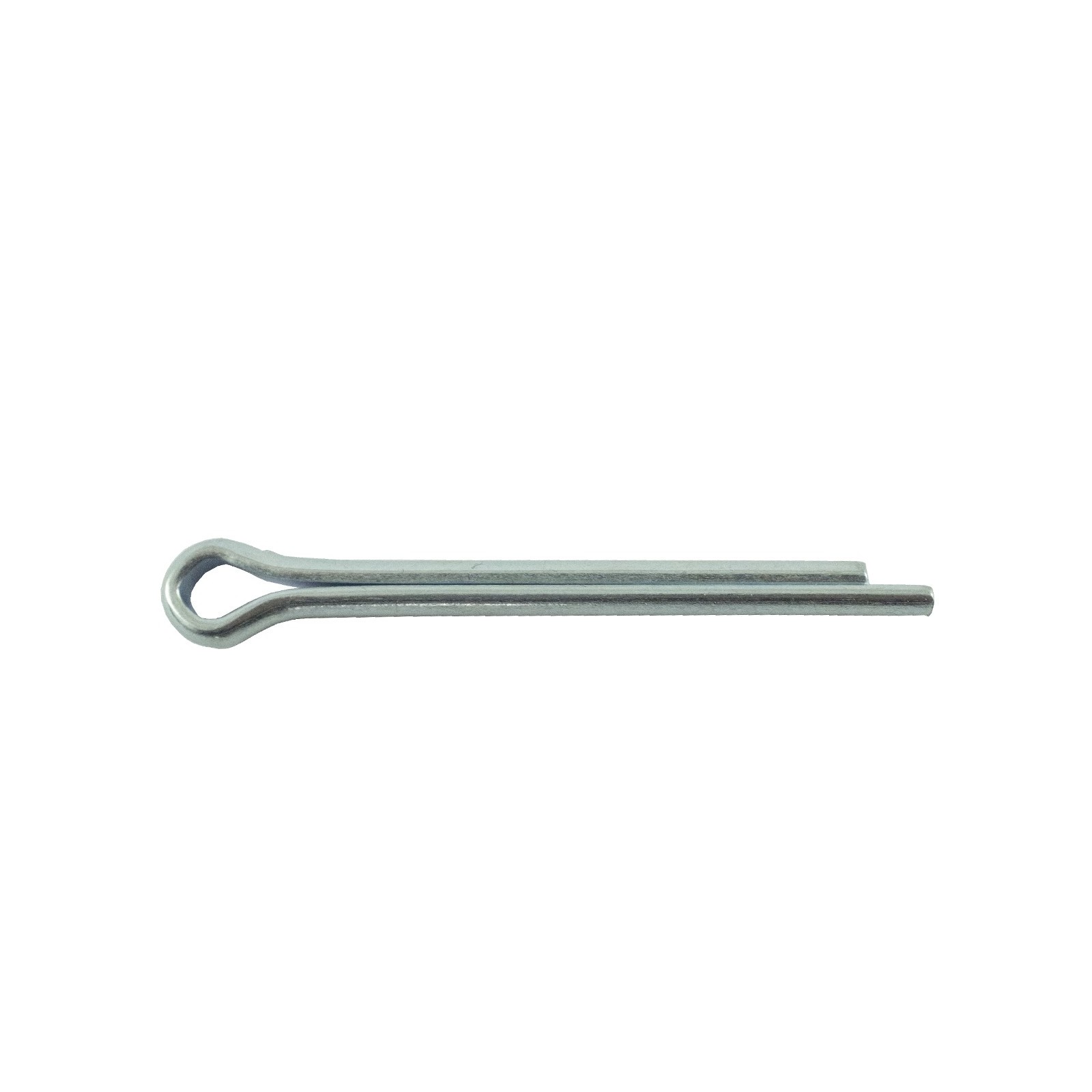

Rod end crown nut cotter pin LS MT3.35 Tractor / MT3.60 / 40029127

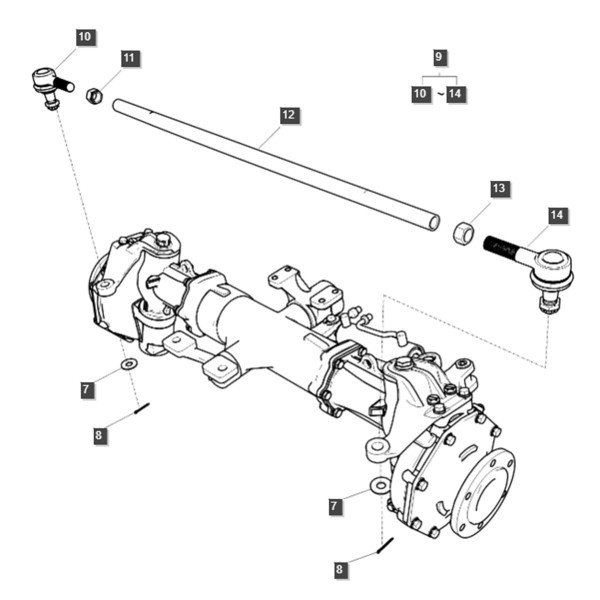

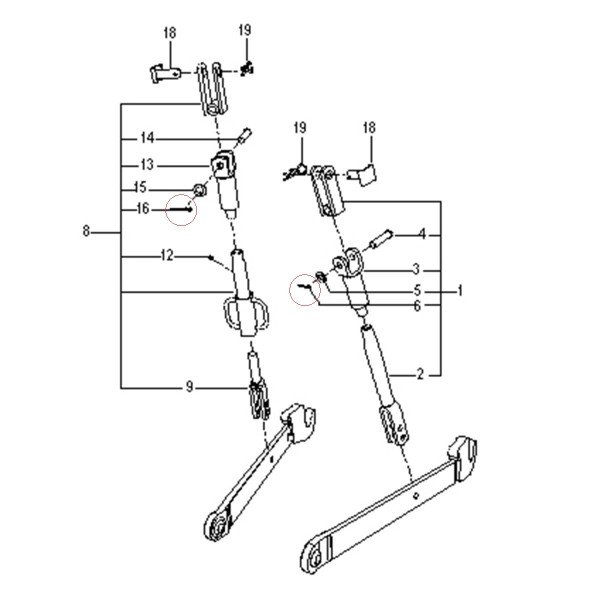

Cotter pin for the crown screw nut , 53 mm long and 4 mm in diameter, for locking the rod end nut with numbers 40425610 and 40420965 and in the rear suspension system for locking the three-point linkage arm pins of LS Tractor MT3.35, MT3.60 and other series tractors.

A locking pin is an element that prevents elements connected by pins or other elements placed on shafts or shaft axes and others from slipping, sliding or moving. Safety pins are also used to protect nuts against spontaneous unscrewing. The locking pin is most often a part made of a wire with a semicircular cross-section. A safety pin almost always has an eye and the ends of the pin are always cut in opposite directions. We use cotter pins only in elements that are not subject to high pressure or rotation forces.

Dimensions :

• length: 53 mm,
• diameter: 4 mm,
• Comparison numbers: S441403613.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.60.

Warehouse :
L01:B343
