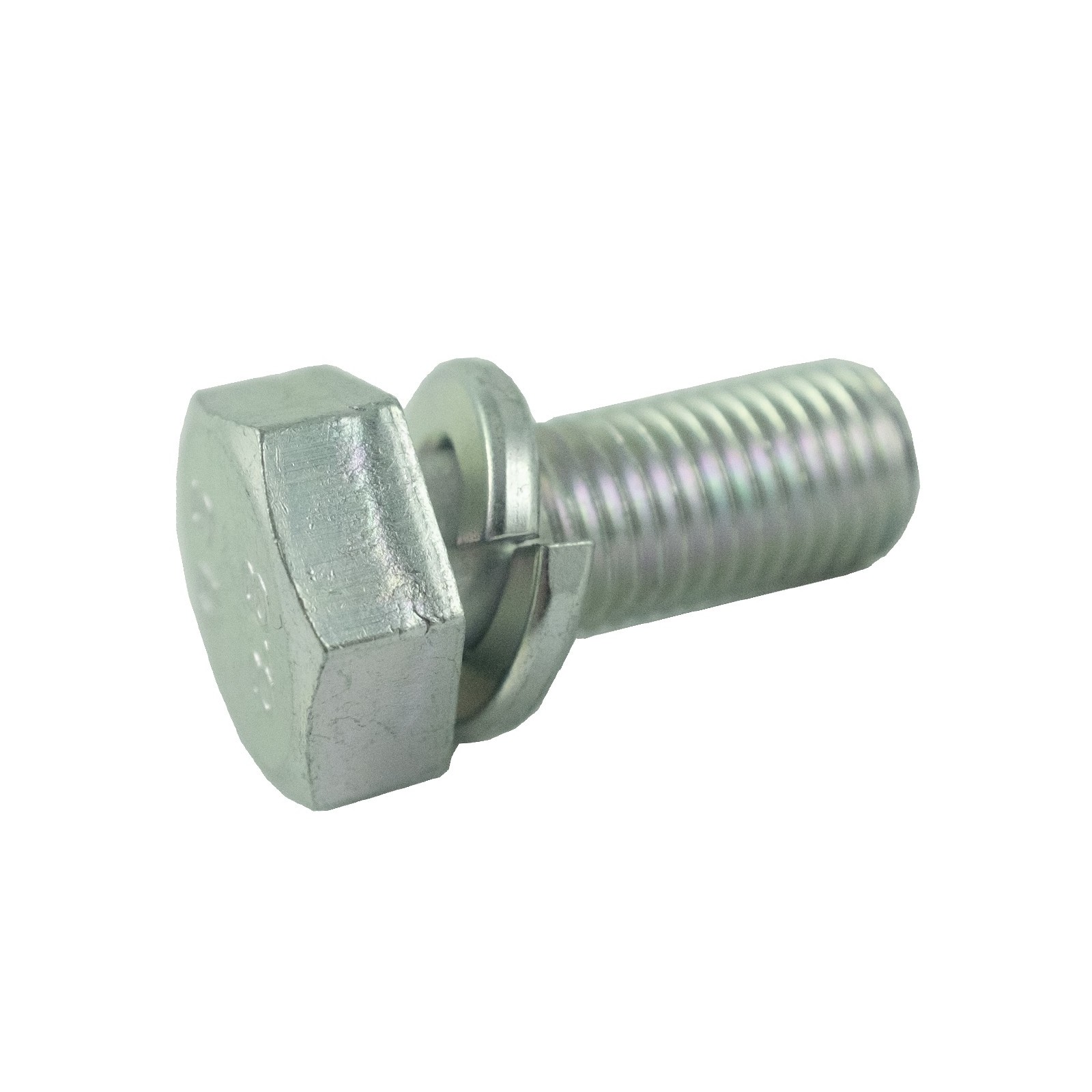

Screw M10 x 1.25 / LS XJ25 Tractor / MT3.35 / / GS / 8.8 / W / WS / S154102533 / 40028948

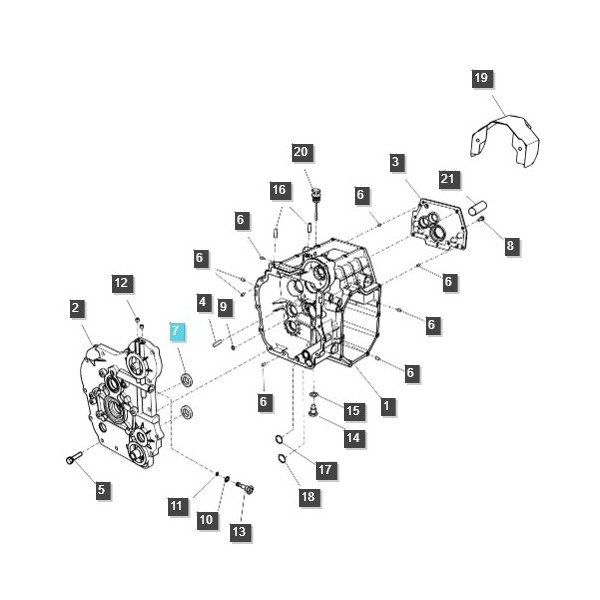

M10 screw with 1.25 thread, overall length 32 mm and hardness 8.8 . The universal bolt is present in various places on the tractor, min. in the PTO / PTO gearbox housing, in the rear axle, in the external hydraulic system, in the brake system and in the ROPS safety bar. Screw for tractors of the brand LS Tractor , series XJ25, MT3.35 and others.

Appropriate selection of the bolt in terms of strength should be made before starting the assembly, because the shape of the bolt and technical parameters may have a direct impact on the safety and durability of the connection. We distinguish 3 classes of bolt accuracy , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength: 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8 , 9.8, 10.9, 12.9 where the first number denotes the tensile strength limit and the second, the yield strength with respect to the first value (percentage). The higher the values, the greater the strength of the bolt, and so 3.6 is the lowest quality bolt (low carbon steel) and 12.9 is the highest strength class (low alloy steel).

Dimensions :

• total length: 32 mm,
• working length: 25 mm,
• thread length: 18 mm,
• thread: M10 x 1.25,
• spanner size: 17,
• standards and strength classes: GS / 8.8,
• comparative numbers: W / WS-S154102533.

Tractor models :

LS Tractor :

• LS XJ25,
• LS MT3.35.

Warehouse :
M01: C21: S02
