Product description

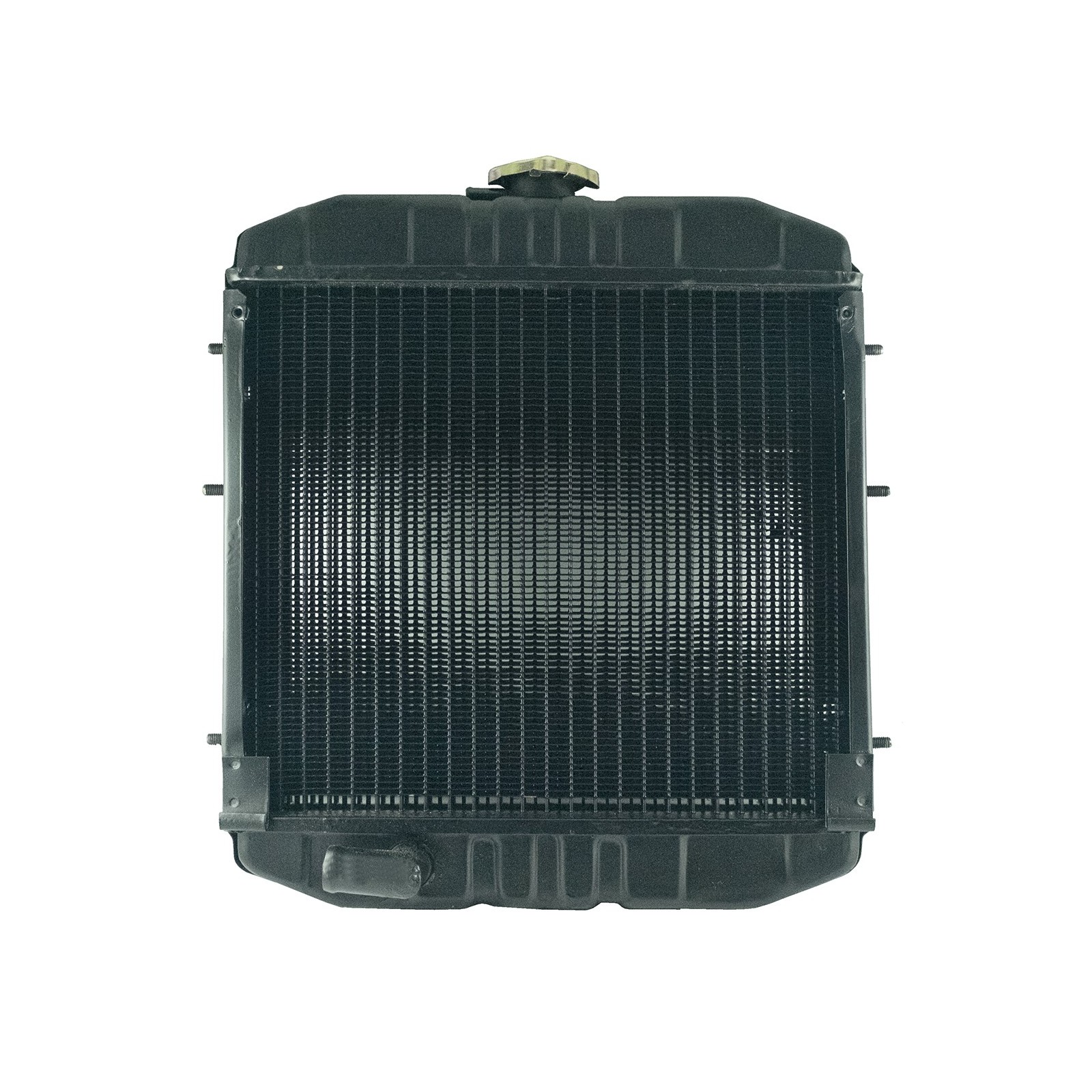

Radiator dimensions 420 x 485 x 95 mm for Iseki tractors of the TA series and others.
The engine block and cylinder head radiator is a device whose task is to cool the engine by circulating the coolant contained in the engine's water channels and the radiator itself. The coolant is gradually cooled by air generated by the radiator fan, which is driven by the coolant pump while the engine is running. The radiator is constructed of water channels that are carefully arranged and enclosed in metal fins. The metal fins of the radiator allow for faster heat dissipation from the engine, increasing cooling efficiency.
Dimensions :
- height: 485 mm.
- width: 420 mm.
- thickness: 95 mm,
- mounting bolt spacing: 95 / 165 mm,
- diameter of the connectors: internal 25.50 / 28 mm, external: 28 / 32 mm,
- reference numbers: 1560104-24000.
The first signs of a malfunctioning radiator include the temperature warning lights on the dashboard illuminating, the radiator fluid boiling, thick steam escaping, a dislodged reservoir cap, or a coolant leak. The most common radiator failures are caused by scale buildup inside the cooling lines, which restricts fluid flow and leads to failure.
Magazine : K18:R15
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Iseki..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
