Available
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Isuzu 3AD1
suzu 3AF1
Tractor models
Iseki TE3210
Iseki TU1700
Iseki TU1701
Iseki TU1900
Iseki TU1901
Iseki TU2100
Iseki TU2101
Height (mm)
410
Width (mm)
360

Radiator / Iseki TE3210 / TU1700 / TU1701 / TU1900 / TU1901 / TU2100 / TU2101

ARK2073/Type 4
zł1,599.00
Tax included PL 23%

1300 netto

  • Dostępność (10 Quantity): stock

Do you have any questions?

Radiator / Iseki TE3210 / TU1700 / TU1701 / TU1900 / TU1901 / TU2100 / TU2101

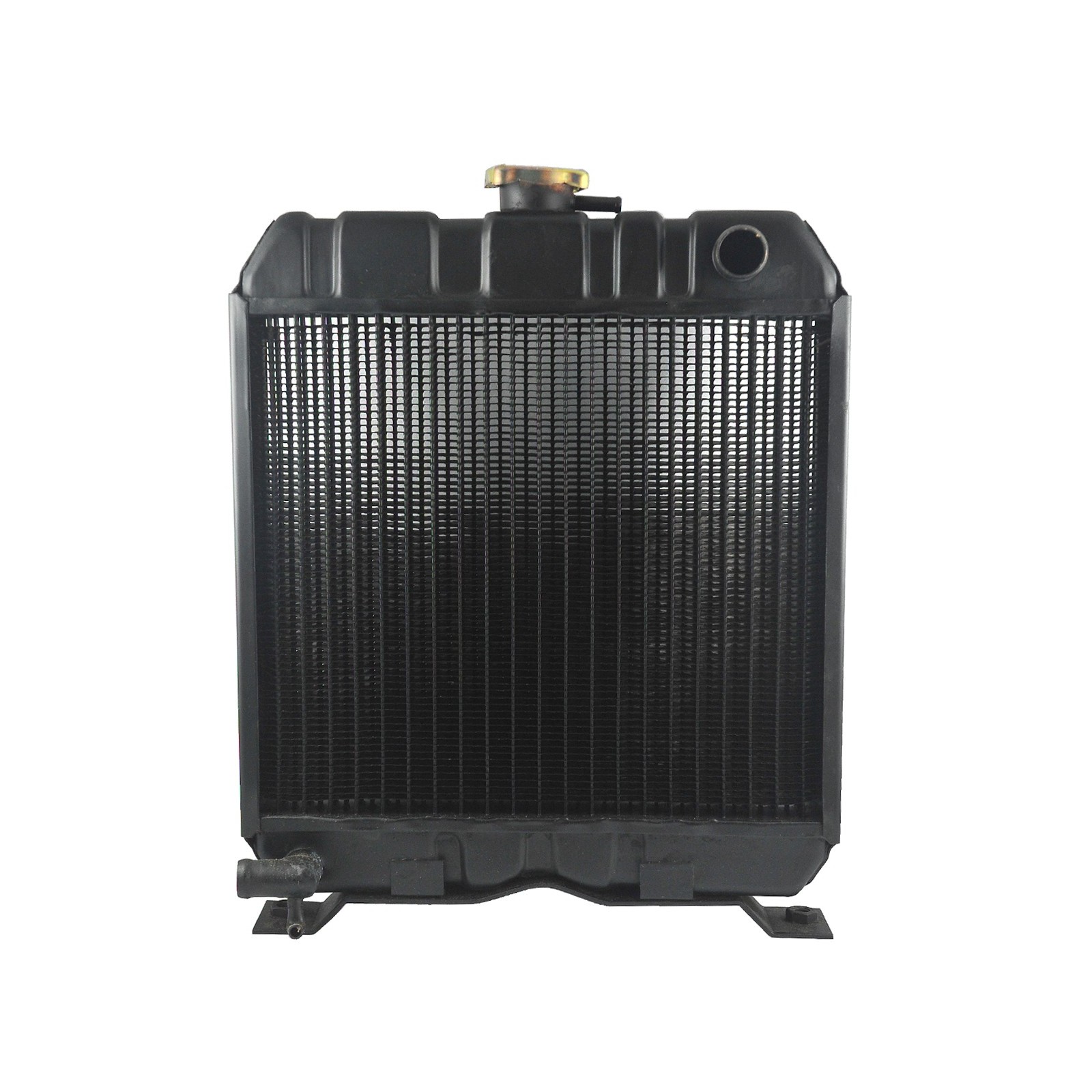

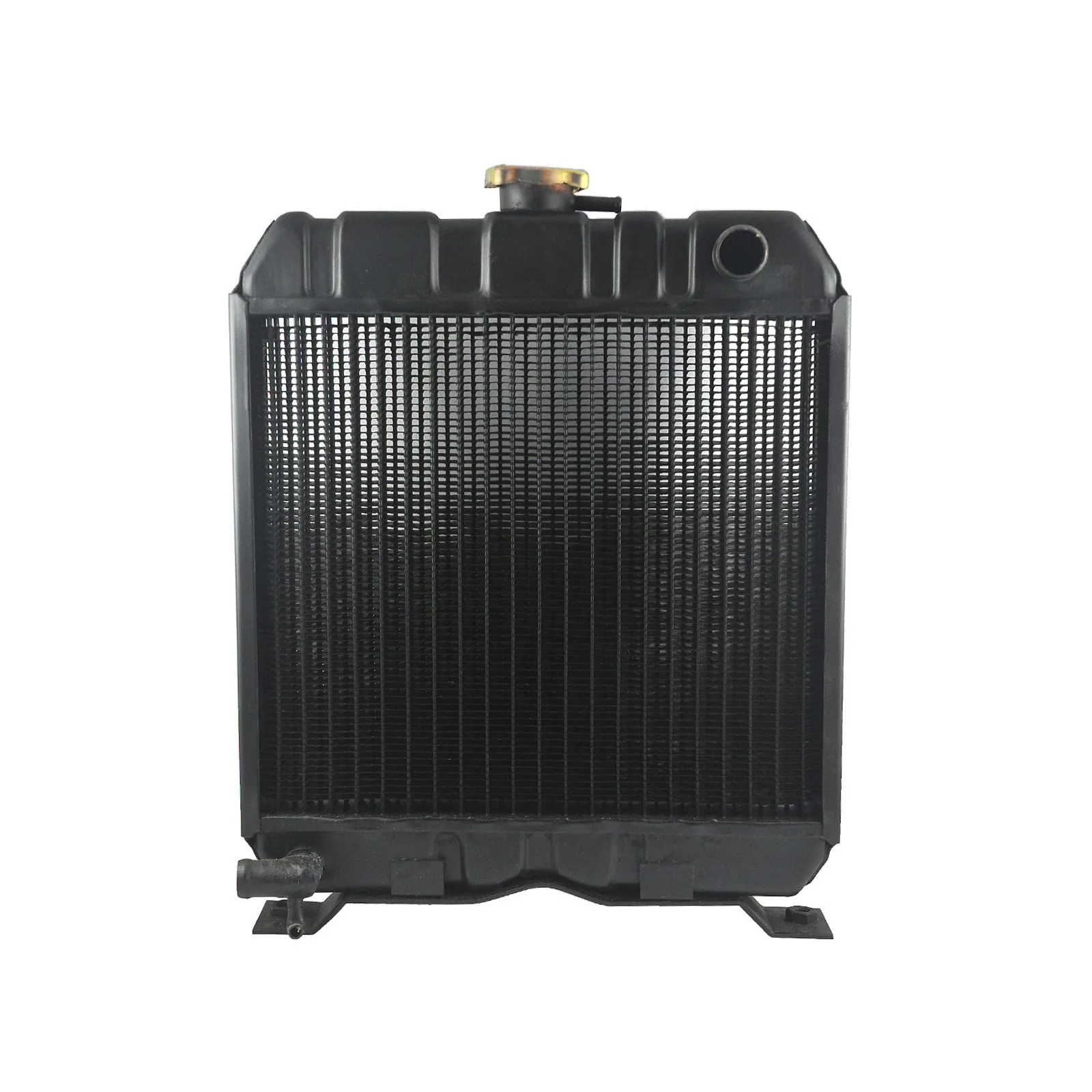

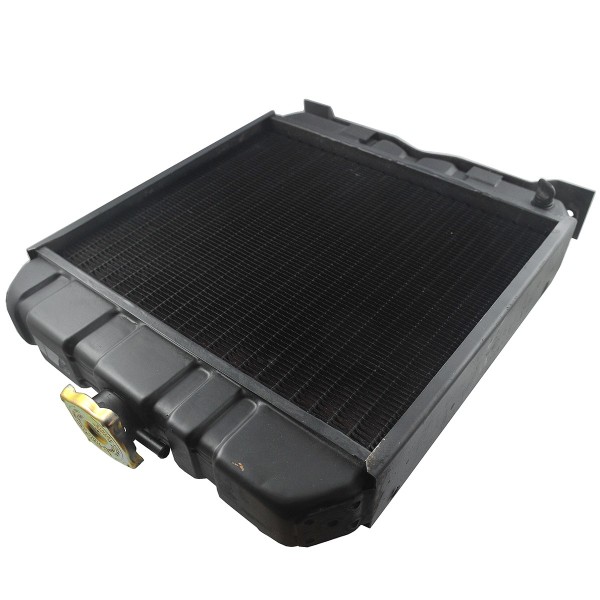

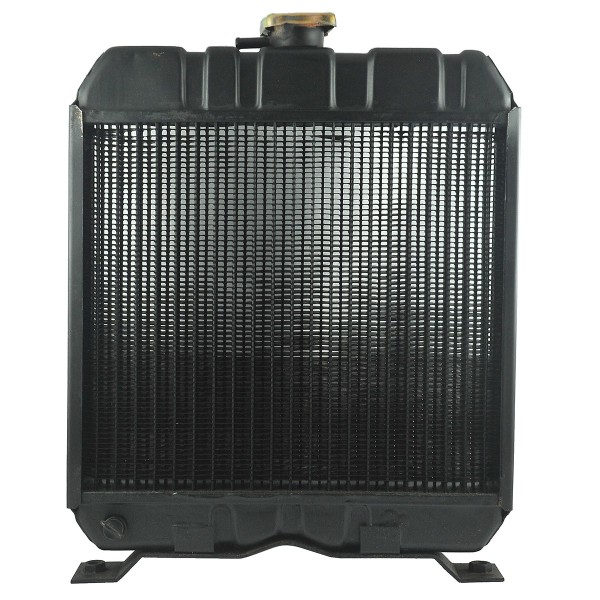

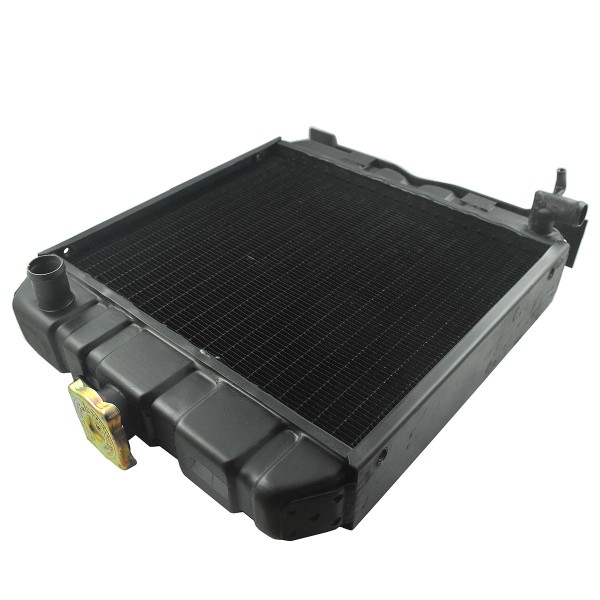

Radiator (hose 36010 , 1480-102-004-000) with a total height of 455 mm , a width of 360 mm and a thickness of 70 mm for Iseki tractors of the Iseki TE3210, Iseki TU1700, Iseki TU1701, Iseki TU1900, Iseki TU1901, Iseki TU2100, Iseki TU2101 series with Isuzu 3AD1, Isuzu 3AF1 and other engines.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

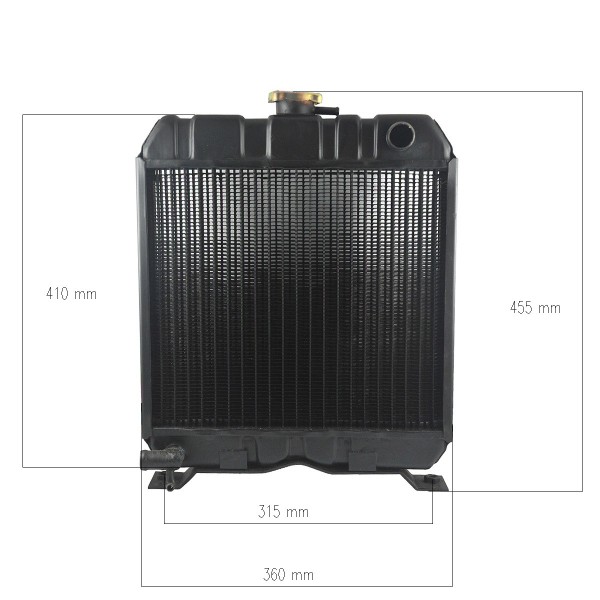

Dimensions :

  • total height: 455 mm,
  • height: 410 (measured without filler and mounting screws),
  • width: 360mm,
  • spacing of mounting screw holes: 315 mm,
  • original part numbers: 1480-102-2020, 1480-102-200-00,
  • reference numbers: 33-0129704,
  • part numbers: ARK2073.

The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.

Magazine : M01:K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K19:S3
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Isuzu 3AD1
suzu 3AF1
Tractor models
Iseki TE3210
Iseki TU1700
Iseki TU1701
Iseki TU1900
Iseki TU1901
Iseki TU2100
Iseki TU2101
Height (mm)
410
Width (mm)
360
Bolt hole spacing (mm)
315
Comparison numbers
33-0129704
Original Part Number (OEM)
1480-102-200-00
1480-102-2020
Part number
ARK2073
Total height (mm)
455
