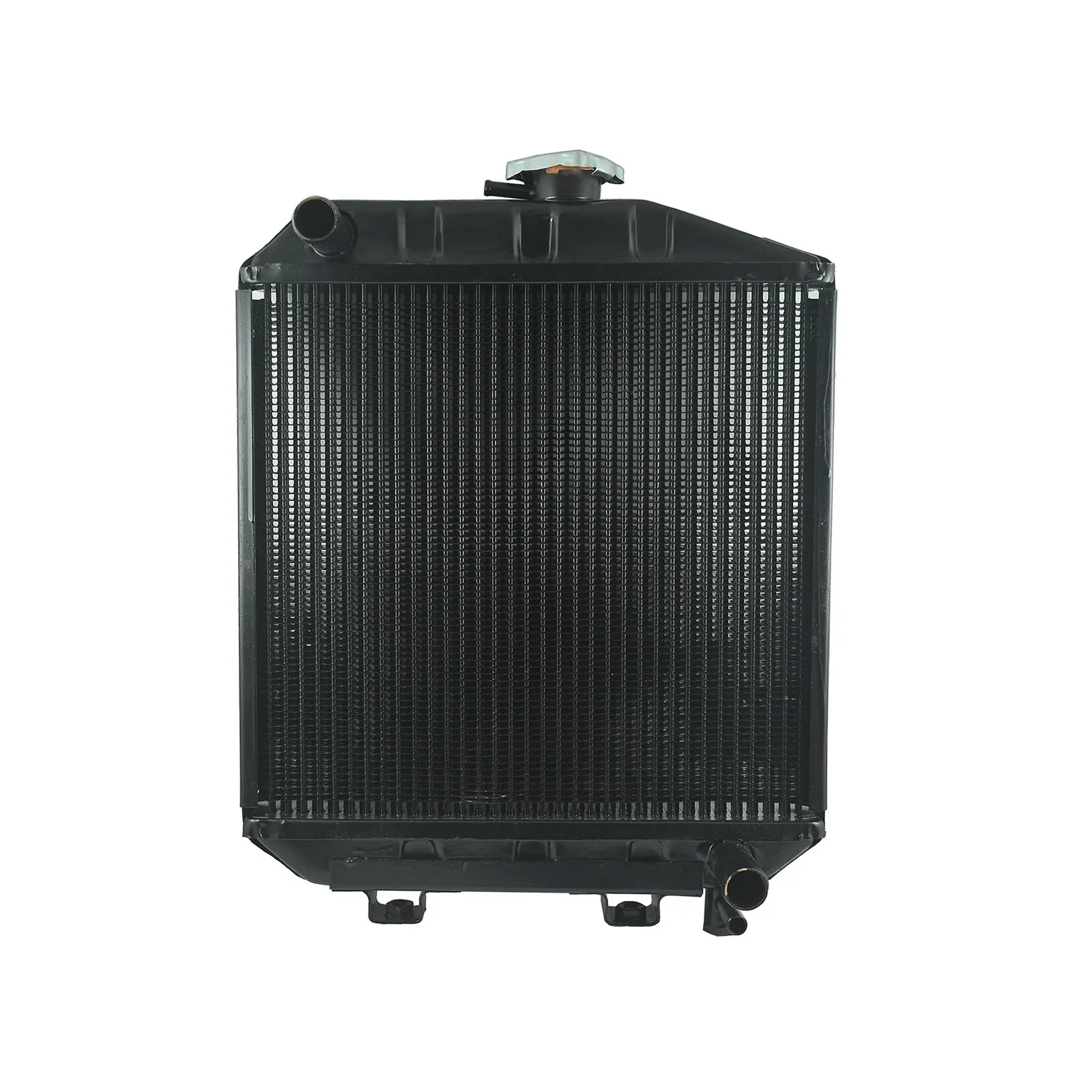

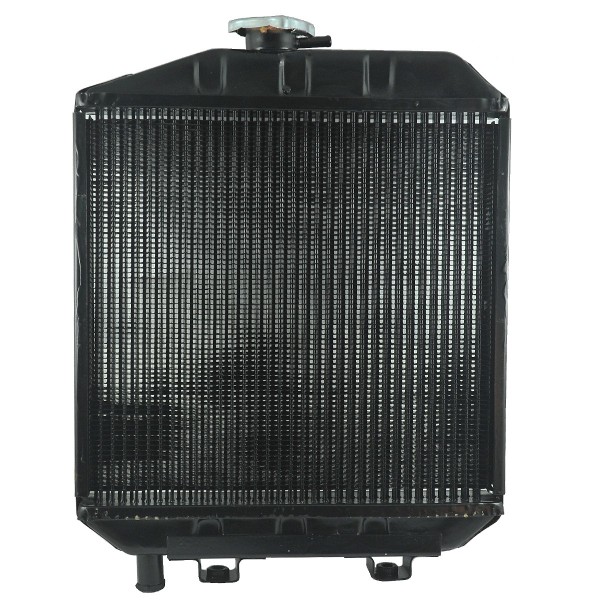

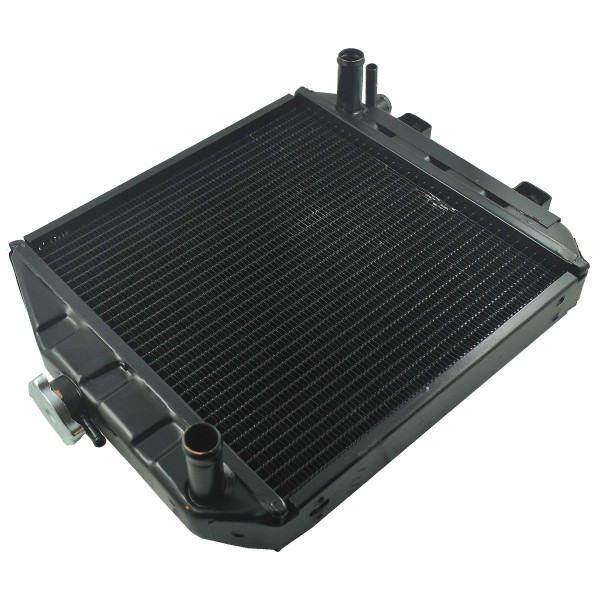

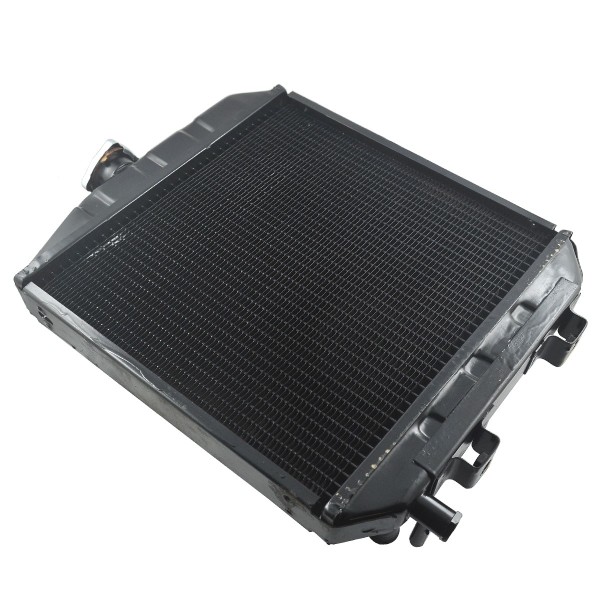

Radiator / Kubota Bulltra B1-14 / B1-15 / B1-16 / B1-17

Radiator (hose 36011 , 15531-72870, 36014 , 15694-72850, 36015 , 15694- 72940) 425 mm high, 360 mm wide and 50 mm thick for Kubota tractors Kubota Bulltra B1-14, Kubota Bulltra B1-15, Kubota Bulltra B1-16, Kubota Bulltra B1-17 series with Kubota D850, Kubota D950 and other engines.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

Dimensions :

• height: 425 mm.
• width: 360mm.
• thickness: 50mm,
• spacing of mounting screw holes: 145 mm (horizontal holes), 275 mm (vertical holes),
• diameter of connections: 22 mm (IN) 25 mm (OUT),
• original part numbers: 15694-72060.

The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.

Magazine : M01:M31

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
