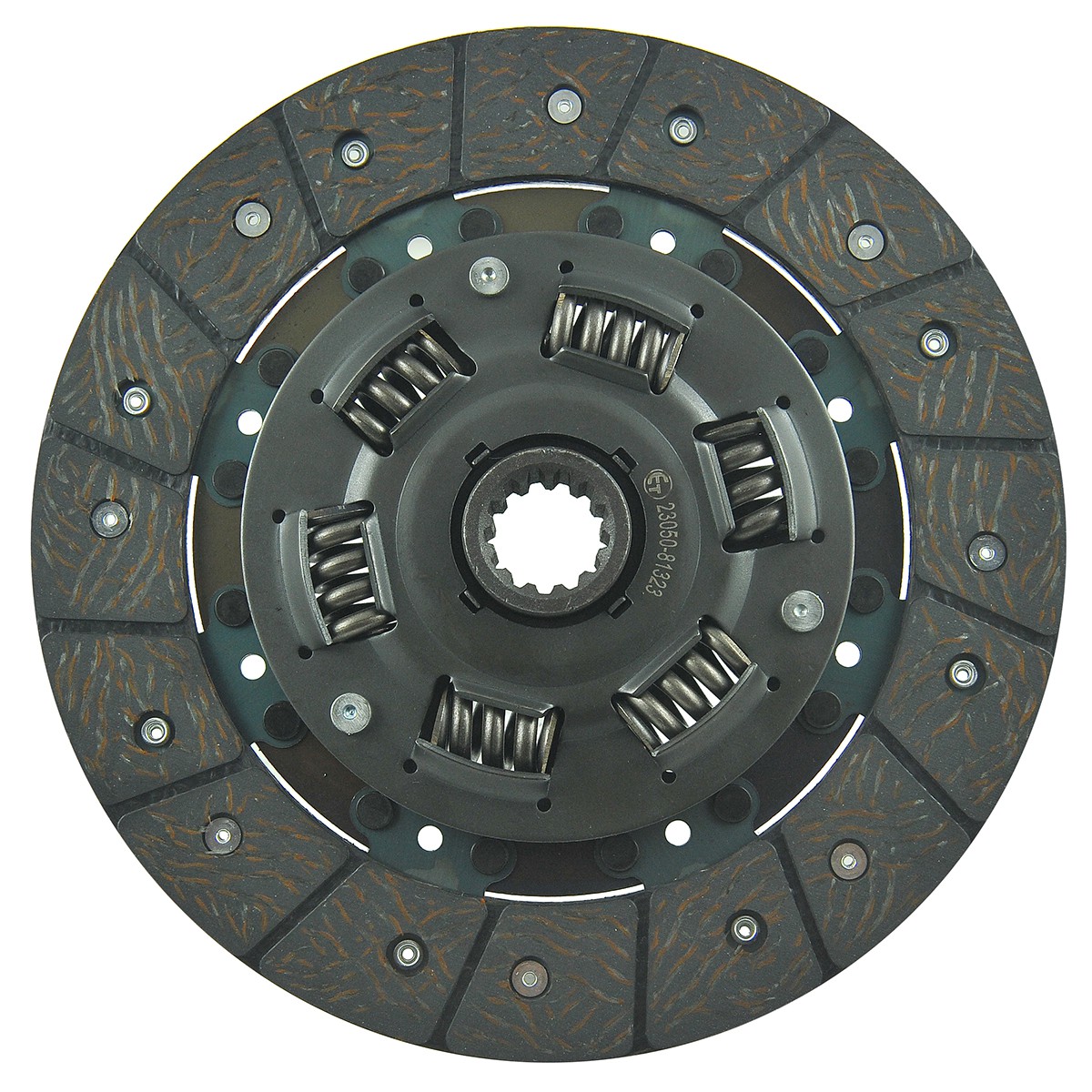

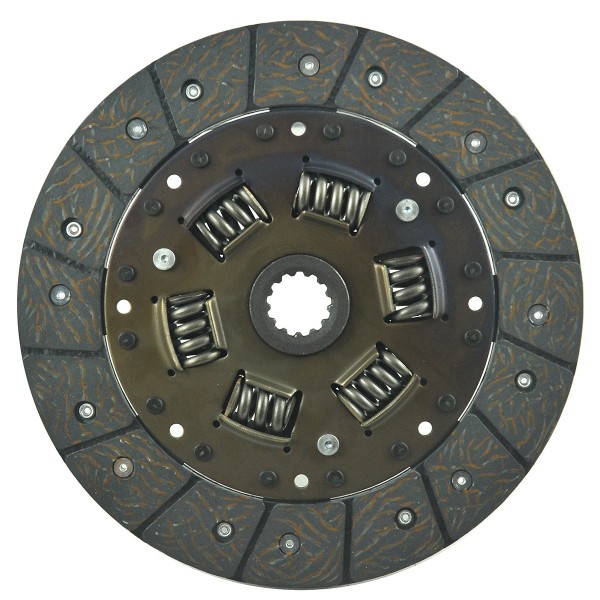

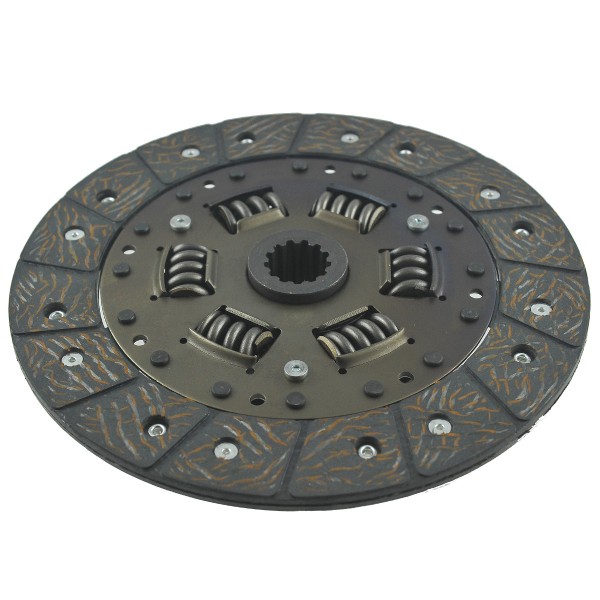

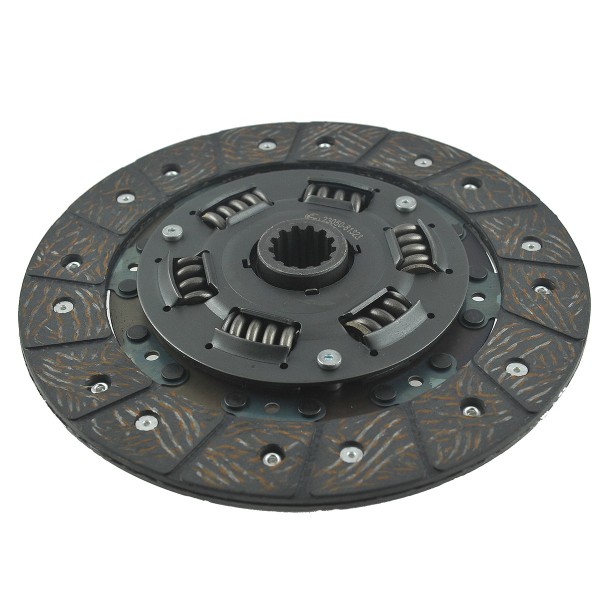

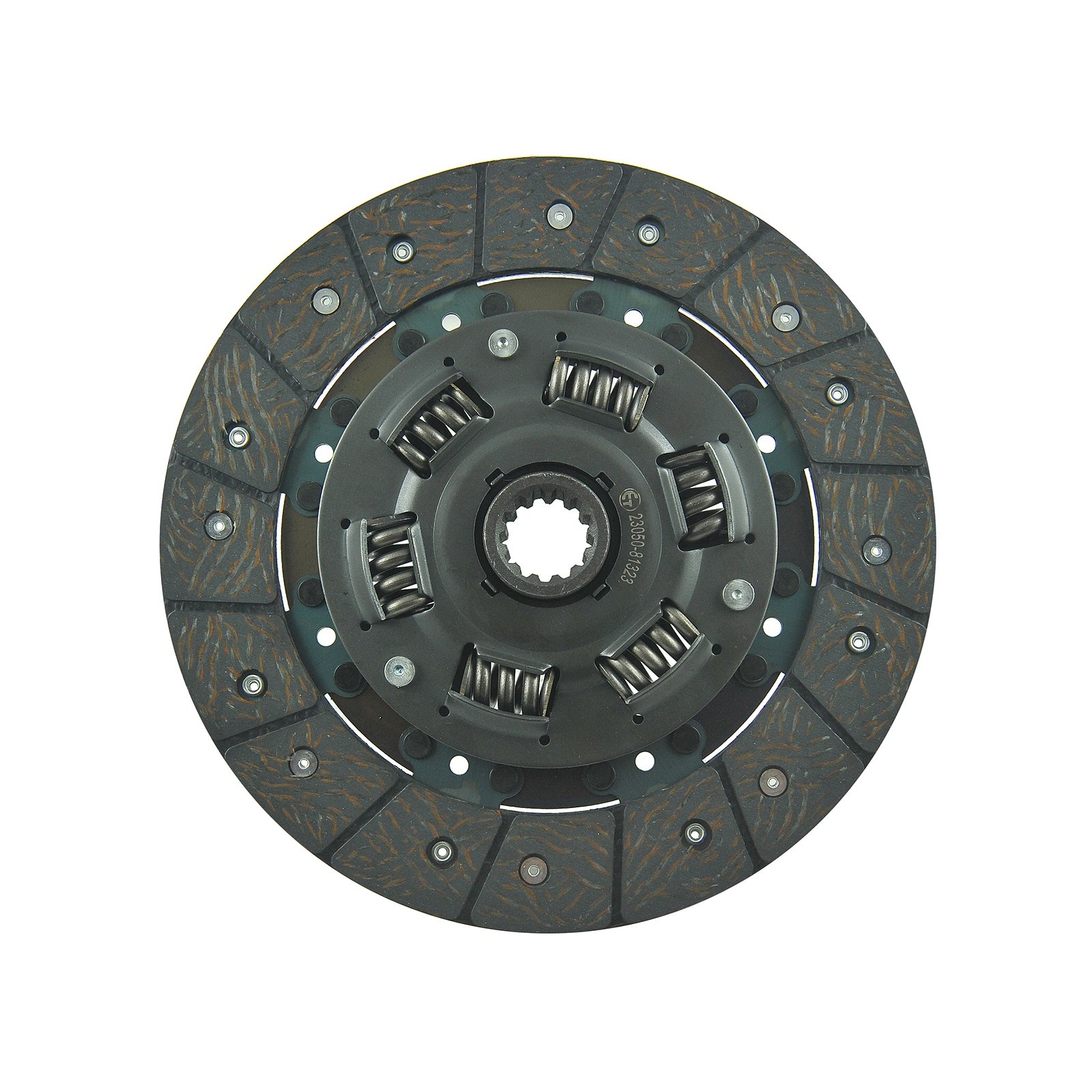

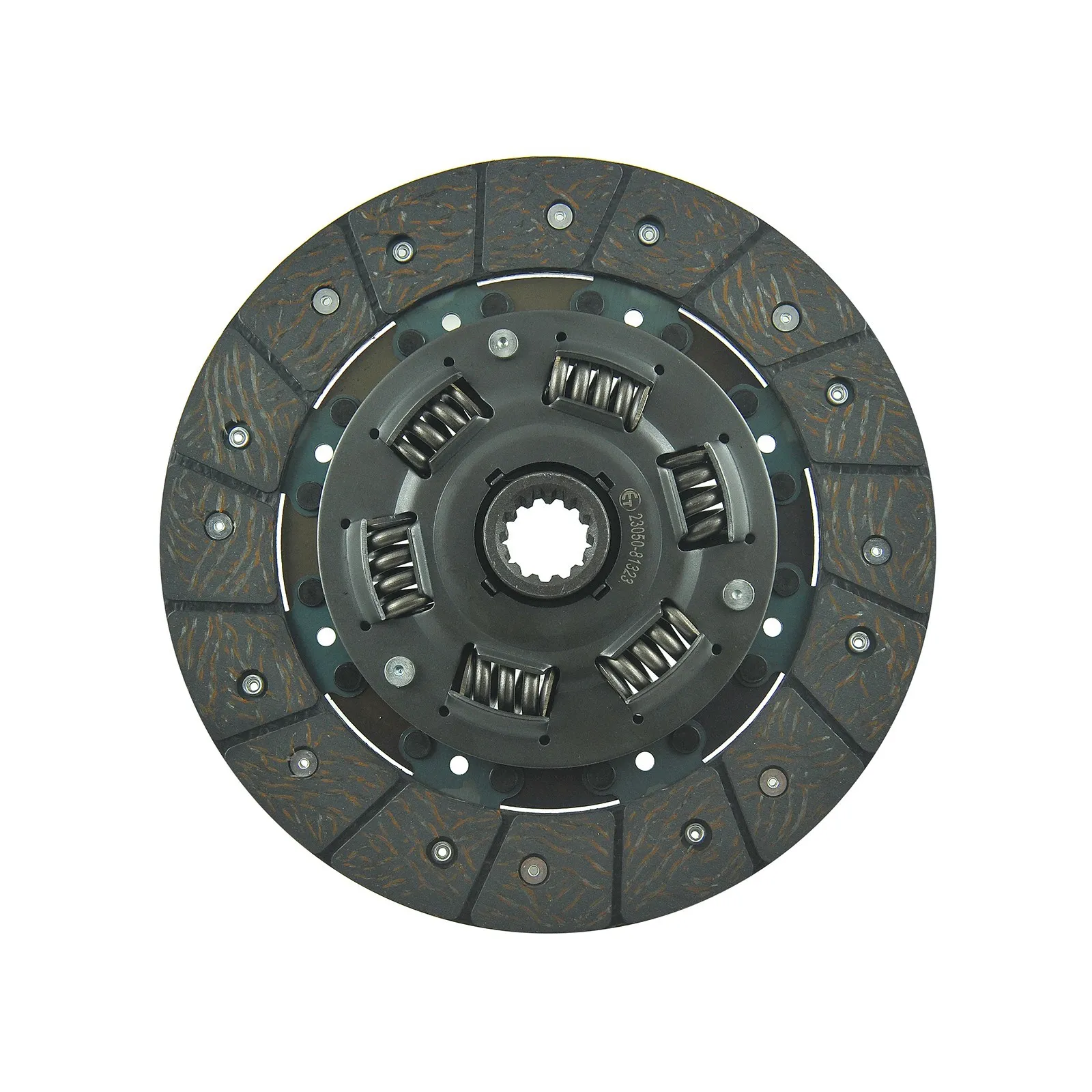

13T clutch disc (pressure plate) with a diameter of 215 mm, a hub height of 25 mm , an internal diameter measured between the teeth of 25.60 mm and 21 mm measured together with the spline teeth for Hinomoto, Yanmar tractors of the Case IH 274, Case IH 284, Hinomoto E21, Hinomoto E23, John Deere 670, John Deere 770, John Deere 850, John Deere 950, Yanmar YM2200, Yanmar YM2420, Yanmar YM2500, Yanmar YM2610, Yanmar YM2620, Yanmar YM2700, Yanmar YM2820, Yanmar YM3000, Yanmar YM3110, Yanmar YM3220, Yanmar YM330, Yanmar YM336, Yanmar YM3810, Yanmar F255, Yanmar F265, Yanmar FX255, Yanmar FX26, Yanmar FX265, Yanmar FX28, Yanmar FX32 and others.
The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.
Dimensions :
- Outer diameter: 215 mm (8 1/2" inch),
- Inner diameter: 25.05 mm (measured between cutter teeth), 21.65 mm (measured together with the cutter),
- Hub height: 25 mm,
- Number of teeth 13T,
- Thickness: 8.30 mm,
- Original part numbers: S-M802964, S-CH18375, 3435019M1, 194320-21510, 194320-21401, 2202-3200-01, 1062027C3, 1062027C1, 1062027C2, 1032027C2, 973727C2, 973727C3, 973727C1,
- Comparison numbers: %C5% 82a-8-1213t-hinomoto-kubota-yanmar.html">S.20330 ,
- Part numbers: 8-05-100-04
Tractor models :
Case :
- Case IH 274,
- Case IH 284.
Hinomoto :
- Hinomoto E21,
- Hinomoto E23,
- Hinomoto E25.
John Deere :
- John Deere 670,
- John Deere 770,
- John Deere 850,
- John Deere 950.
Yanmar :
- Yanmar F255,
- Yanmar F265,
- Yanmar FX26,
- Yanmar FX28,
- Yanmar FX32,
- Yanmar FX255,
- Yanmar FX265.
The first signs of clutch disc wear (wear) are clutch slippage, which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.
Magazine : K18:A30
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
