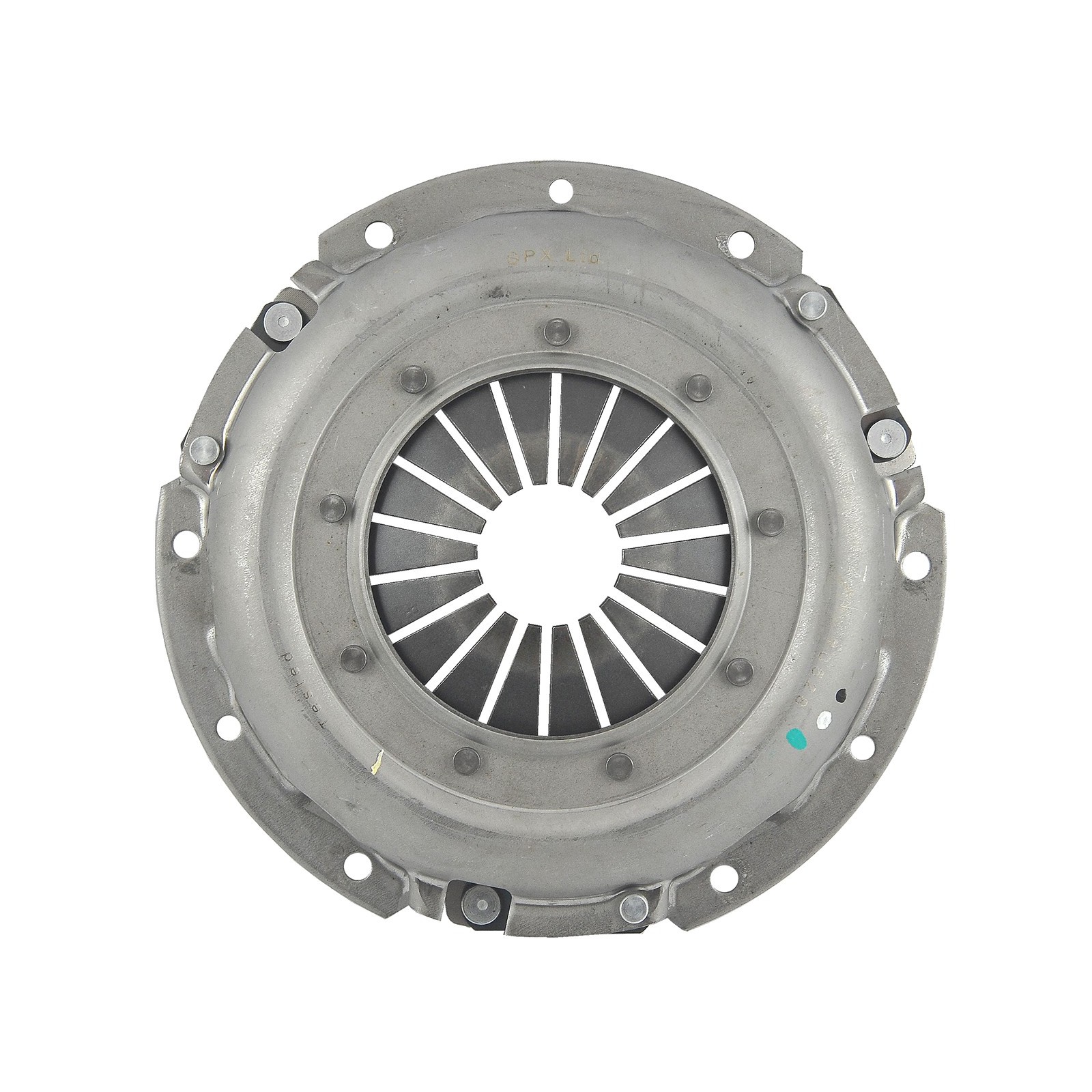

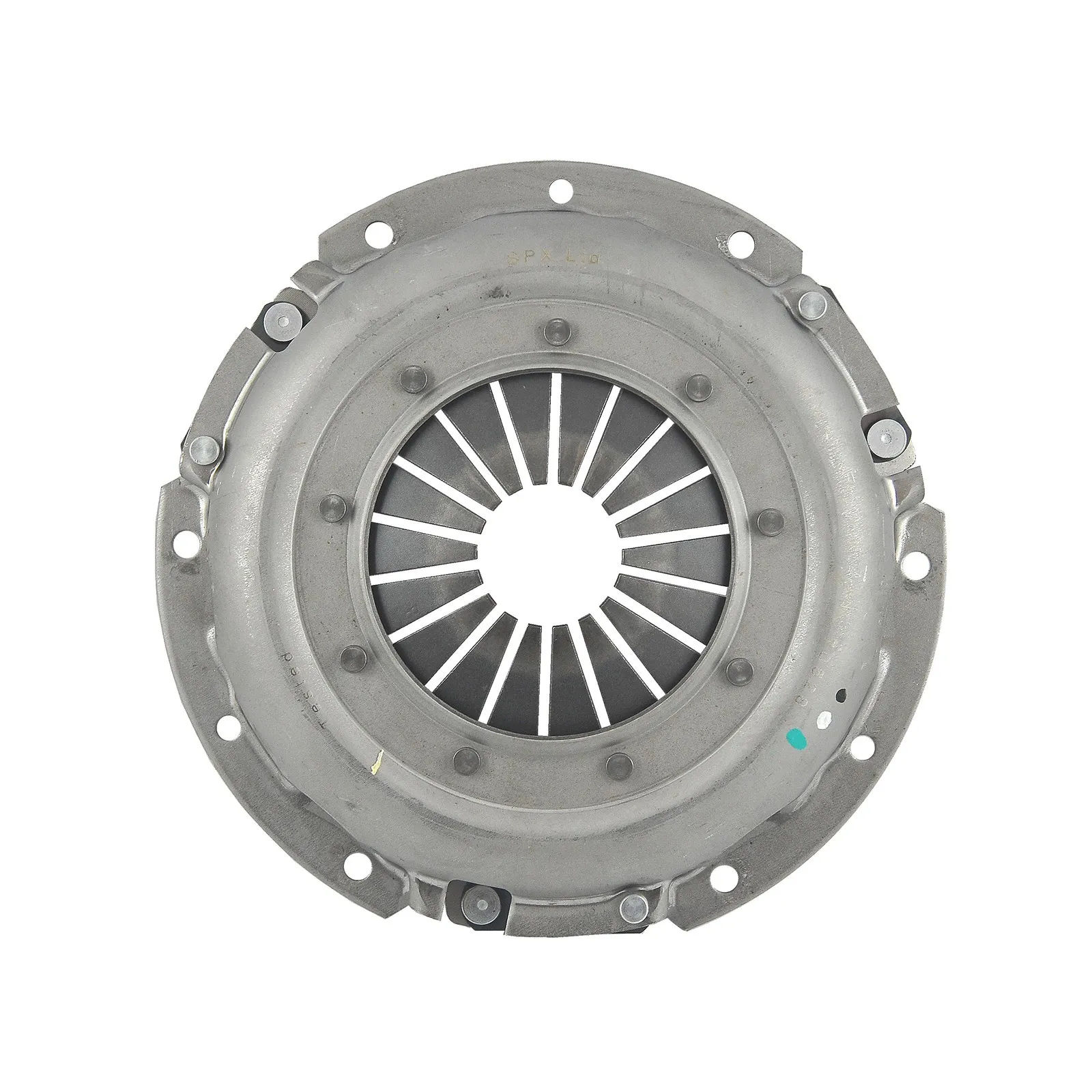

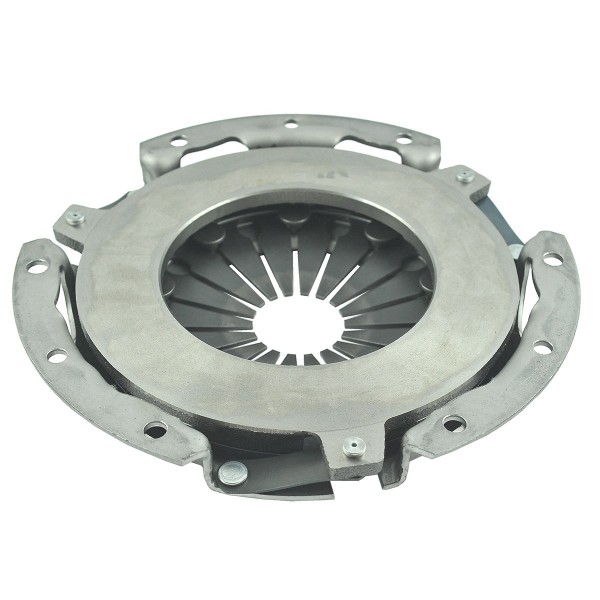

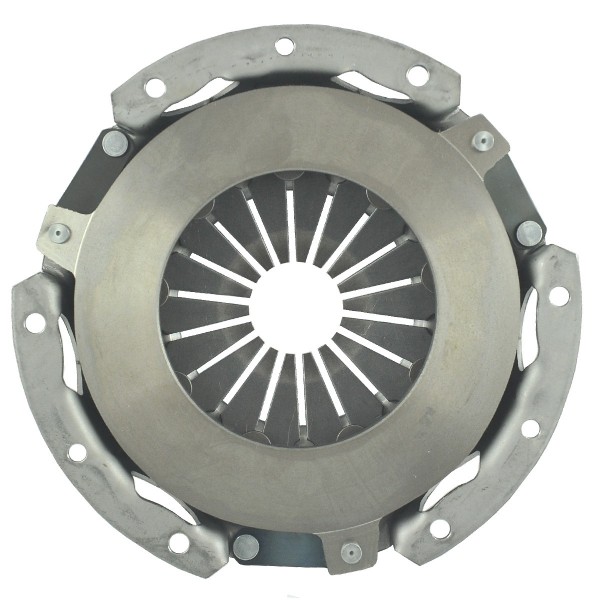

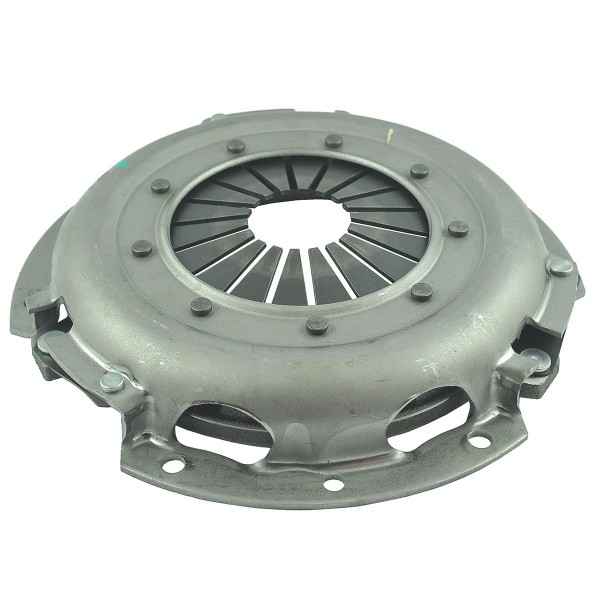

Clutch Pressure Plate / 8"(inch) / 255 mm / Hinomoto E16 / E18 / Yanmar D / FX / YM / 2402-3100-00 / S.70528

Clutch disc pressure plate (Yanmar disc %C5% 9Bci-do-yanmar/5298-platza-sprz %C4% 99g %C5% 82a-yanmar-ym-20t.html"> S.70529 , Hinomoto 7-05-100-06 , 2402-3100-00) for Hinomoto tractors Hinomoto E16, Hinomoto E18 series, Yanmar tractors Yanmar F18 series, Yanmar tractors F20, Yanmar tractors F22, Yanmar tractors F24, Yanmar tractors F215, Yanmar tractors F235 ... YM195, Yanmar YM220, Yanmar YM226, Yanmar YM240, Yanmar YM250, Yanmar YM276, Yanmar YM1500, Yanmar YM1600, Yanmar YM1700, Yanmar YM1800, Yanmar YM1802, Yanmar YM1810, Yanmar YM1820, Yanmar YM1900, Yanmar YM2000, Yanmar YM2001, Yanmar YM2002, Yanmar YM2010, Yanmar YM2020, Yanmar YM2202, Yanmar YM2210, Yanmar YM2220, Yanmar YM226D, Yanmar YM2301, Yanmar YM2310, Yanmar YM2402, Yanmar YM2420 and others.

The clutch pressure plate is the component that connects the gearbox to the engine and is therefore responsible for transferring torque from the engine, through the gearbox, to the tractor's drivetrain. To simplify this complex process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing speed ratios. The clutch pressure plate consists of a housing, compression springs, and a clutch disc. Its main function is to exert sufficient frictional force on the clutch disc to prevent the two components (pressure plate and disc) from rotating at different speeds.

Dimensions :

• Overall diameter (housing): 255 mm,
• Internal diameter of the pressure plate: 125 mm,
• Outer diameter of the pressure plate: 200 mm,
• Height: 35 mm,
• Mounting screw hole spacing: 115 mm (measured from each other), 235 mm (measured diagonally),
• Original part numbers: 2402-3100-00,
• Comparison numbers: %C5% 82a-john-deere-650-750-yanmar-ym1500-ym1500d-ym1600-ym1700-ym1810-ym1900-ym195-ym2000-ym2010-ym2001.html">794150-21700,
• Part numbers: S.70528.

Tractor models :

Hinomoto :

• Hinomoto E16,
• Hinomoto E18.

Yanmar :

• Yanmar F18,
• Yanmar F20,
• Yanmar F22,
• Yanmar F24,
• Yanmar F215,
• Yanmar F235,
• Yanmar FX18,
• Yanmar FX22,
• Yanmar FX24,
• Yanmar FX195,
• Yanmar FX215,
• Yanmar FX235,
• Yanmar YM195,
• Yanmar YM220,
• Yanmar YM226,
• Yanmar YM240,
• Yanmar YM250,
• Yanmar YM276,
• Yanmar YM1500,
• Yanmar YM1600,
• Yanmar YM1700,
• Yanmar YM1800,
• Yanmar YM1802,
• Yanmar YM1810,
• Yanmar YM1820,
• Yanmar YM1900,
• Yanmar YM2000,
• Yanmar YM2001,
• Yanmar YM2002,
• Yanmar YM2010,
• Yanmar YM2020,
• Yanmar YM2202,
• Yanmar YM2210,
• Yanmar YM2220,
• Yanmar YM226D,
• Yanmar YM2301,
• Yanmar YM2310,
• Yanmar YM2402,
• Yanmar YM2420.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Magazine : K18:A24

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
