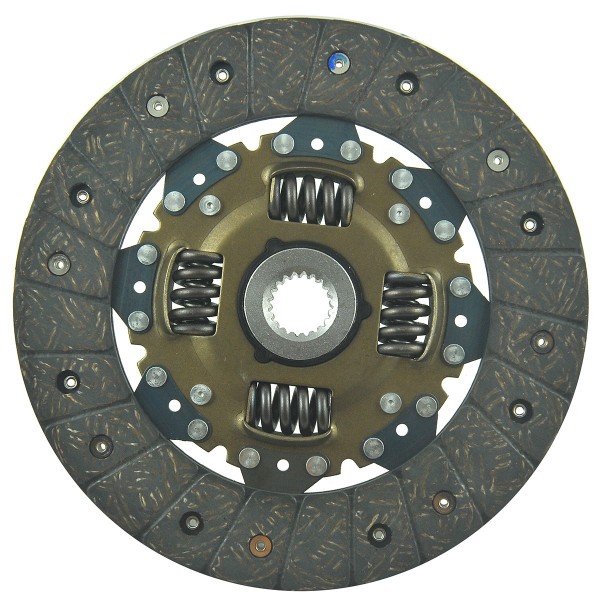

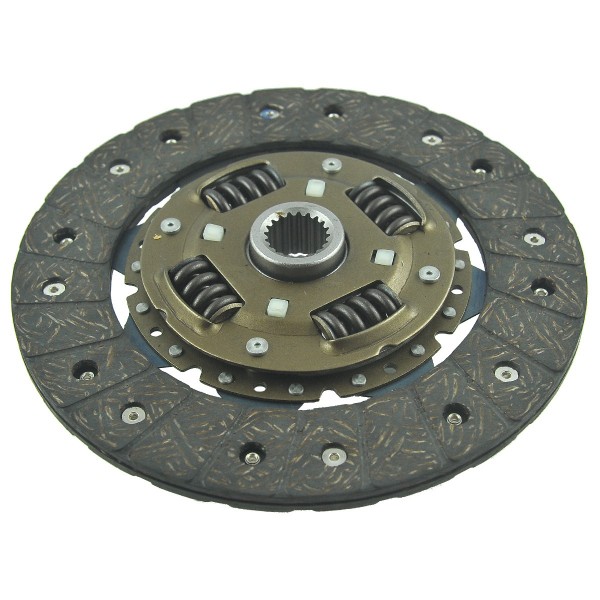

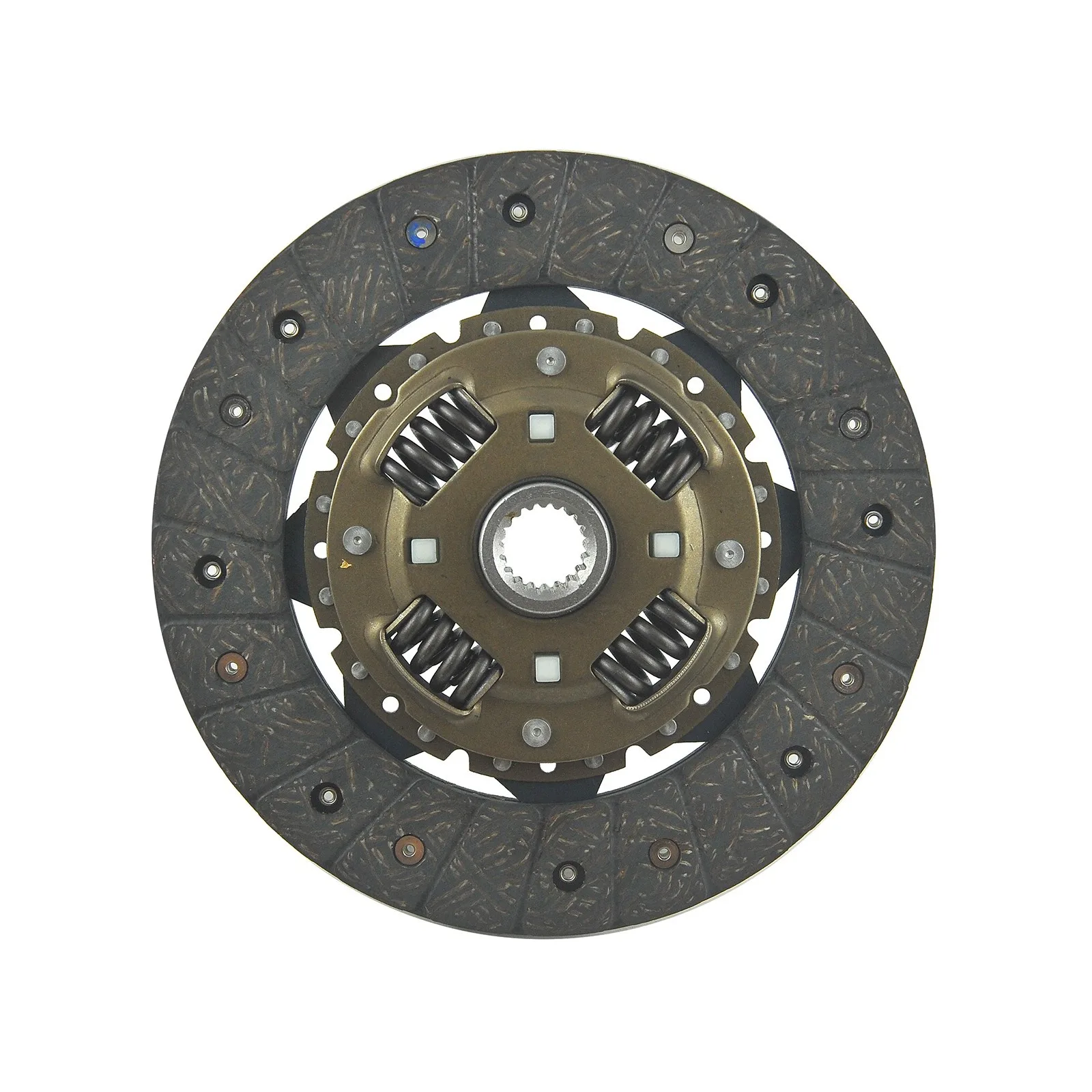

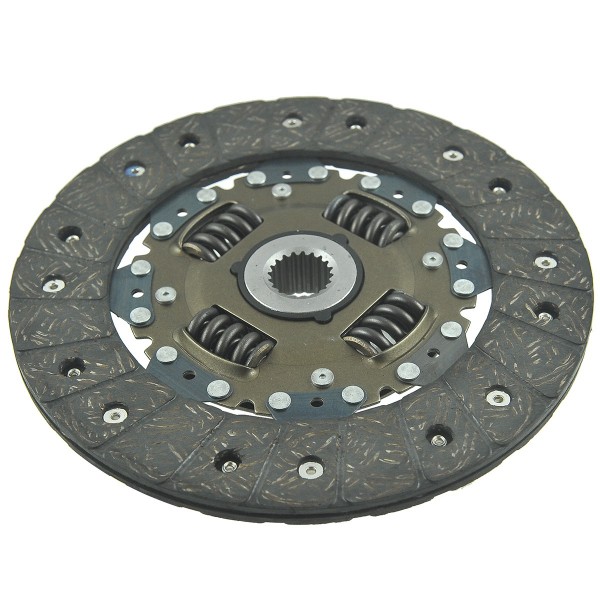

Clutch disc 20T (pressure %C5% 82a-john-deere-650750-yanmar-ym1500-ym1500d-ym1600-ym1700-ym1810-ym1900-ym195-ym2000-ym2010-ym2001.html">794150-21700 , bearing 194990-42710) with a diameter of 200 mm , hub height 24 mm , inner diameter measured between teeth 22.50 mm (19.50 mm measured together with spline teeth) for Yanmar tractors of the Yanmar FX215 , Yanmar YM195, Yanmar YM220, Yanmar YM226, Yanmar YM240 series, Yanmar YM250, Yanmar YM276, Yanmar YM1500, Yanmar YM1600, Yanmar YM1700, Yanmar YM1810, Yanmar YM1900, Yanmar YM2000, Yanmar YM2001, Yanmar YM2010, Yanmar YM2210, Yanmar YM2220, Yanmar YM2301, Yanmar YM2310 , John Deere brands , John Deere 650 series, John Deere 780 and others.
The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.
Dimensions :
- Outer diameter: 200 mm,
- Inner diameter: 22.50 mm (measured between cutter teeth), 19.50 mm (measured together with cutter teeth),
- Number of teeth: 20T,
- Hub height: 24 mm,
- Thickness: 9 mm,
- Original part numbers: S-M805461, 194361-21400, 794150-21400,
- Part numbers: S.70529.
Tractor models :
Yanmar :
- Yanmar FX215,
- Yanmar YM195,
- Yanmar YM220,
- Yanmar YM226,
- Yanmar YM240,
- Yanmar YM250,
- Yanmar YM276,
- Yanmar YM1500,
- Yanmar YM1600,
- Yanmar YM1700,
- Yanmar YM1810,
- Yanmar YM1900,
- Yanmar YM2000,
- Yanmar YM2001,
- Yanmar YM2010,
- Yanmar YM2210,
- Yanmar YM2220,
- Yanmar YM2301,
- Yanmar YM2310.
John Deere :
- John Deere 680,
- John Deere 750.
The first signs of clutch disc wear (wear) are clutch slippage , which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.
Magazine: K18:A28
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
