zł40.00
To order
Condition
New
Production
Substitute
Parts
Electrician
Engine model
Yanmar 3TNV88
Tractor models
Yanmar EF352T
Yanmar EF393T
Yanmar EF393T
Voltage (V)
12
Length (mm)
140
Alternator / Yanmar EF352T / EF393T
6-09-101-02
Do you have any questions?

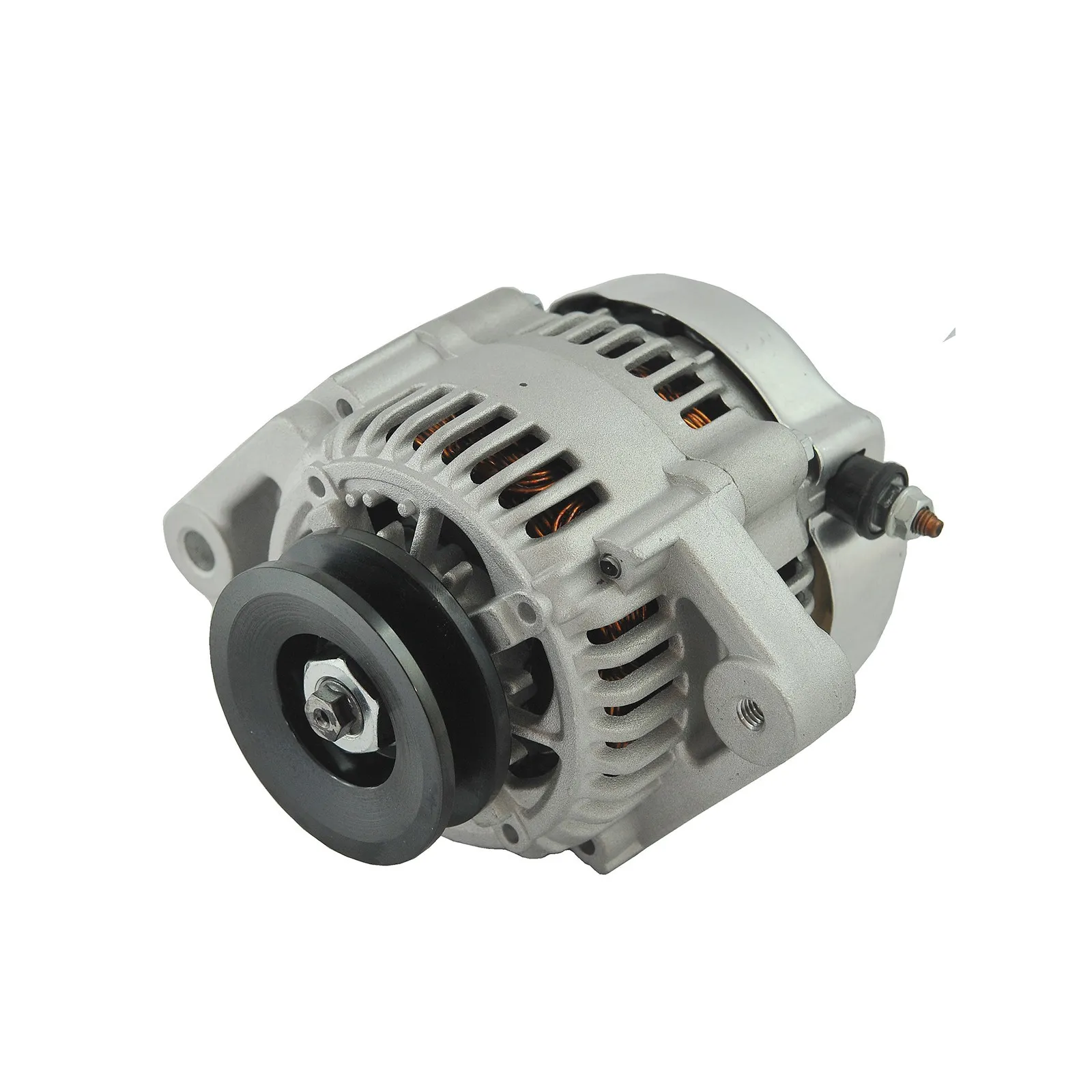

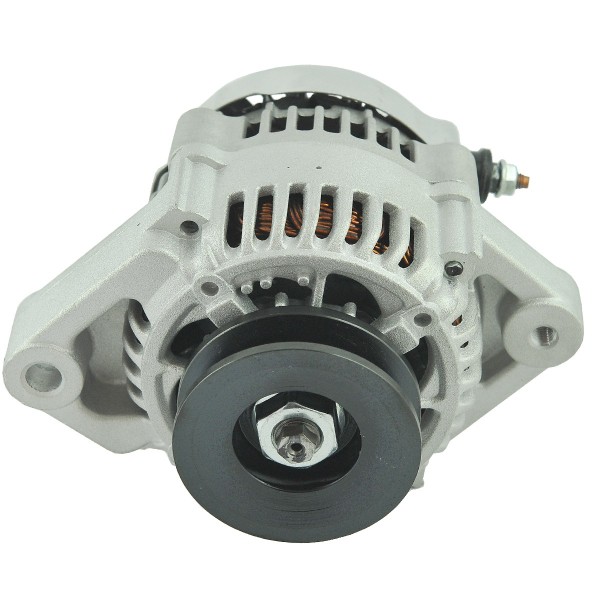

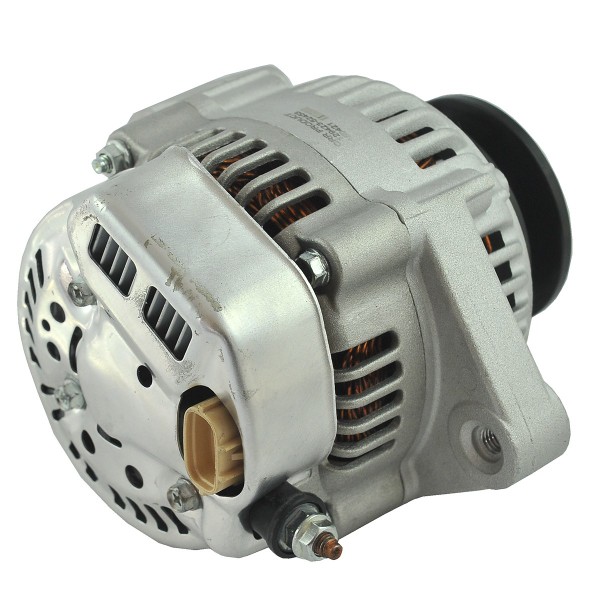

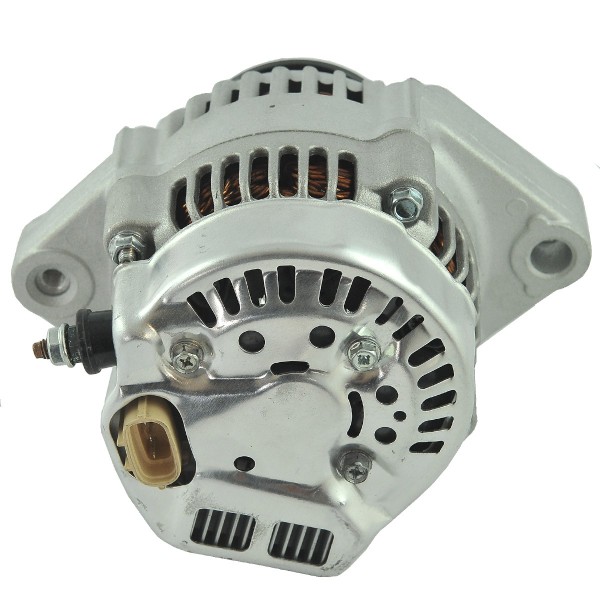

Alternator / Yanmar EF352T / EF393T
Alternator for Yanmar EF352T, Yanmar EF393T and other tractors .
An alternator is a device that converts mechanical energy into direct current, alternating current, thanks to which it powers the tractor's electrical system, including the battery. The alternator produces current only when the engine is running and is driven by a belt drive. The first signs of alternator damage are a control lamp that does not go out, flashes or does not light up at all, the so-called: battery charging lamp while the tractor's engine glow plugs are heating. On the other hand, the lamp lighting up during tractor operation may indicate incorrect current voltage supplied by the alternator to the battery.
Dimensions :
- diameter: 110 mm,
- length: 140mm,
- wheel diameter: 69 mm,
- width at the strap: 4 / 12 mm,
- spacing of mounting screw holes: 145 mm,
- original part number:129423-52453,
- part numbers: 6-09-101-02.
Tractor models:
Yanmar:
- Yanmar EF352T,
- Yanmar EF393T.
Engine:
- Yanmar 3TNV88,
Magazine : K18:A09
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: K18:A09
Condition
New
Production
Substitute
Parts
Electrician
Engine model
Yanmar 3TNV88
Tractor models
Yanmar EF352T
Yanmar EF393T
Yanmar EF393T
Voltage (V)
12
Length (mm)
140
Diameter (mm)
110
Bolt hole spacing (mm)
145
Original Part Number (OEM)
129423-52453
Part number
6-09-101-02
Outer diameter of the wheel (mm)
69
Wheel width (mm)
4
12
12
