Cartridge sealant 57 x 80/86 x 16/9 mm / Yanmar EF312/EF352T/EF393 / BQ4919E / 198483-32660 / 5-08-209-04

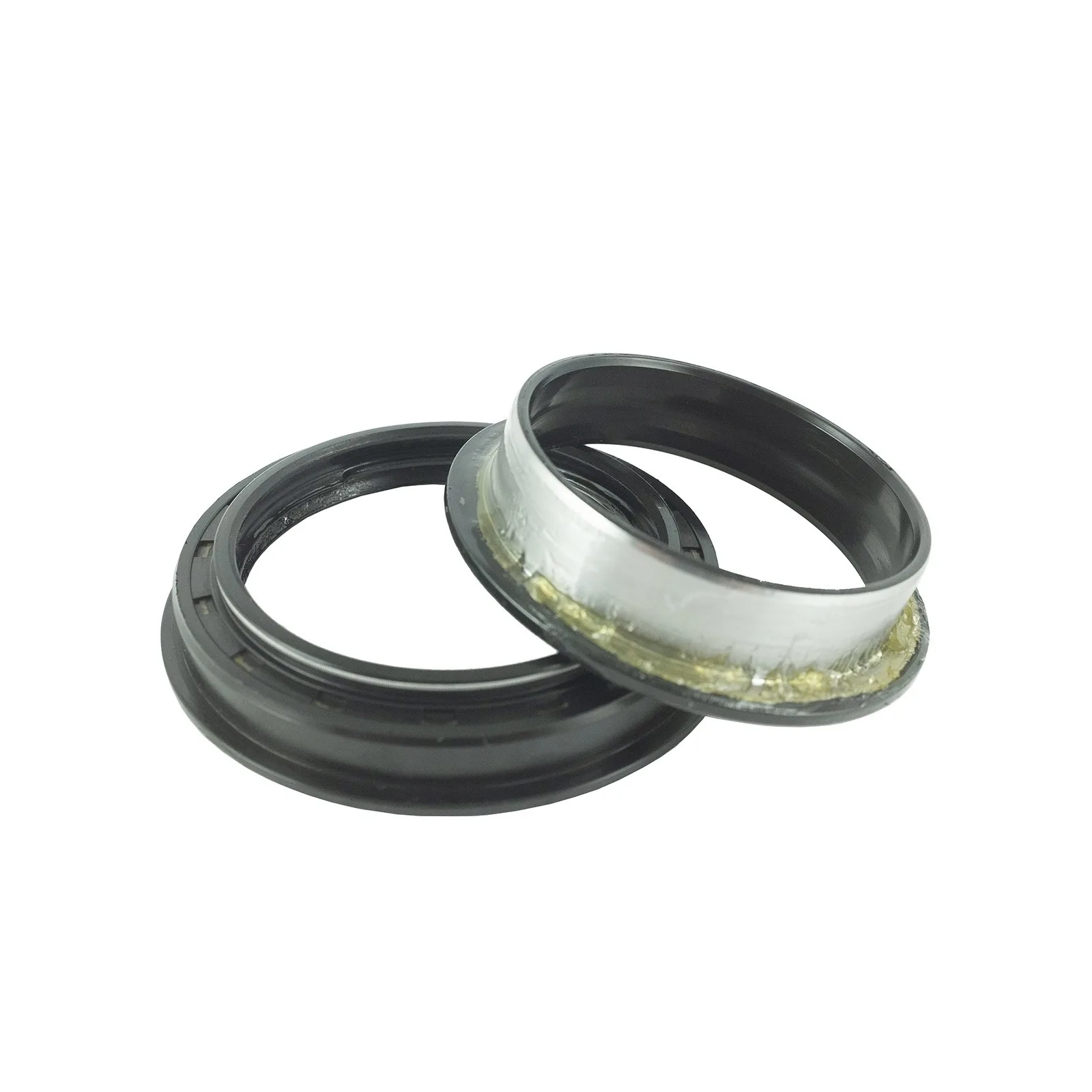

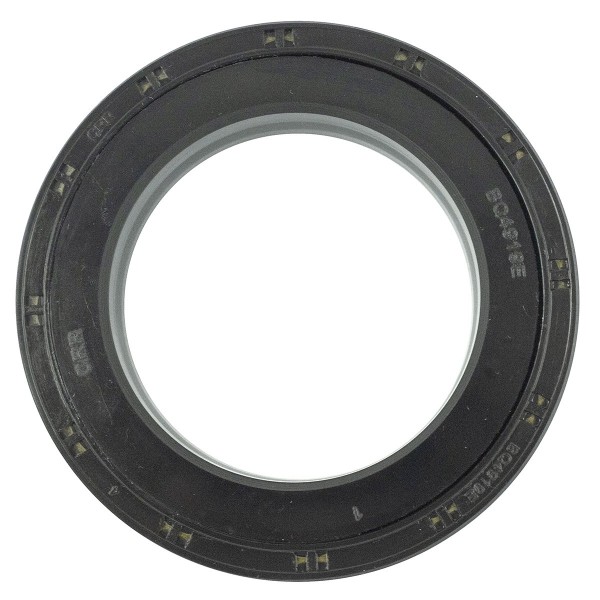

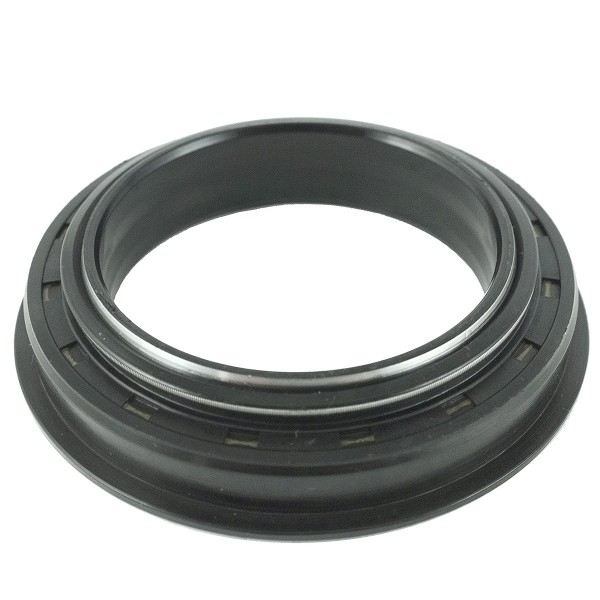

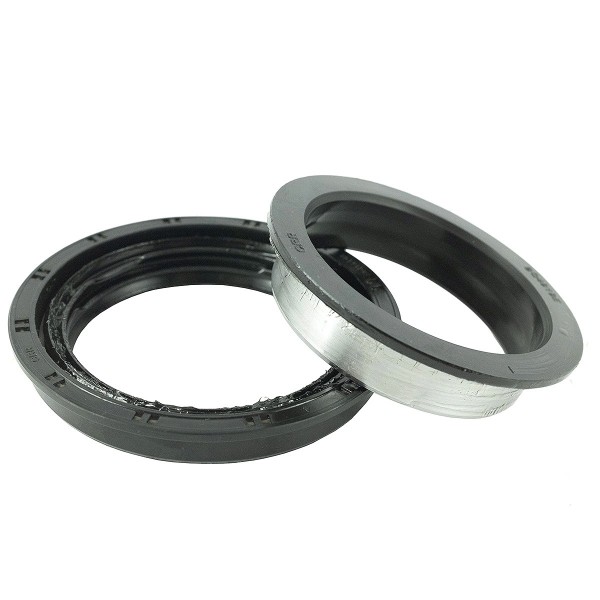

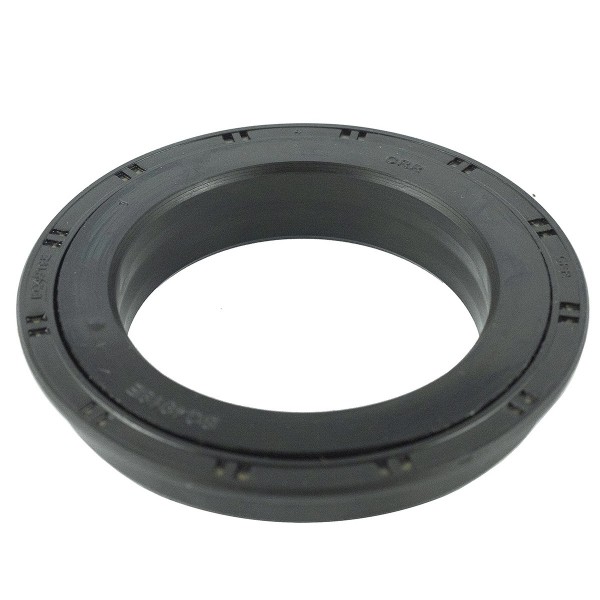

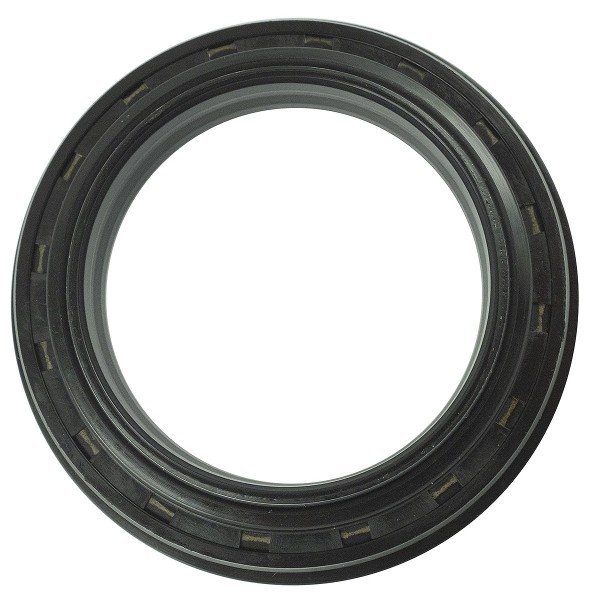

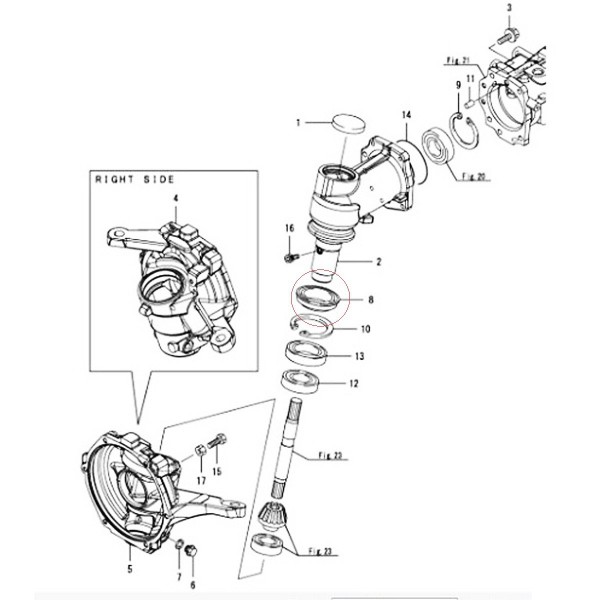

Cassette seal, front axle final drive oil seal with an internal diameter of 57 mm , an external diameter of 80 mm and a height of 17/11 mm of the front axle for Yanmar tractors of the Yanmar EF312, Yanmar EF352T, Yanmar EF393 series and others.

The sealant is a rubber ring (otherwise known as a simmering ring, Simmer ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Sealing is used to seal the rotating elements of the system with a maximum internal pressure of 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are various types of seals, the most common are cartridge seals (two-piece), seals with a spring around them, or seals with a partly metal housing (lid).

Dimensions :

• inner diameter: 57 mm,
• outer diameter: 80mm,
• flange diameter: 86 mm,
• height: 9 / 16 mm,
• original part numbers: 198483-32660,
• part numbers: BQ4919E, 5-08-209-04.

Tractor models :

Yanmar :

• Yanmar EF312,
• Yanmar EF352T,
• Yanmar EF393T.

Sealants prevent oil or lubricant leakage and prevent contaminants from entering the system.

Warehouse :
M01:D75:S02
