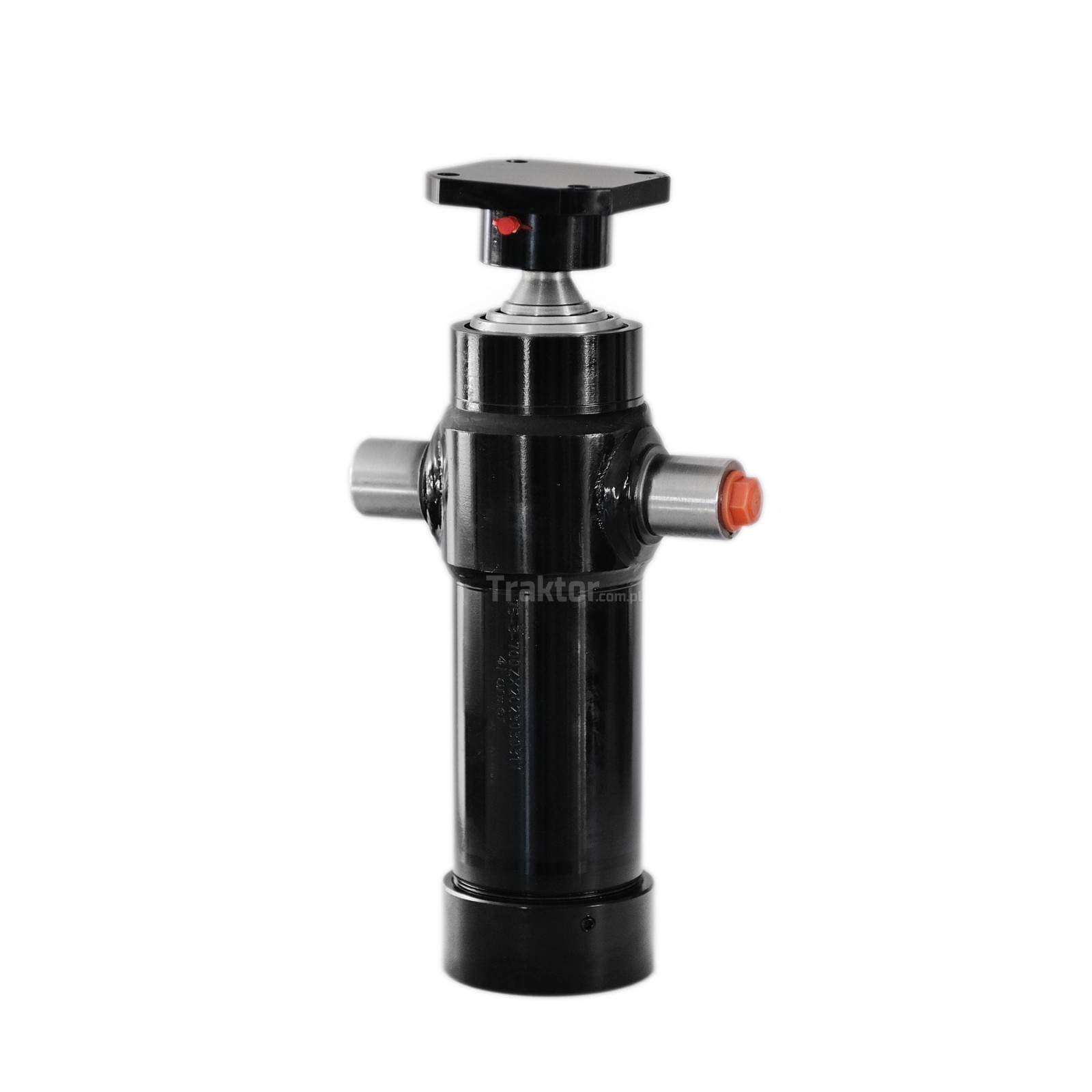

Three-stage telescopic hydraulic cylinder / 395 mm / HCT-395-700-95

The three-stage telescopic hydraulic cylinder is a robust component for trailer tipping. With a stroke of 700 mm and a folded length of 395 mm, it provides effective lifting of loads up to 5 tons. It is designed for mounting on Ø40 mm pins and with an M22×1.50 connection. Reliable in operation, it is an ideal replacement for agricultural machinery, including 4Farmer trailers.

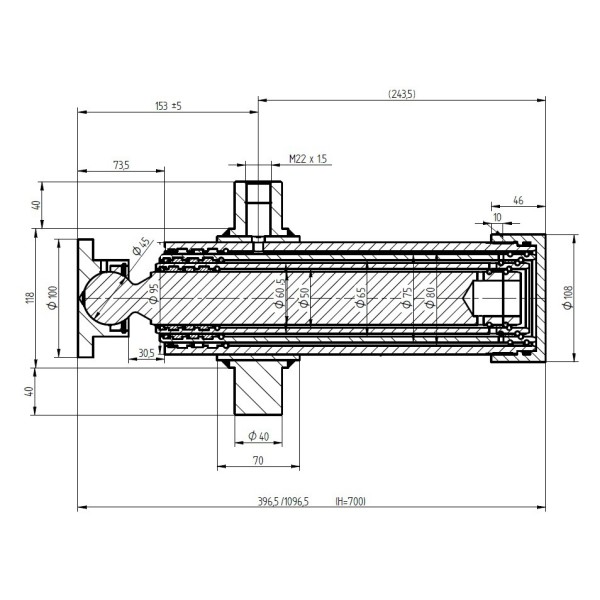

Technical Specifications:

• 3-stage actuator,

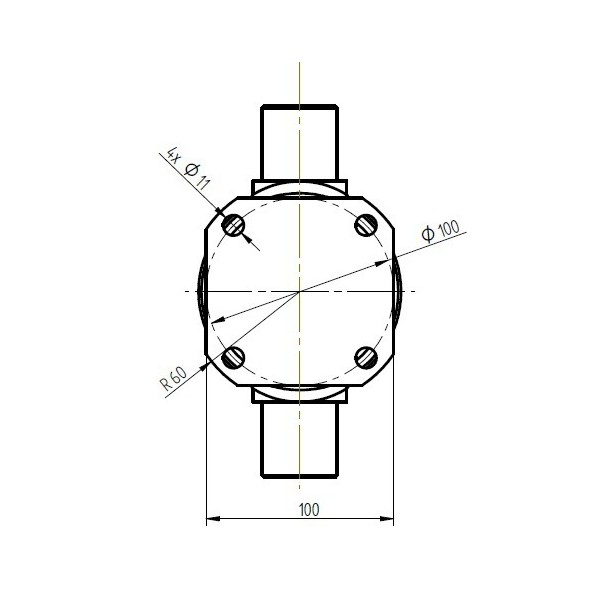

• The actuator is mounted on mounting pins of 40 mm diameter,
• Folded cylinder length: 395 mm,
• Piston stroke: 700 mm,
• Total length of the actuator when unfolded: 1095 mm,
• Actuator diameter: 95 mm,
• Outlet to connector: M22 x 1.50,
• Maximum piston rod speed: 0.5 m/s,
• Starting pressure: 0.50 MPa,
• Maximum working pressure: 160 bar,
• Oil requirement: 2.50L,
• Permissible ambient temperature -40°C to +60℃,
• Permissible oil temperature -15°C to +80℃,
• Gland type: threaded, screwed into the pipe,
• Piston rod: chrome plated,
• Fluid type: hydraulic oil.

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
