Product description

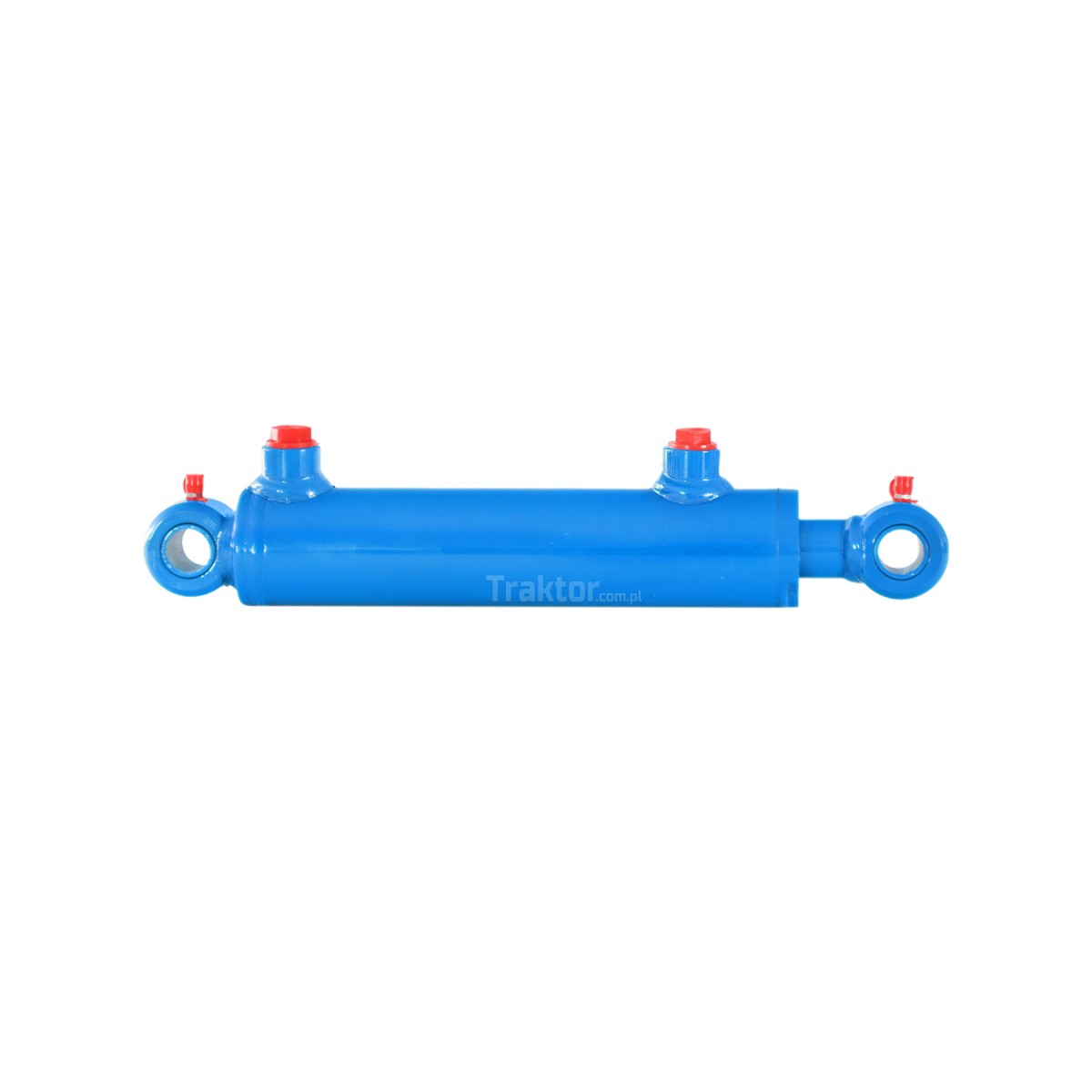

This blue, double-acting hydraulic cylinder from 4FARMER is a robust device designed for hydraulic systems. It provides precise control in both forward and reverse motion thanks to its two hydraulic ports. It's ideal for front linkages and snow plows, among other applications. Made with a chrome-plated piston rod, it features a threaded gland and grease nipples at the connection points, making it suitable for demanding applications.
Dimensions:
- Stroke 135 mm,
- Total length of the folded actuator 295 mm,
- Piston rod diameter 25 mm,
- Cylinder outer diameter 50 mm,
- Outlets for connectors: 2x 3/8",
- Mounting hole: 22 mm diameter + 18/22 Teflon bushings (can be removed),
- Grease nipples for lubricating the connecting points (sleeve-pin),
- Maximum permissible pressure: 20 MPa,
- Permissible ambient temperature from -40°C to +60°C,
- Permissible oil temperature: -15°C to +80°C,
- Gland type: threaded, screwed into the pipe,
- Piston rod: chrome plated.
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Double-actin..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
