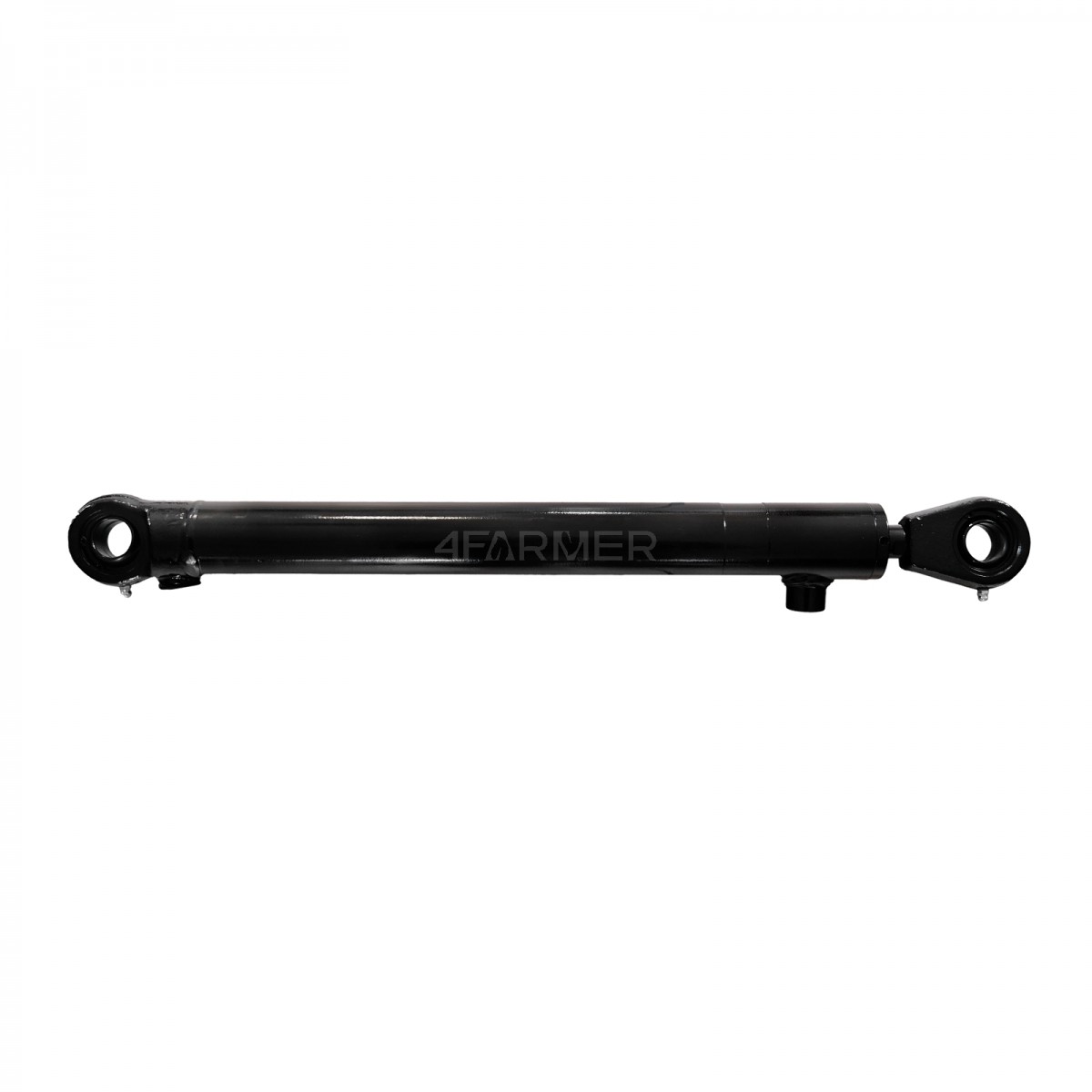

Double acting hydraulic cylinder / 560 mm / HC2-350-560-22-40-U25 - black

Double-acting hydraulic cylinder, black, is a solid element intended for TUR front lifts and various agricultural equipment. Thanks to the use of self-aligning bearings, a chrome-plated piston rod and a high permissible pressure of up to 250 bar, it ensures precise and durable movement in both directions. Its compact design and the highest quality of workmanship make it reliable in difficult working conditions.

Technical data:

• Actuator mounted on oscillating bearings: 2x fi 25 mm,

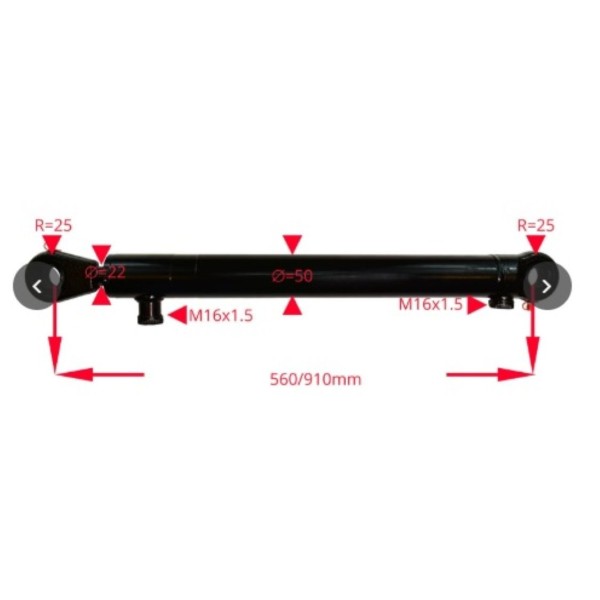

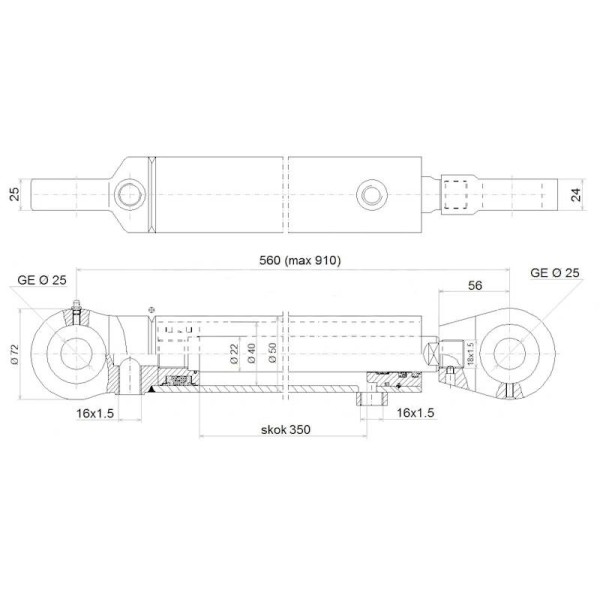

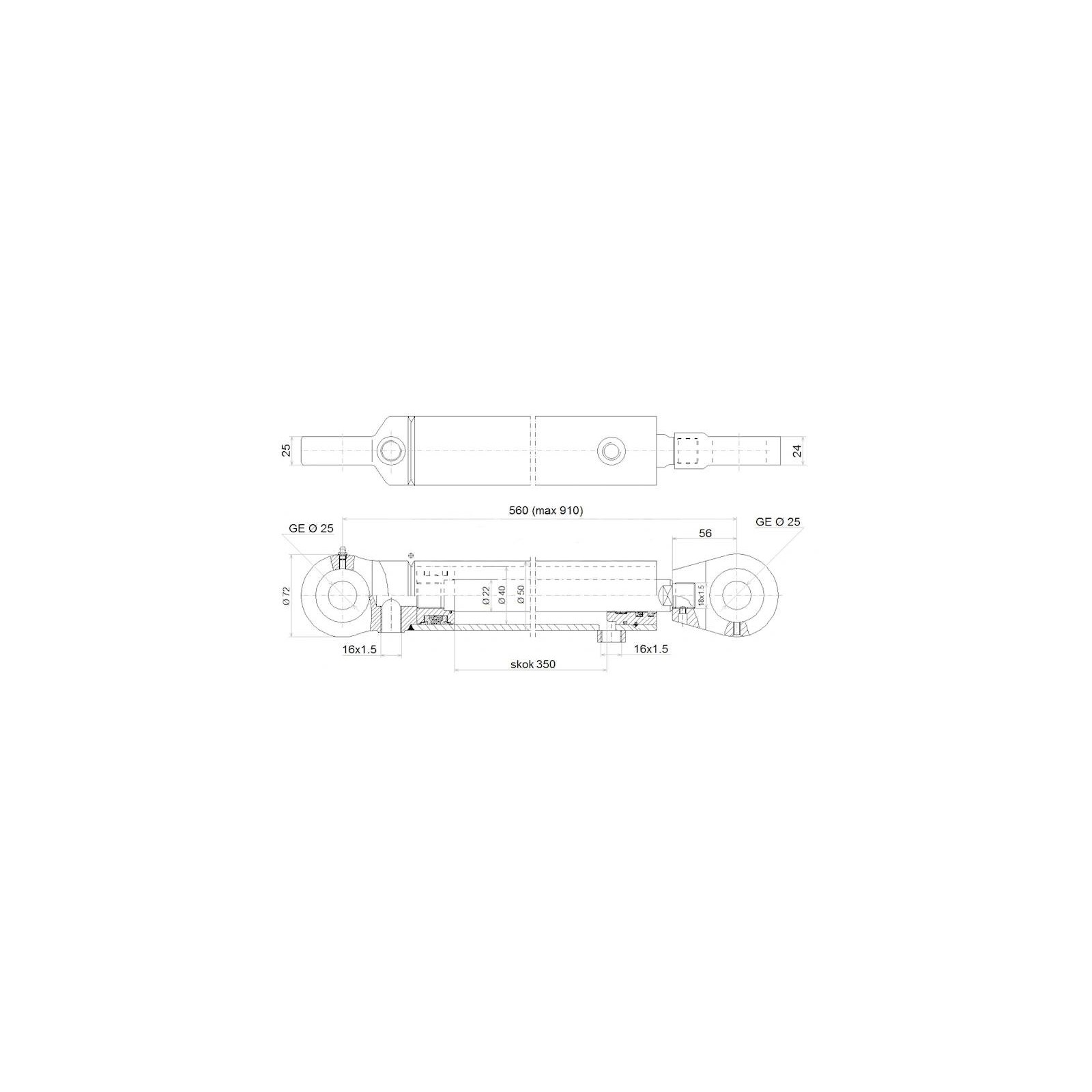

• Length of the folded actuator: 560 mm,
• Total length of the actuator when unfolded: 910 mm,
• Piston rod diameter: 22 mm,
• Maximum allowable pressure: 250 Bar,
• Piston stroke: 350 mm,
• Socket outlet: 2x M16 x 1.50,
• Gland type: threaded, screwed into the pipe,
• Piston rod: chrome-plated,
• Permissible ambient temperature: -40°C to +60°C,
• Permissible oil temperature: -15°C to +80°C,
• Comparison numbers: CJ2F 40x22x350 U25.

TP230406350

*Photos are for illustration purposes only and may differ in detail from the delivered product due to differences in production over the years.
