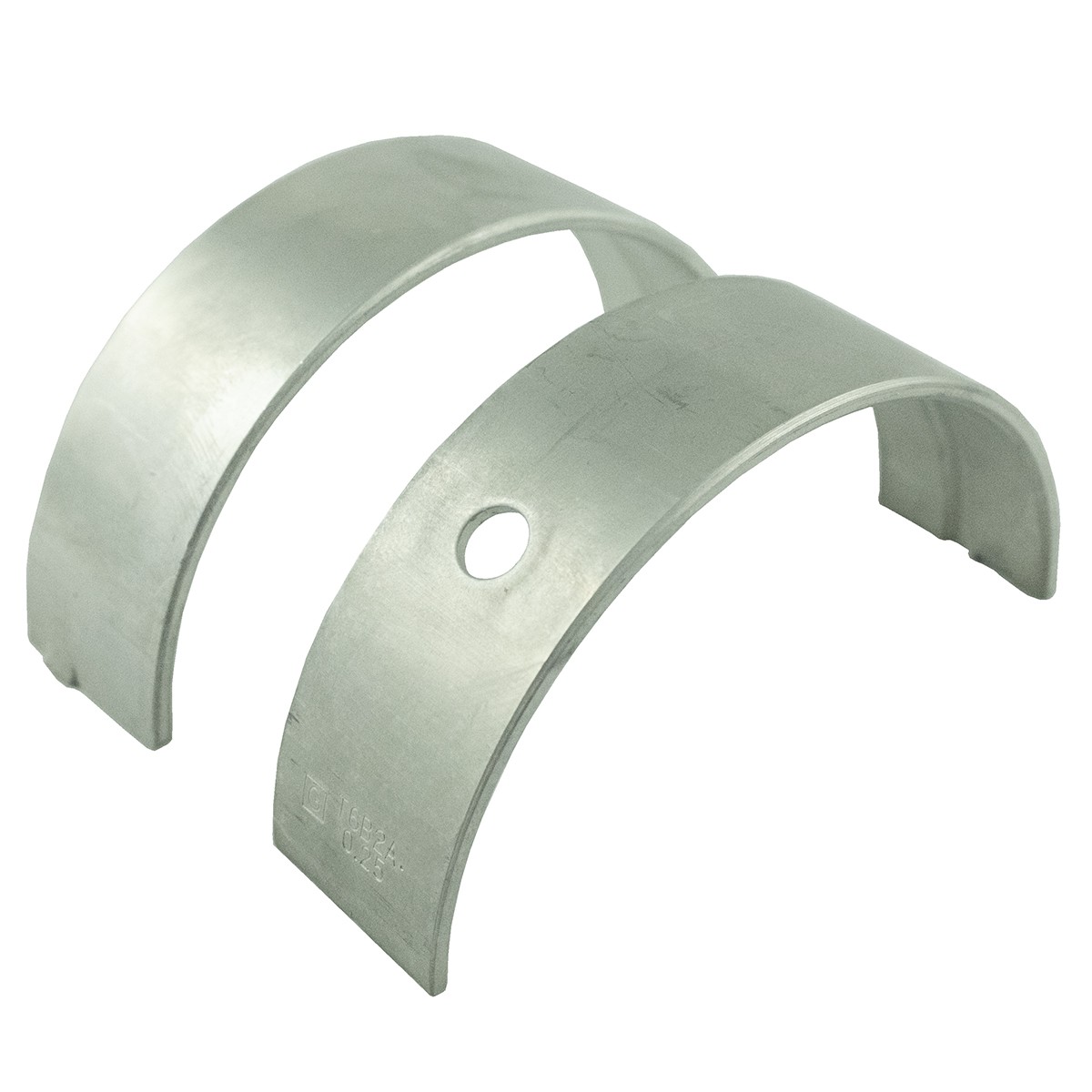

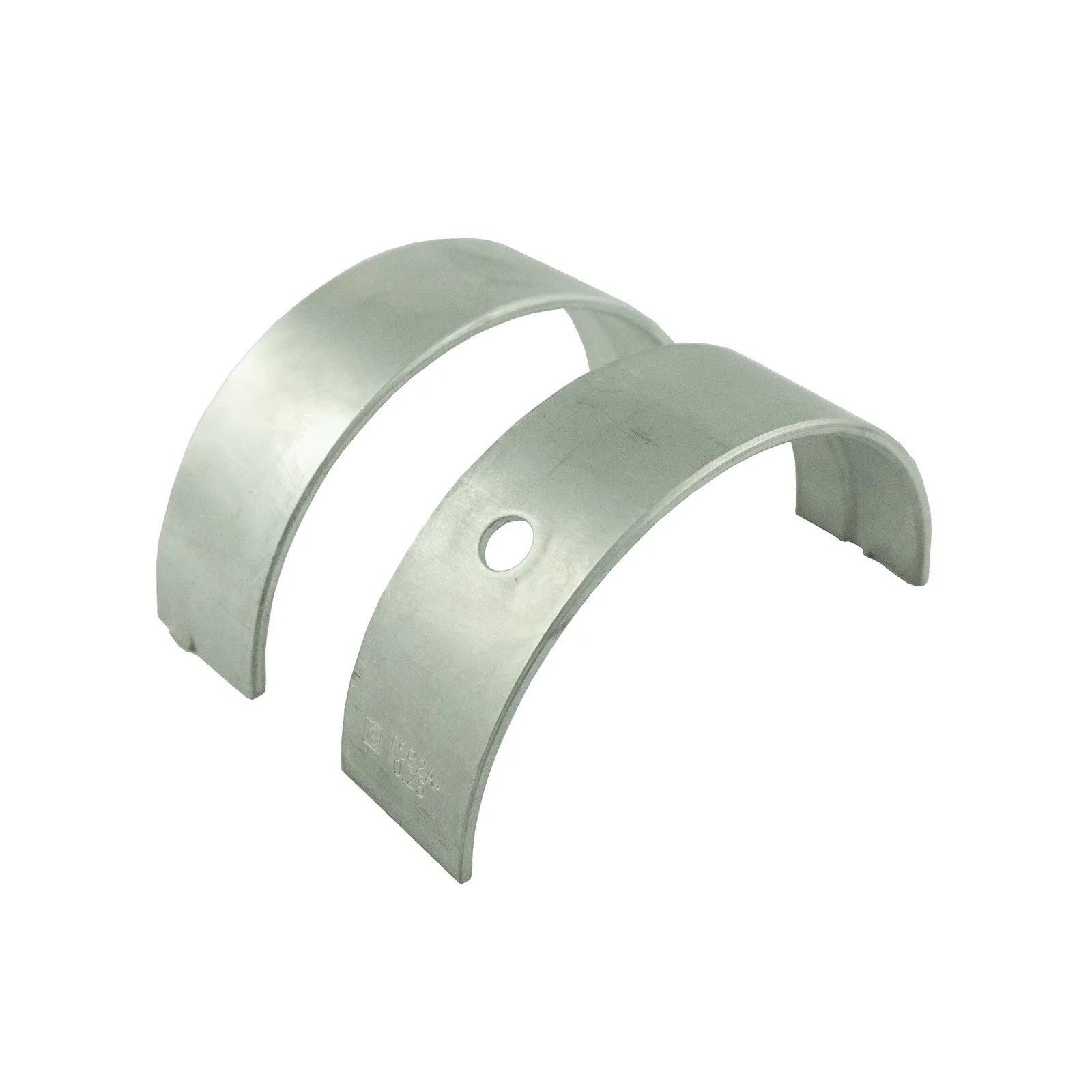

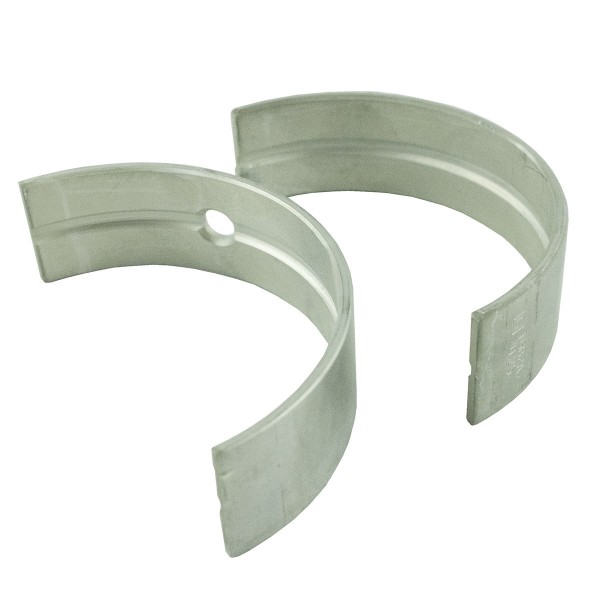

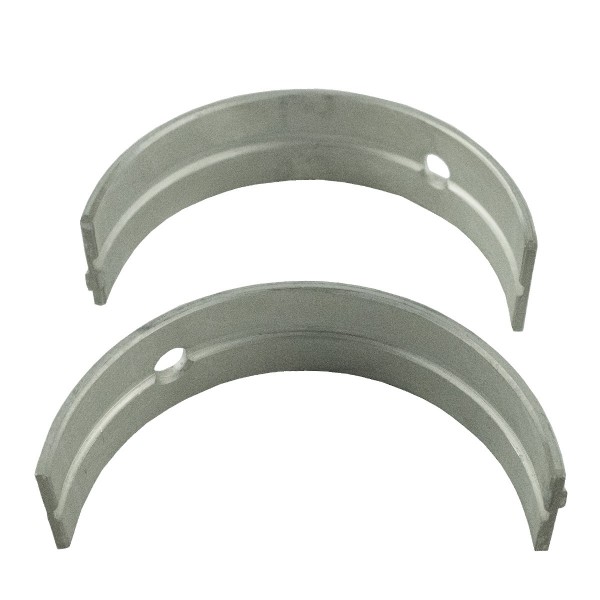

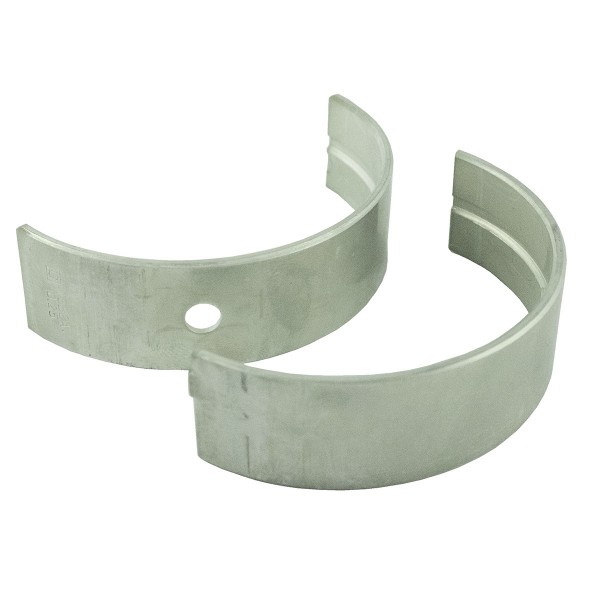

Main bearings / STD + 0.25 mm / 010 / Iseki 3AB1 / 3AF1 / E3AD1

Main bearings of standard size + 0.25 mm (so-called first grinded bearings 010 ), width 21 mm , thickness 2.00 mm and inner diameter 70 mm for Iseki tractors with Iseki 3AB1, Iseki 3AF1 and other engines.

Main engine bearings are semicircular rings that are mounted in special grooves (holders) in the engine block, between the crankshaft (main shaft) and the engine block (applies to the central shaft journals) in order to eliminate play that occurs during engine operation. Main bearings, bearing the shaft, ensuring the proper position of the shaft relative to the engine block so that the generated power is transmitted as smoothly as possible.

Dimensions :

• width: 21 mm,
• thickness: 2.00 mm,
• inner diameter: 70 mm,
• part numbers: 9-90-102-02.

Engine models :

Iseki :

• Iseki 3AB1,
• Iseki 3AF1 .

The first signs of wear of the main bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : M01:B32:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
