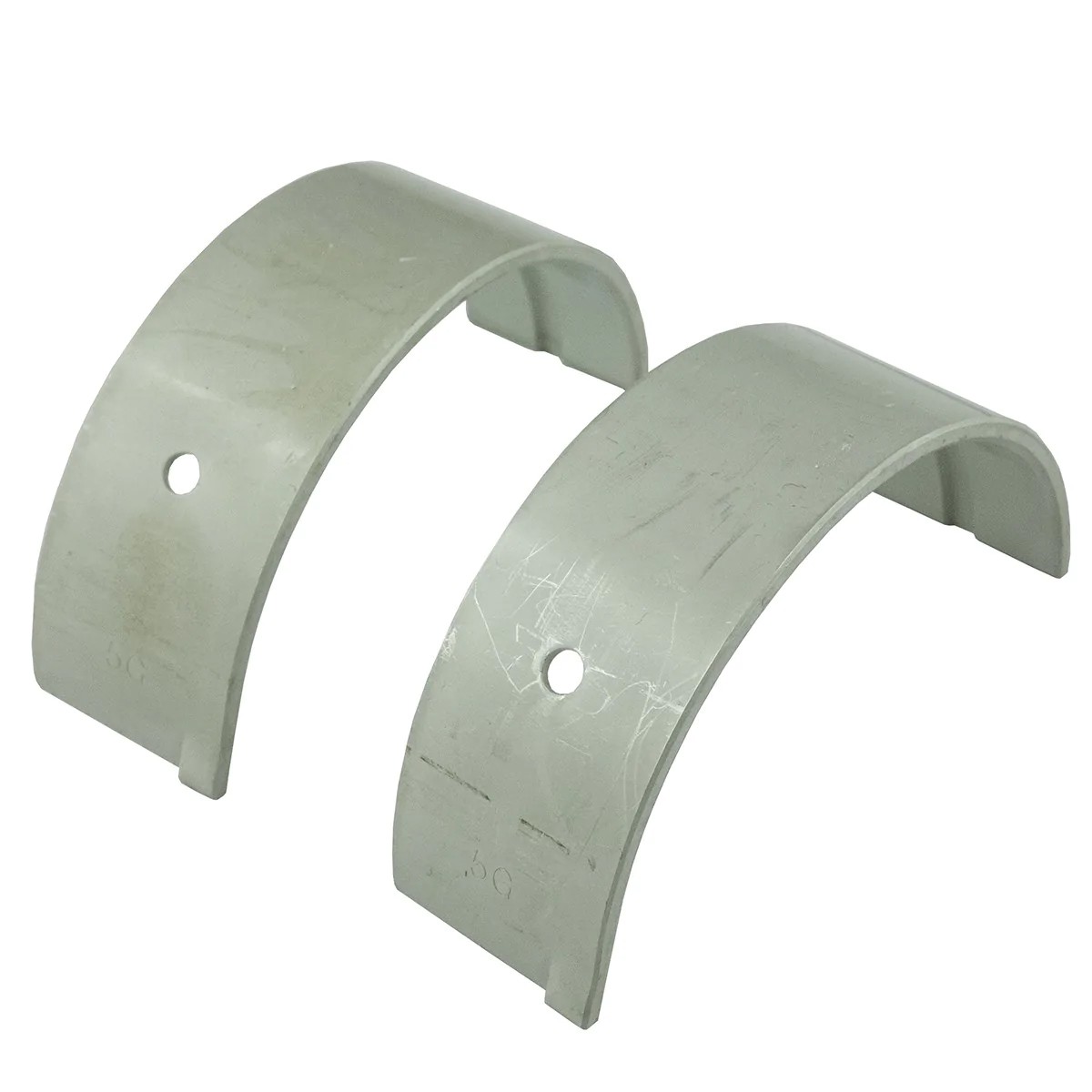

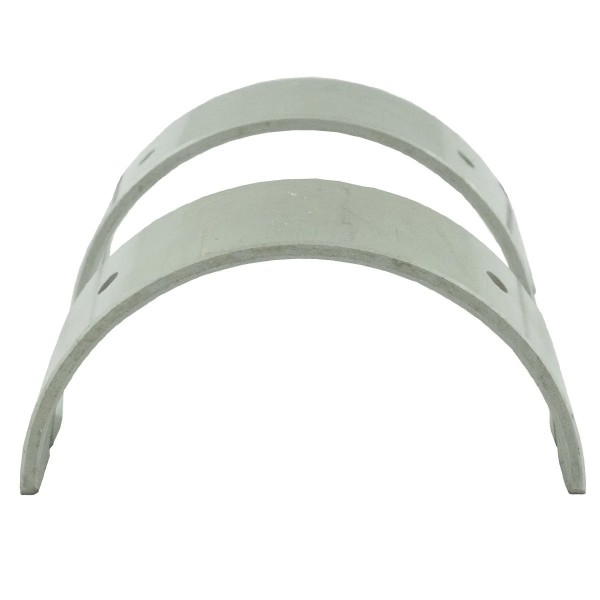

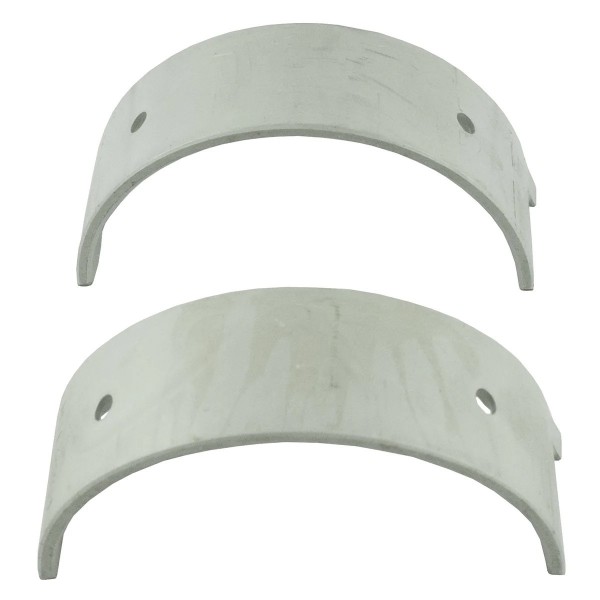

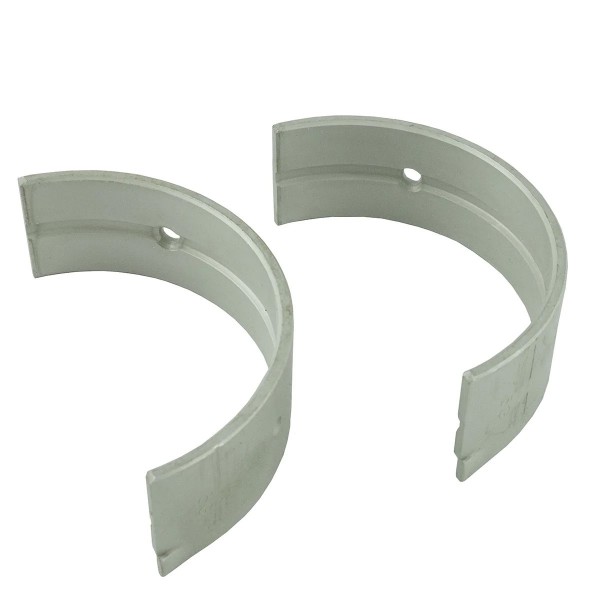

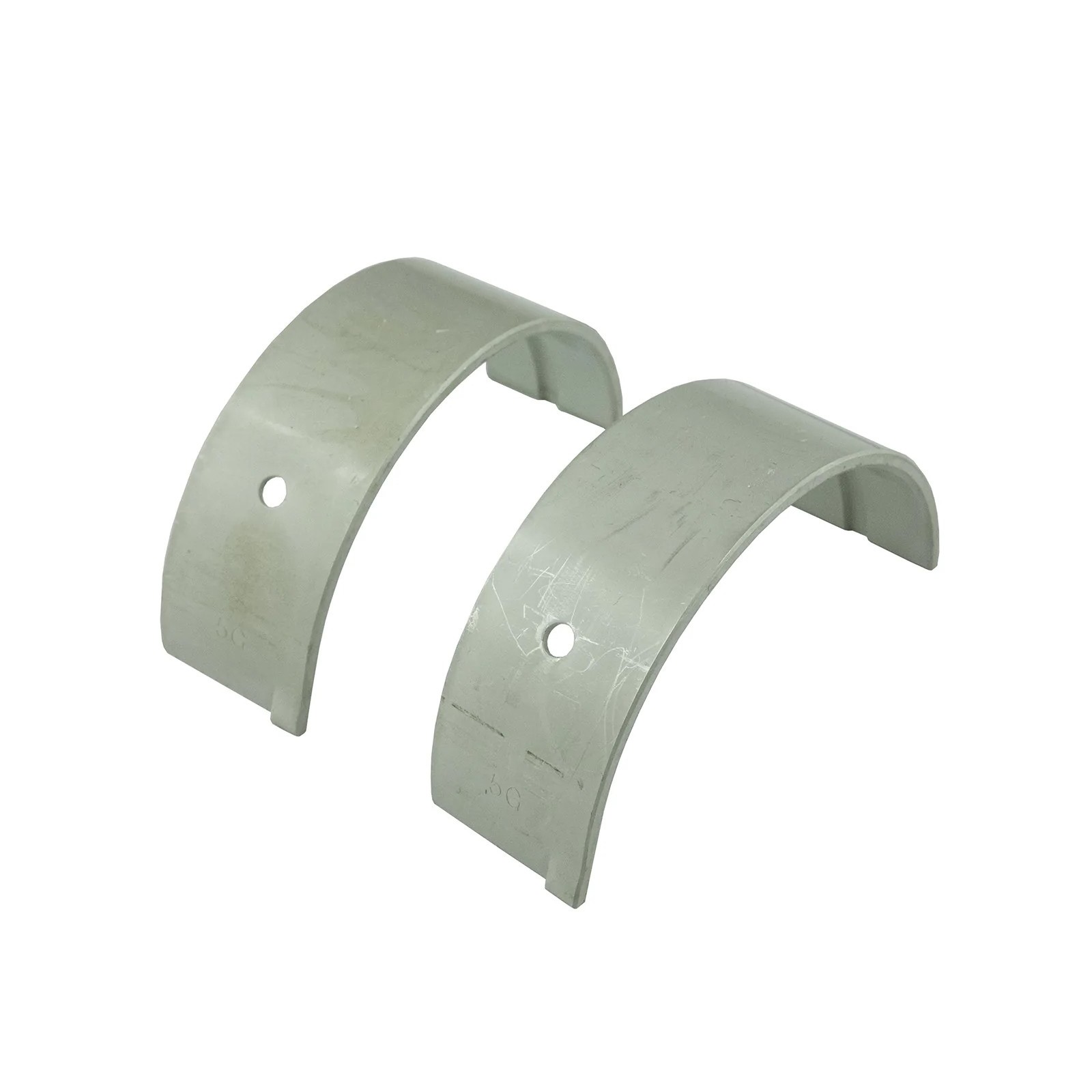

Connecting rod bearings / STD + 0.40 mm / Kubota D1463 / Kubota GL21 / GL23 / GL220 / GL221 / GL240 / GL241 / L1500

Connecting rod bearings (connecting rod 5-01-130-23) with a standard size of + 0.40 mm (so-called fourth-grind bearing shells 040 ), a width of 18.80 mm , a thickness of 2.50 mm and a diameter of about 55.60 mm . The bearing shells fit Kubota L1 series tractors.

Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. Bearings are two separable, semicircular elements that, when installed, create a circle. Bearings (though not all types) also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overloading the engine, which has not reached the correct temperature,

Dimensions ;

• outer diameter; 55.60 mm.
• width; 18.80 mm.
• thickness: 2.50 mm.

Engine models :

Kubota :

• Kubota D1463,

Tractor models :

• Kubota GL21,
• Kubota GL23,
• Kubota GL220,
• Kubota GL221,
• Kubota GL240,
• Kubota GL241,
• Kubota L1500.

The first signs of wear of the main bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : M01:A24:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
