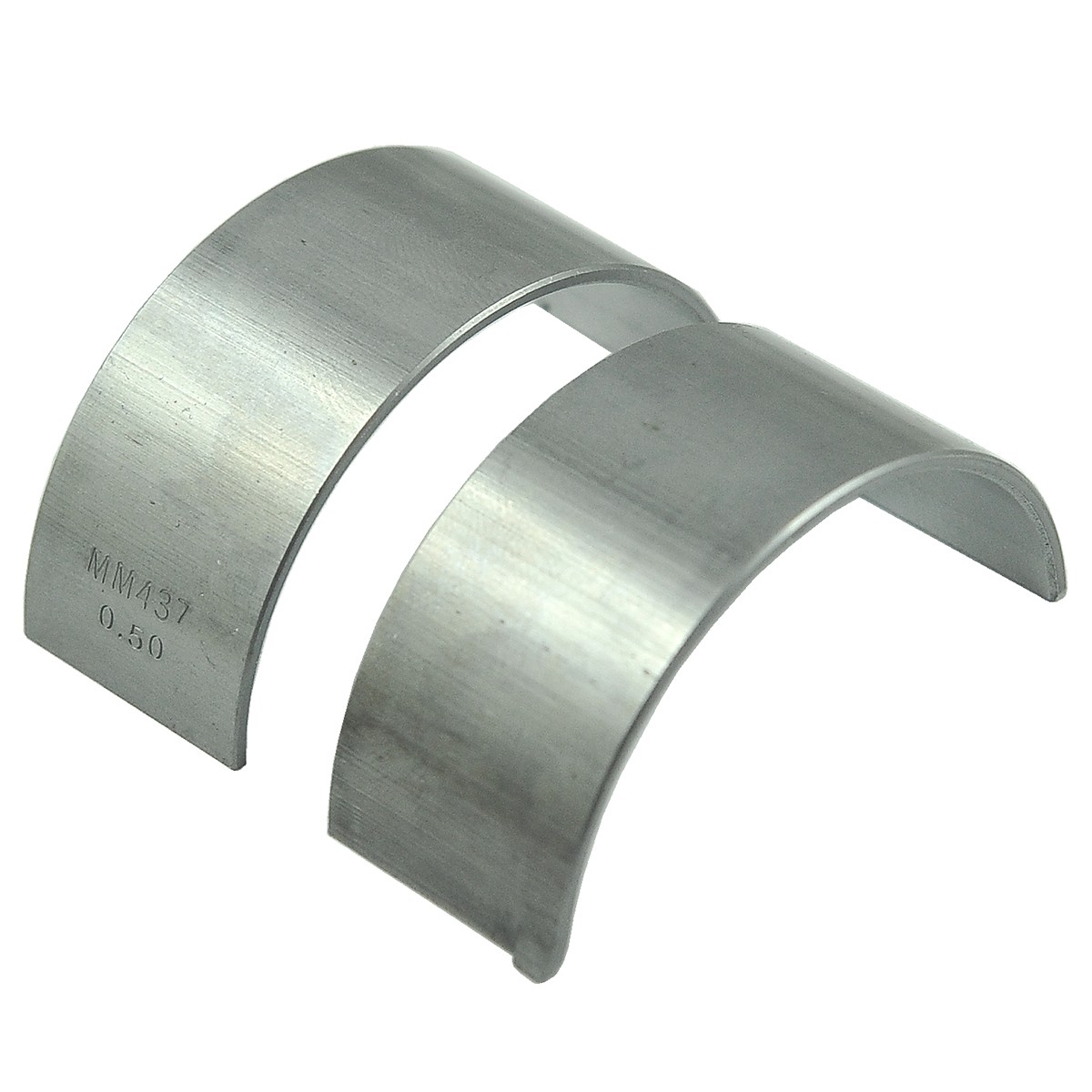

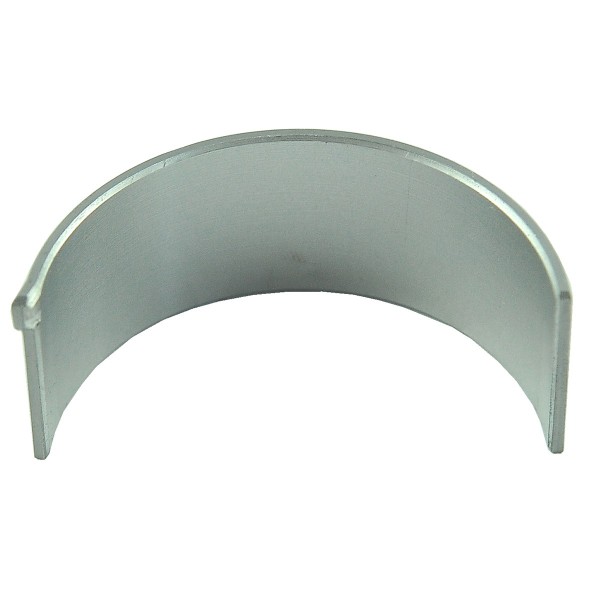

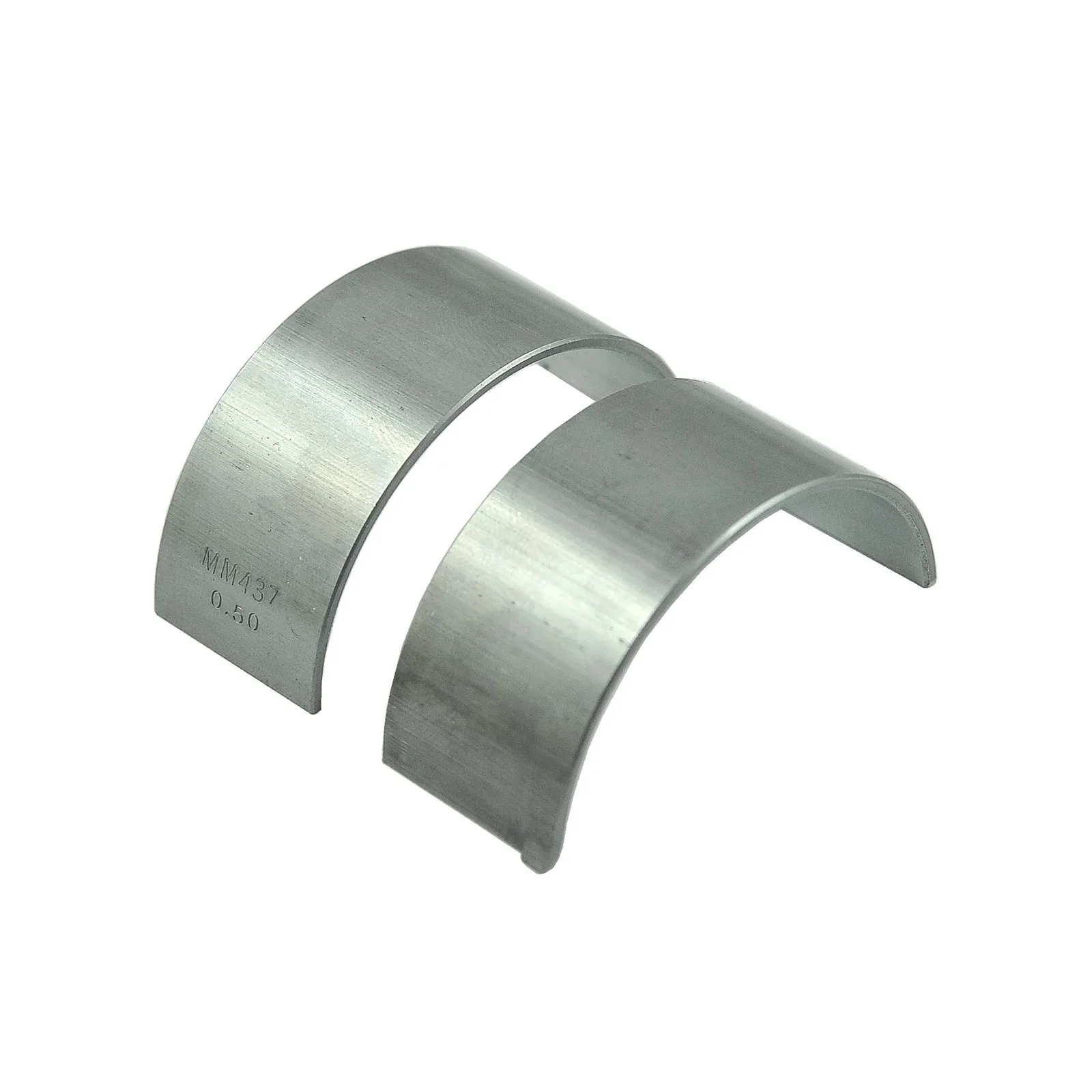

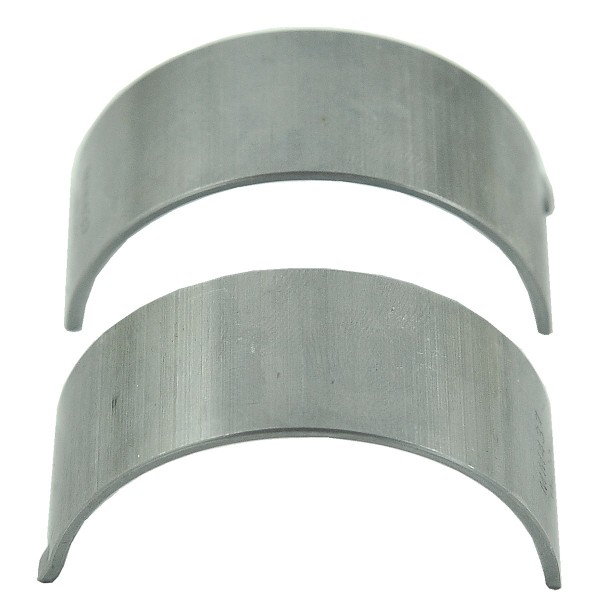

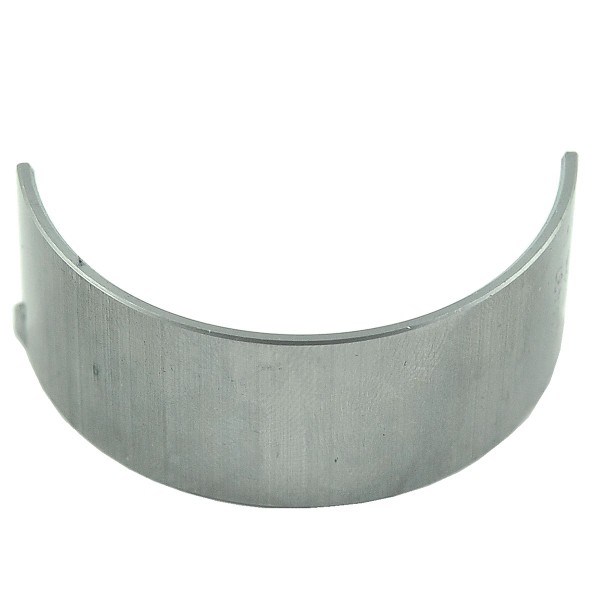

Connecting rod bearings / STD + 0.50 / Mitsubishi S3L

Connecting rod bearings in size STD + 0.50 (so-called second-grind connecting rod bearings) for tractors with Mitsubishi S3L and other engines.

Connecting rod bearings are components whose primary function is to reduce friction at the connecting rod's connection to the crankshaft. The bearings are two separate, semicircular elements that, when assembled, form a circle. Bearings (though not all types) also have a small groove or notch through which lubricant is distributed. The most common causes of rapid bearing wear include: using oil with the wrong viscosity, improper bearing installation, failing to adhere to oil change intervals, low engine oil level, and overloading the engine, which has not reached the proper operating temperature.

Dimensions :

• inner diameter: 49 mm,
• outer diameter: 52.25 mm
• width: 22 mm,
• thickness: 1.75 mm,
• original part numbers: 30A19-00040 ,
• reference numbers: MM437305,
• part numbers: MM437.

Engine models :

Mitsubishi :

• Mitsubishi S3L.

The first signs of worn connecting rod bearings are an unusual, constant knocking noise coming from the engine. Worn bearings should be replaced as soon as possible; replacing a faulty component too late can cause serious damage to the shaft, connecting rod, or engine.

Warehouse :
K18:F23:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
