Main bearings / STD + 0.50 / Yanmar 3TNE84 / 4TNE84 / 3TNV88 / 4TNV88 / Yanmar EF352T / EF453T / F18 / F20 / F22

6-07-100-22
zł29.00
Tax included PL 23% Dostępny na zamówienie

23,58 netto

Do you have any questions?

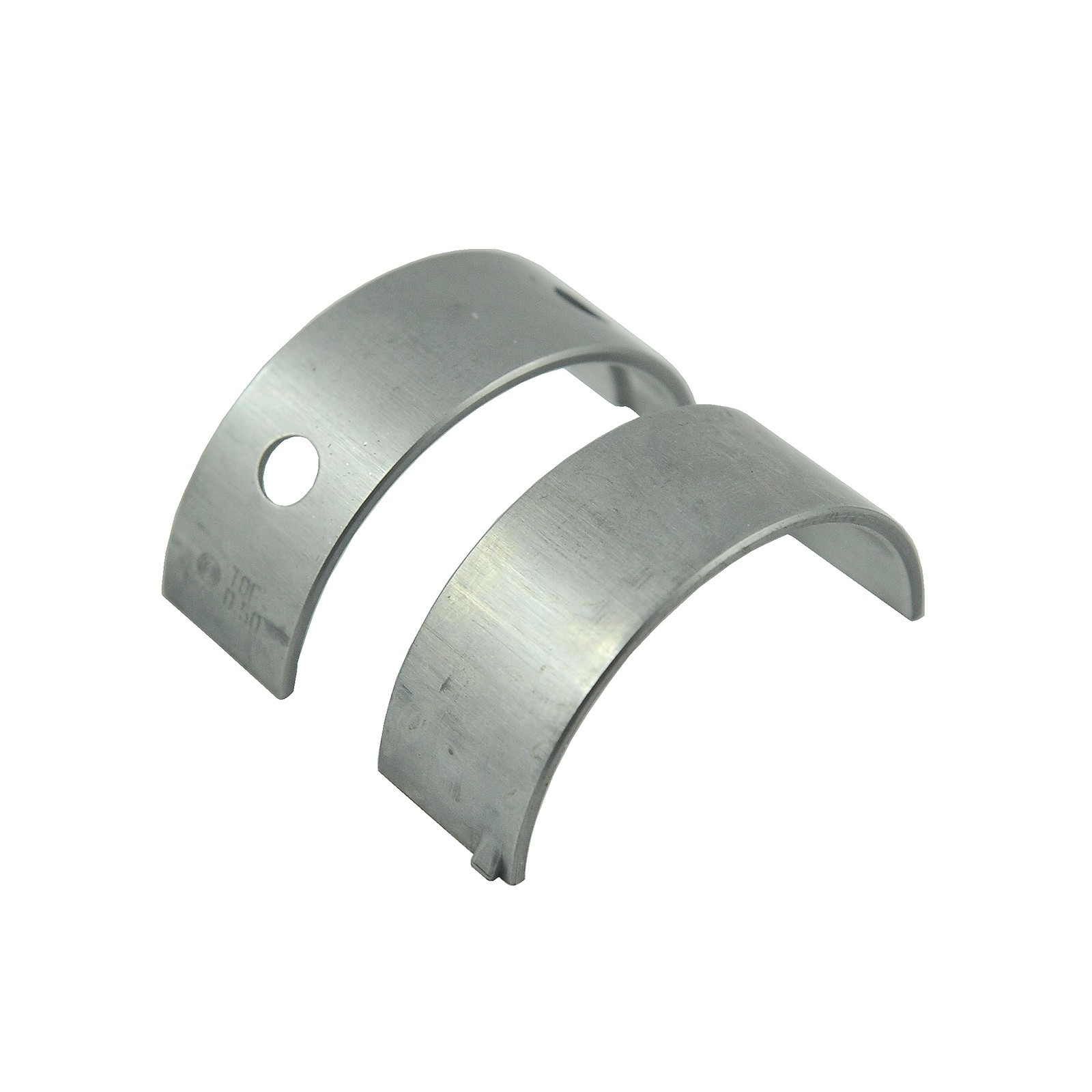

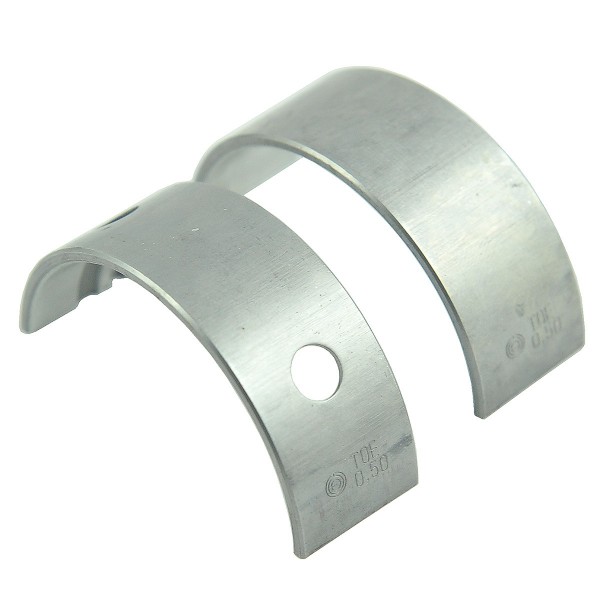

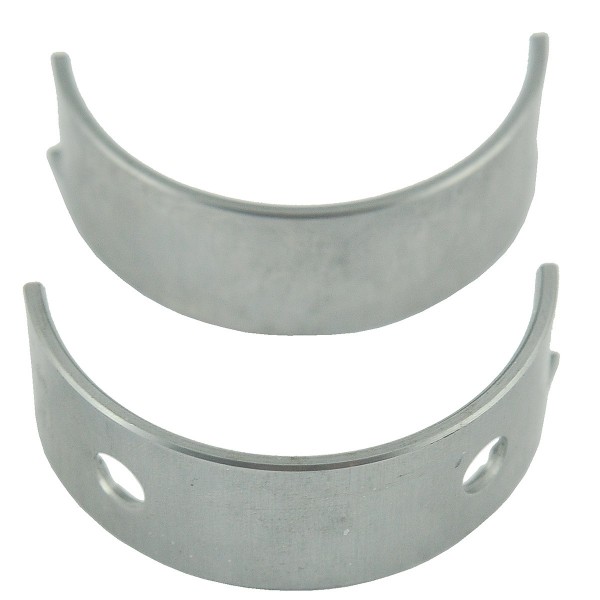

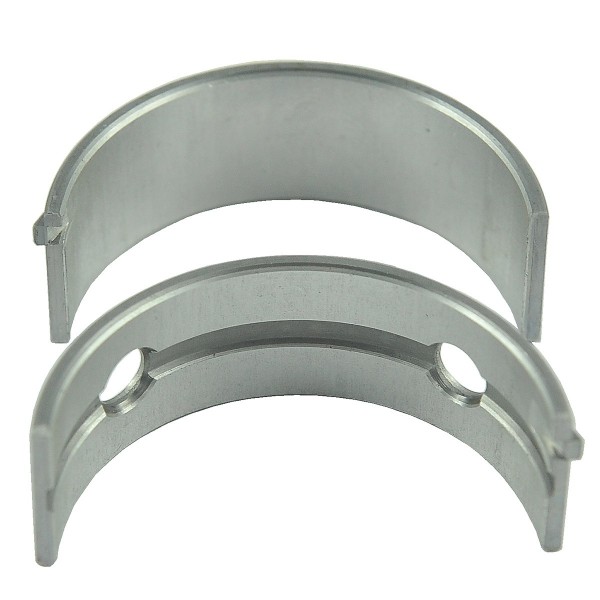

Main bearings / STD + 0.50 / Yanmar 3TNE84 / 4TNE84 / 3TNV88 / 4TNV88 / Yanmar EF352T / EF453T / F18 / F20 / F22

Standard size crankshaft main bearings (STD + 0.50, so-called second grind bearings), 20 mm wide, 2.30 mm thick and with an inner diameter of approximately 51 mm for Yanmar tractors of the Yanmar EF352T, Yanmar EF453T, Yanmar F18, Yanmar F20, Yanmar F22, Yanmar F24, Yanmar FX24 , Yanmar 3TNE84, Yanmar 4TNE84 , Yanmar EF352T, Yanmar EF453T series with Yanmar 3TNV88, Yanmar 4TNV88 and other engines.

Main engine bearings are semicircular rings that are mounted in special grooves (holders) in the engine block, between the crankshaft (main shaft) and the engine block (applies to the central shaft journals) in order to eliminate play that occurs during engine operation. Main bearings, bearing the shaft, ensuring the proper position of the shaft relative to the engine block so that the generated power is transmitted as smoothly as possible.

Dimensions ;

  • inner diameter: 51 mm,
  • width: 2mm,
  • thickness: 2.30 mm,
  • original part numbers: 129001-02931,
  • reference numbers: 6-07-100-11, AM875371, MB-9150, 129150-02800, 729150-02800,
  • part numbers: 6-07-100-22.

Tractor models:

Yanmar:

  • Yanmar EF352T,
  • Yanmar EF453T,
  • Yanmar F18,
  • Yanmar F20,
  • Yanmar F22,
  • Yanmar F24,
  • Yanmar FX24.

Engine models :

Yanmar:

  • Yanmar 3TNE84,
  • Yanmar 4TNE84,
  • Yanmar 3TNV88,
  • Yanmar 4TNV88.

The first signs of wear of the main bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Warehouse :
M01:F73:S01

Specification

Magazyn: M01:F73:S01
Condition
New
Production
Substitute
Parts
Engine
Engine model
Yanmar 3TNE84
Yanmar 3TNV84
Yanmar 4TNE84
Yanmar 4TNV88
Tractor models
- Yanmar F20
- Yanmar F22
- Yanmar F24
- Yanmar FX24
Yanmar EF352T
Yanmar EF453T
Yanmar F18
Thickness (mm)
2.30
Inner Diameter (mm)
51
Width (mm)
20
Comparison numbers
6-07-100-11
129150-02800
729150-02800
AM875371
MB-9150
Original Part Number (OEM)
129001-02931
Part number
6-07-100-22
