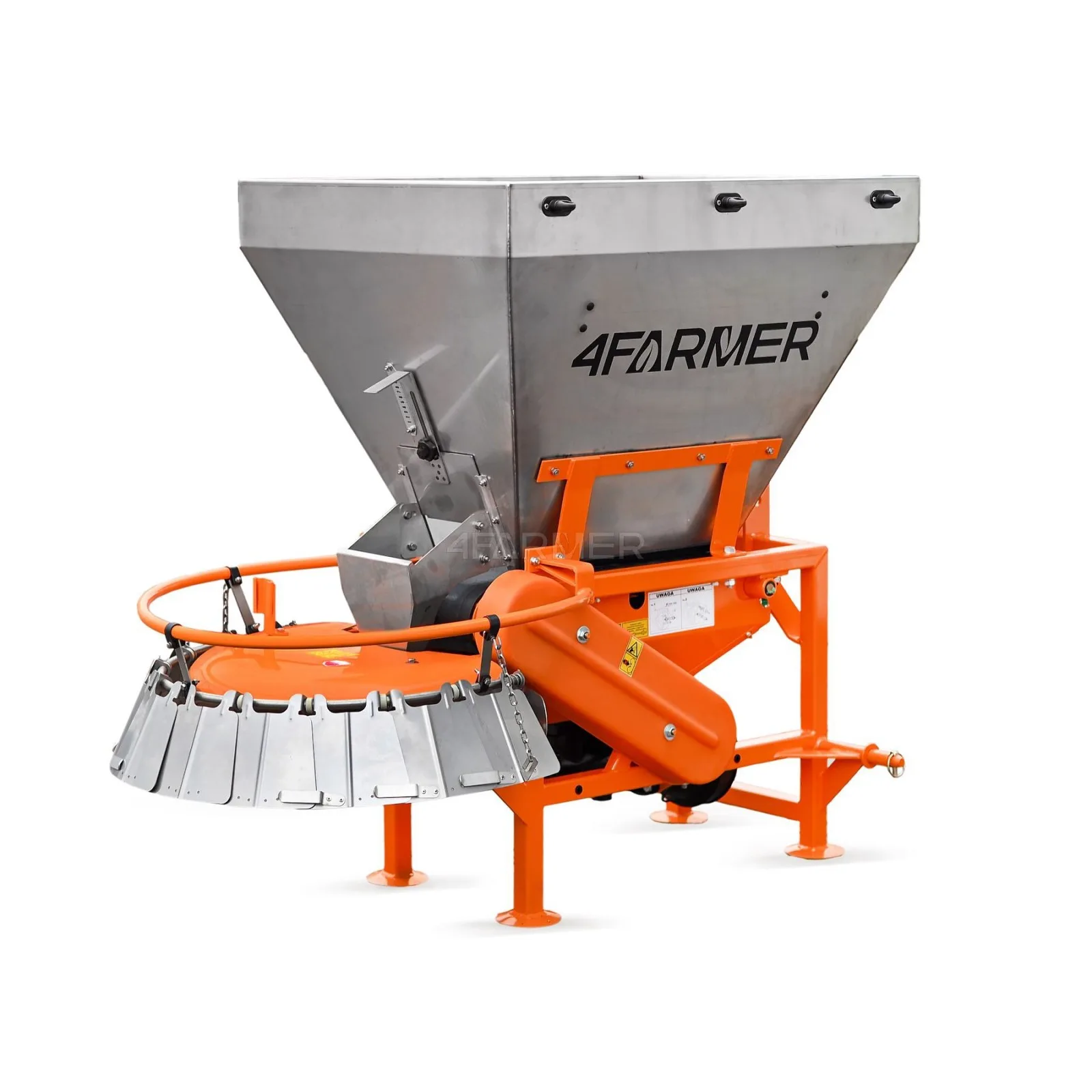

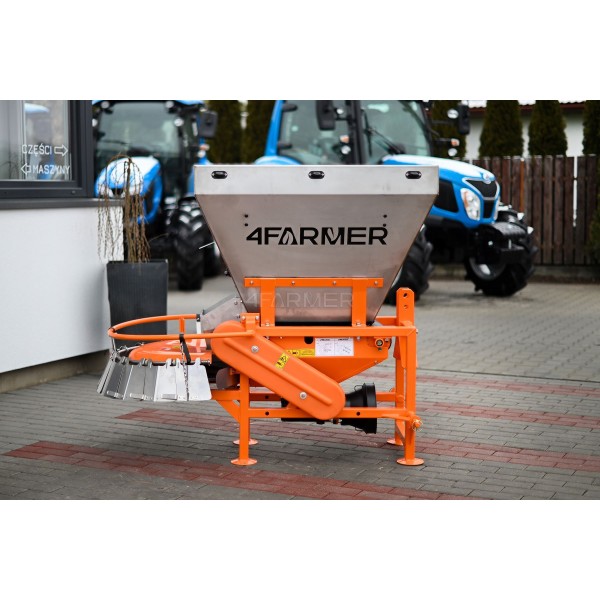

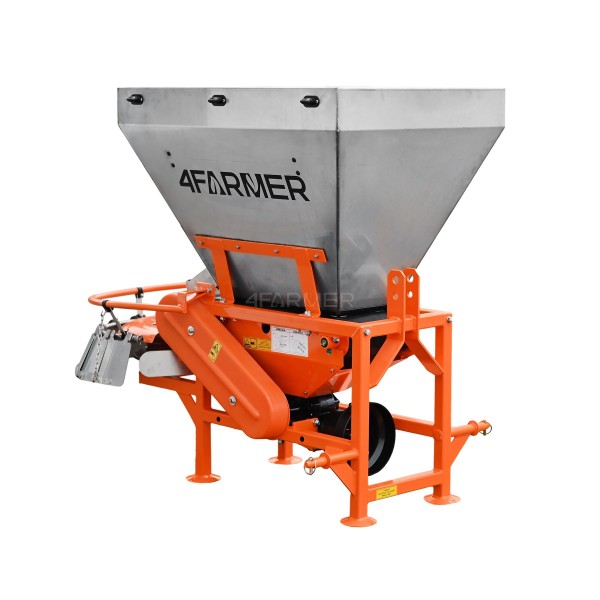

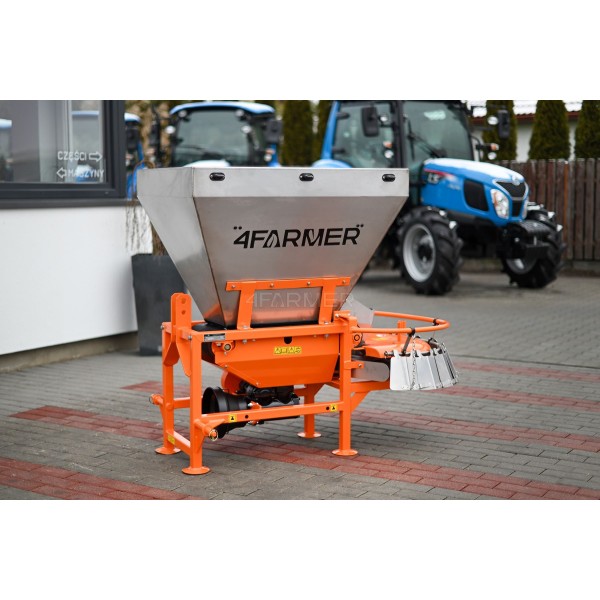

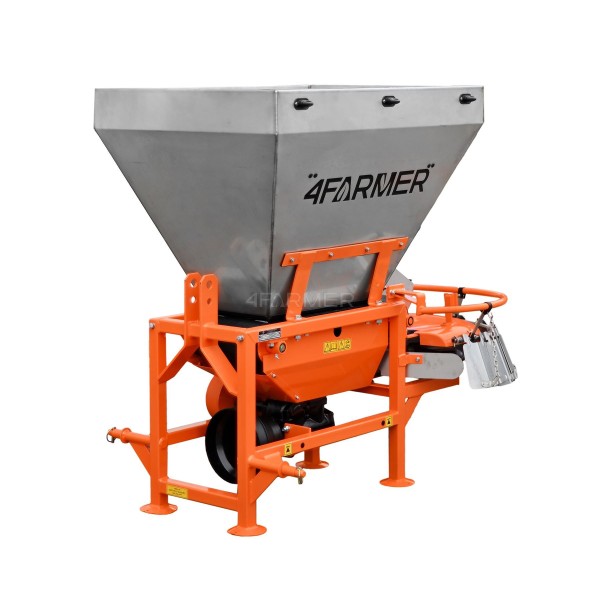

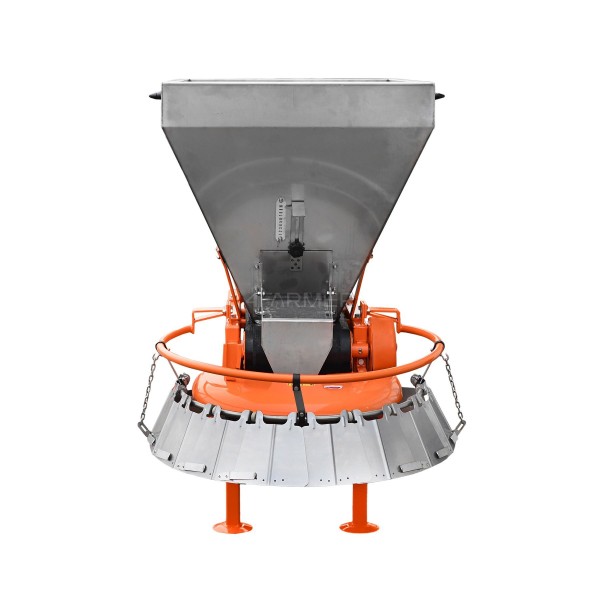

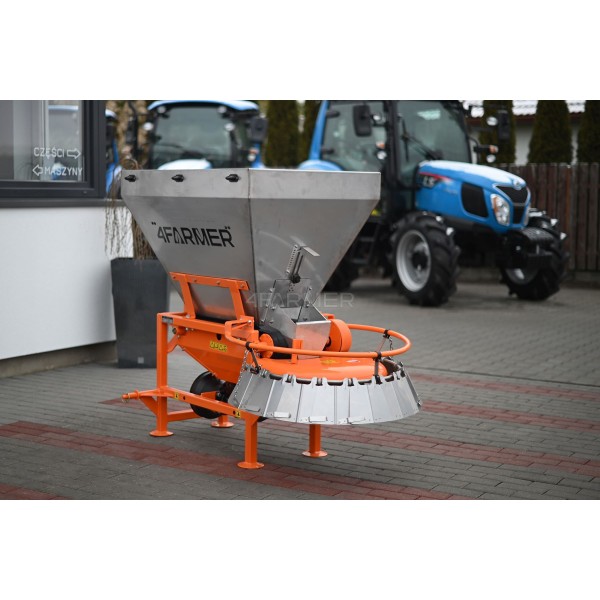

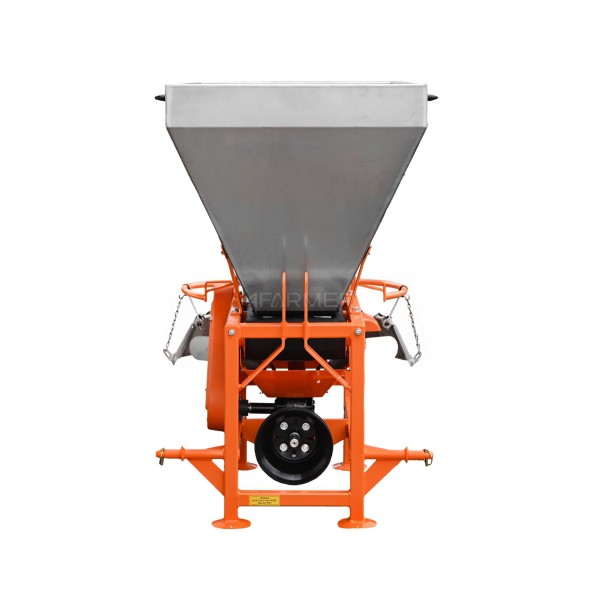

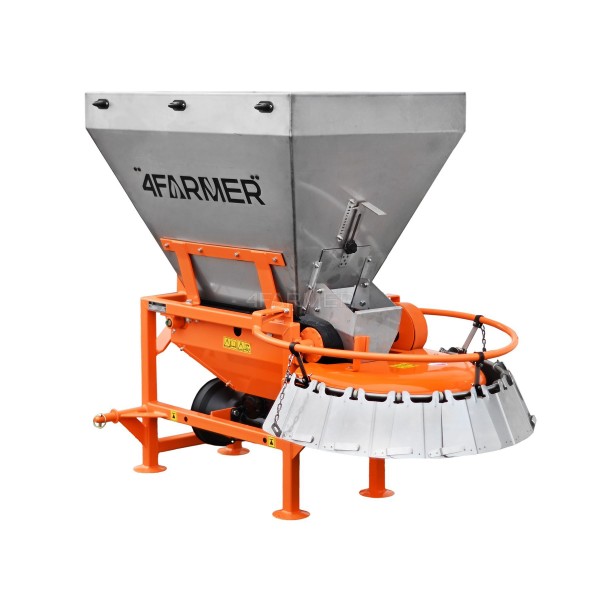

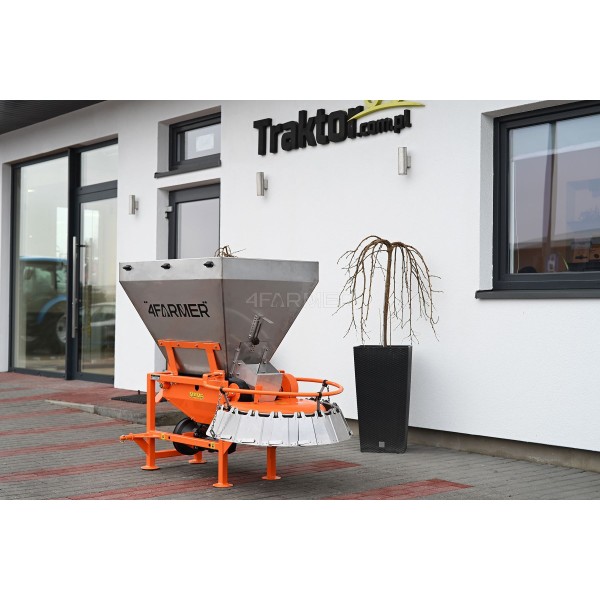

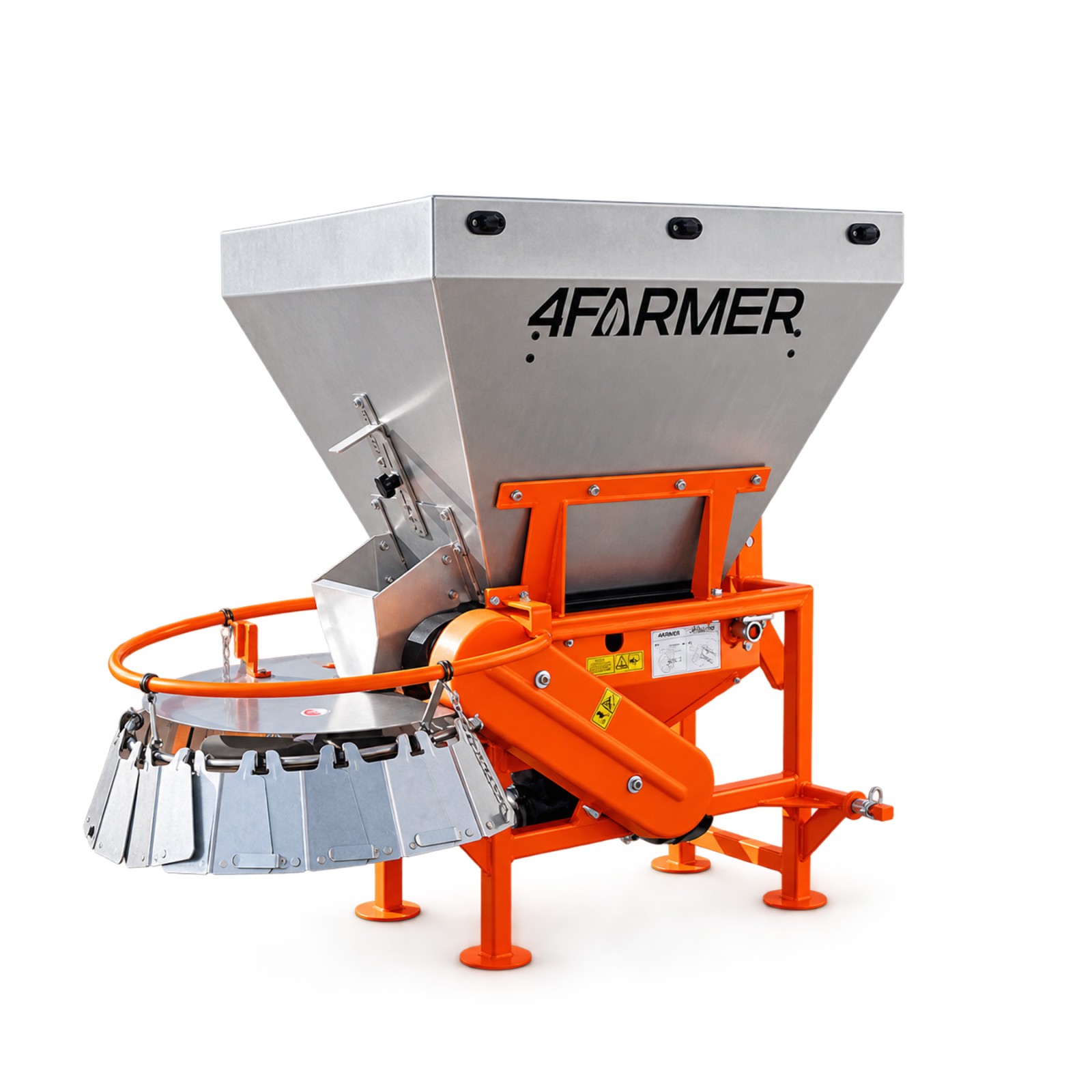

M320 Butterfly type band spreader (stainless steel) with 4FARMER municipal attachment
Spreader - spreader of loose fertilizers , granulates and powdery mixtures is designed for all tractors with a rear linkage with a three-point hitch Cat I and Cat II.
The spreader is also successfully used in municipal companies as a salt or sand spreader after using an appropriate attachment.
A machine that is essential during the winter season

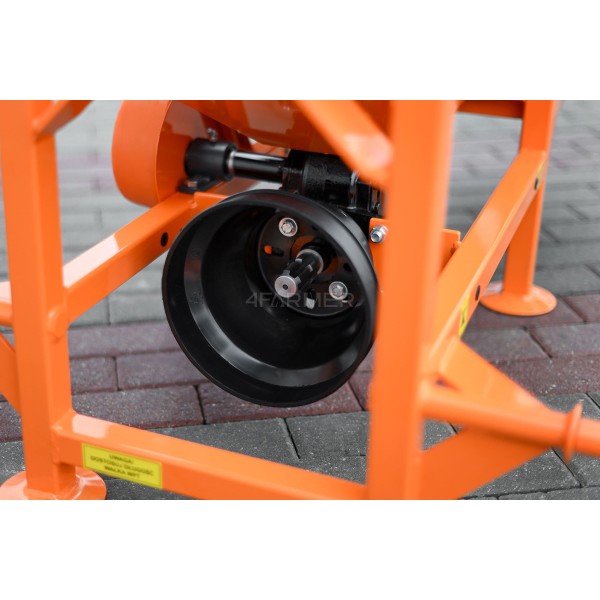

The spreader is powered by the tractor's PTO shaft, and the recommended speed is 540 rpm. The spreading system is a centrifugal disc system. The machine has a 320-liter hopper.

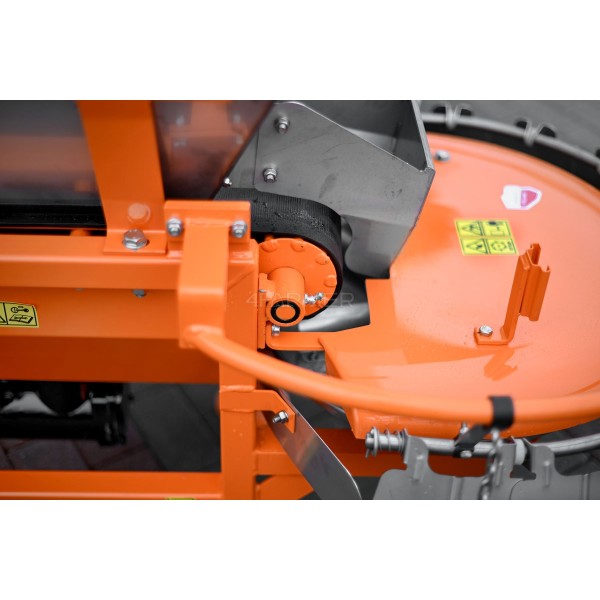

The fertilizer spreader weighs 140 kg, and the permissible load weight ranges from 200 to 400 kg, depending on the tractor. The working element is a horizontally placed rotating disc with vertical vanes that, in a rotating motion, spreads the material to a distance of 5 to 8 m (without the attachment), depending on the type of seed used.
Thanks to the municipal attachment, the sowing width can be adjusted from 1.2 m to 5 m.

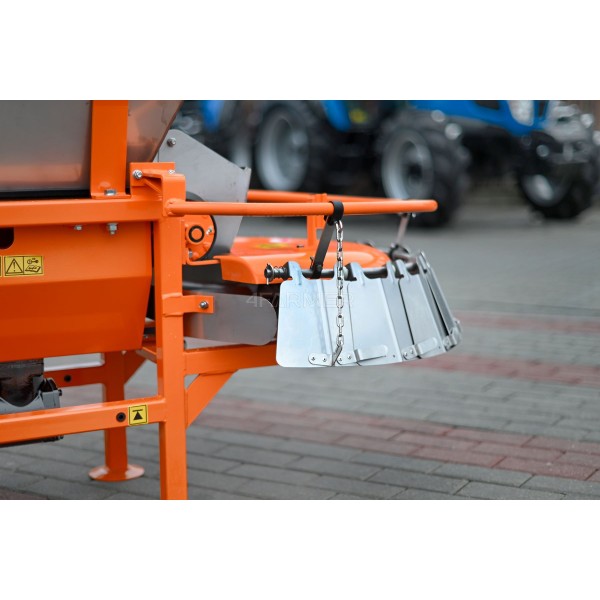

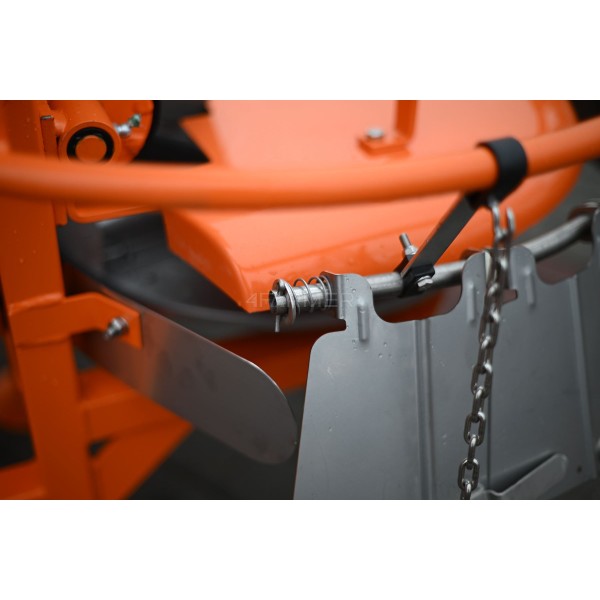

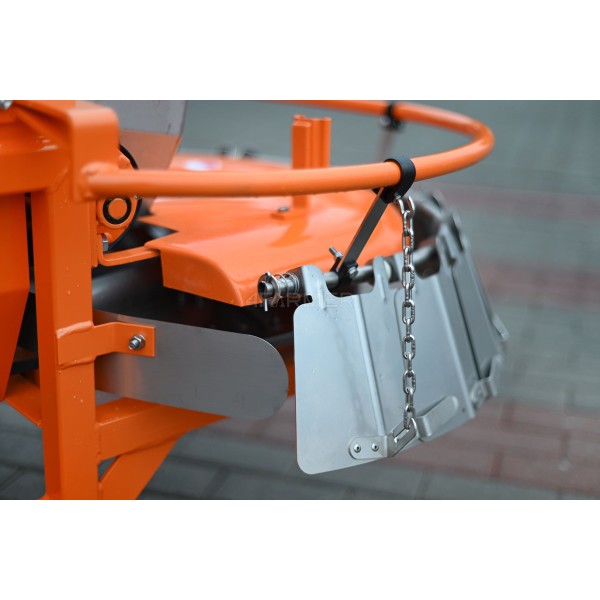

The attachment consists of independently adjustable flaps for the left and right sides, which allow for spreading width adjustments from 1.2 m to 5 m. To ensure trouble-free spreading, it is necessary to conduct tests with the material to be spread. As the spreader's height increases (measured from the ground), the spreading width increases, and conversely, as the spreader's height decreases, the spreading width decreases. The physical properties and specific gravity of the spreading material influence the spreading width.

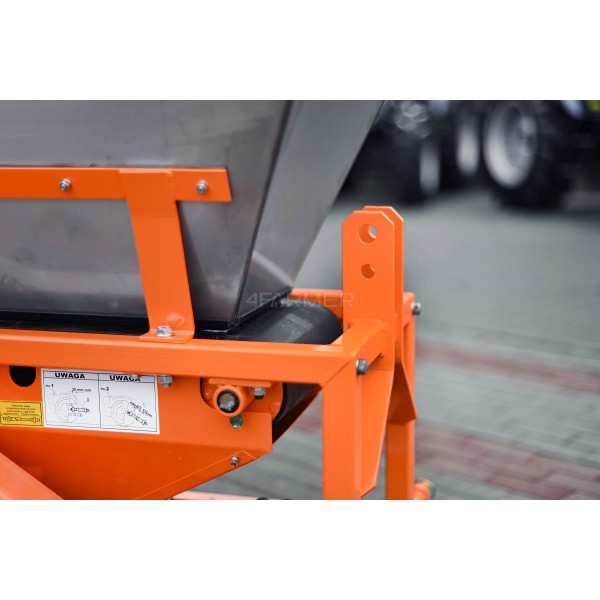

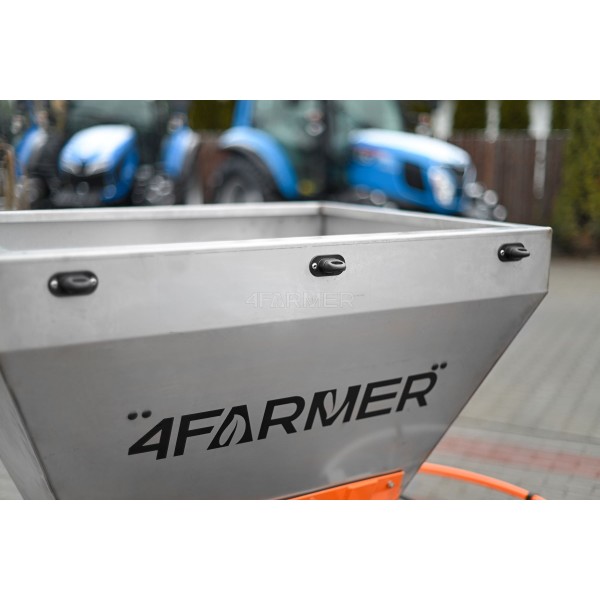

The M320 spreader tank is made of stainless steel.
Specification
Condition
New
Production
Polish product
Yield (ha/h)
4 - dusty and crystalline fertilizers
6 - granular fertilizers
Maximum operating speed (km/h)
9
PTO / PTO
540 (rpm)
NEXT DOOR

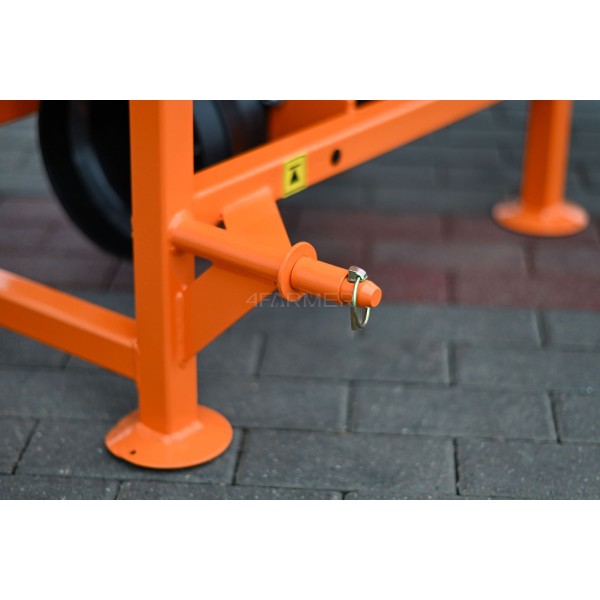

3 point
KAT I
KAT II
Equipment
Communal attachment
Weight (kg)
140
Maximum permissible load weight (kg)
with a class 0.9 tractor - 400 kg
with a tractor class 0.6 - 200 kg
Transport speed (km/h)
max 25
Spreading working width for broadcasting (m) / (without header)
Dusty materials: 5
Granular material: 8
Range of fertilizer doses (kg/h)
25 - 1500
Tank capacity (L)
320
Spreader basket
Stainless steel
