Available
Others in the offer of this manufacturer >
Condition
New
Production
OEM
Parts
WOM
Diameter (mm)
36x4.0: 43.5x3.4
Overall length (mm)
1200
Recommended tractor power (hp)
to 47
Type
Pipe
Go to full specification >
wishlist

PTO shaft 04B - 120 cm

04B-120
zł320.00
Tax included PL 23%

260,16 netto

  • Dostępność (66 Quantity): stock
wishlist

Do you have any questions?

PTO shaft 04B - 120 cm

What is a PTO and how does the PTO work?

The power transmission shaft is the shaft that transmits the drive. Rotary movement from the tractor to the connected machine and is designed to work at an angle to the tractor. The power transmission shaft consists of 2 crosses, 2 pairs of forks and a telescopic triangular tube. PTO shaft is the common name for three types of shaft:

  • tractor power take-off shaft (PTO),
  • power transmission shaft, e.g. tubular or telescopic,
  • power input shaft in the machine (WPM).

How to choose the right PTO shaft?

The cross-shaped articulated and telescopic shaft comes in several types and is divided according to the length and the value of the transmitted torque. The minimum torque value is a parameter that is the main parameter that we must follow when choosing a shaft. The nominal Nm value is the torque transmission value which decreases as the shaft extends beyond the value specified by the manufacturer. The next step when purchasing a roller is to choose the appropriate length. To select the appropriate shaft, measure the distance from the tractor's PTO shaft to the machine's PTO shaft and then measure the PTO shaft from the center to the center of the joints.

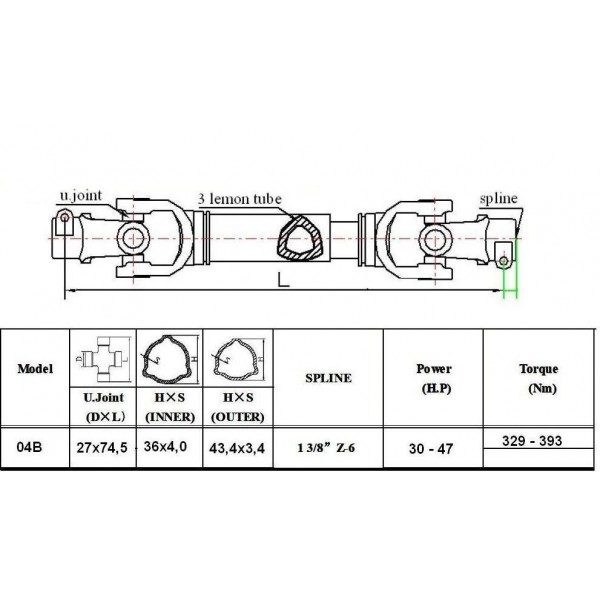

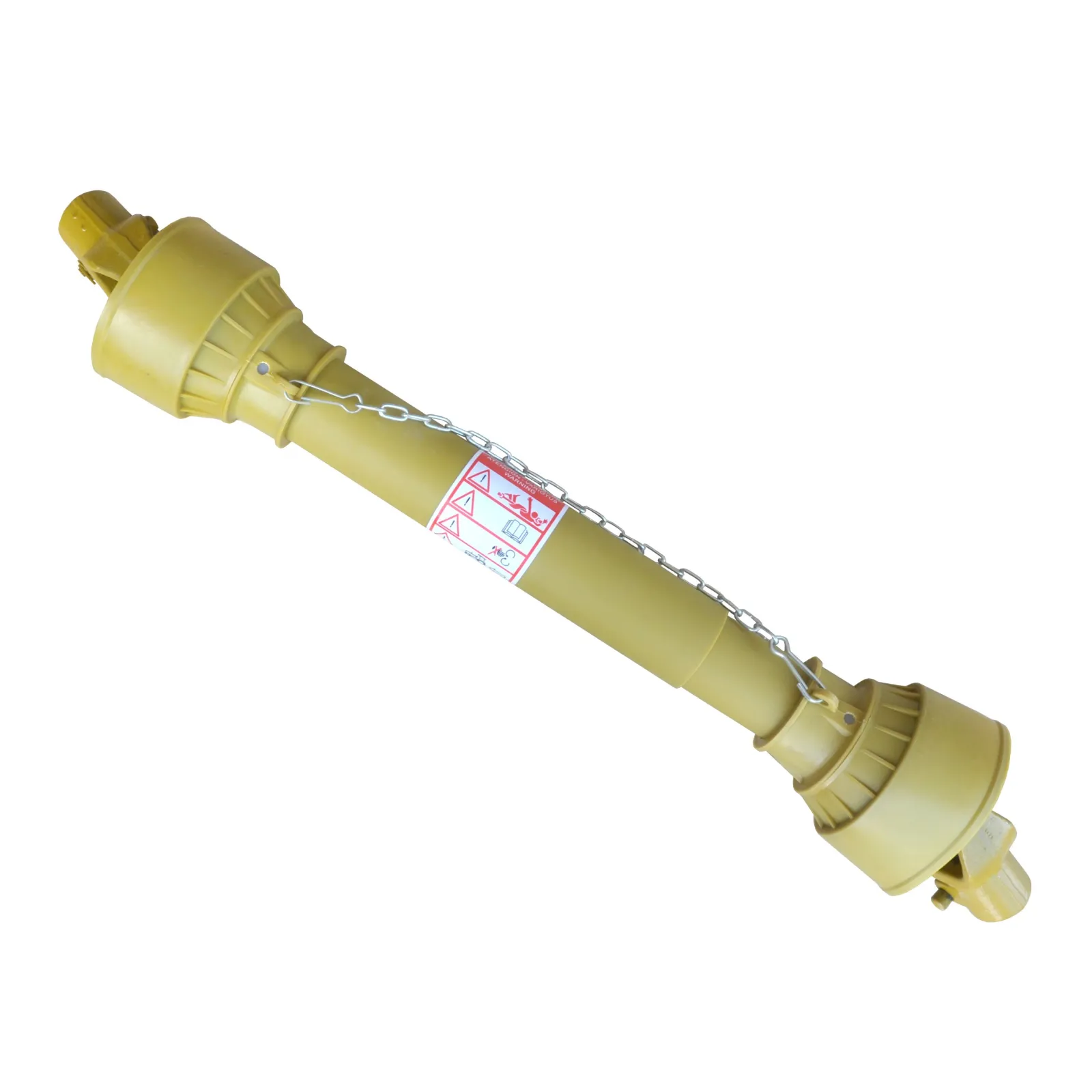

PTO shafts - type 04B - tubular, 120 cm long (measured from end to end when folded).

TYPE 04B - Power transmitted up to 47 HP, torque up to 393 Nm

- standard spline, 6/6 - 1 3/8
- triangular tube profile (36x4.0; 43.5x3.4)
- universal joints (27x74.5) with grease nipples,
- plastic cover,

Specification

Magazyn: K10 / K15
Condition
New
Production
OEM
Parts
WOM
Diameter (mm)
36x4.0: 43.5x3.4
Overall length (mm)
1200
Recommended tractor power (hp)
to 47
Type
Pipe
Universal joint
27x74.5
Pipe profile
Triangular
Torque (Nm)
393

4FARMER

4FARMER

The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.

The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.

Wide offer of 4FARMER:

The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .

The most important advantages of the 4FARMER brand?

  • Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
  • Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
  • Professional support and access to spare parts.

4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
