Water pump - Kubota D1301 / D1302 / V1502 / V1903 / V2003 / V2203

Product code: 1A021-73030
Brand 4FARMER
Country of production 4FARMER
View other model
2 people purchased this product
zł439.00
Includes VAT 23%

Lowest price from 30 days: zł439.00

Product description

Water pump (gasket 5-15-117-03 , seal 6-08-100-01 , housing 5-25-128-13 , 17331-73410 , shaft 5-23-105-01, 15521-73550, 885166K-3A, belt pulley 5-20-102-49, fan 6-14-201-02 , 34550-16210) for Kubota tractors of the Kubota L2550, Kubota L2850, Kubota L3250, Kubota L3408, Kubota L4708 series with Kubota D1301, Kubota D1302, Kubota V1502, Kubota V1903, Kubota V2003 engines, Kubota V2203 and others

The water pump, the radiator coolant, is one of the most important elements of the engine cooling system and this method of cooling is commonly called water cooling . The engine block and the engine head are elements that heat up to very high temperatures during operation and it is these that we want to cool with the coolant during operation. Special water channels are bored in the engine and the head for the circulation of water, which, in order to be re-injected into the engine water channels. The circulation of the coolant is possible thanks to the water pump , which is most often placed between the radiator and the engine and is driven by a V-belt from the alternator. To the pump flywheel, we screw in the following order the belt pulley, and then the radiator fan, which rotates together with the belt pulley, providing the air movement needed to cool the radiator during engine operation.

Dimensions :

  • height: 90 mm,
  • total length: 330 mm,
  • flywheel diameter: 63 mm,
  • wheel bolt hole spacing: 49 mm (measured diagonally), 35 mm (measured apart),
  • rotor diameter: 66 mm,

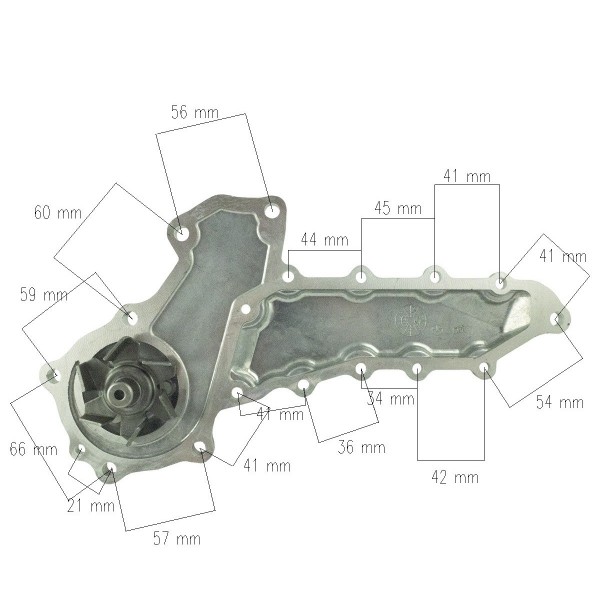

  • the spacing of the holes for the pump mounting screws is clearly visible in the photo,
  • gasket included with the pump: 5-15-117-03 ,
  • reference numbers: 6-15-111-02 , 1A021-73033, 15521-73033, 15521-73035, 16661-73034,
  • part number: 1A021-73030,

The most common problems and faults of the water pump are the bearing seizure , which is subjected to high rotational speeds and because the elements that directly cooperate with the pump, such as the pulley and the fan, which are not always properly balanced. Too tight a belt , worn belt , too loose V-belt, V-belt installed at the wrong angle , poor lubrication or lack of lubrication are other causes that cause water pump damage. The first signs of water pump damage or signs of improper operation are an unusual sound from under the hood, a coolant stain under the tractor or temperature jumps visible on the dashboard gauges.

Warehouse :
M01:B12

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
49 / 35 (koło)
Engine model
- Kubota V1502
