Cylinder seals / Yanmar EF453T / EF494T / EF514T / 6-07-103-05

Set of hydraulic power steering cylinder seals and power steering cylinder o-rings for Yamar tractors of the Yanmar EF453T, Yanmar EF494T, Yanmar EF514T series and others.

A seal is most often a rubber ring (also called a simmering, or Simmer ring, after the inventor), made of rubber or another plastic that meets specific technical requirements. A sealing ring is used to seal rotating components of a system with a maximum internal pressure of up to 0.1 MPa, which are immersed in fluids during operation, typically oil, various types of lubricants, and sometimes gasoline or water. The most common use of sealing rings is for sealing shafts and power transmission or drive systems of machinery and equipment. There are various types of sealing rings, the most common being cassette (two-piece) seals , sealing rings with a surrounding spring, or seals with a partially metal housing (cover).

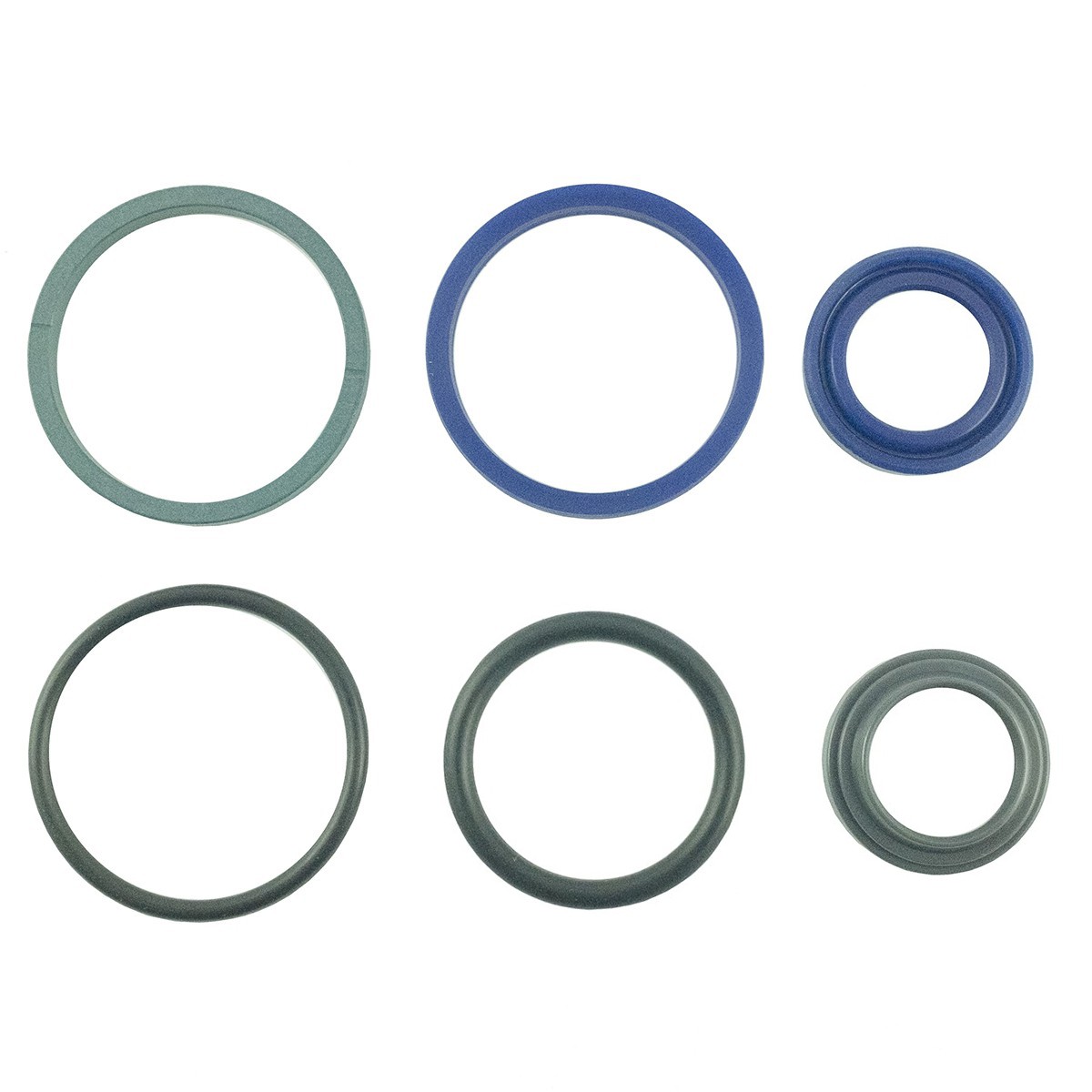

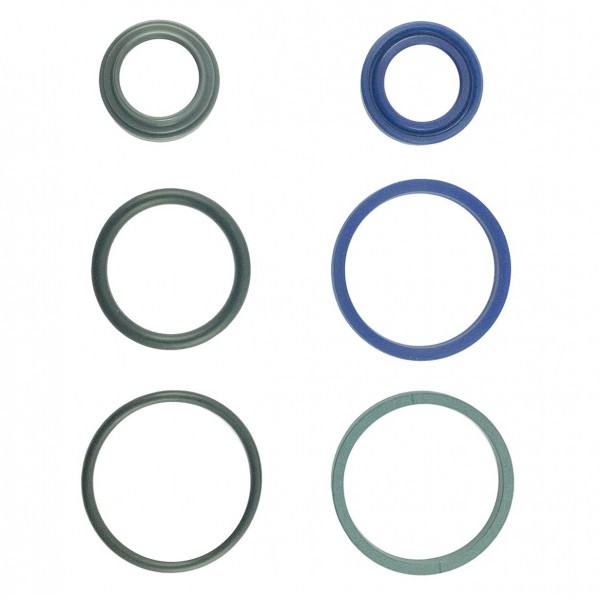

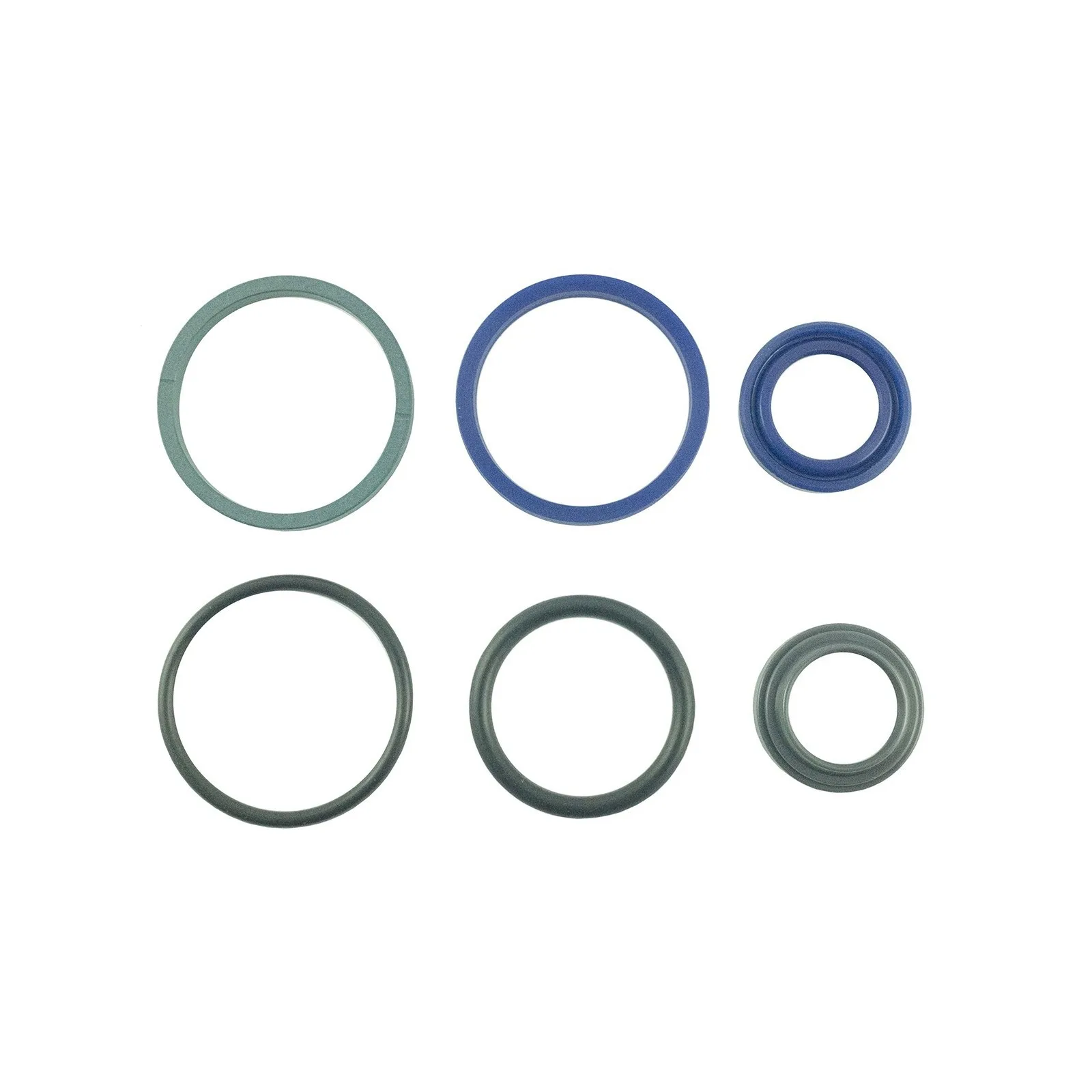

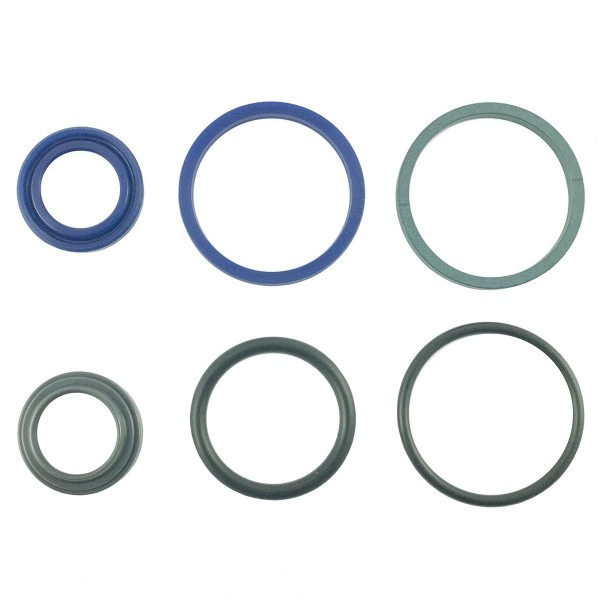

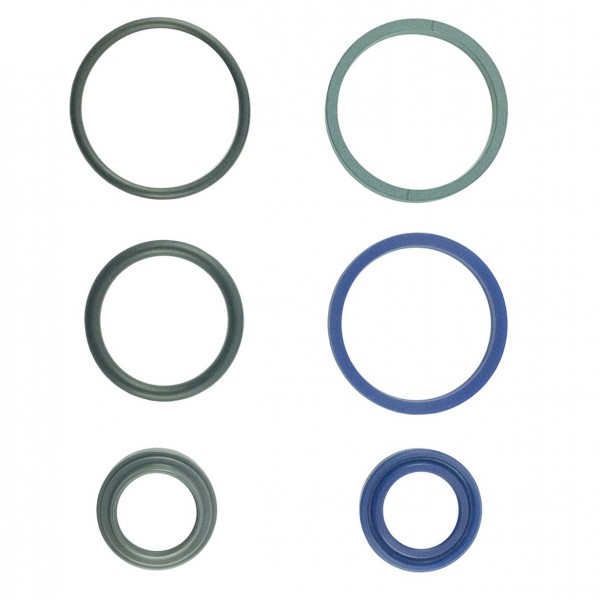

The set consists of 3 seals, 2 O-rings and 1 back-up ring.

Dimensions (from the largest) :

• 1 x retaining ring: 40 x 35 x 4 mm,
• 1 x hydraulic seal (blue): 40 x 35 x 3.80 mm,
• 1 x O-ring seal: 2.50 x 34 mm,
• 1 x O-ring seal: 3.30 x 28 mm,
• 1 x hydraulic seal (blue): 19 x 26 x 5.50 mm,
• 1 x sealant: 18 x 26 x 6.50 mm,
• original part numbers: 1A7335-17550-1,
• part numbers: 6-07-103-05.

Tractor models:

• Yanmar EF453T,
• Yanmar EF494T,
• Yanmar EF514T.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.

Magazine : M01:A28:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
