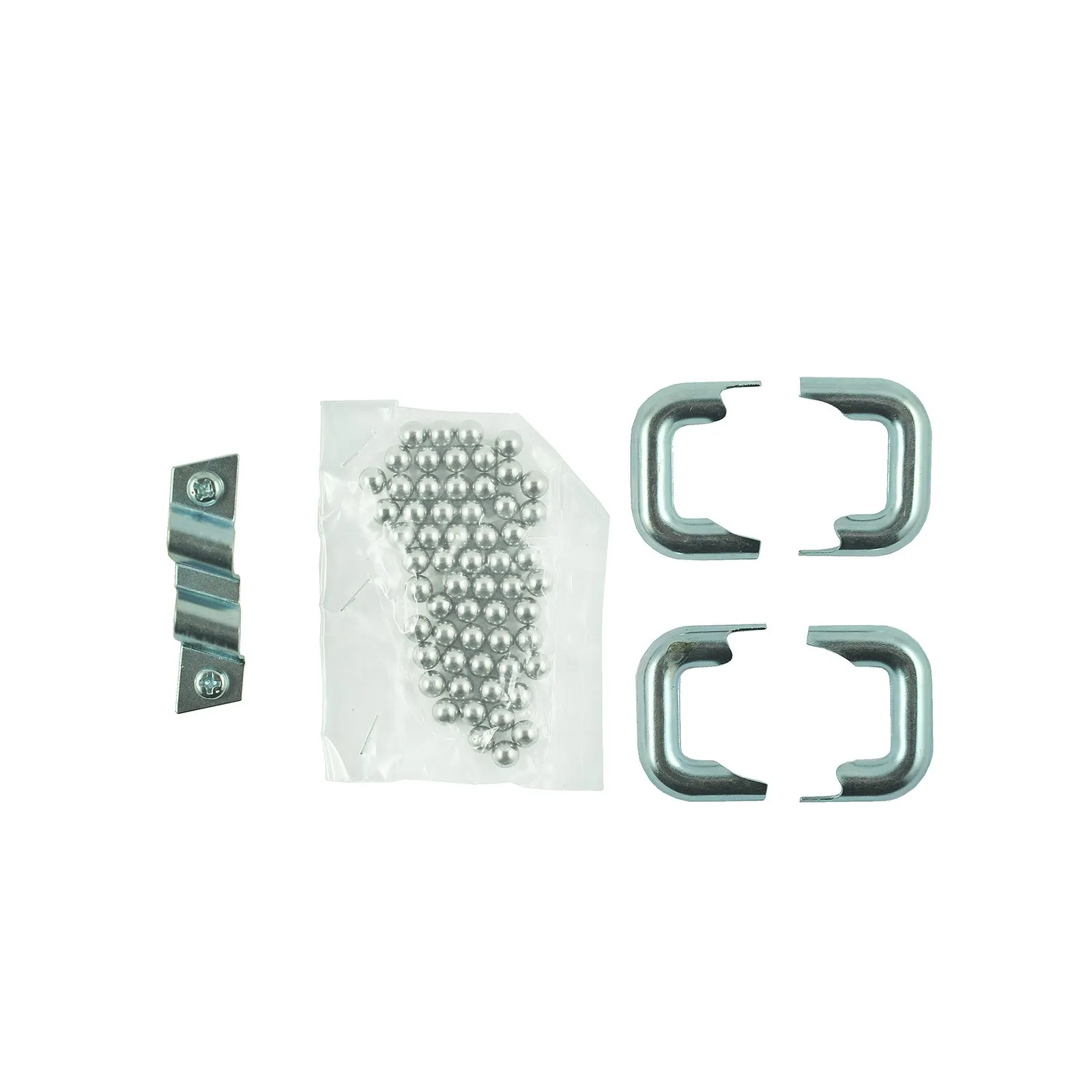

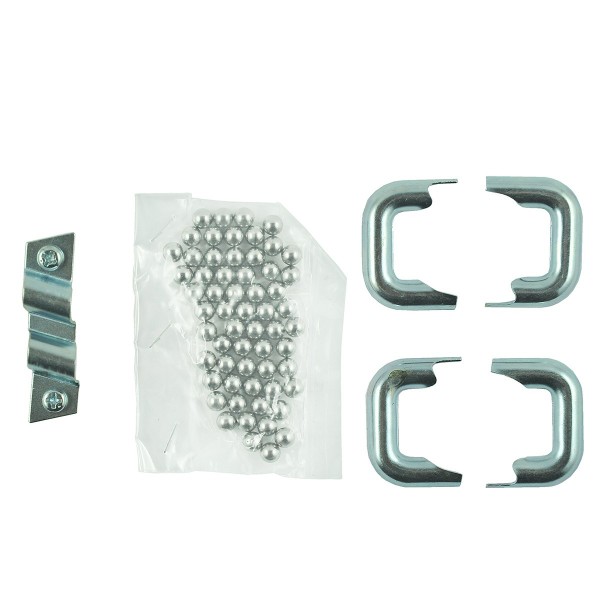

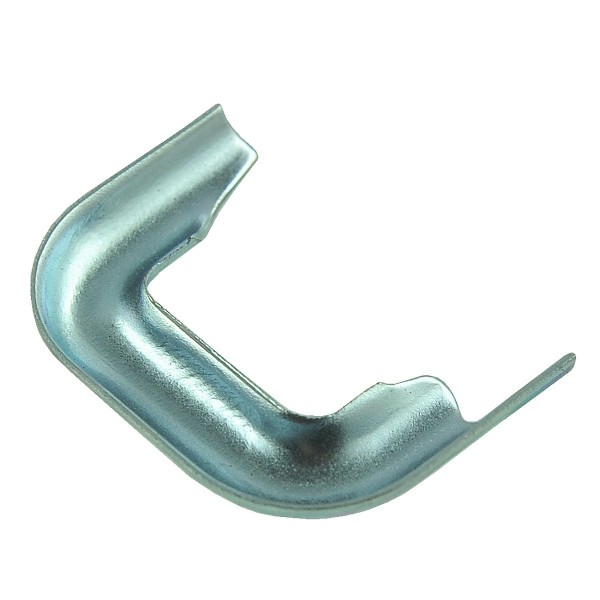

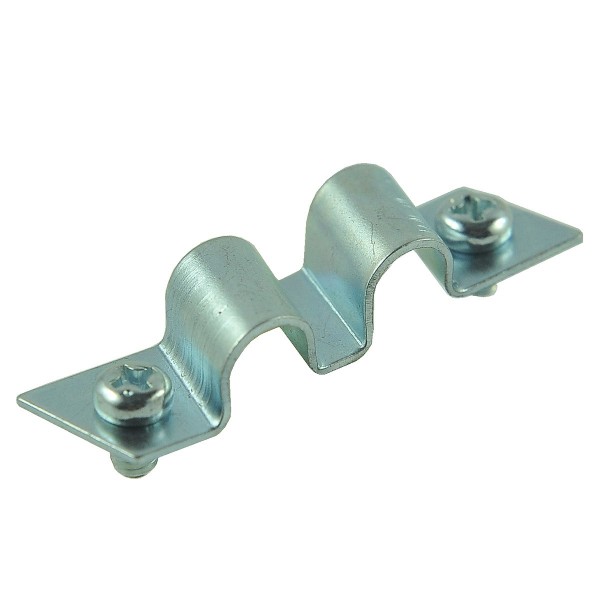

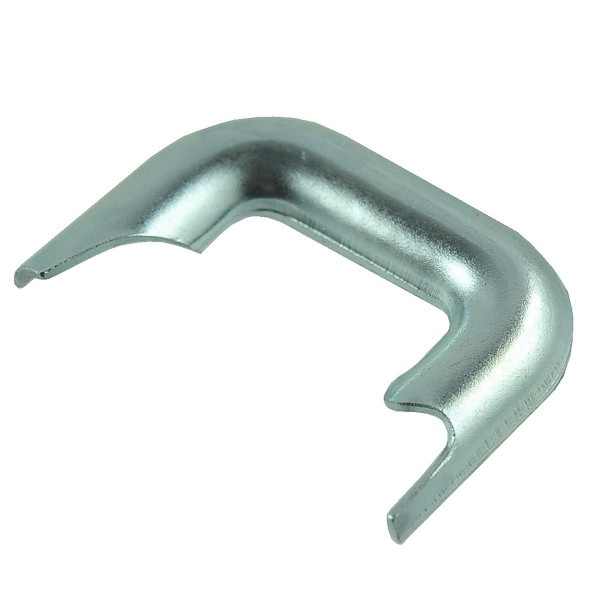

Steering Column Shaft Repair Kit / Kubota / Yanmar

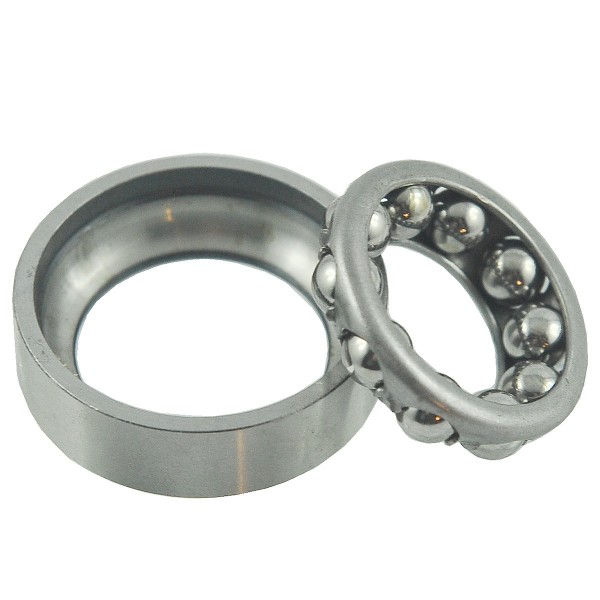

Steering column worm shaft repair kit (column shaft KUSS-425, 794130-15500, 34150-16201, shaft KUSS-414, 34150-16200, shaft S.70649, 34150-16201, column KUSS-404, 34159-16091, 35240-16100, 34159-160913, bearing 6-23-111-01, 34150-16221) for Kubota tractors of the Kubota L175, Kubota L185, Kubota L245, Kubota L1500, Kubota L1501, Kubota L1801, Kubota series L2000, Kubota L2201 , Yanmar brand series Yanmar YM195, Yanmar YM240 , Yanmar YM1700, Yanmar YM2000 and others.

The steering column worm gear is a component of the steering system, sometimes called the rack and pinion, responsible for the tractor's steering. One end of the shaft is directly bolted to the steering wheel, while its worm section on the other moves the steering rods connected to the front axle's steering rods, which rotate the steering wheel. The worm gear is a component of the steering column responsible for steering the tractor. It consists of a shaft with a worm. The worm gear is responsible for transmitting the steering wheel movement to the rod ends and then to the steering wheels. This connection should be as smooth and free of play as possible. At the end of the shaft is mounted the so-called steering column worm , with a thread resembling a screw thread, directly integrated into which is a gear or other surface connected to the rod ends.

Dimensions :

• shot diameter: 5.30 mm,
• comparison numbers: S.70582,
• part numbers: 5-07-102-07.

Tractor models :

• Kubota L175,
• Kubota L185,
• Kubota L245,
• Kubota L1500,
• Kubota L1501,
• Kubota L1801,
• Kubota L2000,
• Kubota L2201,
• Yanmar YM195,
• Yanmar YM240,
• Yanmar YM1700,
• Yanmar YM2000.

Magazine : K18:H49:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
