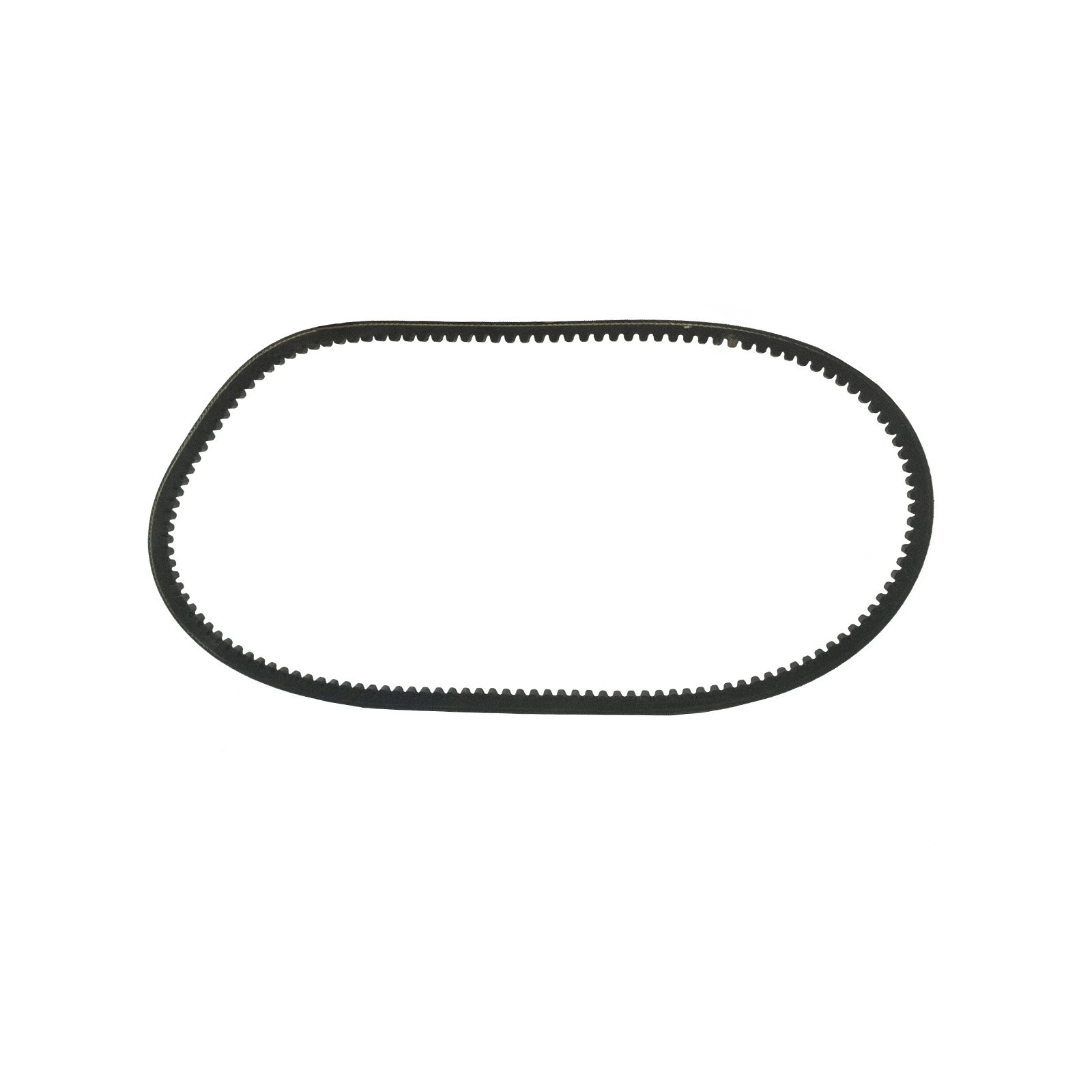

V-belt 17 x 1130 mm, AV1190, for chipper, flail mower

V -belt with a length of 1130 mm , a width of 17 mm and a thickness of 11 mm for 4FARMER machines  and others producers.

A V-belt is an element that is used to transfer power from the engine or transmission to the accessory or device. Most often, V-belts are used to drive an alternator, coolant pump or compressor, and in agriculture , belts are used in agricultural devices and accessories operating at high rotational speeds. V-belts are the most frequently worn parts of agricultural machines due to the material they are made of and damage resulting from overloads during machine operation. A worn V-belt should be replaced with a new one as soon as possible to prevent an accident or damage to the machine. A poorly installed V-belt or incorrectly set tensioner , too little or too much tension on the V-belt may result in faster wear. The first signs of V-belt wear (e.g. belt stretching) are a loss of machine power or an unnatural sound when the device is operating.

Dimensions :

• Length: internal 1130 mm, external 1190 mm,
• Width: 9 / 17 mm.
• Thickness: 11 mm.

The V-belt fits 4FARMER , GEOGRASS, TRX and other machines sold by our company in the current calendar year. Older machine models or newer ones may have different belt sizes.
