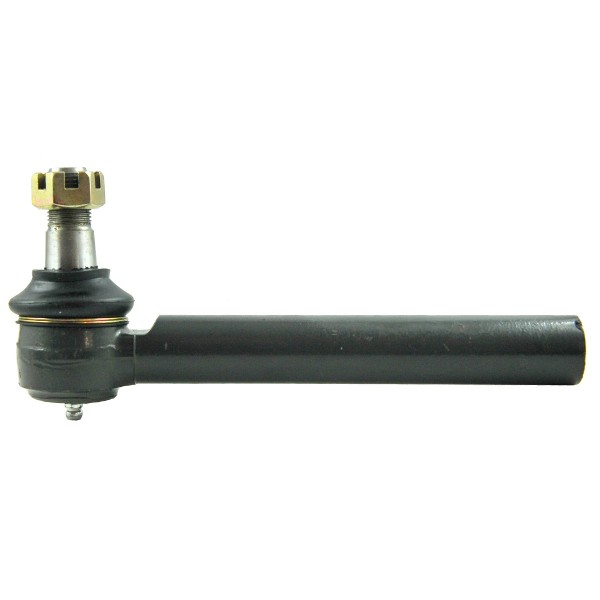

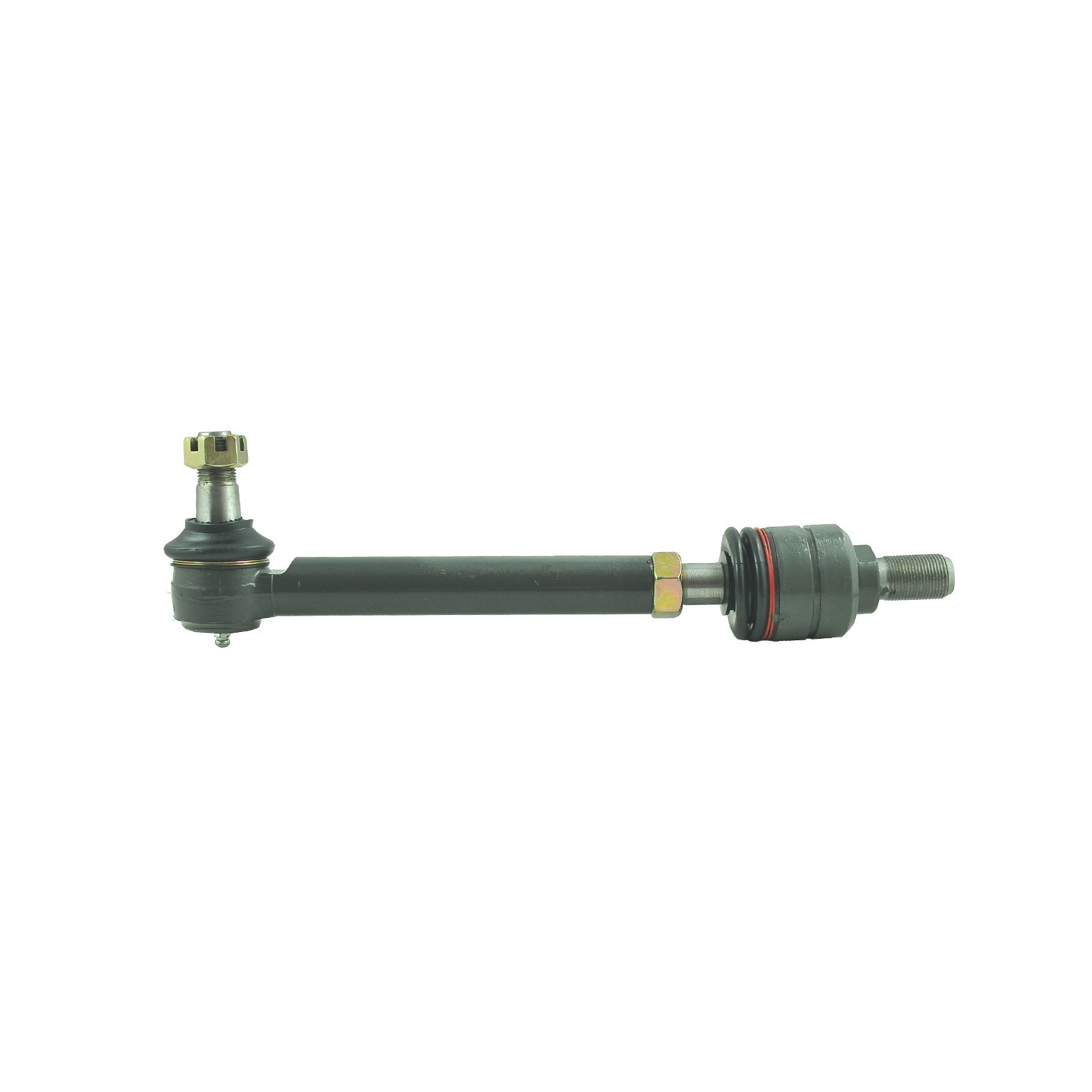

Steering rod / 54 x 245 mm / Kubota M8540 / M9540

Rod end + steering rod joint (tie rod end %C3% B3wki-dr %C4% 85 %C5% BCka-steering/7016-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-242-mm-3c091-62920-kubota-m9540.html">3C091-62920 , joint %C3% B3wki-dr %C4% 85 %C5% BCka-steering/1338-joint-dr %C4% 85 %C5% BCka-kubota-m5000m5040m5140m6040m6060m7040me9000-3a121-62980-5-23-101-47.html">3A121-62980 , 5-23-101-47) with a total length of 245 mm for Kubota tractors of the Kubota M8040, Kubota M9540 series and others.

The tie rod end is a component of the steering system that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

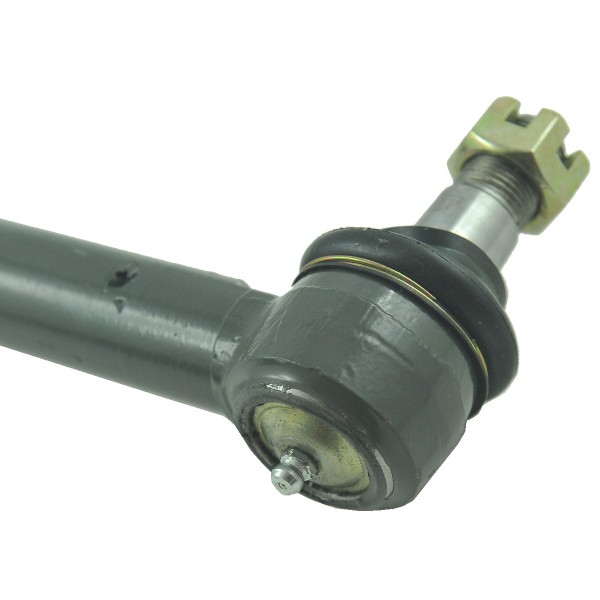

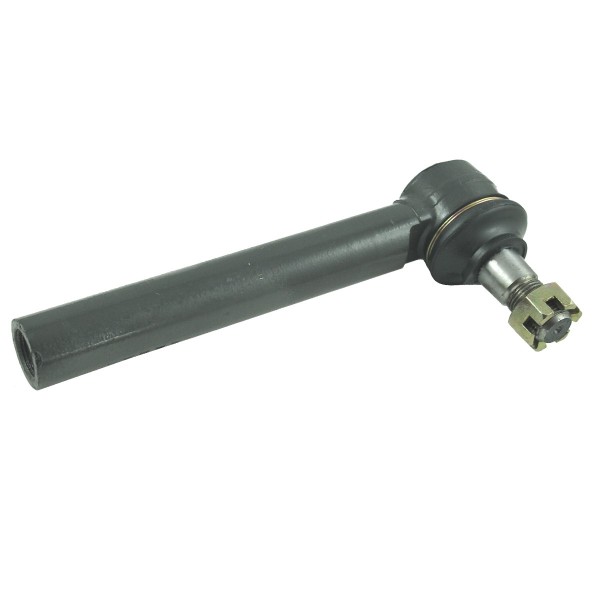

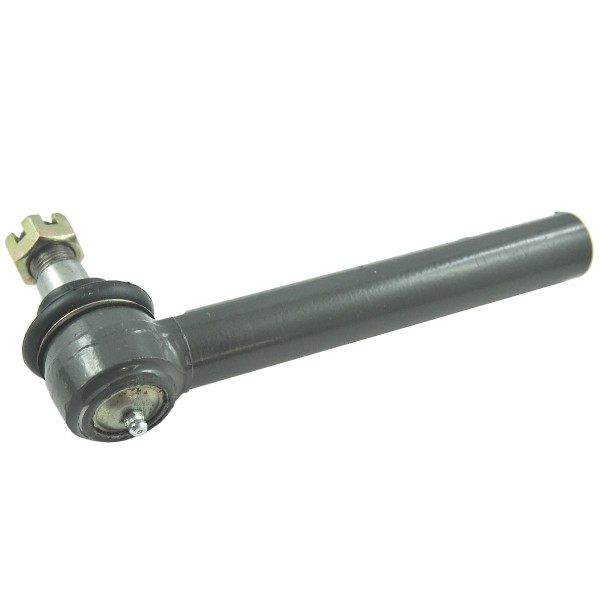

Tip dimensions :

• total length: 245 mm (+/- 2 mm).
• height: 94 mm.
• head diameter: 46 mm.
• thread length: 18 / 66 mm..
• cone height: 56 mm.

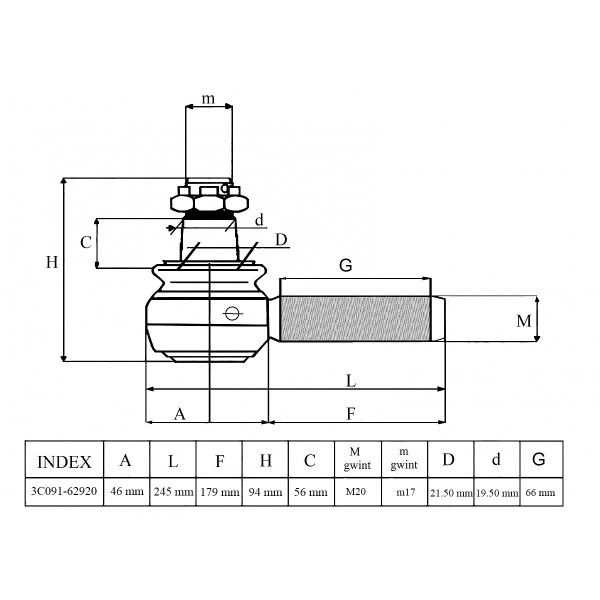

• cone diameter (see drawing): 19.50 / 21.50 mm.
• thread: M20 x 1.5 / M17 x 1.5,
• original part numbers: %C3% B3wki-dr %C4% 85 %C5% BCka-steering/7016-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-242-mm-3c091-62920-kubota-m9540.html">3C091-62920 ,
• comparative numbers: -,
• part numbers: 3C091-62970,

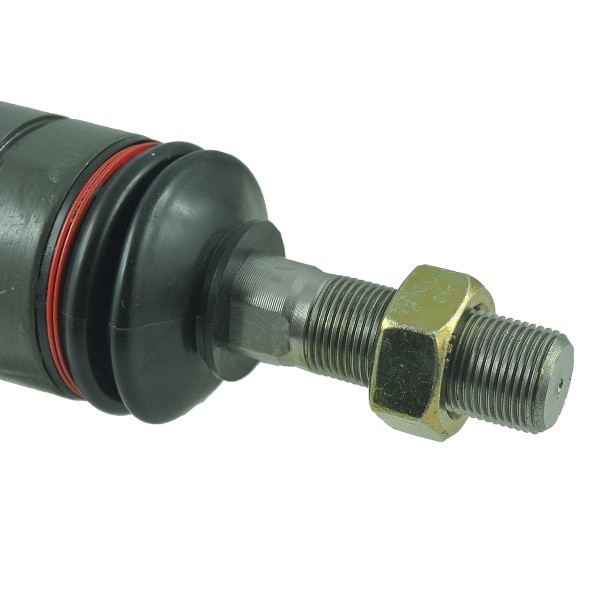

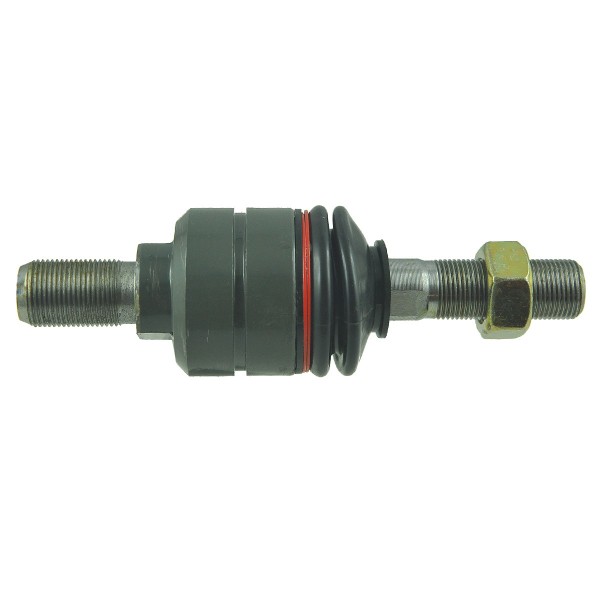

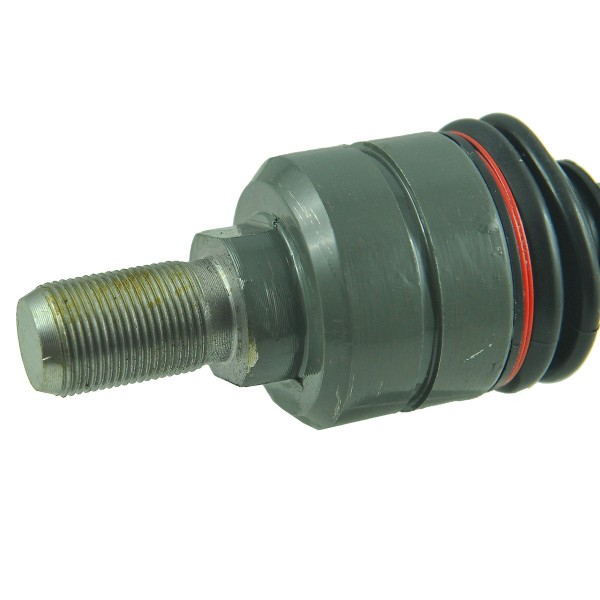

Joint dimensions :

• total length: 178 mm,
• diameter: 54 mm,
• thread: M20 x 1.5 / M22 x 1.5,
• thread length: 28 / 47 mm,
• original part numbers: 3A121-62980,
• comparative numbers: -,
• part numbers: %C3% B3wki-dr %C4% 85 %C5% BCka-steering/1338-joint-dr %C4% 85 %C5% BCka-kubota-m5000m5040m5140m6040m6060m7040me9000-3a121-62980-5-23-101-47.html">3A121-62980 , 5-23-101-47.

Tractor models :

• Kubota M8540,
• Kubota M9540.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine: K18:E17:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
