zł85.00
To order
Condition
New
Production
Substitute
Parts
Drive
Height (mm)
8
Outer diameter (mm)
90
Inner Diameter (mm)
35
Comparison numbers
W9501-63011
W9501-93001
W9501-93001
Sealant / 35 x 90 x 8 mm / Kubota M8540/M8560/M9540/M9960 / BE6657E / 3C091-44120 / 5-08-106-21
5-08-106-21
Do you have any questions?

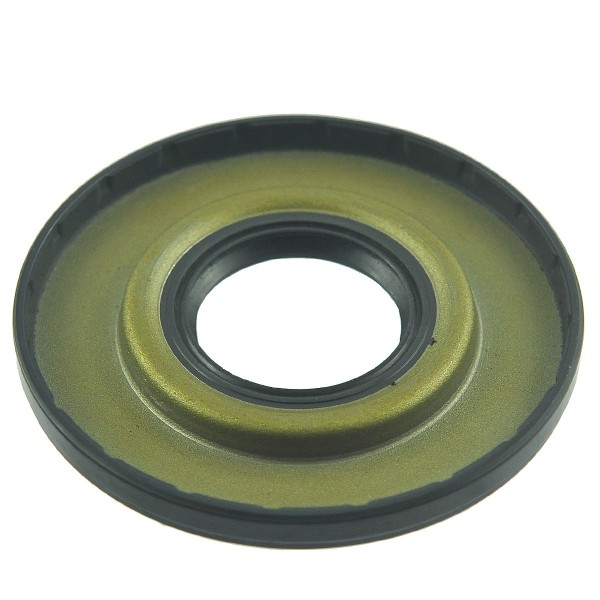

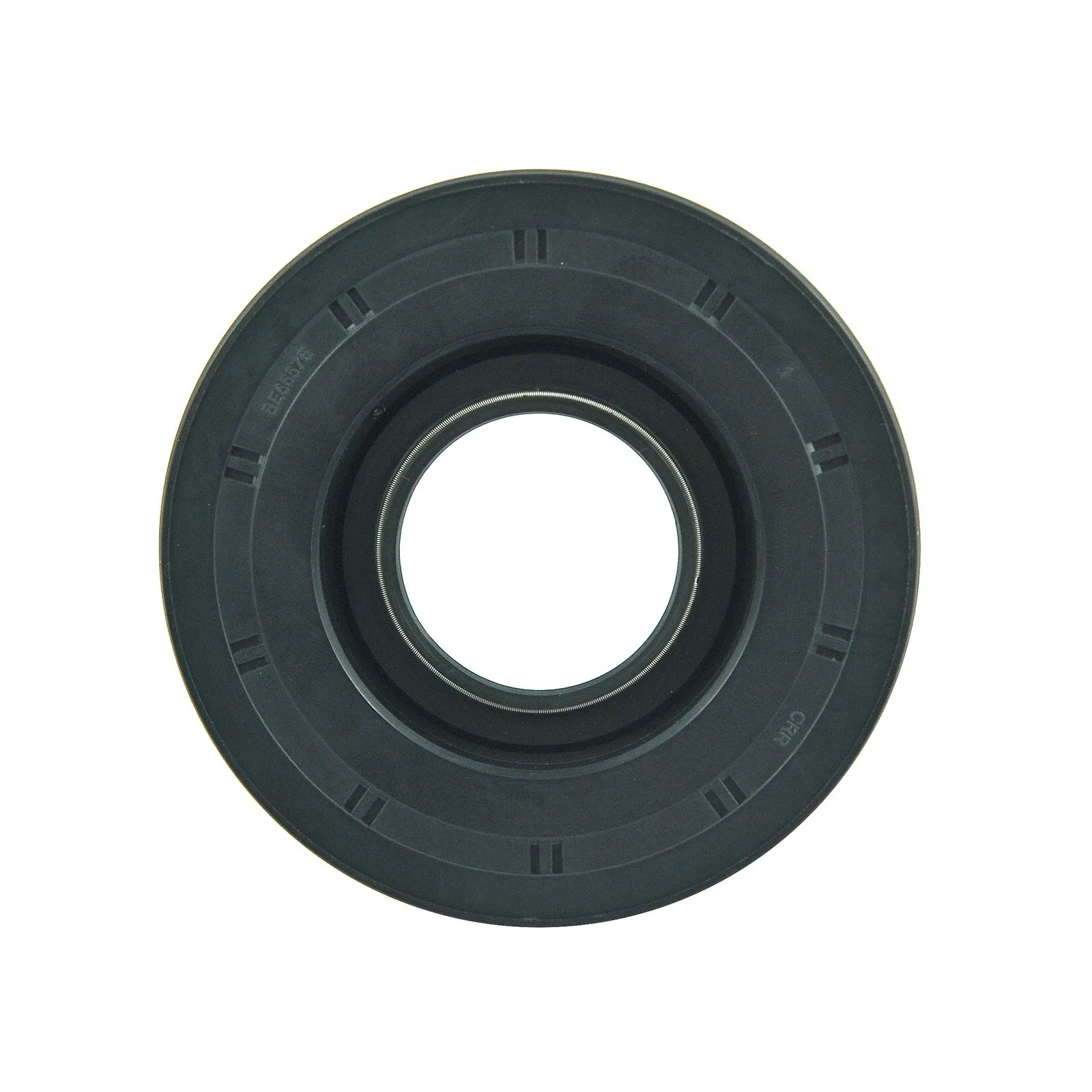

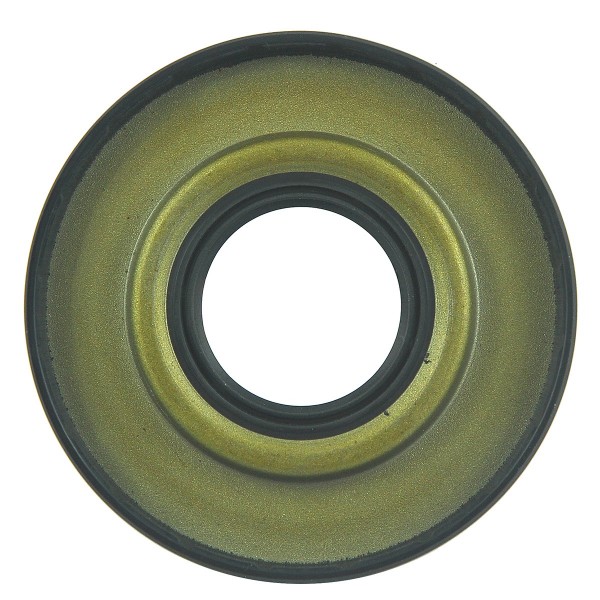

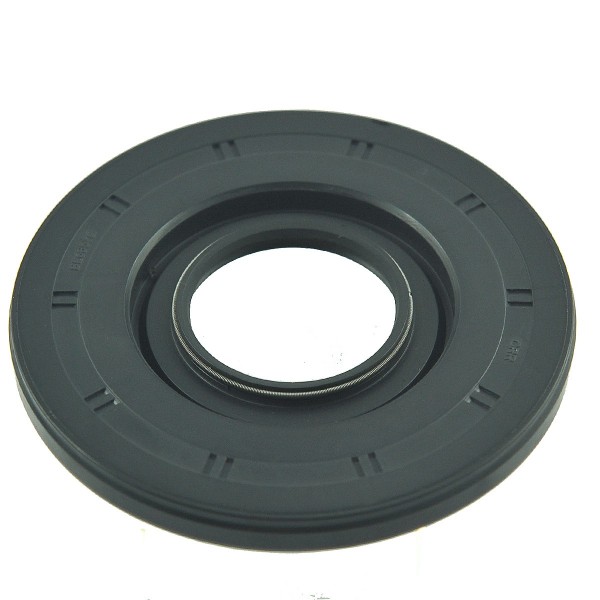

Sealant / 35 x 90 x 8 mm / Kubota M8540/M8560/M9540/M9960 / BE6657E / 3C091-44120 / 5-08-106-21
Sealant-sprayer, front axle drive shaft oiler ring with an internal diameter of 35 mm , an external diameter of 90 mm and a height of 8 mm for Kubota tractors of the Kubota M8540, Kubota M8560, Kubota M9540, Kubota M9960 series and others. down:

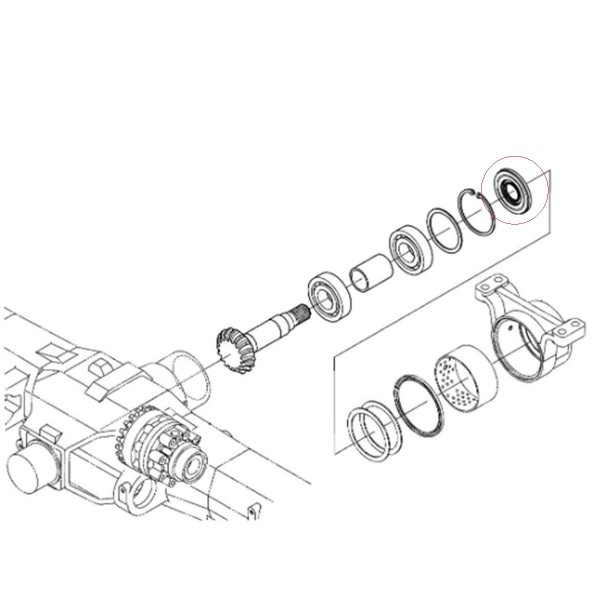

- front axle shaft (3C091-42260, 5-01-036-05 ).
The sealant is a rubber ring (otherwise known as a simmering ring, Simmer ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Sealing is used to seal the rotating elements of the system with a maximum internal pressure of 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are various types of seals, the most common are cartridge seals (two-piece), seals with a spring around them, or seals with a partly metal housing (lid).
Dimensions :
- inner diameter: 35 mm,
- outer diameter: 90mm,
- height: 8mm,
- original part numbers: 3C091-44120,
- comparative numbers: W9501-93001, W9501-63011,
- part numbers: BE6657E, 5-08-106-21.
Tractor models :
Kubota :
- Kubota M8540,
- Kubota M8560,
- Kubota M9540,
- Kubota M9960.
Sealants prevent oil or lubricant leakage and prevent contaminants from entering the system.
Warehouse: (M01:D33:S04)
Specification
Magazyn: M01:D33:S04
Condition
New
Production
Substitute
Parts
Drive
Height (mm)
8
Outer diameter (mm)
90
Inner Diameter (mm)
35
Comparison numbers
W9501-63011
W9501-93001
W9501-93001
Original Part Number (OEM)
3C091-44120
Part number
5-08-106-21
BE6657E
BE6657E
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
