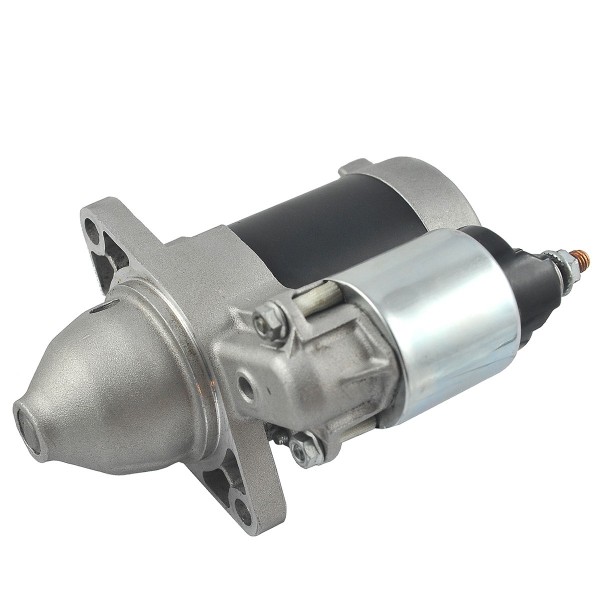

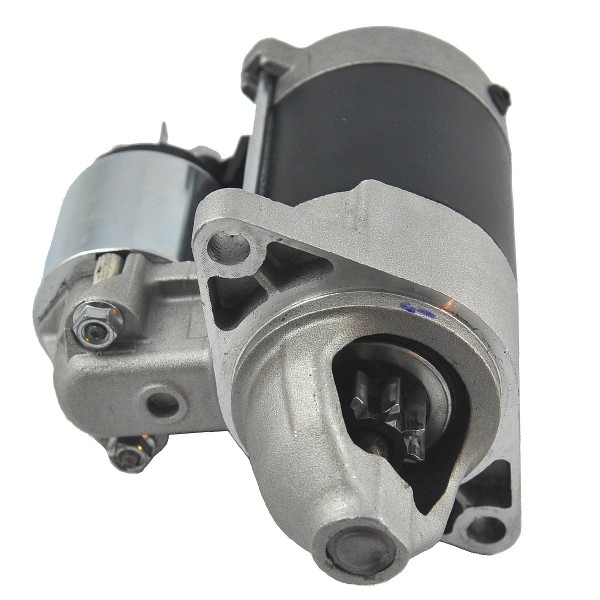

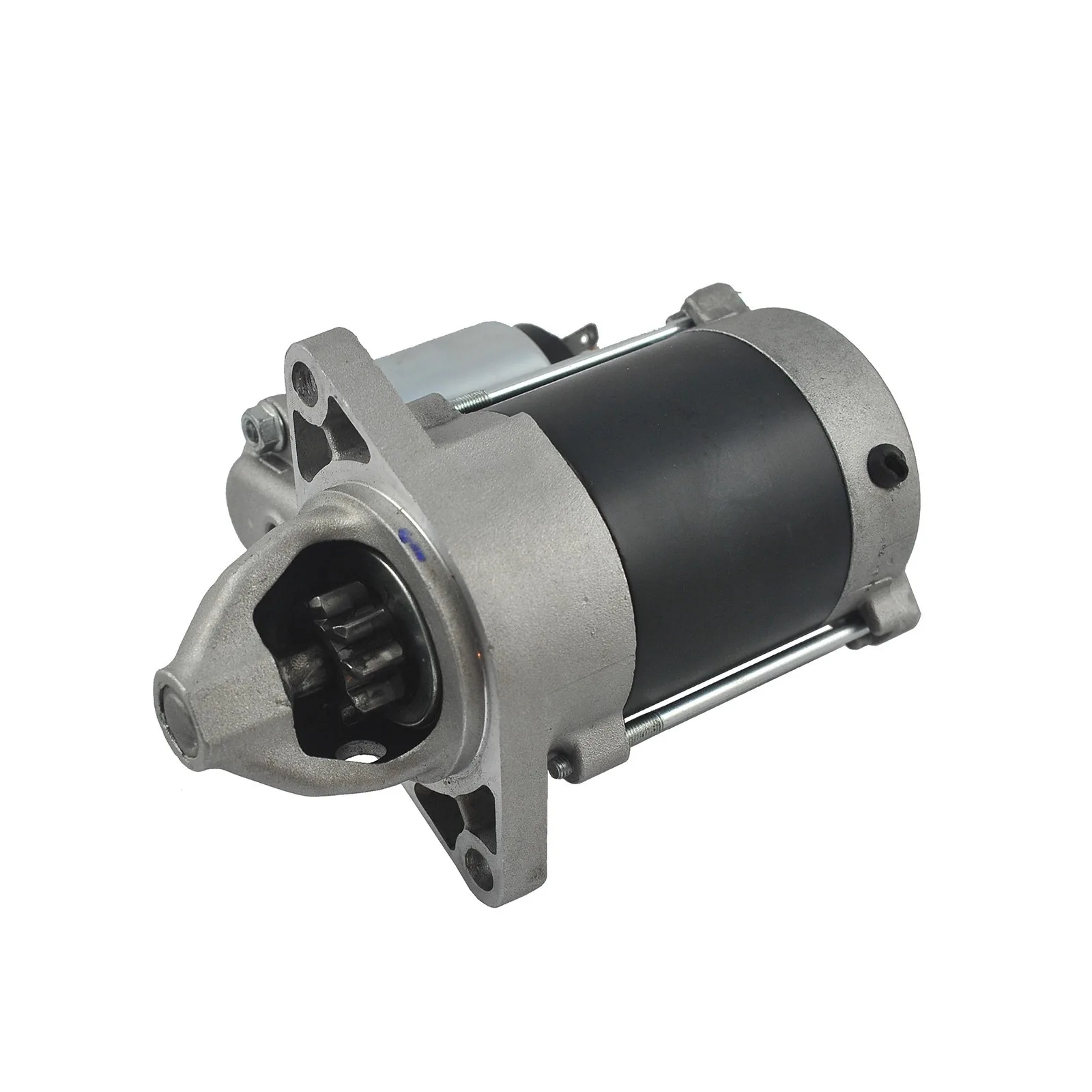

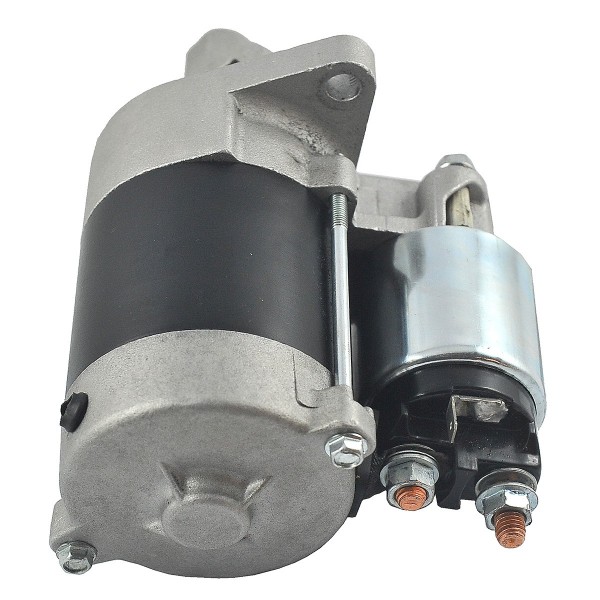

Starter / 9T / 12V / 0.8kW / Kubota D650/Z482 / Kubota A-14/B1200/B6100/B7100 / 15231-63011
12V starter with a 9T gear for Kubota series tractors Kubota Aste A-14, Kubota B1200, Kubota B1400, Kubota B1402, Kubota B5000, Kubota B5001, Kubota B5100, Kubota B6000, Kubota B6001, Kubota B6100, Kubota B7001, Kubota B7100 with Kubota D650 engines, Kubota D722, Kubota D750, Kubota D850, Kubota D950, Kubota ZL600 and others.
A starter is a device that is used to start the engine and is most often an electric device. The starter is a DC motor with an appropriate gear and its task is to rotate the engine's crankshaft and bring it to the appropriate speed needed for the engine to operate independently. When starting the engine, the starter draws power from the battery and when the key is turned in the ignition, it is engaged with the engine flywheel to set the crankshaft in motion.
Dimensions :
- length: 185 mm,
- width: 130 mm,
- number of teeth: 9T,
- spacing of holes for mounting screws: 110 mm,
- voltage: 12V,
- power: 0.8kW,
- original part number: 15231-63010 ,
- comparison numbers: 15213-63013, 15231-03012, 15231-63012 , 15231-63013, 15231-63014, 15231-63015, 15231-63016, 16225-63013, 19007-63011, 19293-63011, 19637-63013, 19837-63010 , 19837-63011, 19837-63012, 19837-63013, 70000-65424, 70000-76500, E7199-63010,
- part numbers: 15231-63011.
Engine models :
Kubota :
- Kubota D650,
- Kubota D722,
- Kubota D750,
- Kubota D850,
- Kubota D950,
- Kubota ZL600.
Tractor models :
Kubota :
- Kubota Aste A-14,
- Kubota B1200,
- Kubota B1400,
- Kubota B1402,
- Kubota B5000,
- Kubota B5001,
- Kubota B5100,
- Kubota B6000,
- Kubota B6001,
- Kubota B6100,
- Kubota B7001,
- Kubota B7100.
Warehouse :
M01:E33
Specification
Magazyn: M01:E33
State
New
Production
Substitute
Parts
Electrician
Engine model
- Kubota D750
- Kubota D850
- Kubota D950
- Kubota ZL600
Kubota D650
Kubota D722
Kubota Z482
Tractor models
- Kubota B1400
- Kubota B6000
- Kubota B7001
Kubota Aste A14
Kubota B1200
Kubota B1402
Kubota B5000
Kubota B5001
Kubota B5100
Kubota B6001
Kubota B6100
Kubota B7100
Power (kW)
0.8
Voltage (V)
12V
Number of teeth (pcs/T-teeth)
9T
Length (mm)
170
Width (mm)
130
Bolt hole spacing (mm)
110
Comparison numbers
15213-63013
15231-03012
15231-63012
15231-63013
15231-63014
15231-63015
15231-63016
16225-63013
19007-63011
19293-63011
19637-63013
19837-63010
19837-63011
19837-63012
19837-63013
70000-65424
70000-76500
E7199-63010
Original Part Number (OEM)
15231-63010
Part number
15231-63011
