Product description

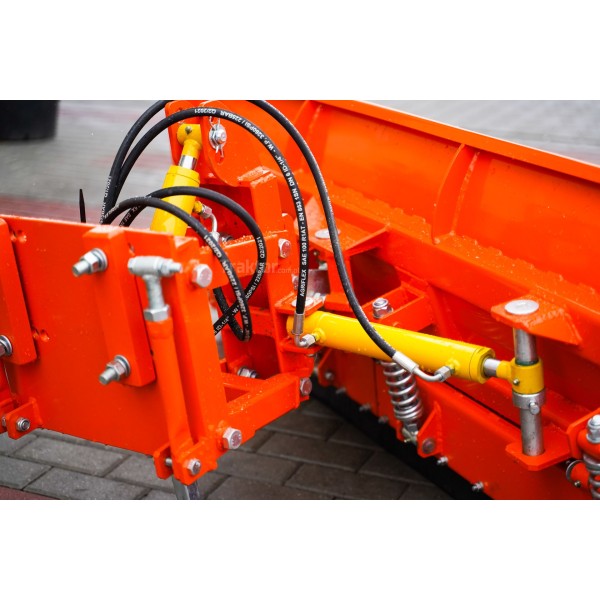

The plow is designed for tractors and mini tractors with a minimum power of about 35 HP. The plow is operated hydraulically by means of three hydraulic cylinders and requires a two-section splitter with a floating section.

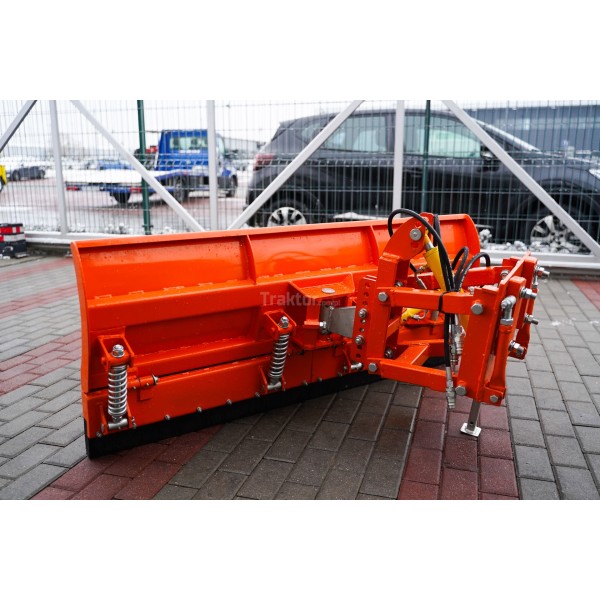

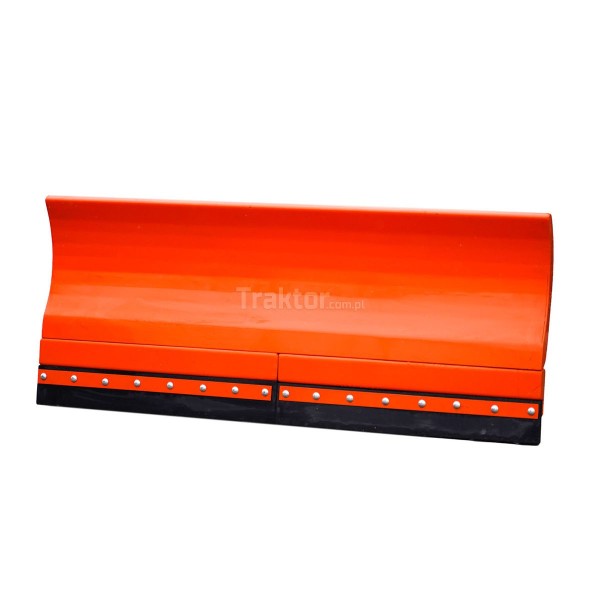

The plow share has two parts, upper and lower. The lower movable part, for the safety of work and the device itself, is equipped with a cushioning system that tilts back when it encounters an obstacle. Strong springs cushion the operation of the lower part of the blade, which is finished with a thick rubber 40 mm thick and 100 mm high. The rubber has a protective application for the snow-cleared surface.

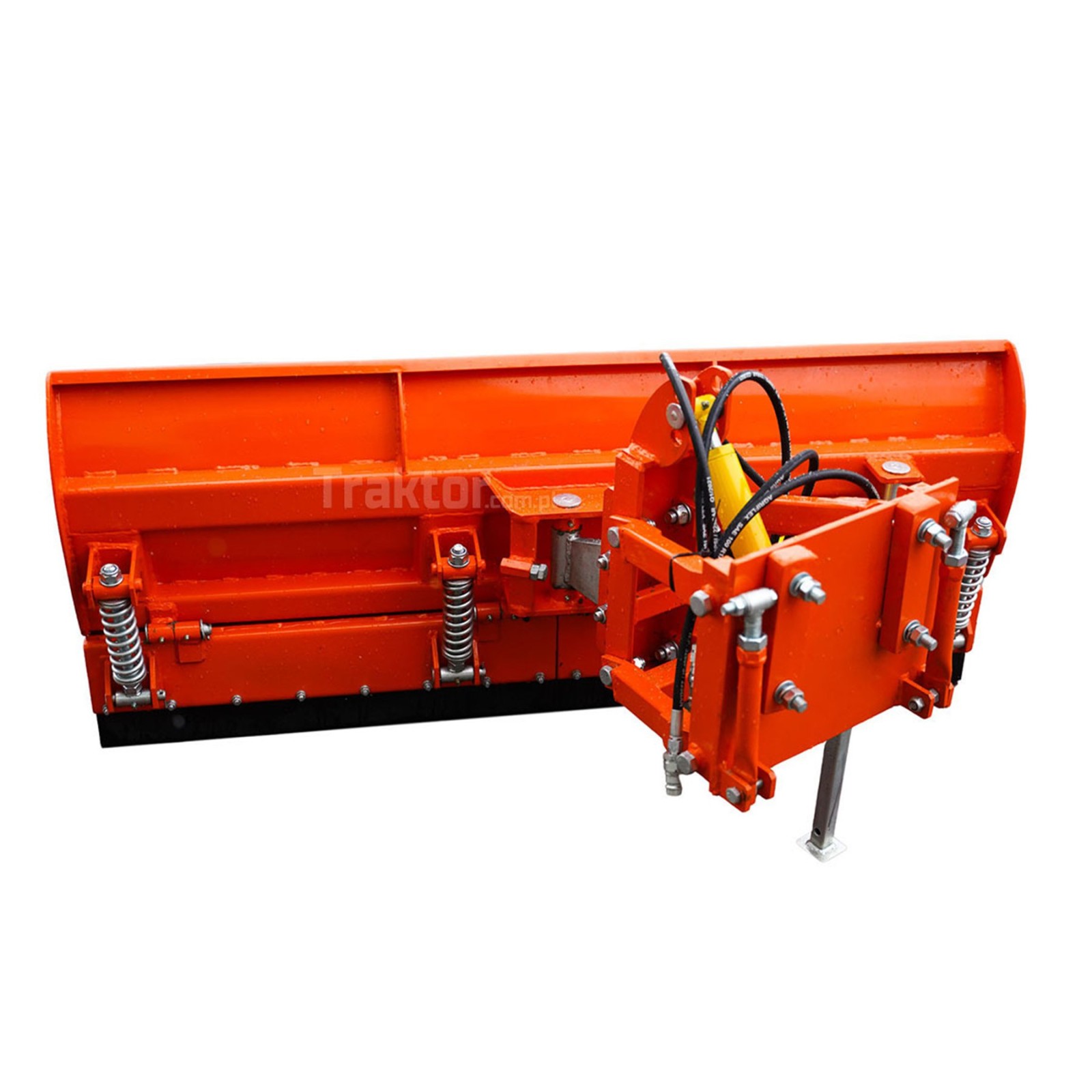

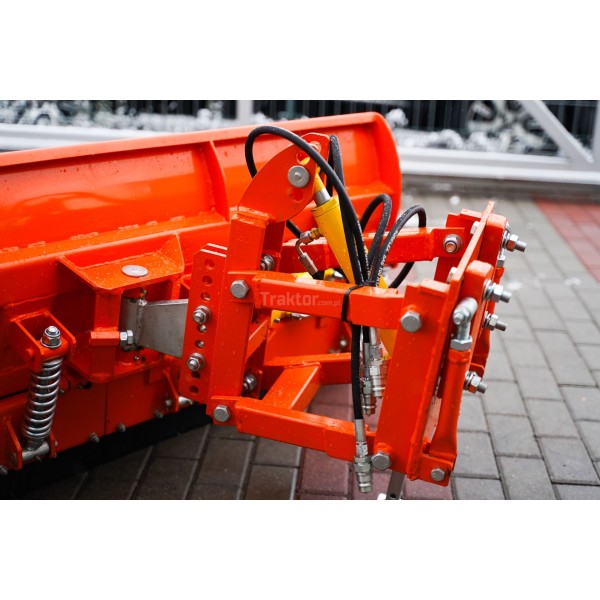

The mounting plate is sold in a set with the plow , and the spacing of the mounting bolts is 240 / 220 / 200 mm horizontally and 140 mm vertically, measured from the center to the center of the holes for the mounting bolts.
To fully use the plow 's capabilities, the tractor must have hydraulics at the front of the tractor .

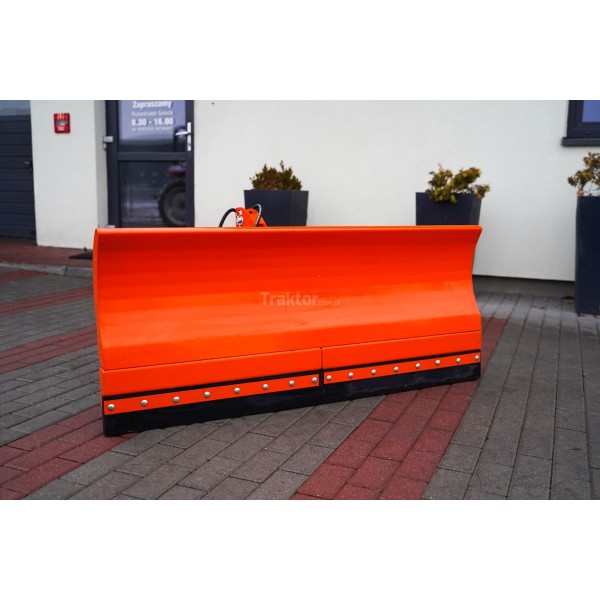

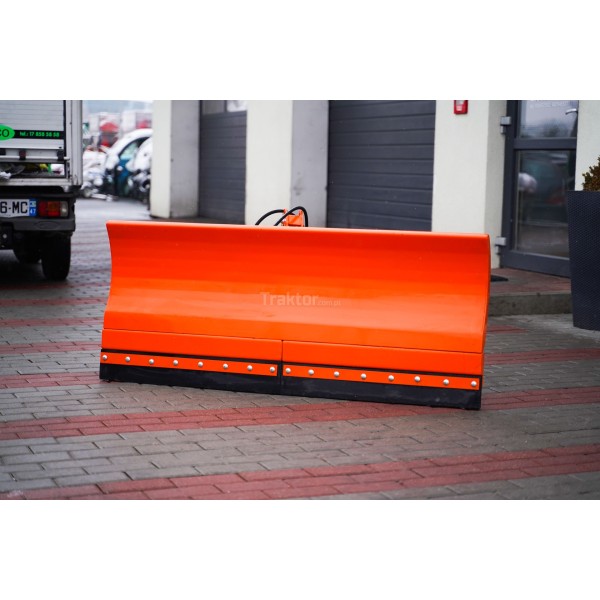

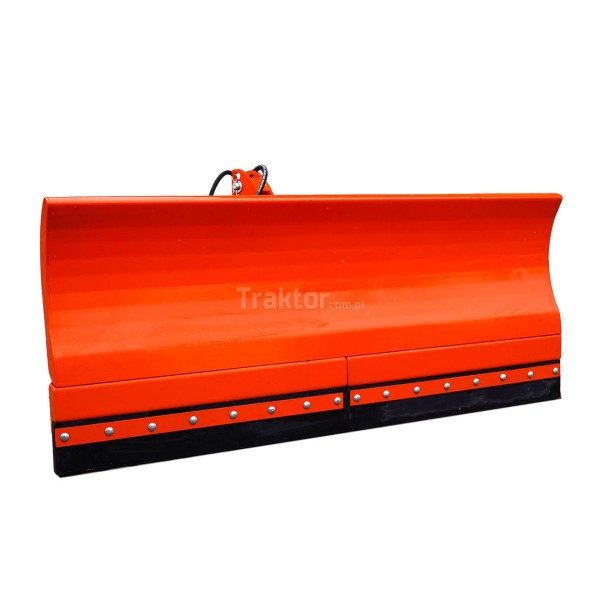

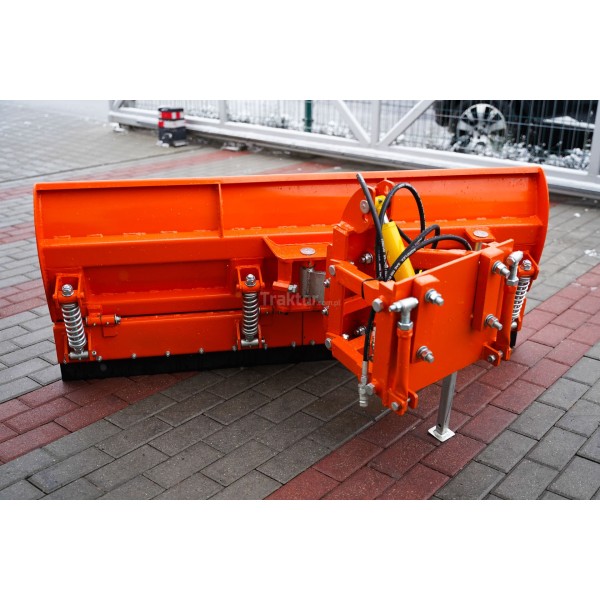

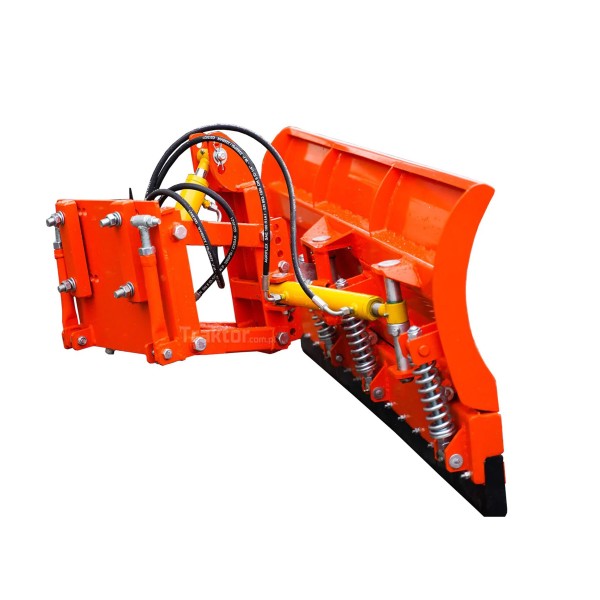

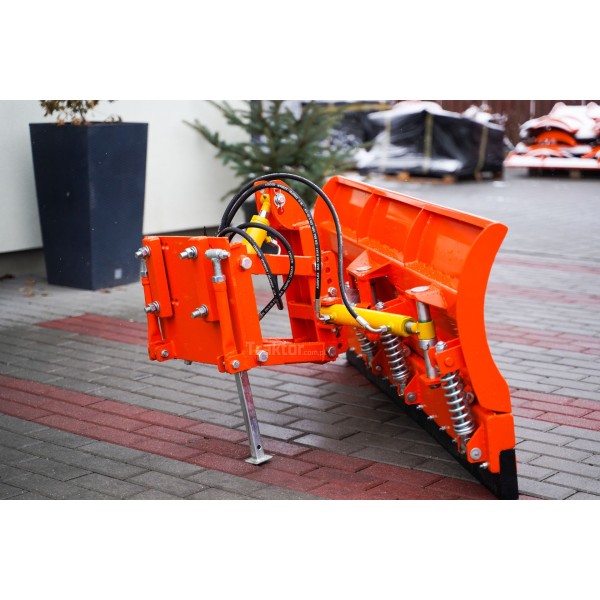

*The illustrative photo shows a model with a working width of 150 cm.
Specifications
