Product description
The plow is designed for tractors and mini tractors with a minimum power of about 35 HP. The plow is operated hydraulically by means of three hydraulic cylinders and requires a two-section splitter with a floating section.
The plow's moldboard has two parts: the upper and lower. The lower, movable part—the blade—is equipped with a shock-absorbing system for operational safety and the safety of the machine itself. It tilts back when it encounters an obstacle. Powerful springs cushion the lower part of the blade, which is topped with a thick rubber covering , 40 mm thick and 100 mm high. The rubber serves as a protective layer for the snow-cleared surface.
The mounting plate is sold as a set with the plough , and the spacing of the mounting screws is 240 / 220 / 200 mm horizontally and 140 mm vertically, measured from the center to the center of the mounting screw holes.
To fully utilize the plow's capabilities, the tractor must have hydraulics at the front of the tractor .

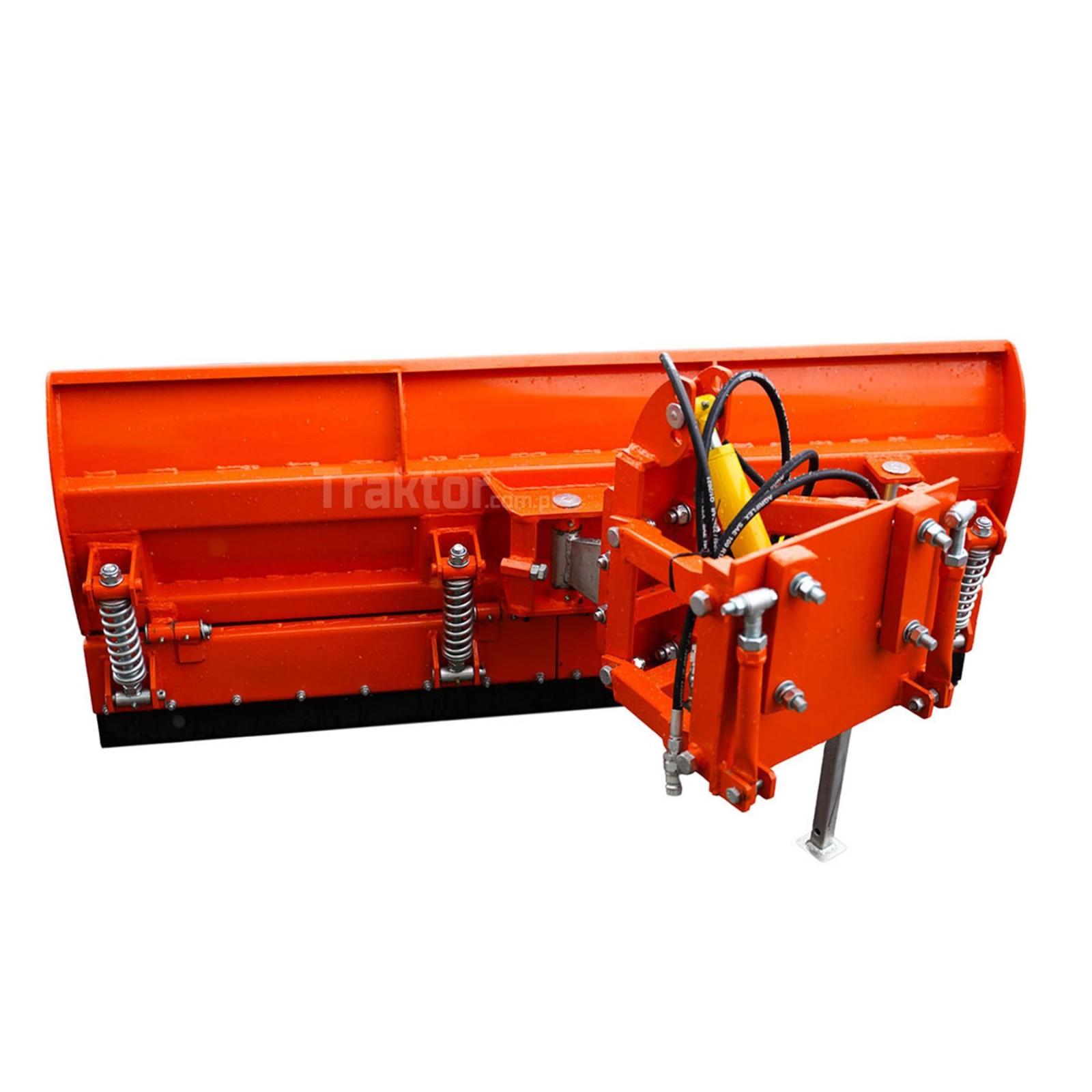

*Illustrative photo, shows a model with a working width of 150 cm.
