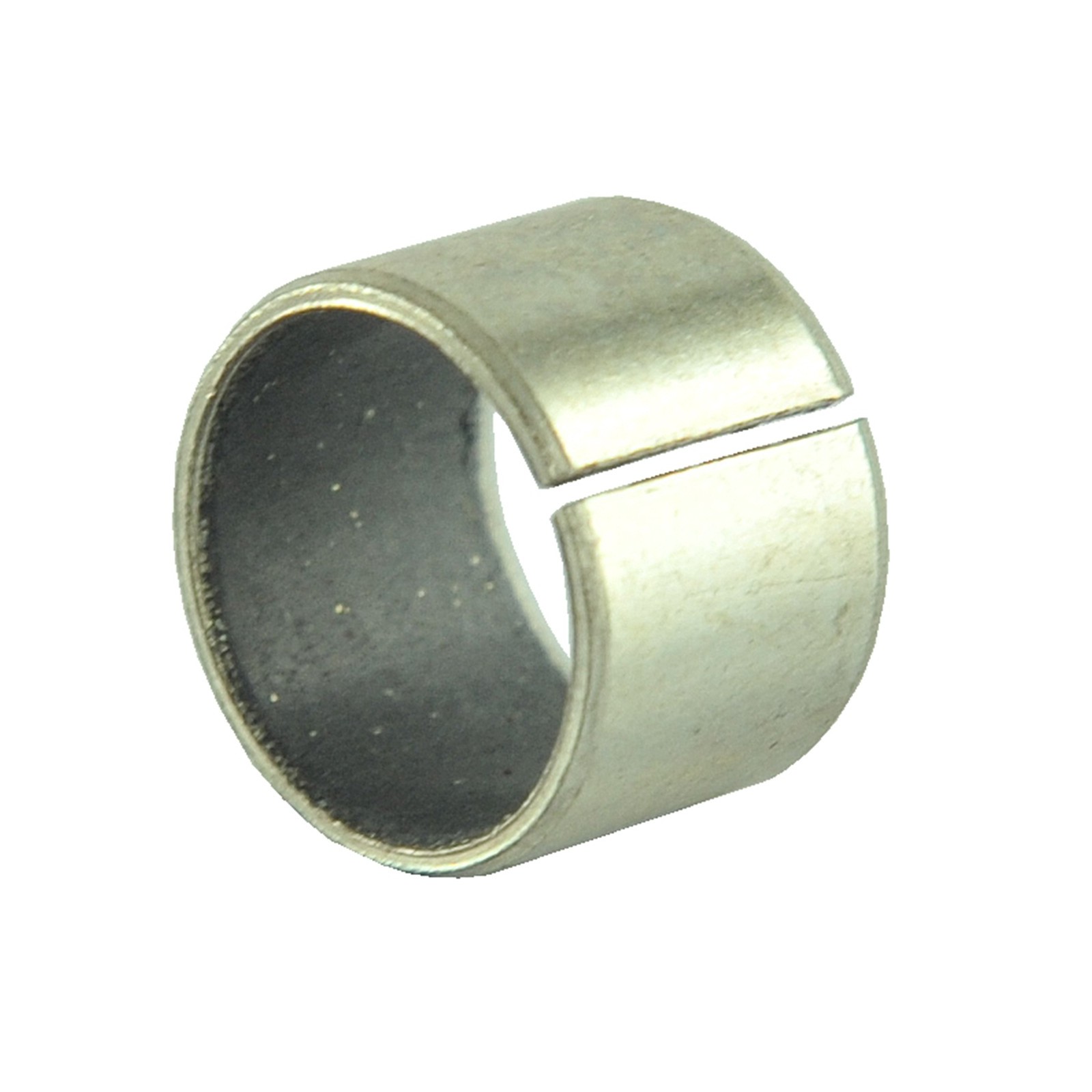

Sleeve, sleeve 12 x 14 x 9.60 mm / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / A0676910 / 40012724

Retaining sleeve with an inner diameter of 12 mm , an outer diameter of 14 mm and a height of 9.60 mm for the LS Tractor series LS MT1.25, LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

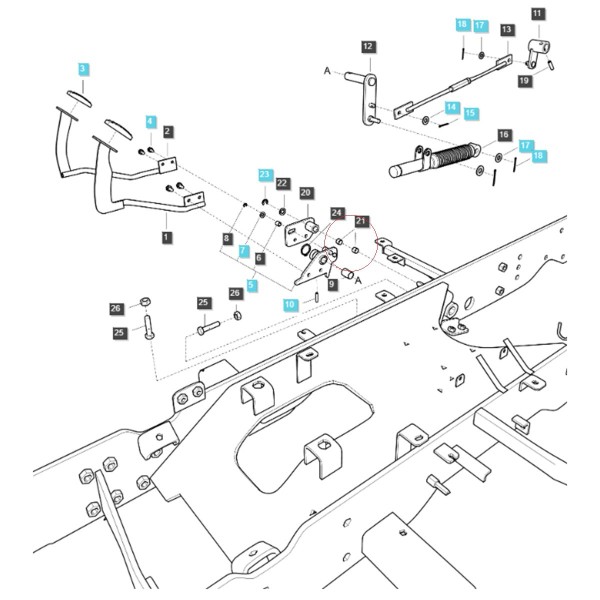

• HST tractor drive pedals,

A thrust sleeve, a sliding sleeve is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have a very high abrasion resistance and are capable of carrying heavy loads. The plain bearing , as it is sometimes called, often has an internal groove or bore to facilitate access of the lubricant to the contact surfaces.

Dimensions :

• outer diameter: 14 mm,
• inner diameter: 12 mm,
• height: 9.60 mm,
• part numbers: 40012724, A0676910.

Tractor models :

LS Tractor :

• LS MT1.25,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

The first signs of wear of the sliding sleeves are a steady clicking noise during operation. The correct pressure of the lubrication system and the use of oil of the correct viscosity, too little oil change or lack of lubrication have a direct impact on the life of the bushings.

Warehouse :
M01: M25: S08
