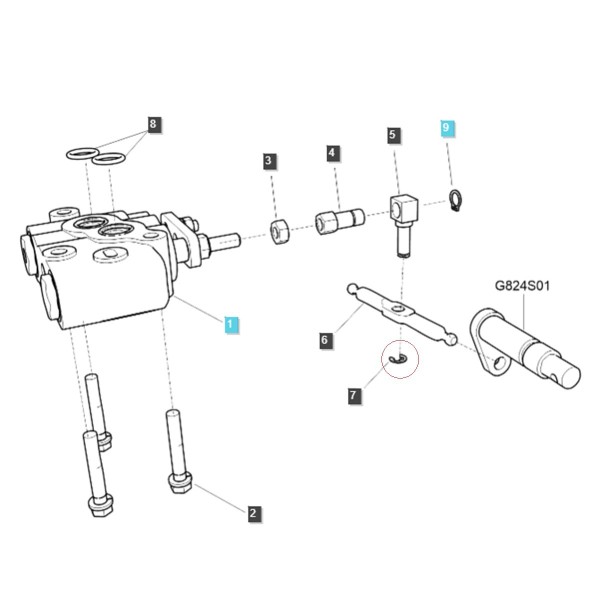

D6 spur gear / LS MT1.25 / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / S814006003 / 40029314

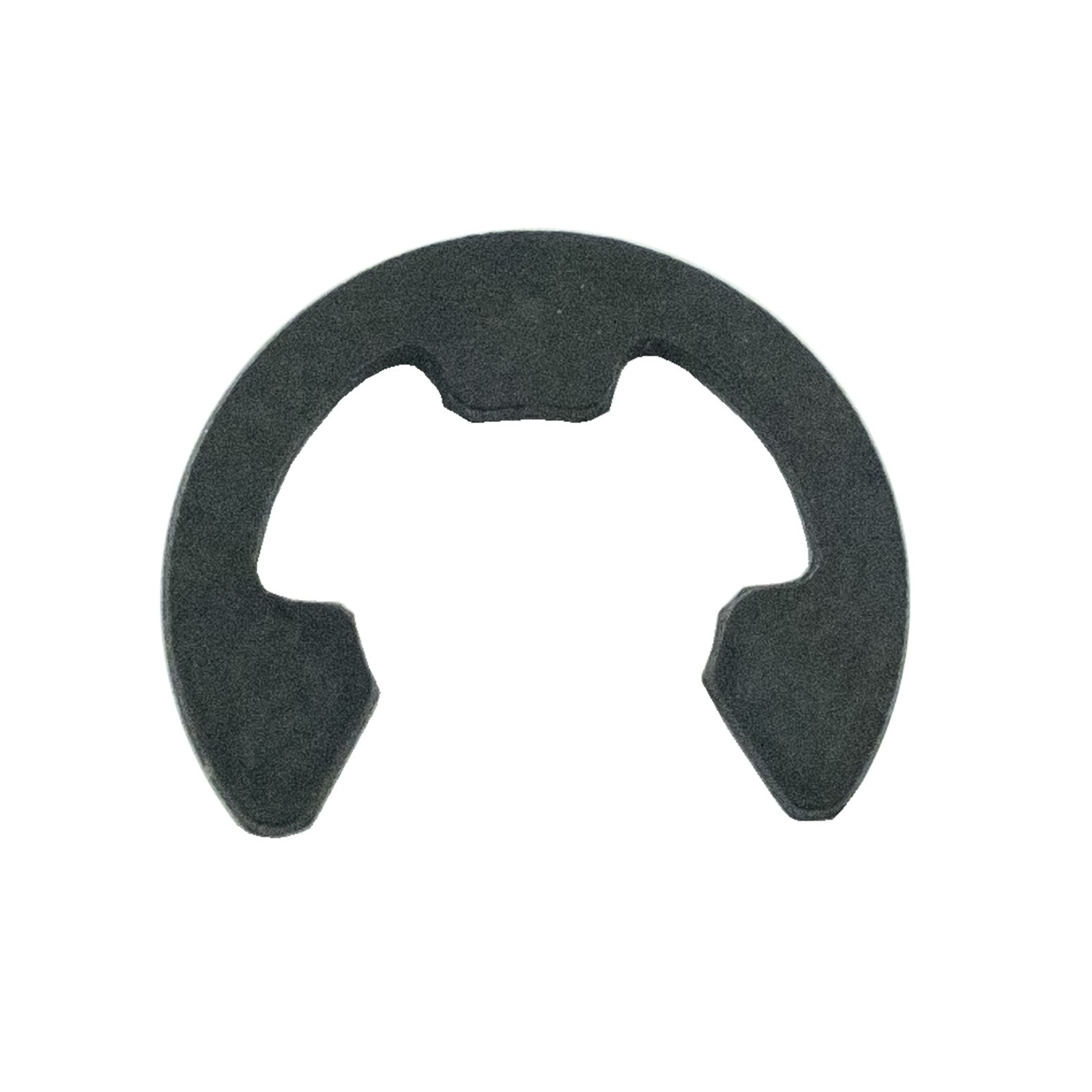

Snap ring, outer diameter 11.85 mm , inner diameter 8.60 mm and thickness 0.70 mm for LS Tractor series LS MT1.25, LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

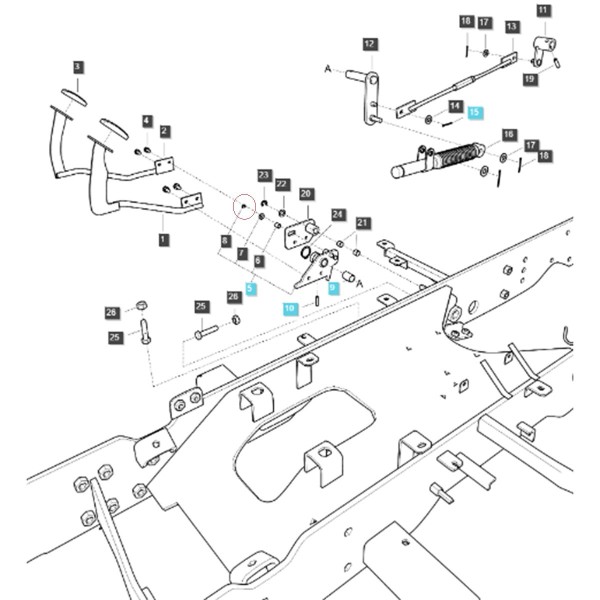

• HST pedals,

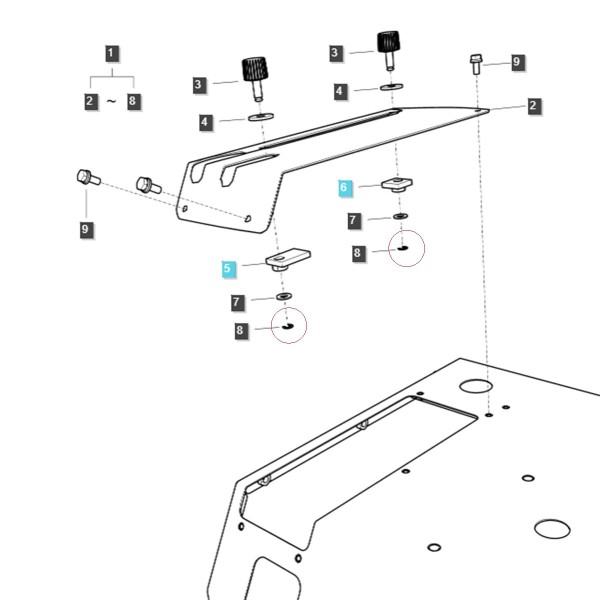

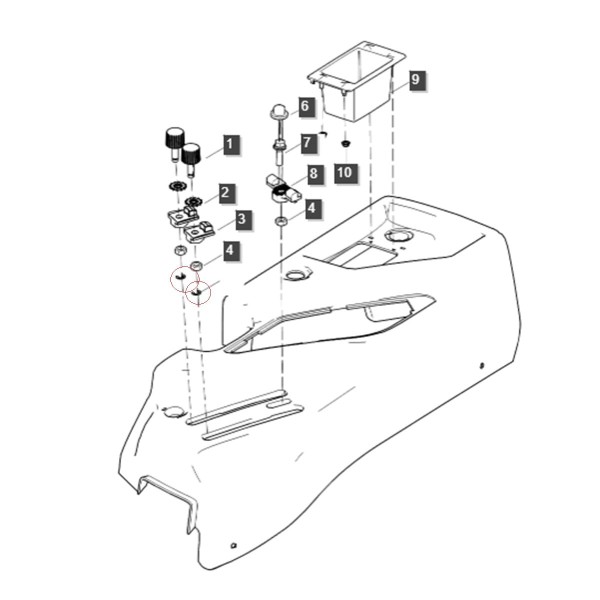

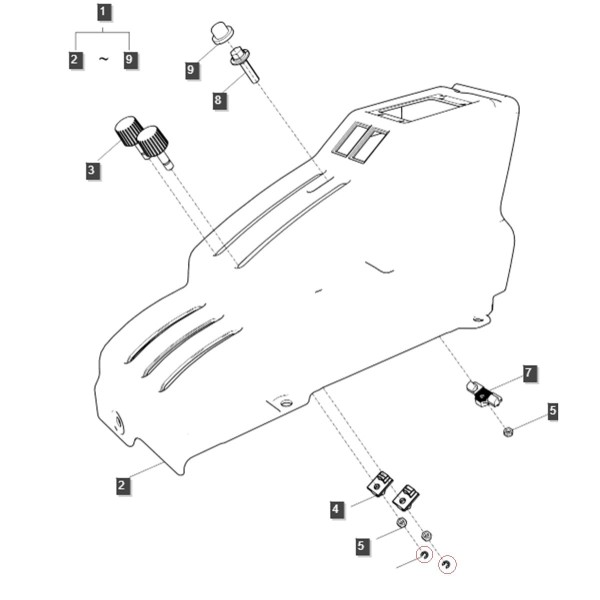

• covers, guides, limiters of the three-point linkage lifting range,

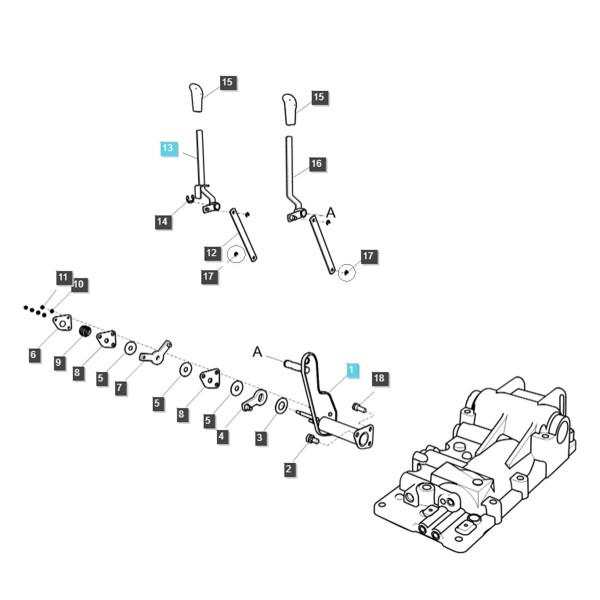

• hydraulic distributor,

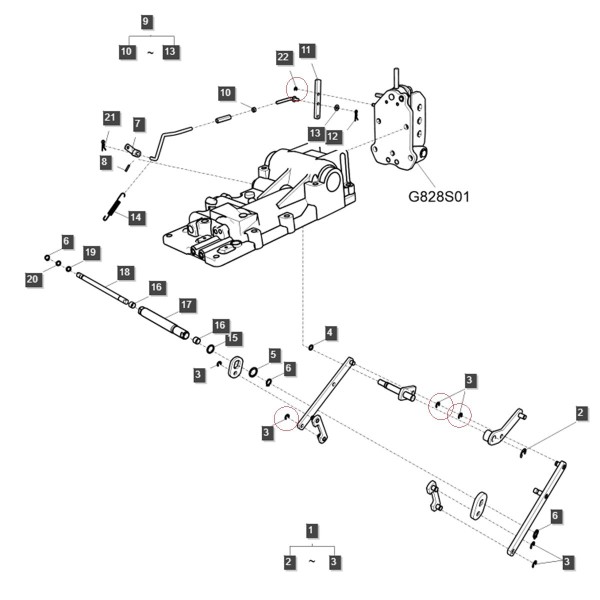

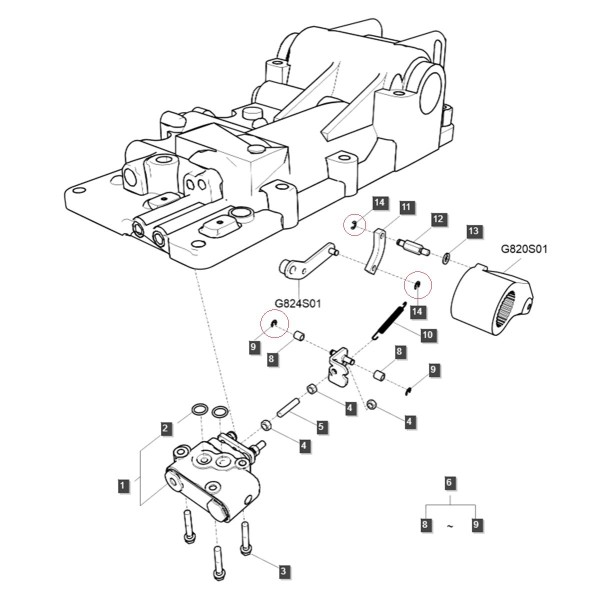

• three-point linkage hydraulic lift,
• and others.

A locking ring is a ring that is used to prevent the sliding of loose elements located on the shaft, such as bearings and bushings or others. A snap ring is also a type of seal, the main task of which is to prevent the sliding of elements most often subjected to high rotational speeds. The external snap ring, as the name suggests, is used on the outside of shafts, pins, but also as a nut for screws or threaded shafts.

Dimensions :

• outer diameter; 11.85 mm,
• inner diameter 8.60 mm,
• thickness: 0.70 mm,
• reference numbers: S814006003.

Tractor models ;

LS Tractor :

• LSMT1.25,
• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60,

Warehouse : L01:B153

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
