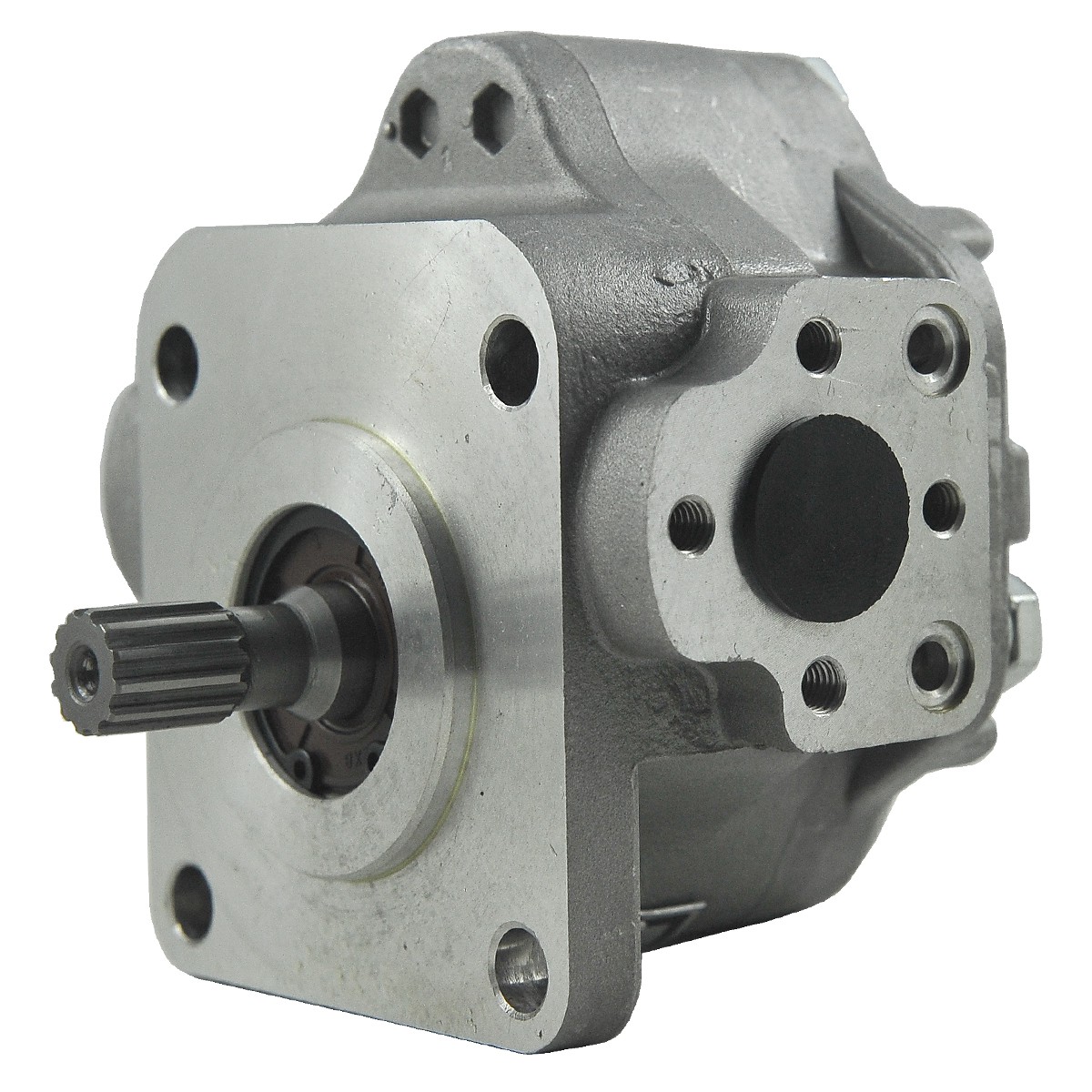

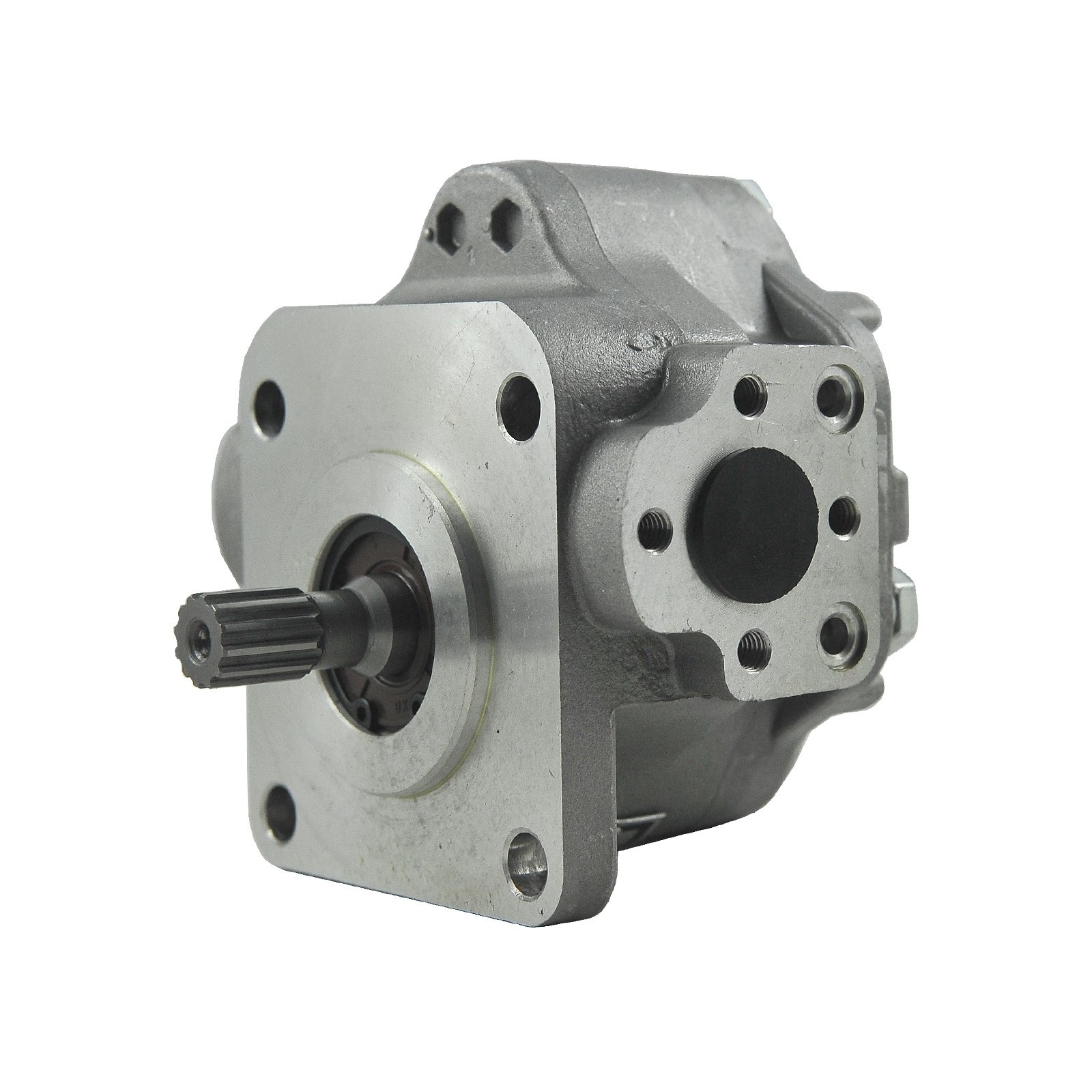

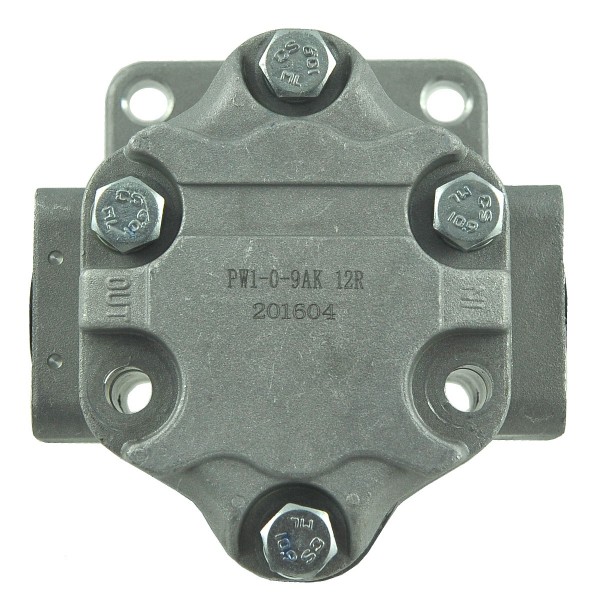

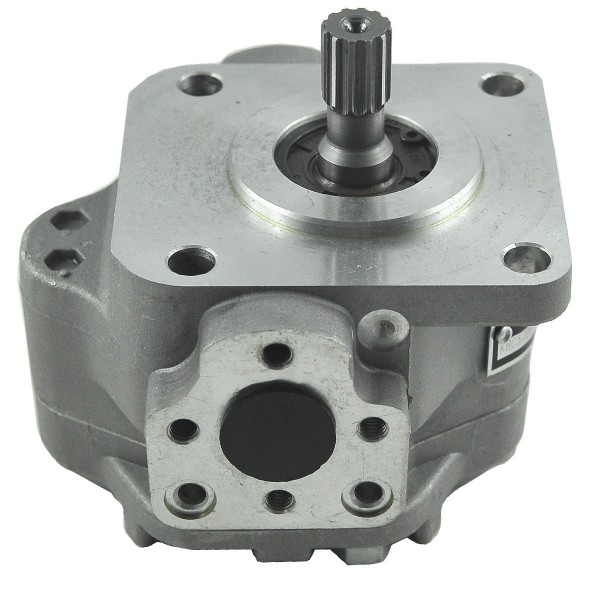

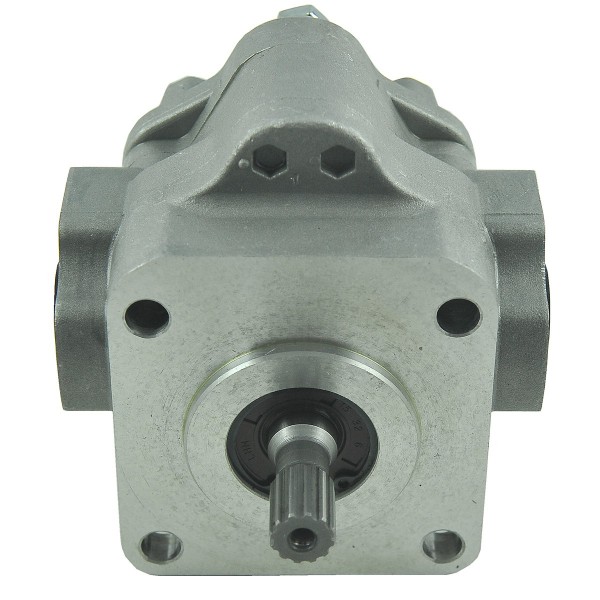

12T hydraulic pump with dimensions 75 x 100 x 110 mm for Cub Cadet tractors Cub Cadet EX450 series, Yanmar EF453T series, Yanmar EF493T with Yanmar 3TNE74, Yanmar 3TNV76 engines and others.
A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.
Technical data :
- dimensions: 75 x 100 x 110 mm,
- shaft length: 30 mm,
- shaft diameter: 11.30 mm (measured between teeth), 14 mm (measured together with the cutter),
- diameter of mounting screw holes: 8.90 mm,
- mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
- diameter of hydraulic holes: 16 mm (IN), M16 (OUT),
- spacing of the inlet (IN)/outlet (OUT) mounting screw holes: 35 mm (measured diagonally), 25 mm (measured from each other),
- number of teeth: 12T,
- original part numbers: 178070-44000,
- comparison numbers: 1401-1192,
- part numbers: KBC37BK-HP01, 6-15-105-08.
Tractor models :
Cub Cadet :
Yanmar :
- Yanmar EF453T,
- Yanmar EF493T.
Engine models :
Yanmar :
- Yanmar 3TNE74,
- Yanmar 3TNV76.
The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.
Magazine: K18:E13
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
