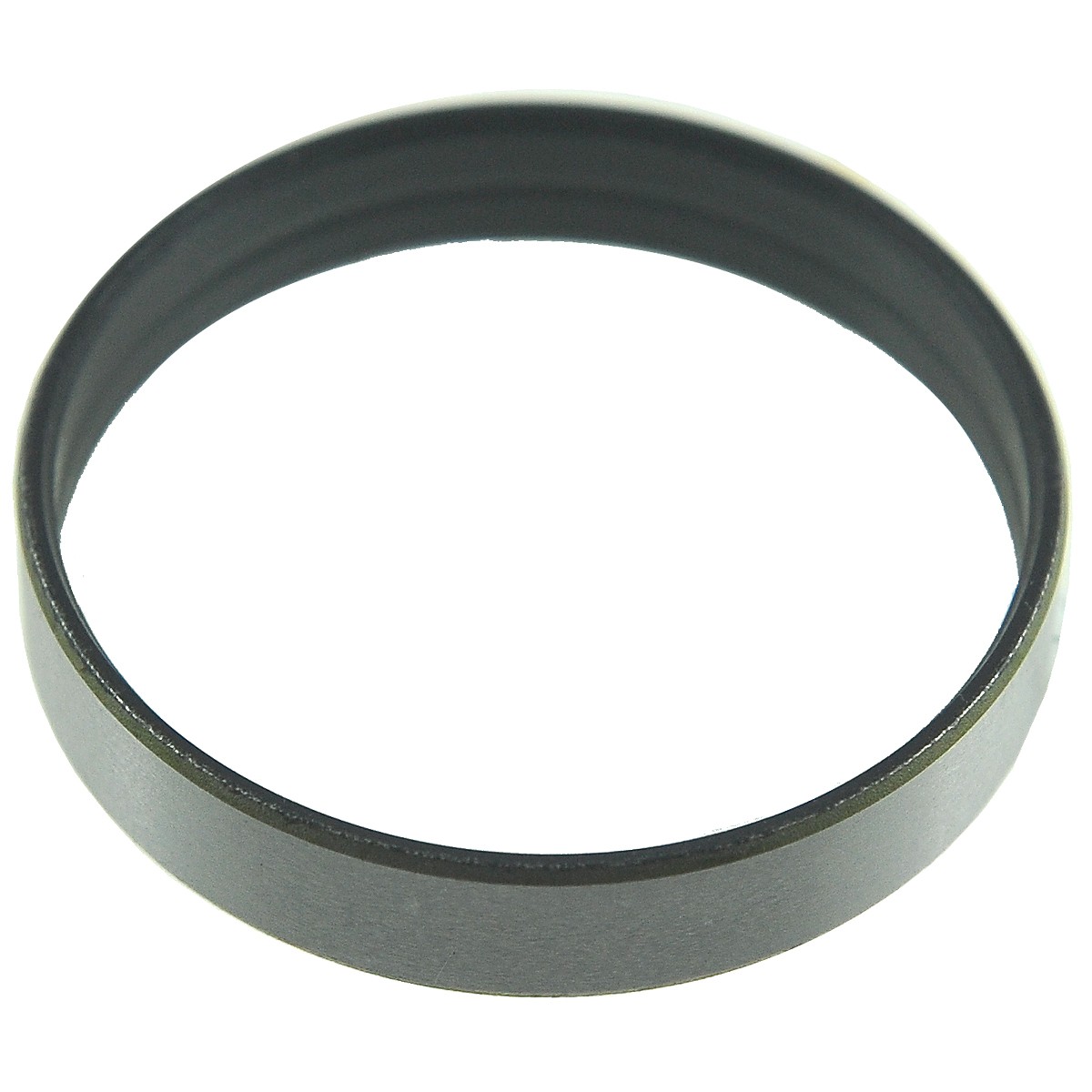

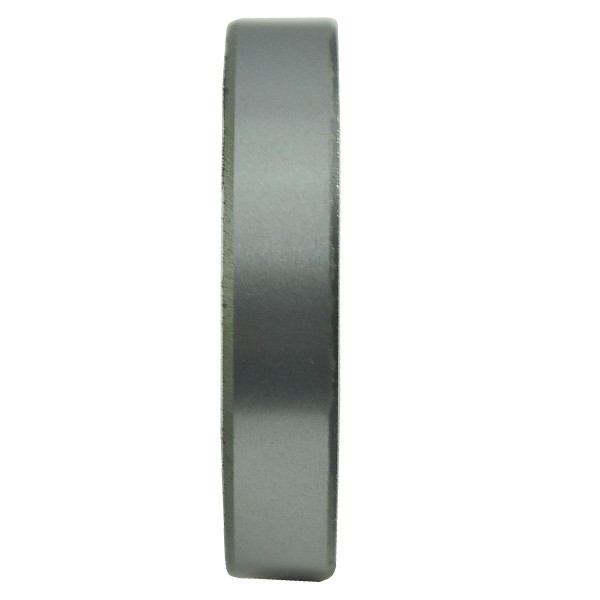

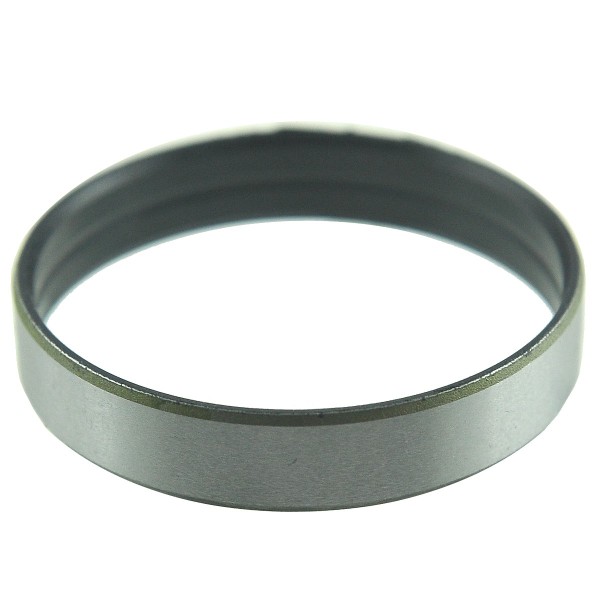

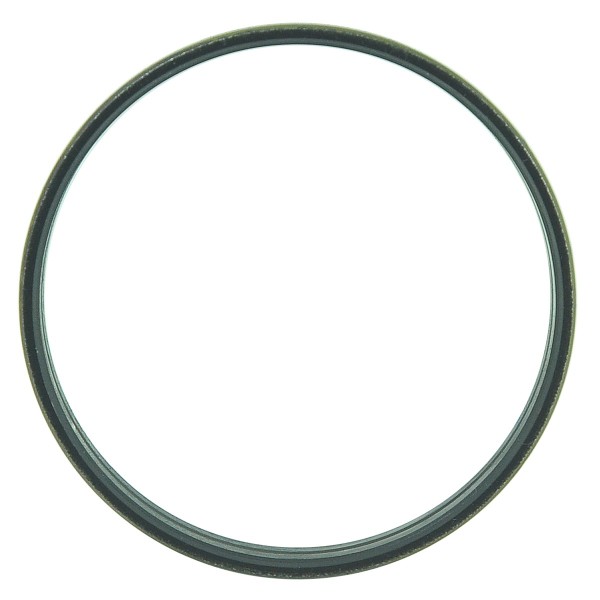

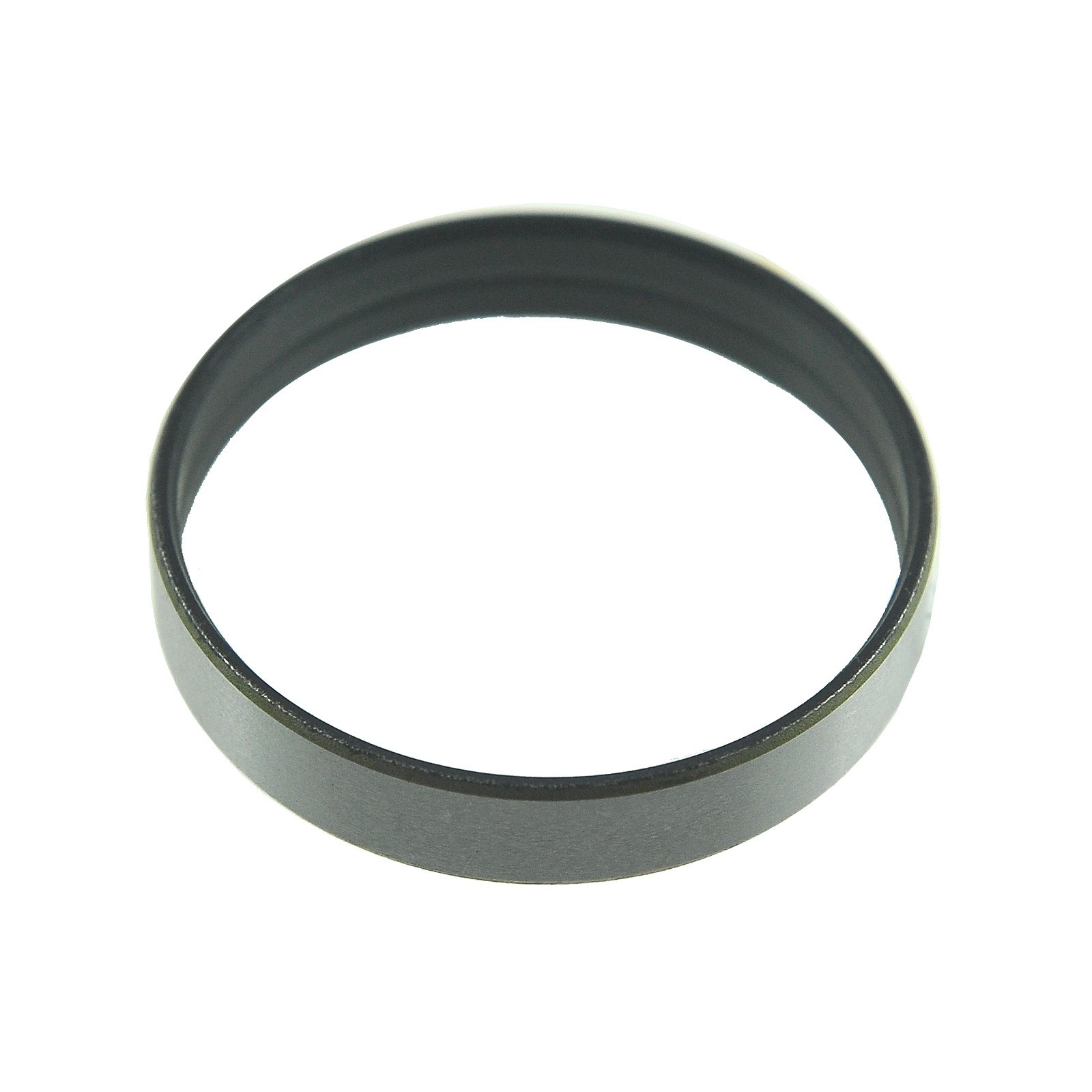

Support sleeve / Kubota / 67920-17330

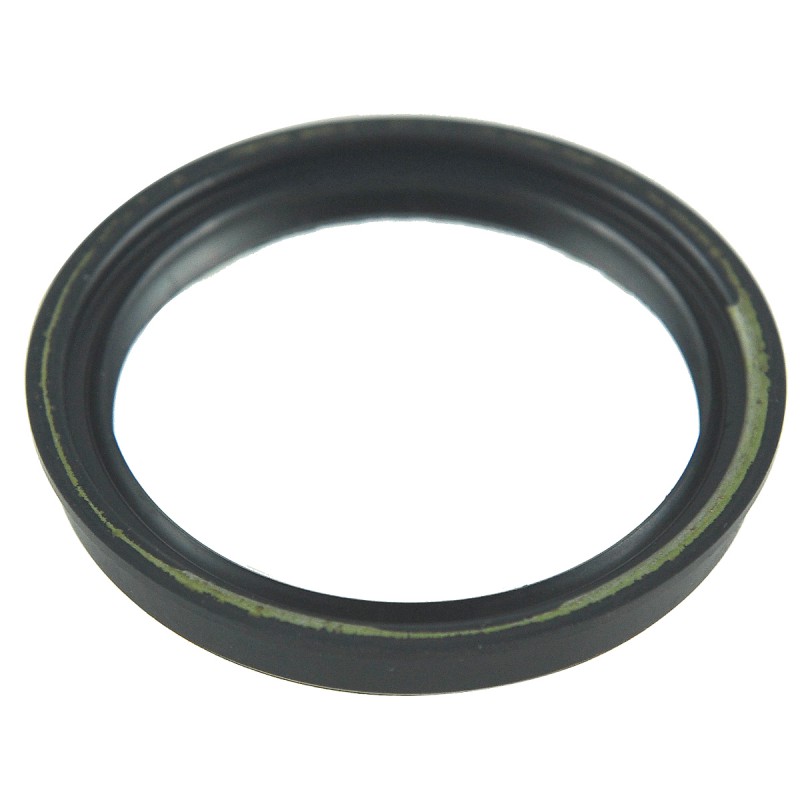

Rubber-metal hub sleeve, sealing part cooperating with the 67920-17340 oil seal (protects the primary shaft layer against wear). inner diameter 55 mm , outer diameter 59 mm and height 11 mm for Kubota tractors and others.

A support sleeve , or sliding sleeve, is a sleeve designed for harsh operating conditions. Due to the manufacturing process and the use of appropriate raw materials, it has very high abrasion resistance and is capable of carrying heavy loads. A sliding bearing, as this component is sometimes called, often has an internal groove or hole to facilitate lubricant access to the contact surfaces.

Dimensions :

• outer diameter: 59 mm,
• inner diameter: 55 mm,
• height: 11 mm,
• part numbers: 67920-17330.

The first signs of wear in sliding bushings include a constant knocking sound during operation. Adequate lubrication system pressure, the use of oil of the correct viscosity, or infrequent oil changes have a direct impact on bushing life.

Magazine : K18:B18:S02

*The photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
