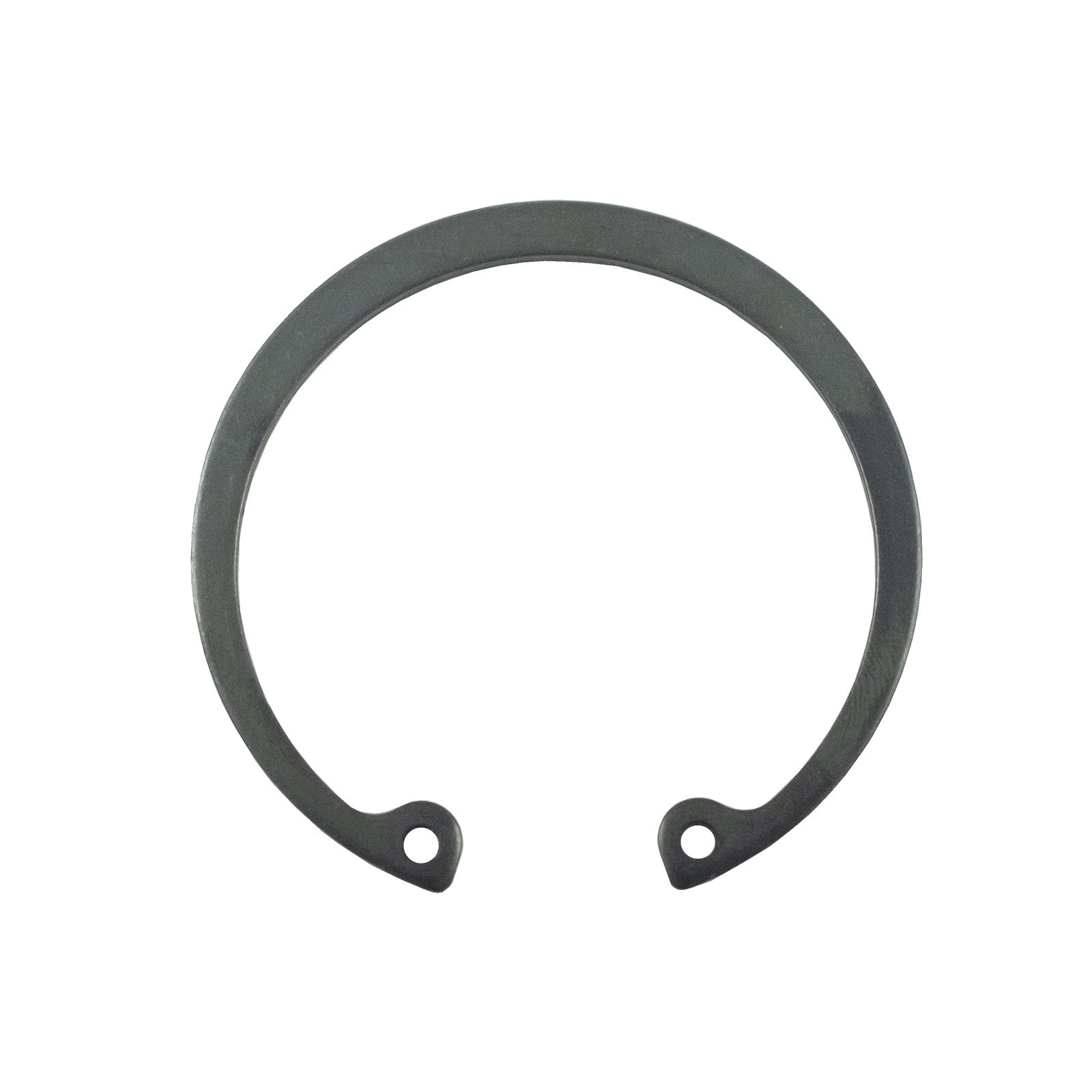

Seeger ring / LS Tractor / LS MT1.25 / no. 40161054

Seeger ring, with ring latch , inner diameter 51.50 mm , outer diameter 59 mm , height 57 mm and thickness 1.85 mm for LS Tractors series LS MT1.25, LS MT3.35, LS MT3.40LS XJ25 and others for:

• drive shaft gears,
• PTO shaft bearings,
• front axle shaft.

A snap ring is called a circlip , after the company that first patented its invention. A circlip is a component of a mechanical system that is installed to prevent movement of moving parts or machine components. Bearings, bushings, and gears are mounted on shafts and axles and, unsecured by circlips, can be subjected to axial displacement. Circlips are divided into two groups: for shafts and pins, and for holes, and they differ in the shape of the mounting holes.

Dimensions:

• inner diameter: 23.25 mm,
• outer diameter: 28 mm,
• thickness: 1.35 mm,
• reference numbers: S811026001.

Tractor models:

• LS MT1.25.

Warehouse : L01:B153.

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
