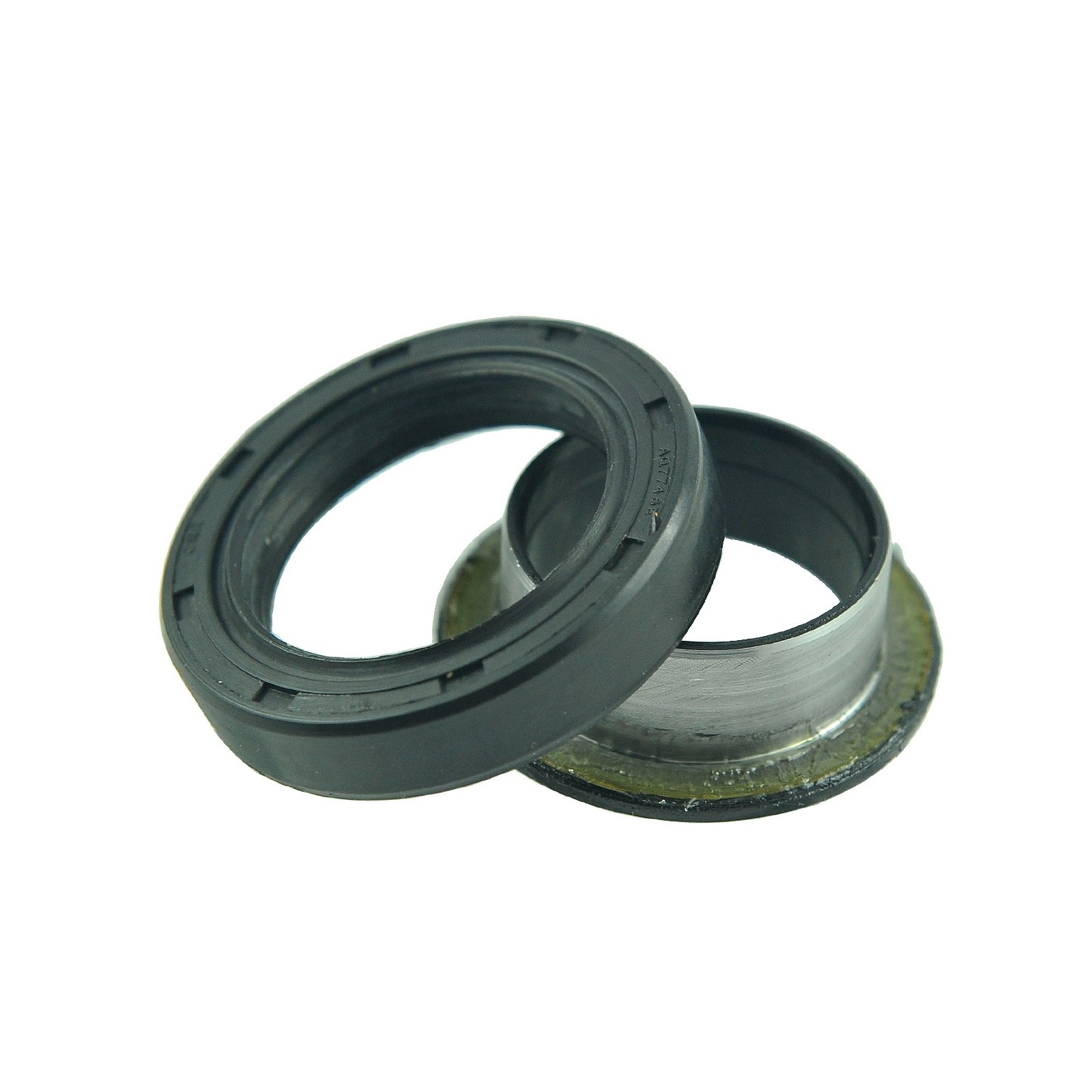

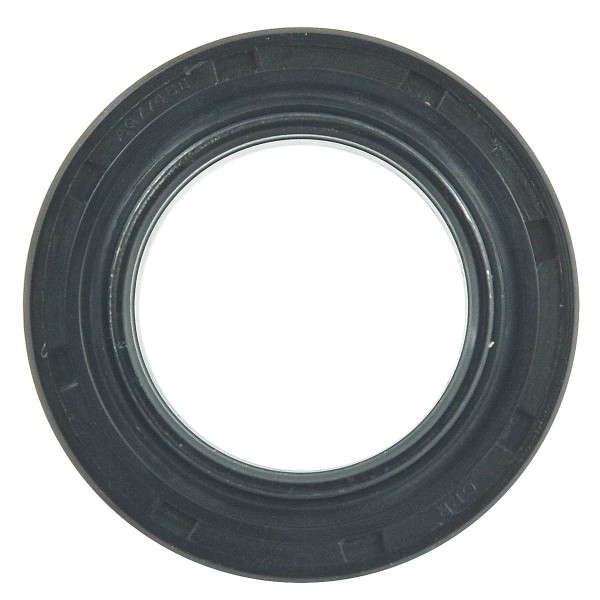

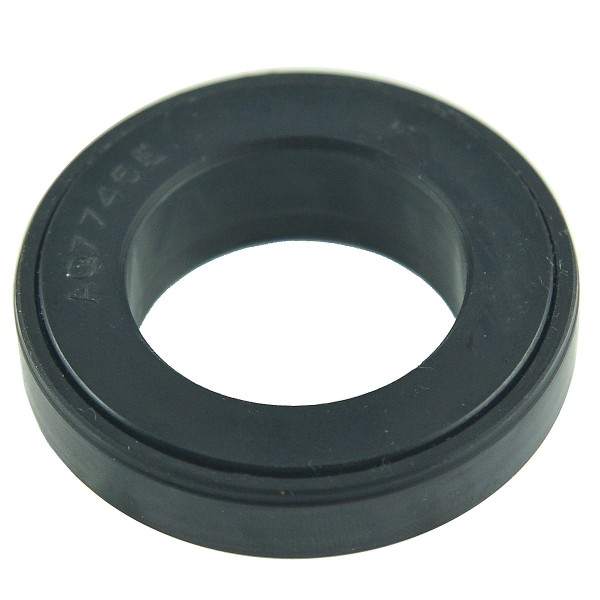

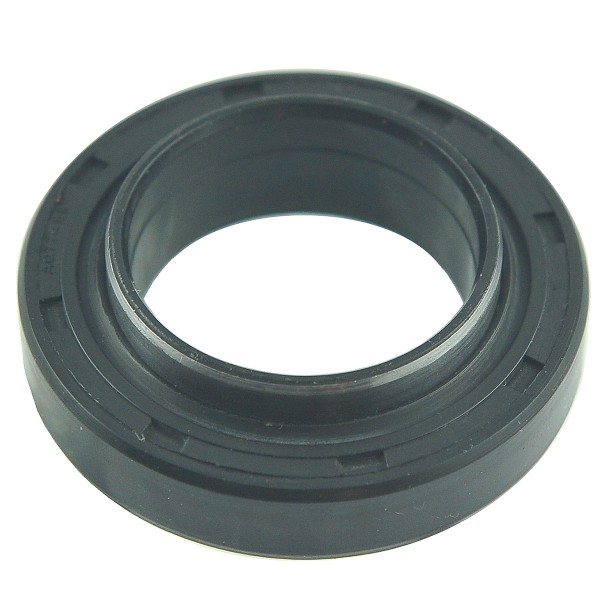

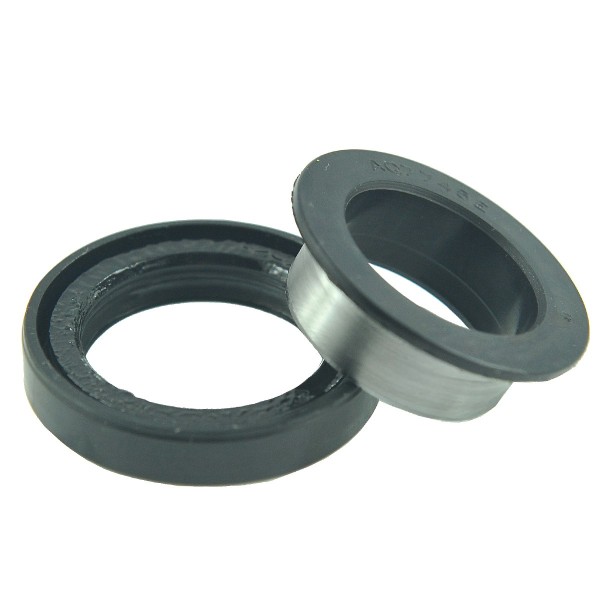

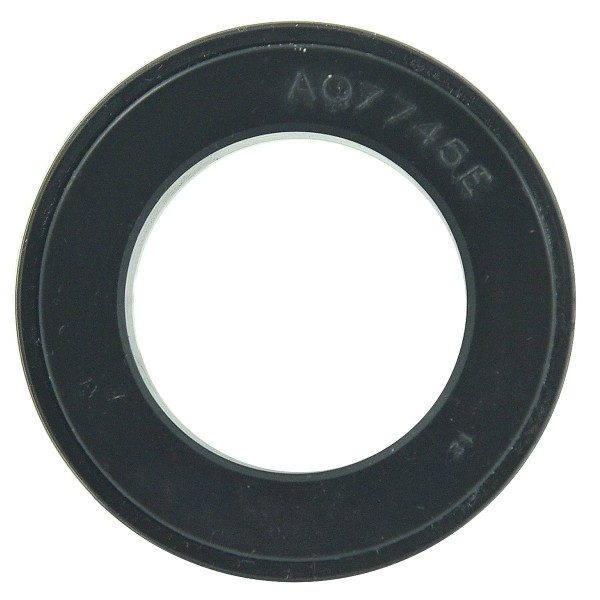

Seal 35 x 58 x 17 mm / Kubota L185 / L235 / L245 / L275 / L1802 / 37720-43690

Front axle seal () with an inner diameter of 35 mm , an outer diameter of 58 mm and a height of 17 mm for Kubota tractors of the Kubota L185, Kubota L235, Kubota L245, Kubota L275, Kubota L1802, Kubota L2402, Kubota L2500, Kubota L2550, Kubota L2600, Kubota L2650, Kubota L2950, Kubota L3000 series and others.

A seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. A simmer is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of grease, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 35 mm (sleeve), 40 mm (seal),
• outer diameter: 58 mm (seal), 40 (sleeve),
• height: 13 / 17 mm,
• original part numbers: 37720-43690,
• comparison numbers: 5-08-100-06 ,
• part numbers: AQ7745E, S.70671.

Tractor models :

Kubota :

• Kubota L185,
• Kubota L235,
• Kubota L245,
• Kubota L275,
• Kubota L1802,
• Kubota L2402,
• Kubota L2500,
• Kubota L2550,
• Kubota L2600,
• Kubota L2650,
• Kubota L2950,
• Kubota L3000.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.
