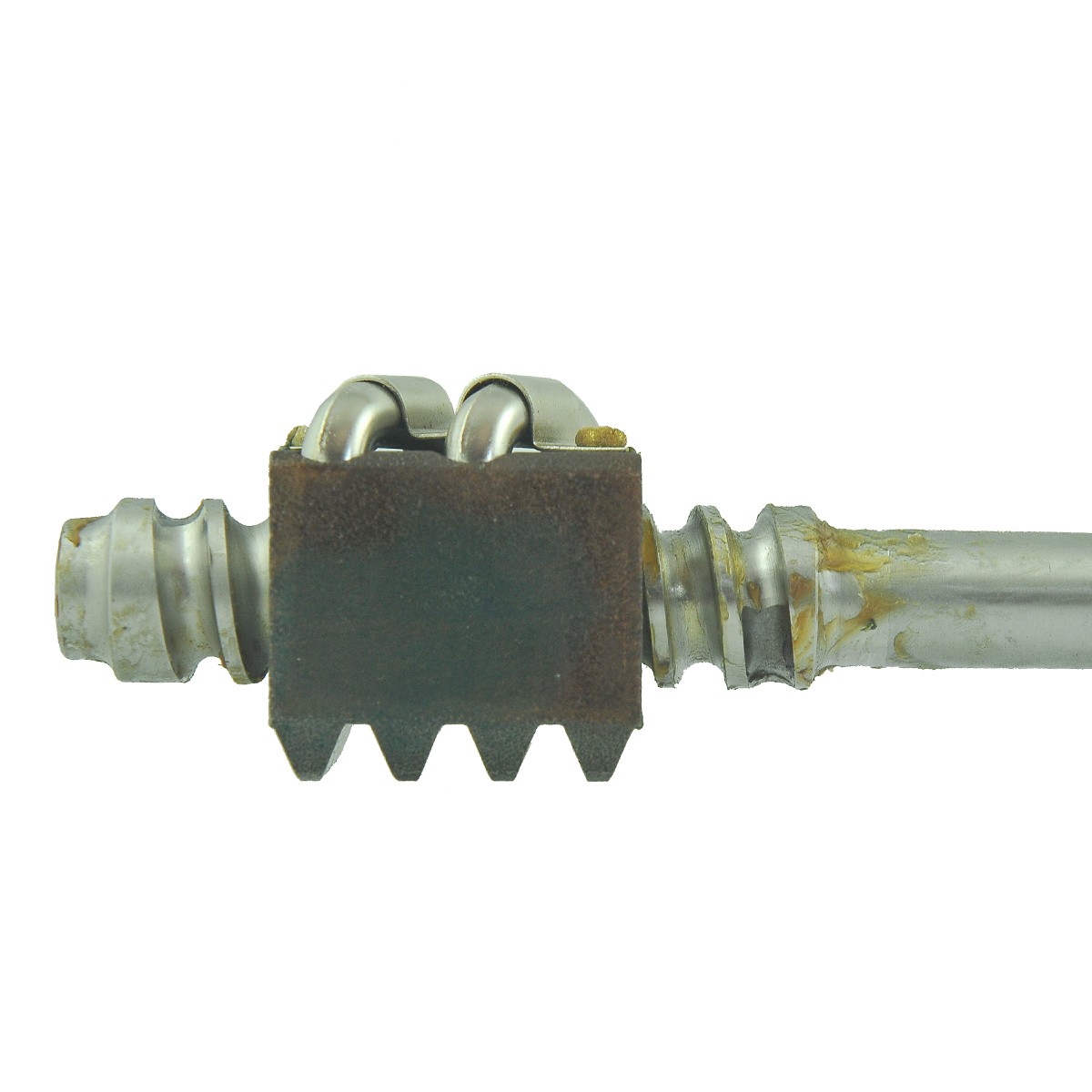

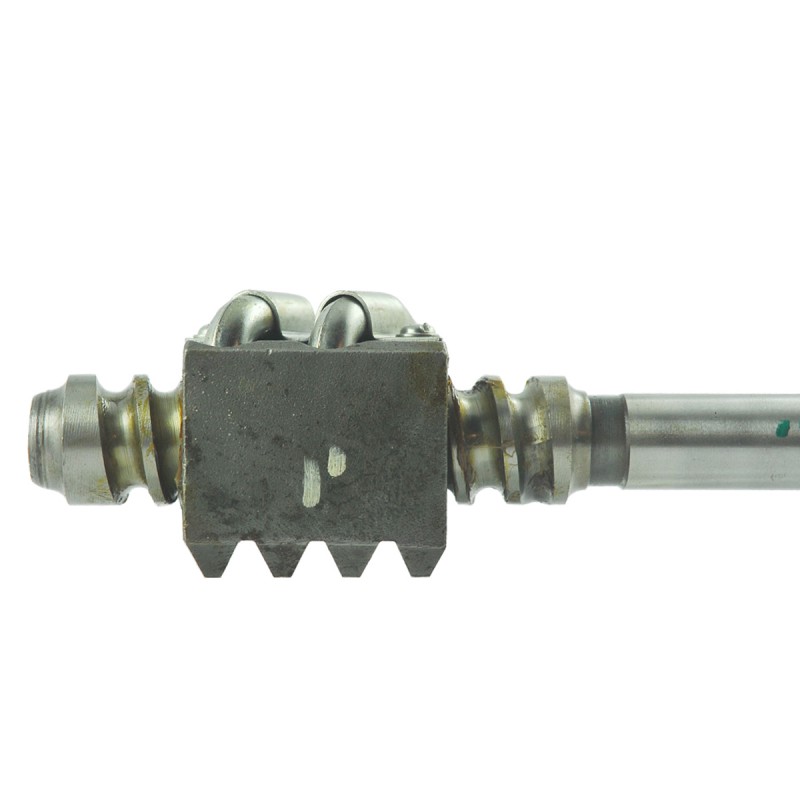

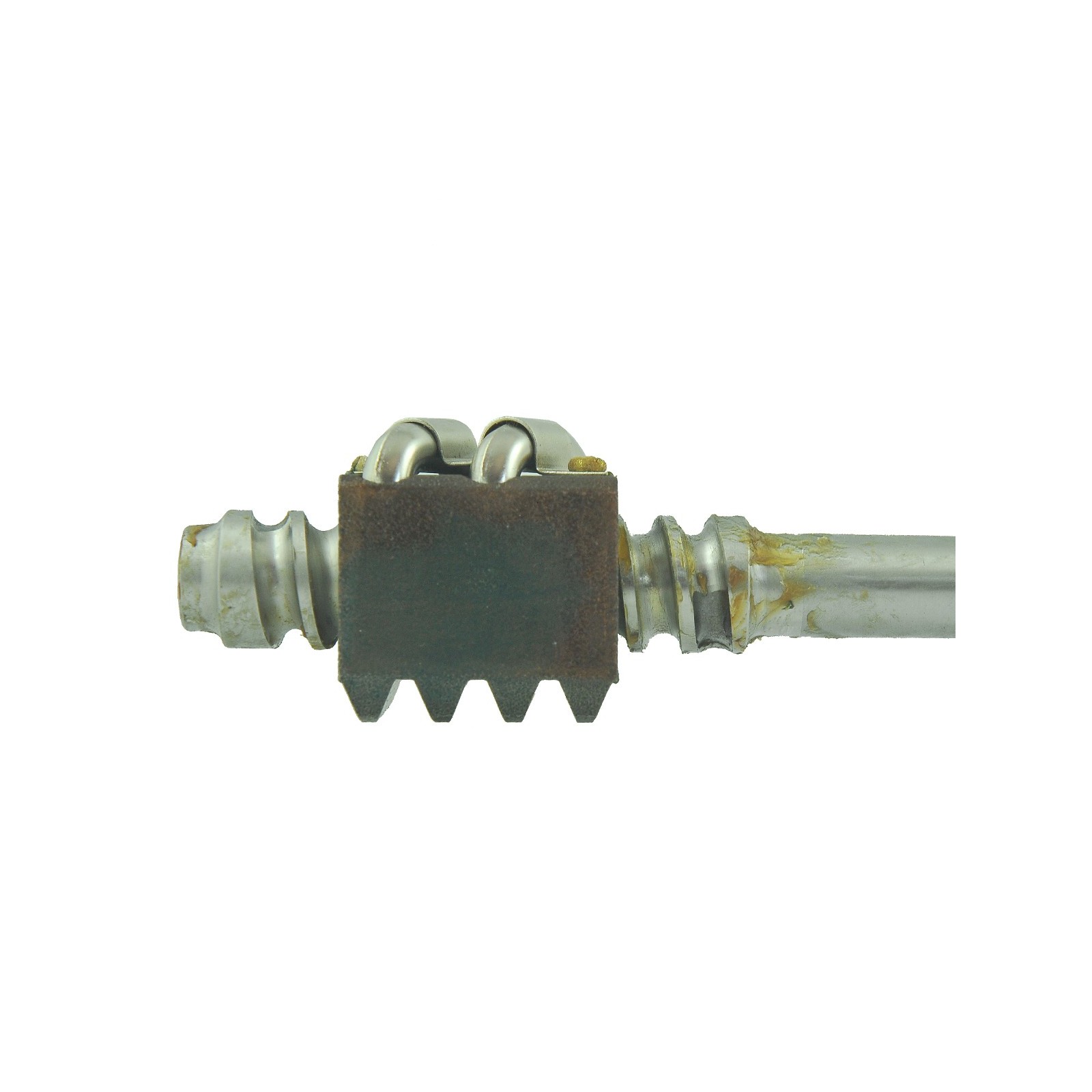

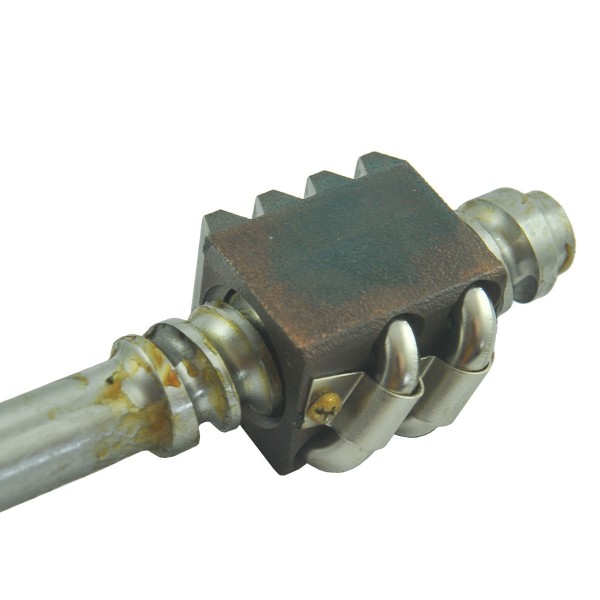

Steering Column Shaft / Kubota L2600 / L3000DT

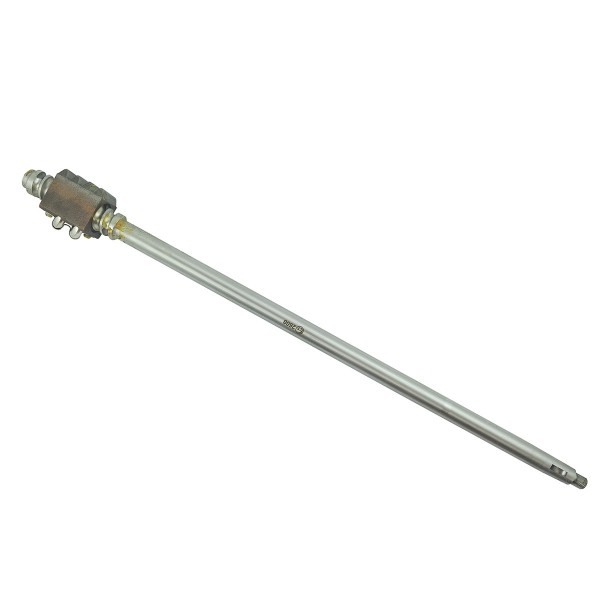

Steering gear shaft with a total length of 607 mm and a diameter of 18 mm for Kubota tractors of the Kubota L2600, Kubota L3000DT series and others.

The steering column worm gear is a component of the steering system, sometimes called the rack and pinion, responsible for the tractor's steering. One end of the shaft is directly bolted to the steering wheel, while its worm section on the other moves the steering rods connected to the front axle's steering rods, which rotate the steering wheel. The worm gear is a component of the steering column responsible for steering the tractor. It consists of a shaft with a worm. The worm gear is responsible for transmitting the steering wheel movement to the rod ends and then to the steering wheels. This connection should be as smooth and free of play as possible. At the end of the shaft is mounted the so-called steering column worm , with a thread resembling a screw thread, directly integrated into which is a gear or other surface connected to the rod ends.

Dimensions :

• length: 607 mm,
• shaft diameter: 18 mm,
• cube dimensions: 48 x 43.50 x 38.50 mm (length x width x height),

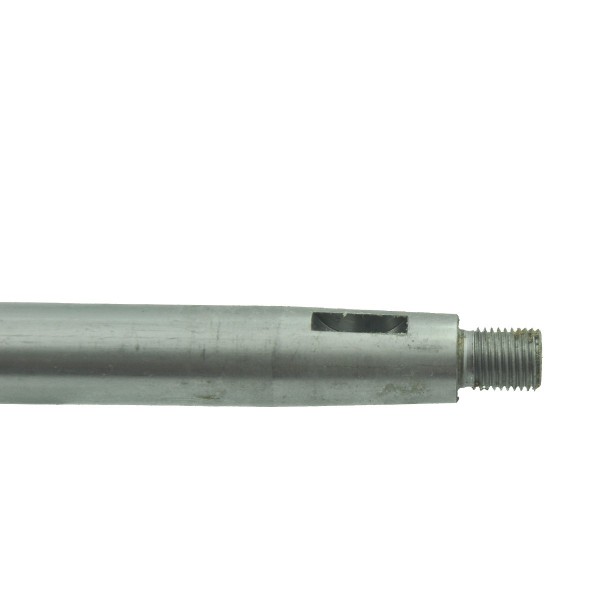

• thread: M13 x 1.5,
• thread length: 15 mm,
• original part numbers: TC020-43682,
• reference numbers: KUSS-416 ,
• part numbers: 6-01-100-03.

Tractor models :

• Kubota L2600,
• Kubota L3000DT.

Magazine: K18:A17

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
