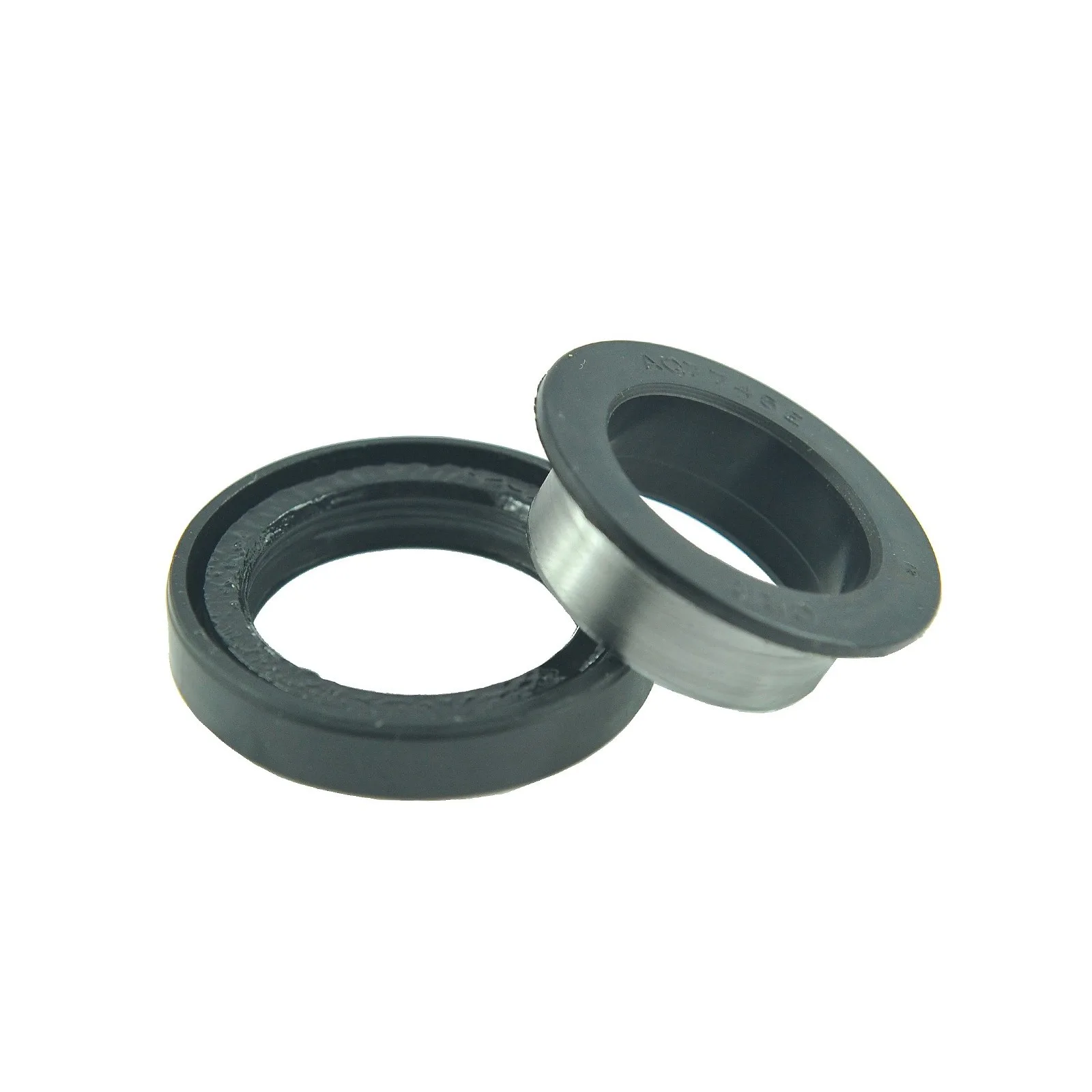

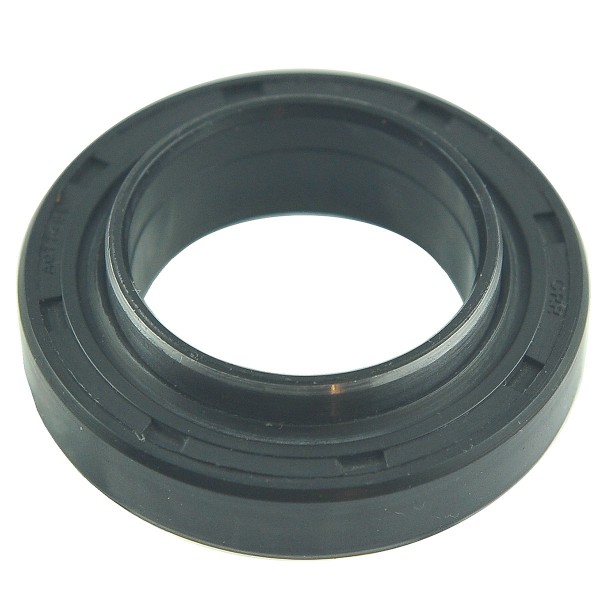

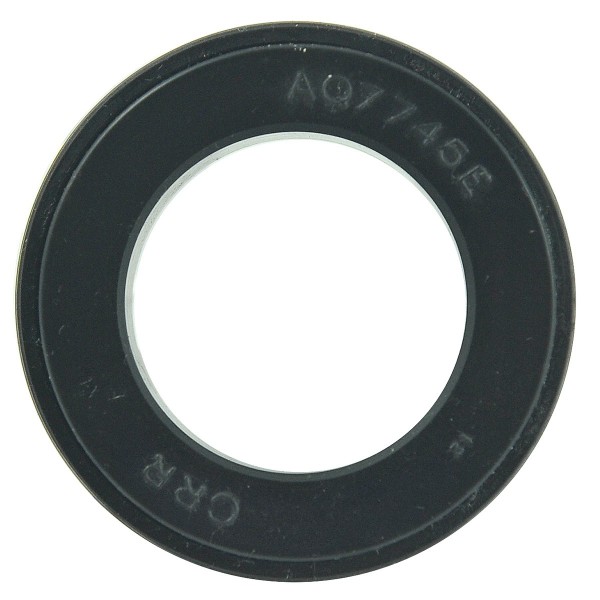

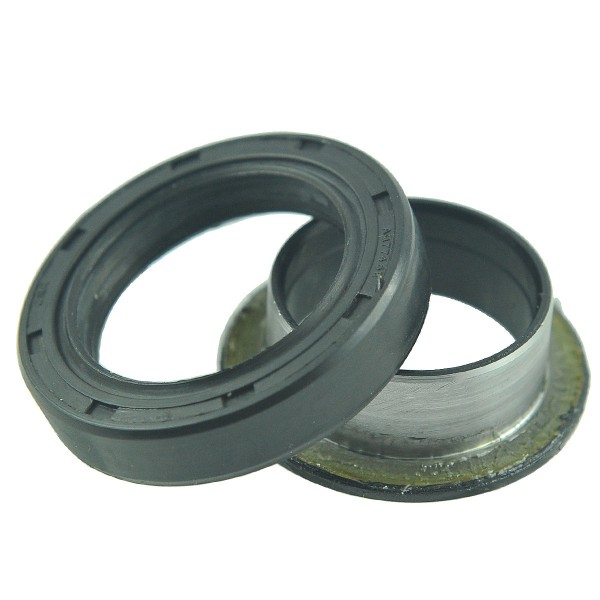

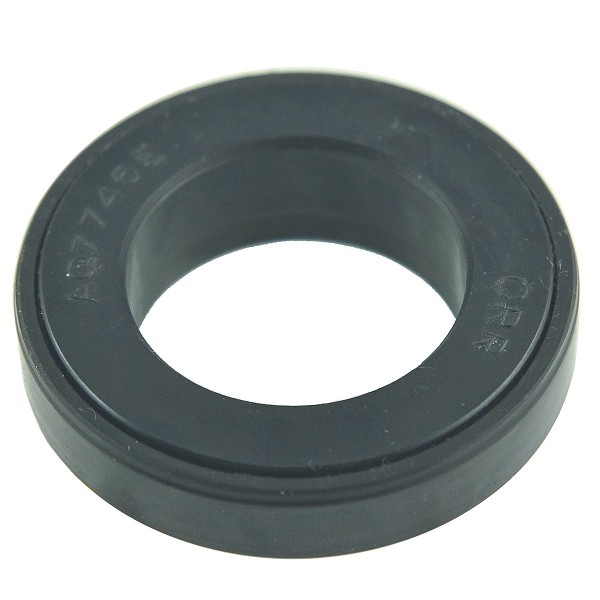

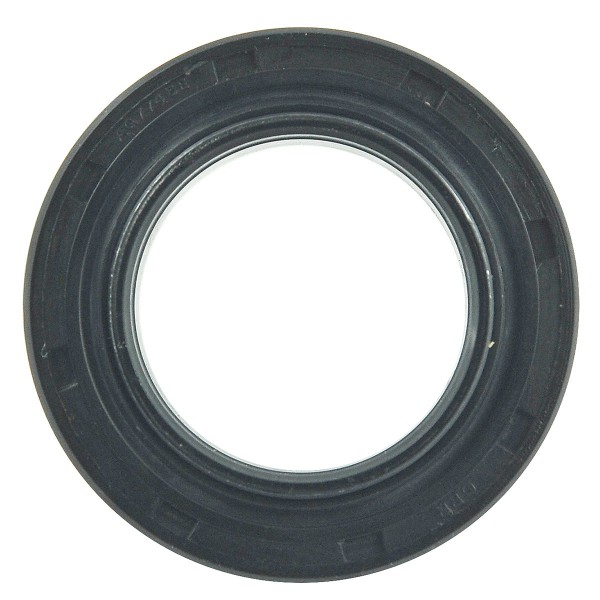

Cartridge seal / 35 x 58 x 13/17 mm / Kubota L1-215 / L185DT / L245DT / L2002DT / L2201DT

4WD front axle wheel and PTO shaft cassette seal with an inner diameter of 35 mm , outer diameter of 58 mm and a height of 13 / 17 mm for Kubota tractors of the Kubota L1-195, Kubota L1-215, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L185DT, Kubota L225, Kubota L235, Kubota L245DT, Kubota L275, Kubota L1501, Kubota L1801, Kubota L1802, Kubota L2002DT, Kubota L2050, Kubota L2201DT, Kubota L2250, Kubota L2350, Kubota L2450, Kubota L2500, Kubota L2650, Kubota L2850, Kubota L2950, Kubota L3000, Kubota M4700, Kubota M4900, Kubota M5400, Kubota M5700, Kubota M6800, Kubota M8200, Kubota M9000 and others.

The seal is most often a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or another plastic that meets the assumed technical requirements. The simmering is used to seal rotating elements of the system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 35 mm (sleeve), 40 mm (seal),
• outer diameter: 58 mm (seal), 40 (sleeve),
• height: 13 / 17 mm,
• original part numbers: 37650-43530,
• reference numbers: S.70671 ,
• part numbers: AQ7745E, 5-08-100-06.

Tractor models :

Kubota :

• Kubota L1-195,
• Kubota L1-215,
• Kubota L1-235,
• Kubota L1-245,
• Kubota L1-255,
• Kubota L185,
• Kubota L225,
• Kubota L235,
• Kubota L245,
• Kubota L275,
• Kubota L1501,
• Kubota L1801,
• Kubota L1802,
• Kubota L2002,
• Kubota L2050,
• Kubota L2201,
• Kubota L2250,
• Kubota L2350,
• Kubota L2450,
• Kubota L2500,
• Kubota L2650,
• Kubota L2850,
• Kubota L2950,
• Kubota L3000,
• Kubota M4700,
• Kubota M4900,
• Kubota M5400,
• Kubota M5700,
• Kubota M6800,
• Kubota M8200,
• Kubota M9000.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.
