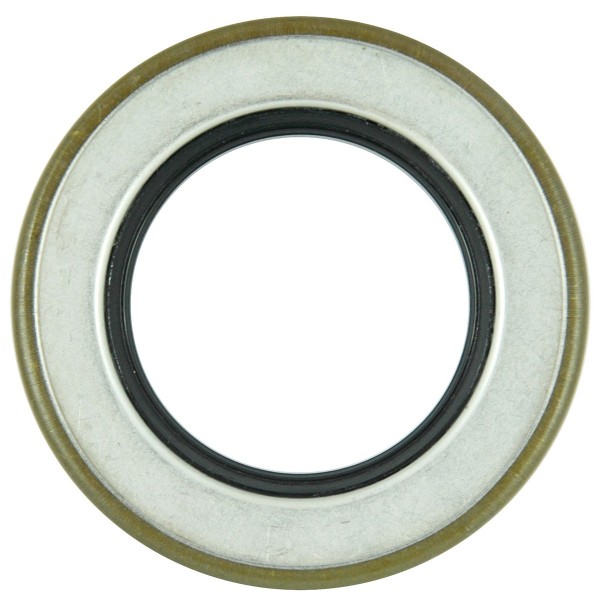

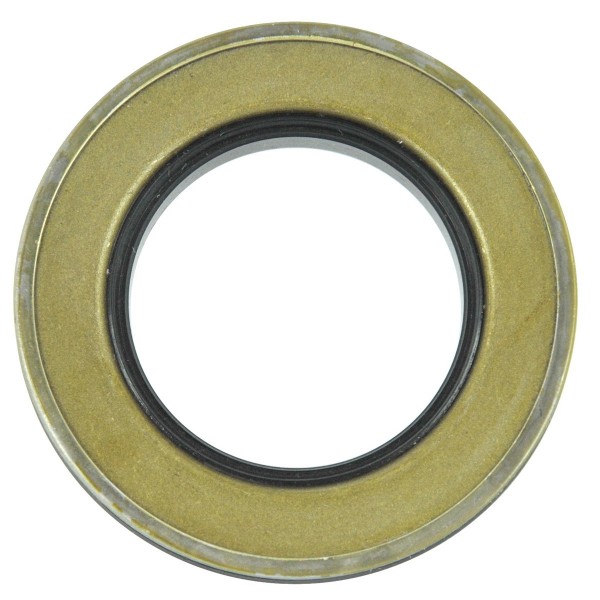

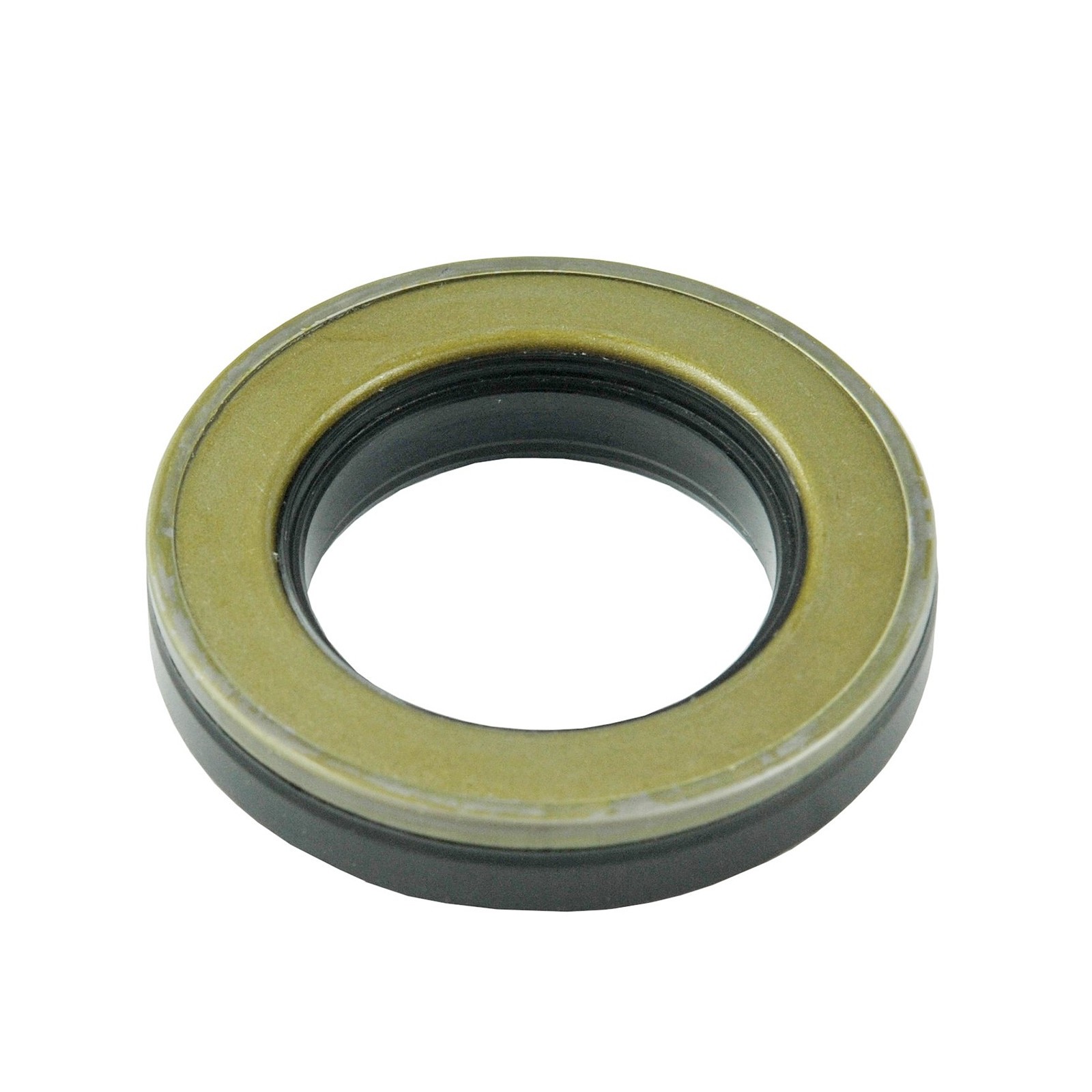

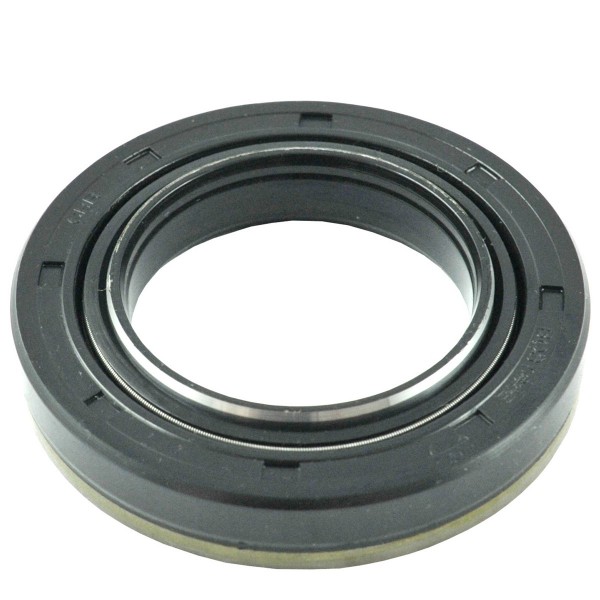

Seal / 45 x 75 x 14 / 16 mm / Kubota L45 / L48 / L4240 / L4700 / M4900 / M5000 / M5700 / M6040

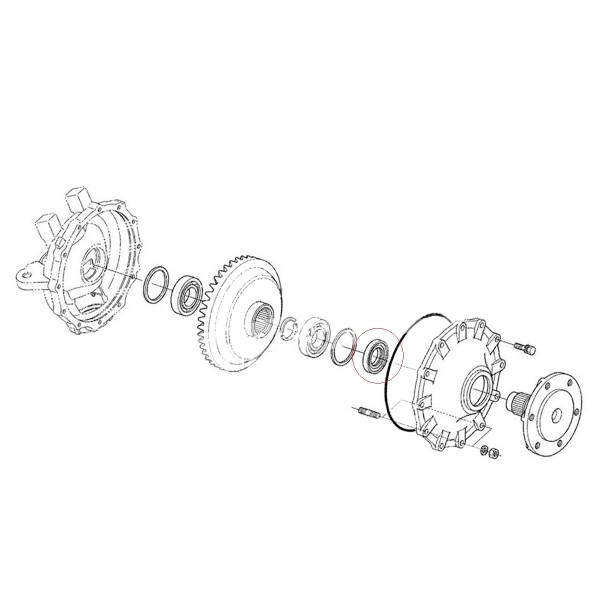

Front axle seal, front wheel reduction gear, oil seal dimensions 45 x 75 x 14/16 mm for Kubota tractors of the Kubota L45, Kubota L47, Kubota L48, Kubota L4240, Kubota L4330, Kubota L4610, Kubota L4630, Kubota L4740, Kubota L4760, Kubota L5040, Kubota L5240, Kubota L5460, Kubota L5740, Kubota L6060, Kubota M4900, Kubota M5000, Kubota M5030, Kubota M5040, Kubota M5400, Kubota M5700, Kubota M6040, Kubota M8200 series and others.

A seal is a rubber ring (also called a simmering, Simmer ring, after the inventor), which is most often made of rubber or other plastic that meets the assumed technical requirements. A simmer is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which, during operation, are immersed, most often in a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of seals is to seal shafts and power transmission systems or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-part), sealing rings with a spring around them or seals with a partially metal housing (cover).

Dimensions :

• inner diameter: 45 mm,
• outer diameter: 75 mm,
• height: 14 / 16 mm,
• original part numbers: 31393-43530,
• comparison numbers: 31393-43532,
• part numbers: BQ3164E, 1503008, 5-08-101-12.

Tractor models :

Kubota :

• Kubota L45,
• Kubota L47,
• Kubota L48,
• Kubota L4240,
• Kubota L4330,
• Kubota L4610,
• Kubota L4630,
• Kubota L4740,
• Kubota L4760,
• Kubota L5040,
• Kubota L5240,
• Kubota L5460,
• Kubota L5740,
• Kubota L6060,
• Kubota M4900,
• Kubota M5000,
• Kubota M5030,
• Kubota M5040,
• Kubota M5400,
• Kubota M5700,
• Kubota M6040,
• Kubota M8200.

Seals prevent oil or lubricant leakage and prevent contaminants from entering the system.
