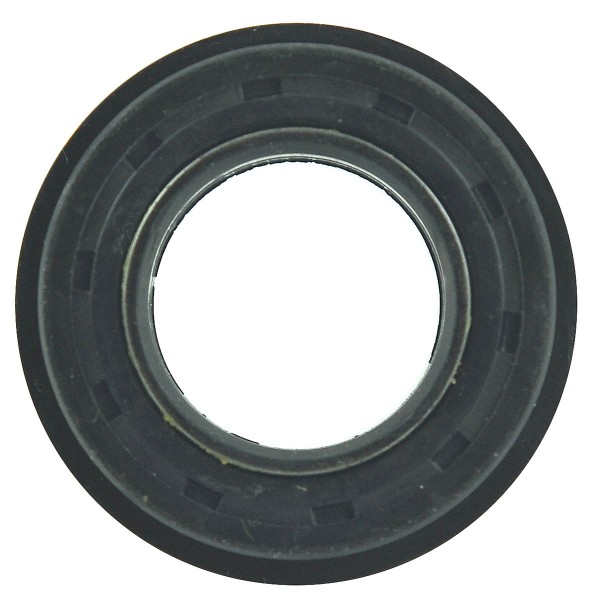

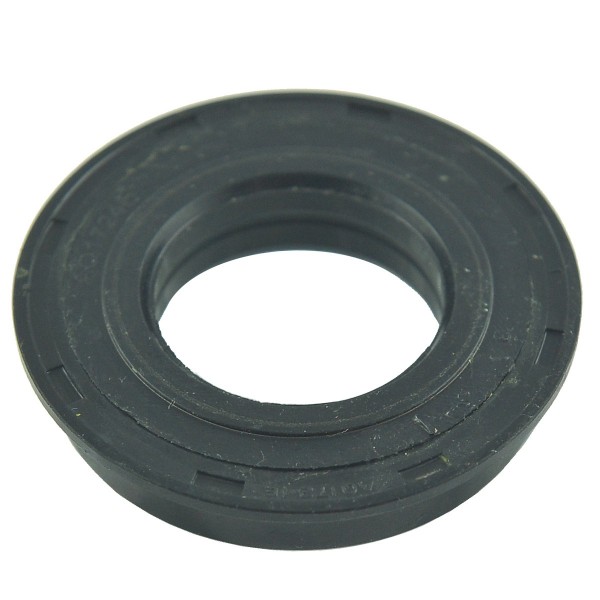

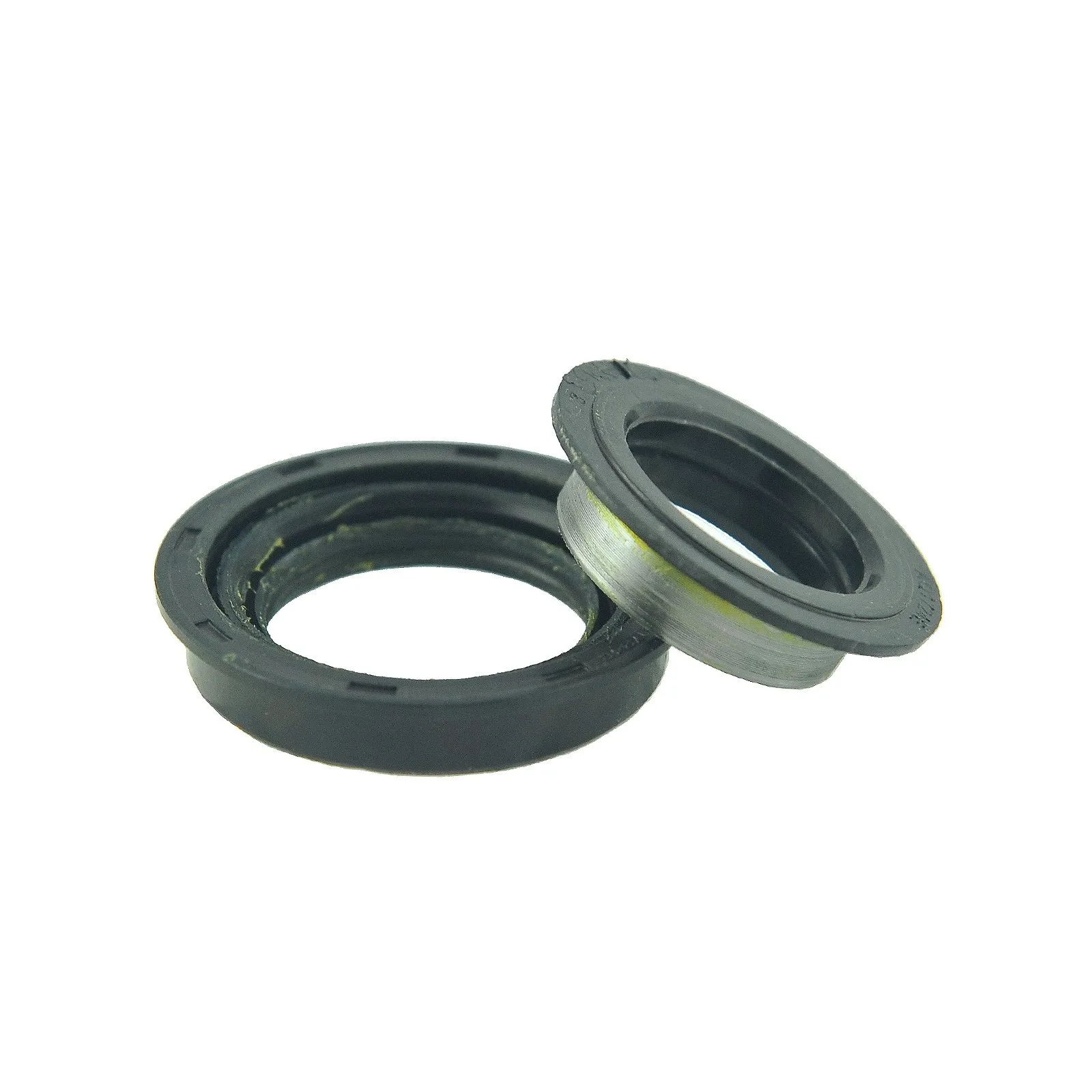

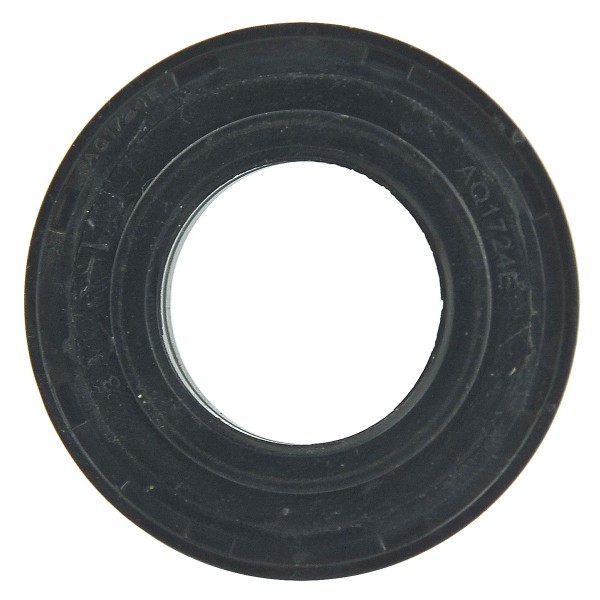

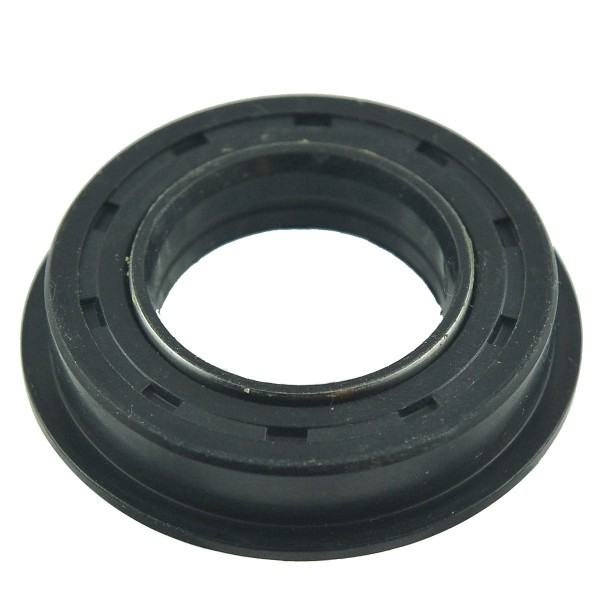

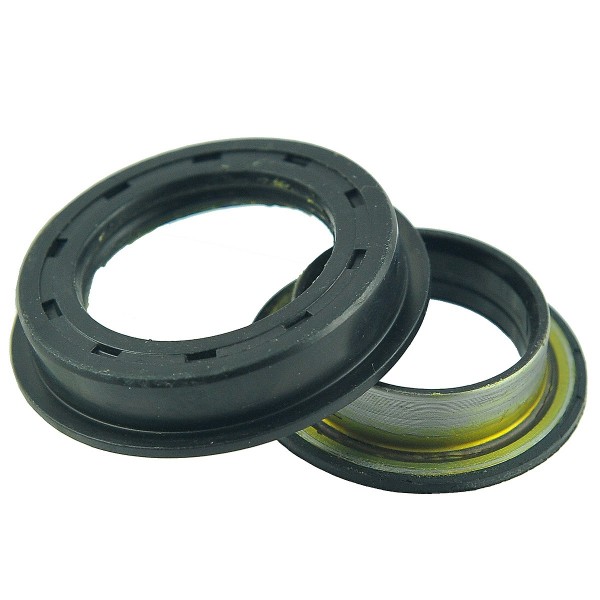

Cartridge sealant / 30 x 52 x 10.50/12 mm / Kubota B/L / AQ1724E / 34150-11150 / 34150-11152 / 34260-11150
Front axle cassette seal with an internal diameter of 30 mm , an external diameter of 52 mm and a height of 10.50 / 12 mm for Kubota tractors of the Kubota B1700, Kubota B1750, Kubota B2100, Kubota B2150, Kubota B2400, Kubota B2410, Kubota B5100, Kubota B6100, Kubota B6200 series , Kubota B7100, Kubota B7200, Kubota B8200, Kubota B9200, Kubota L175, Kubota L185, Kubota L185, Kubota L225, Kubota L2000 and others.
The sealant is most often a rubber ring (also called simmering, Simmer's ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Simering is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-piece), sealing rings with a spring around or seals with a partially metal casing (cover).
Dimensions :
- inner diameter: 30 mm (sleeve), 35 mm (sealer),
- outer diameter: 52 mm (sealer), 35 (sleeve),
- flange diameter: 58 mm,
- height: 10.50 / 12 mm,
- original part numbers: 34150-11150, 34150-11152, 34260-11150,
- comparison numbers: -,
- part numbers: AQ1724E, 5-08-100-05.
Tractor models :
Kubota :
- Kubota B1700,
- Kubota B1750,
- Kubota B2100,
- Kubota B2150,
- Kubota B2400,
- Kubota B2410,
- Kubota B5100,
- Kubota B6100,
- Kubota B6200,
- Kubota B7100,
- Kubota B7200,
- Kubota B8200,
- Kubota B9200,
- Kubota L175,
- Kubota L185,
- Kubota L225,
- Kubota L2000.
Seals prevent oil or lubricant leaks and prevent contaminants from entering the system.
Warehouse :
M01:B53:S03
Specification
Magazyn: M01:B53:S03
Production
Substitute
Parts
Drive
Tractor models
- Kubota B1700
- Kubota B1750
- Kubota B2100
- Kubota B2150
- Kubota B2400
- Kubota B2410
- Kubota B8200
- Kubota B9200
- Kubota L175
- Kubota L185
- Kubota L225
- Kubota L2000
Kubota B5100
Kubota B6100
Kubota B6200
Kubota B7100
Kubota B7200
Height (mm)
10.50 / 12
Outer diameter (mm)
52
Inner Diameter (mm)
30
Original Part Number (OEM)
34150-11150
34150-11152
34260-11150
Part number
5-08-100-05
AQ1724E
