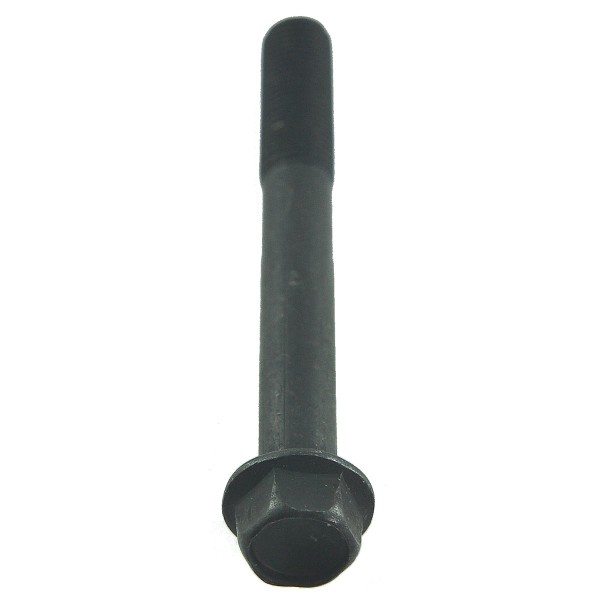

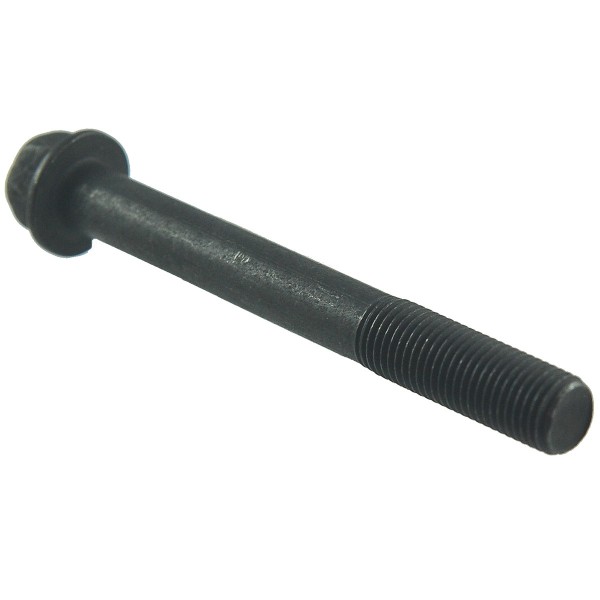

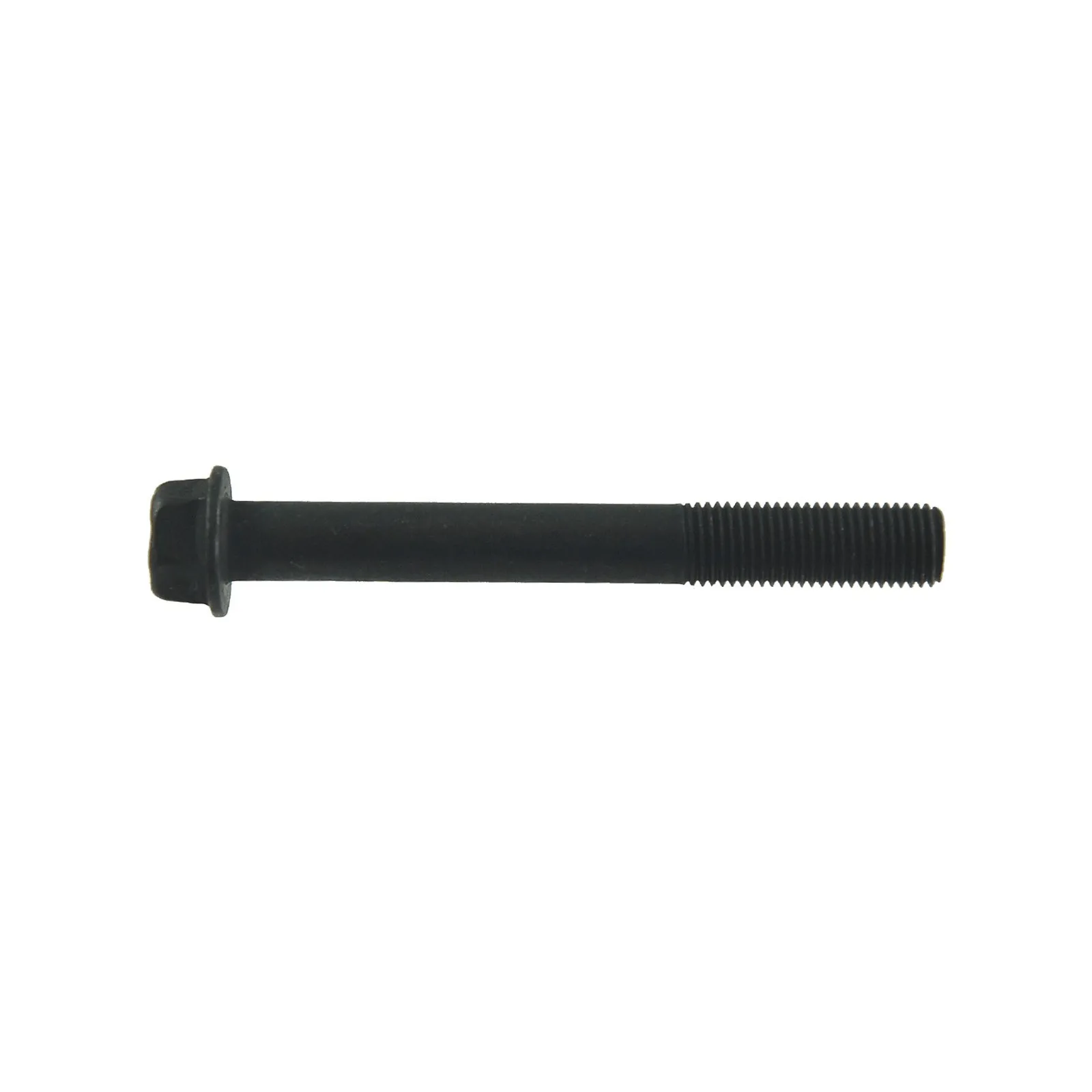

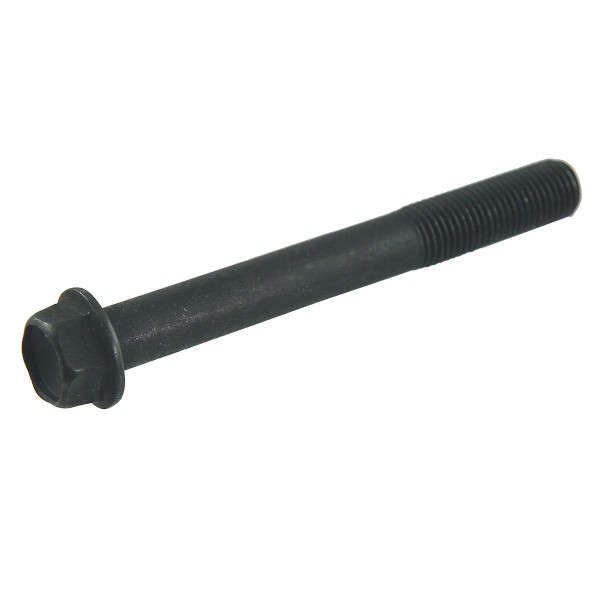

Bolt M11 x 90 mm / Kubota D1463 / D1503 / D1703 / V2203 / ANT-103301

M11 engine head bolt with 1.25 thread, total length 99 mm for Kubota tractors of the Kubota L3408, Kubota M4700 series with Kubota D1463, Kubota D1503, Kubota D1703, Kubota V2203 and other engines.

The appropriate selection of the screw in terms of strength should be made before starting the assembly, because the shape of the screw and technical parameters can have a direct impact on the safety and durability of the connection. We distinguish 3 classes of screw precision , i.e. A, B and C, and 10 classes (measured in mega pascals) of strength 3.6, 4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9 , 12.9, where the first digit indicates the tensile strength limit and the second the yield strength relative to the first value (in percentage). The higher the values, the greater the screw strength, so 3.6 is the lowest quality screw (low-carbon steel) and 12.9 is the highest strength class (low-alloy steel).

Dimensions :

• total length: 99 mm,
• working length: 90 mm,
• thread length: 32 mm,
• key size: 14,
• thread: M11 x 1.25,
• standards and strength classes: -,
• original part numbers: 19013-03450,
• comparison numbers:5-25-106-31 ,
• part numbers: ANT-103301.

Engine models :

Kubota :

• Kubota D1463,
• Kubota D1503,
• Kubota D1703,
• Kubota V2203.

Tractor models :

Kubota :

• Kubota L3408,
• Kubota M4700.

Warehouse :
K18:B18:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
