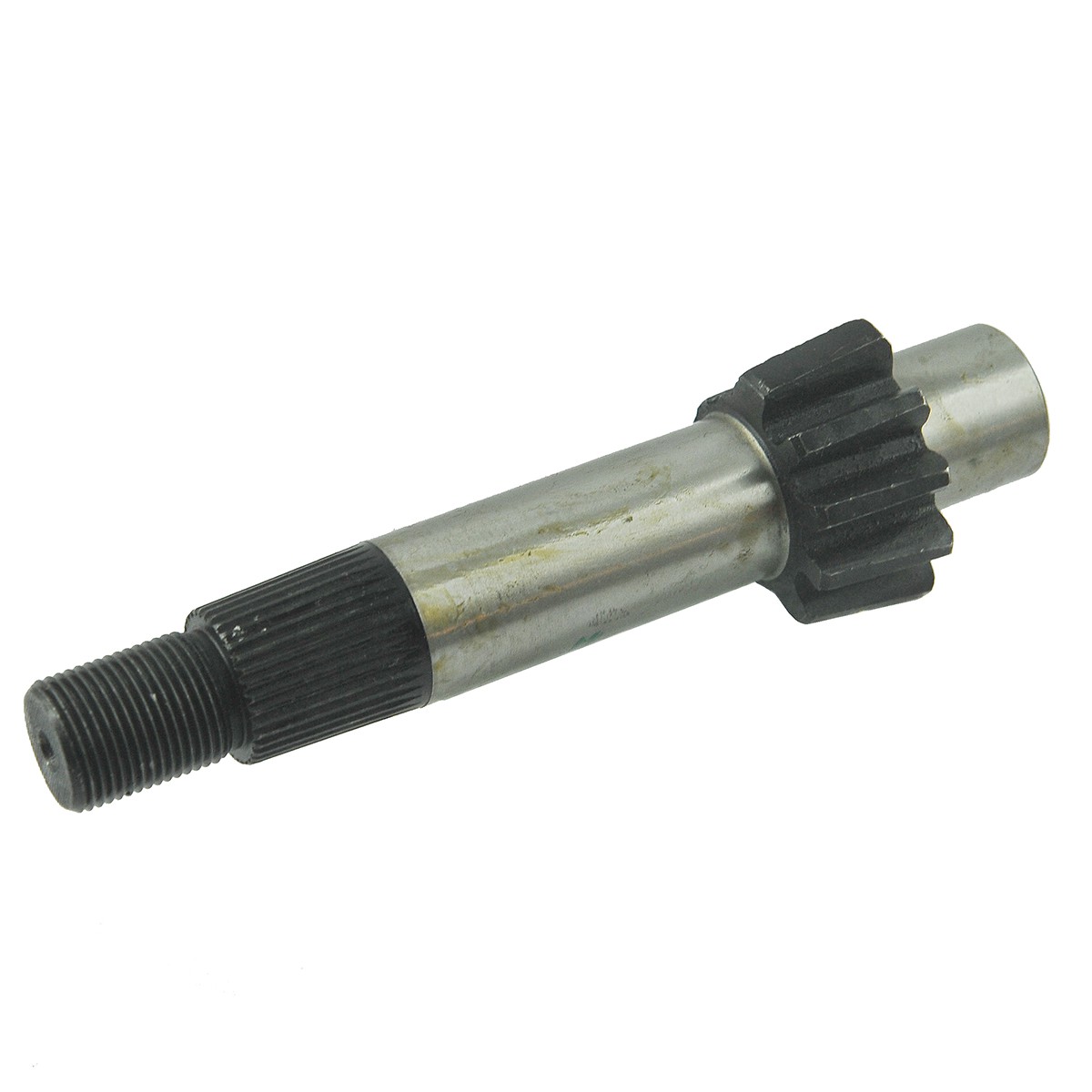

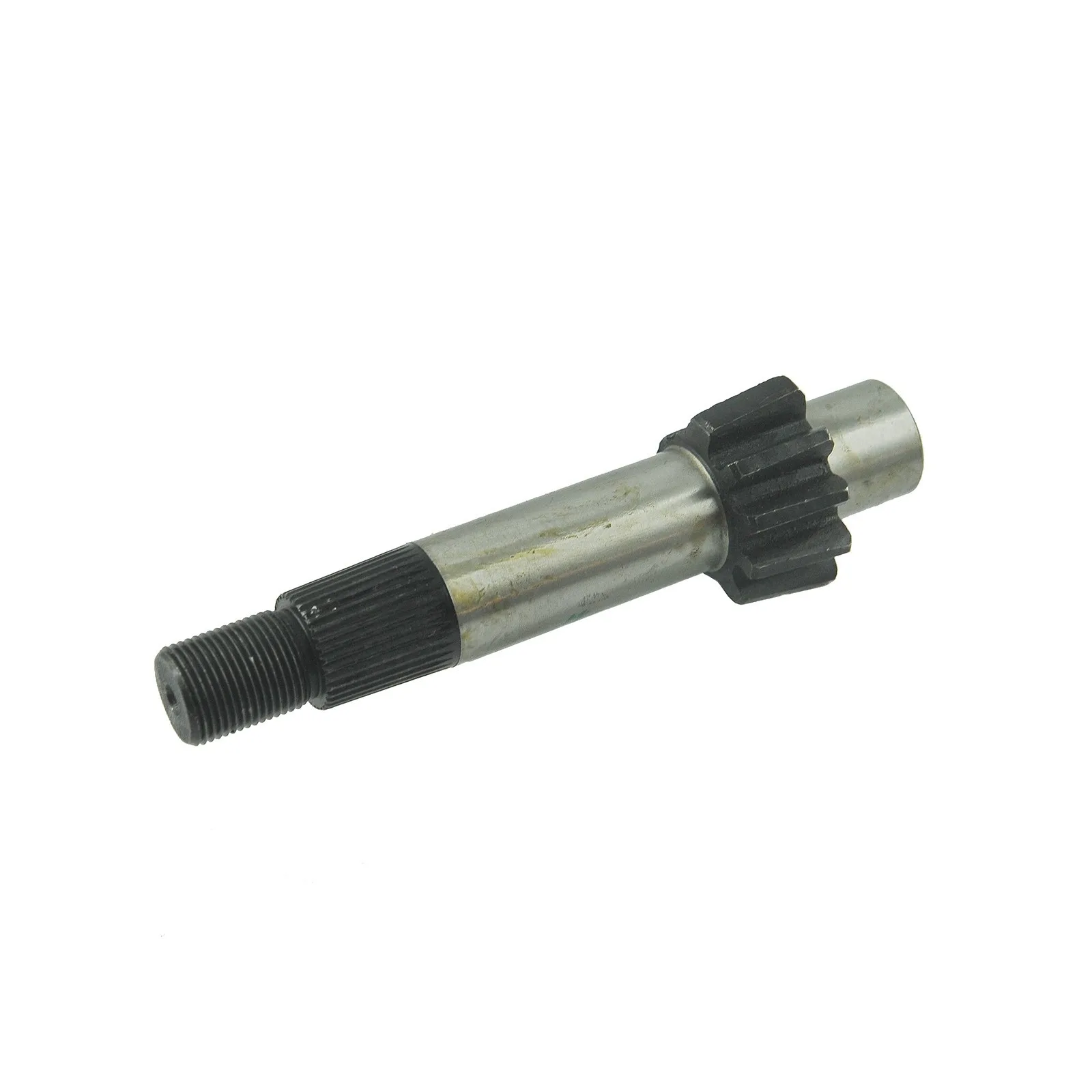

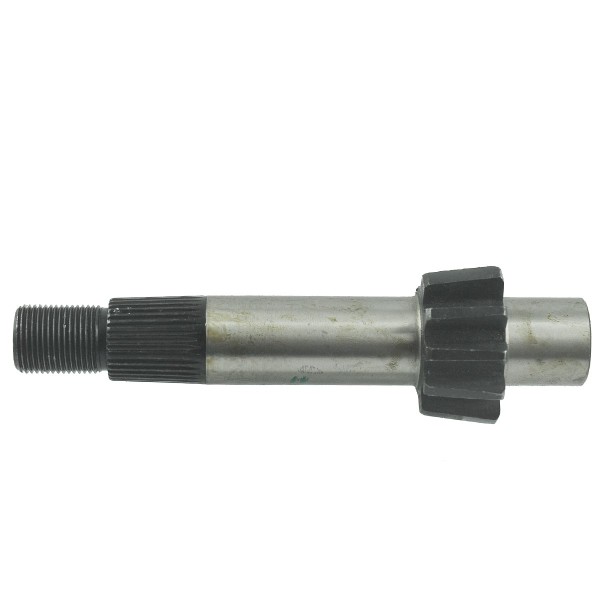

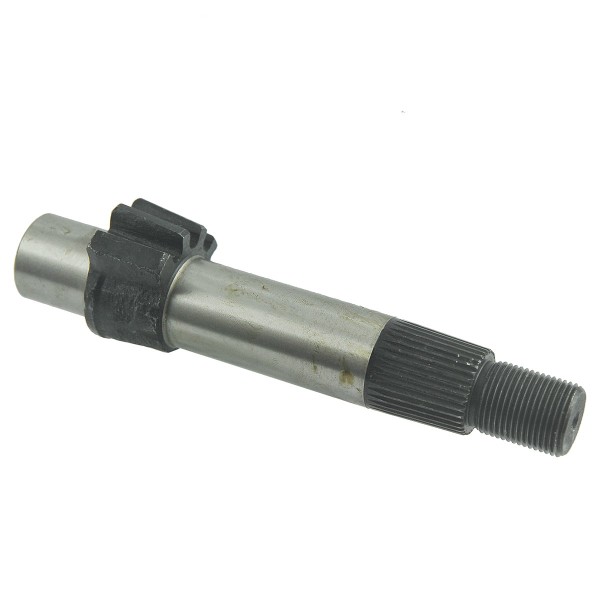

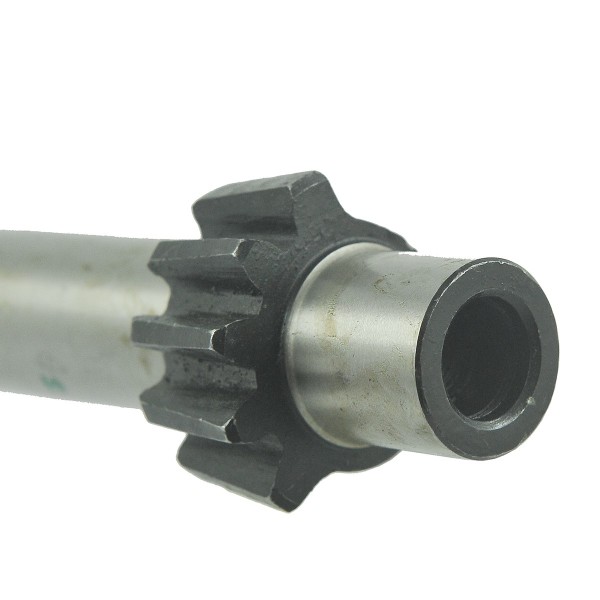

Steering gear shaft / 25.70 x 162 mm / 36T / Yanmar

Steering gear shaft with a total length of 162 mm for Yanmar series tractors, Yanmar YM187, Yanmar YM195, Yanmar YM226, Yanmar YM240, Yanmar YM1601, Yanmar YM1610, Yanmar YM1700, Yanmar YM1800, Yanmar YM1802, Yanmar YM1810, Yanmar YM2000, Yanmar YM2001, Yanmar YM2002, Yanmar YM2202, Yanmar YM2210, Yanmar YM2220, Yanmar YM2301, Yanmar YM2310, Yanmar YM2402, Yanmar YM2420 and others.

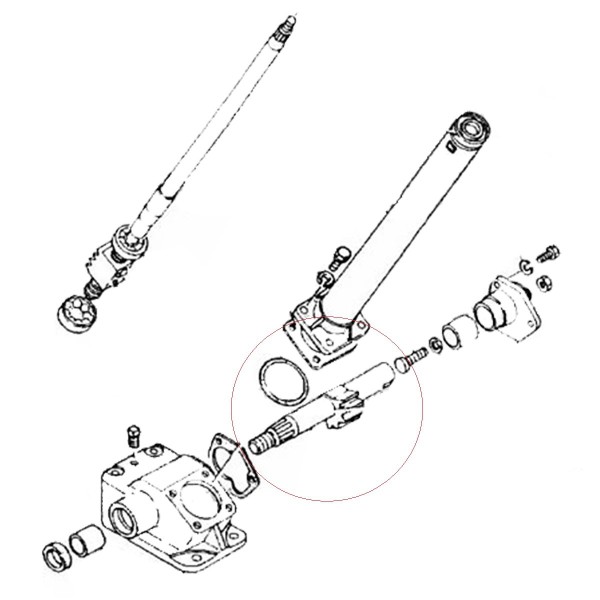

The steering column shaft is a component of the steering system, sometimes called the steering rack, and is responsible for steering the tractor. The steering column shaft transfers steering wheel movement to the tie rod ends and then to the steering wheels. The horizontal shaft interacts directly with the vertical worm shaft. The worm shaft is bolted directly to the steering wheel on one end, while its worm section on the other end drives the horizontal shaft and the subsequent steering column rods, which are connected to the front axle's steering rods.

Dimensions :

• length: 162 mm,
• outer diameter: 25.70 mm,
• inner diameter: 15.60 mm,
• thread: M20 x 1.5,
• thread length: 22 mm,
• number of teeth: 36T,
• cutter working length: 21 mm,
• key size: 30,
• original part numbers: 194310-15411,
• reference numbers: SSS-4310,
• part numbers: KUSS-420.

Tractor models :

• Yanmar YM187,
• Yanmar YM195,
• Yanmar YM226,
• Yanmar YM240,
• Yanmar YM1601,
• Yanmar YM1610,
• Yanmar YM1700,
• Yanmar YM1800,
• Yanmar YM1802,
• Yanmar YM1810,
• Yanmar YM2000,
• Yanmar YM2001,
• Yanmar YM2002,
• Yanmar YM2202,
• Yanmar YM2210,
• Yanmar YM2220,
• Yanmar YM2301,
• Yanmar YM2310,
• Yanmar YM2402,
• Yanmar YM2420.

The gear shaft is responsible for transferring motion from the vertical shaft with the worm gear to the rod ends and then to the steering wheels. This connection should be as smooth and free of play as possible.

Warehouse: K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
