zł170.00
To order
Condition
New
Production
OEM
Number of teeth (pcs/T-teeth)
6T / 6T
Length (mm)
165
Outer diameter (mm)
28.40
34.60
34.60
Inner Diameter (mm)
23.80
28.60
28.60
working length (mm)
50 / 55

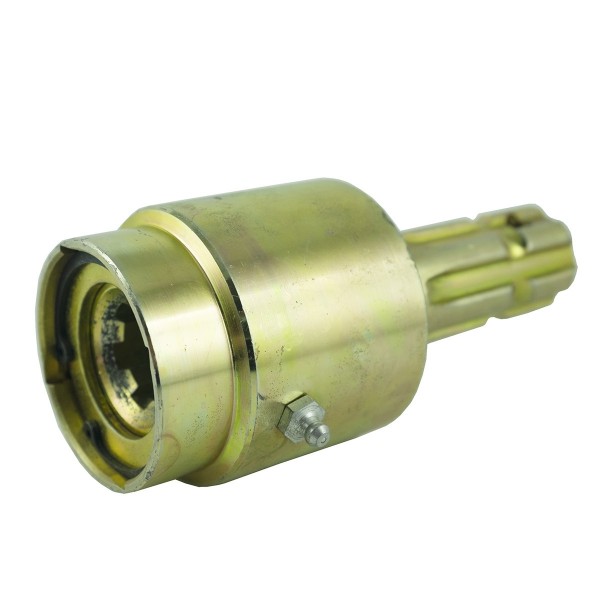

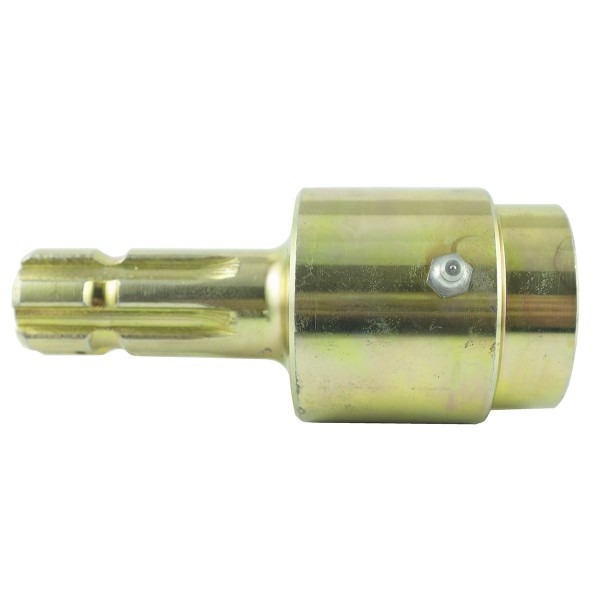

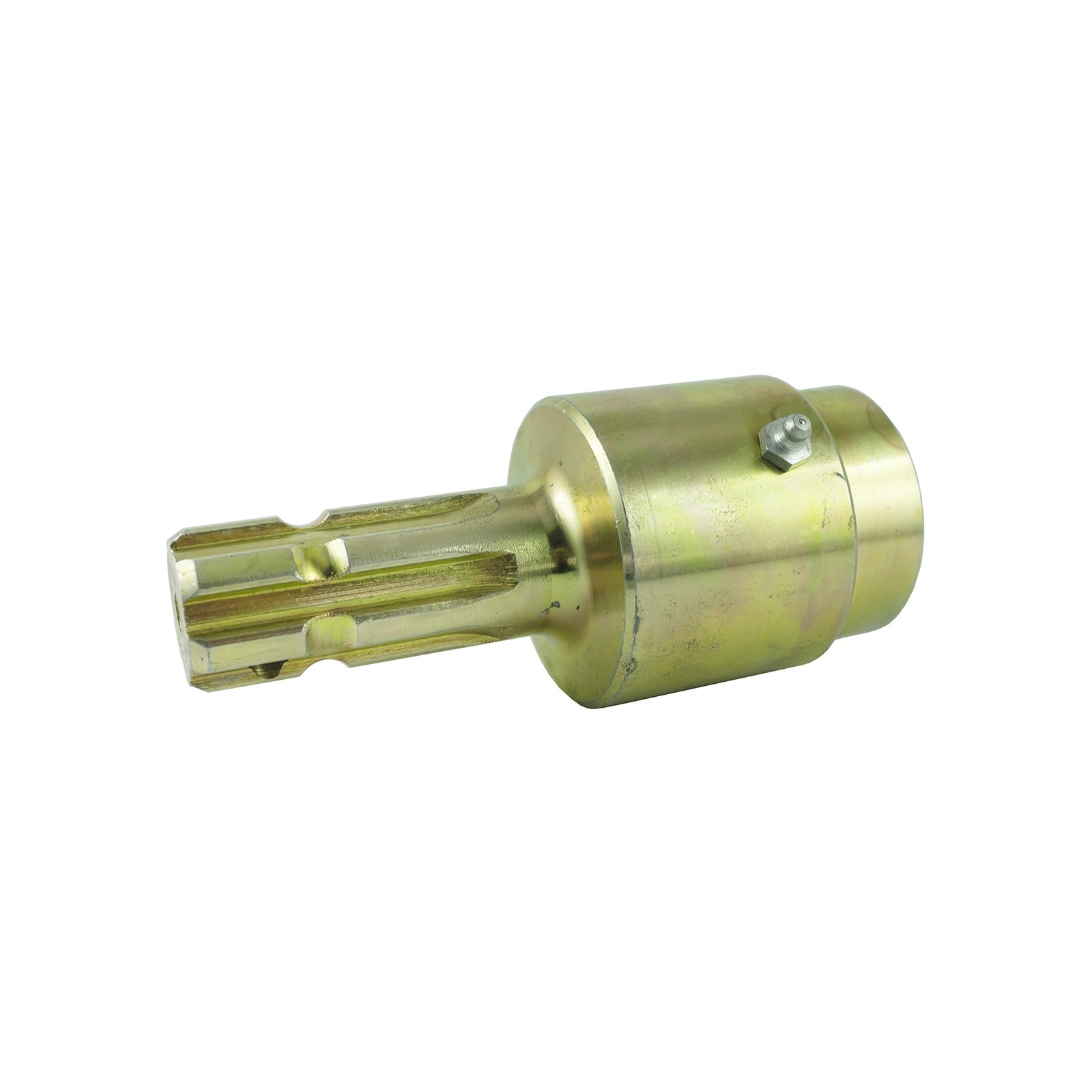

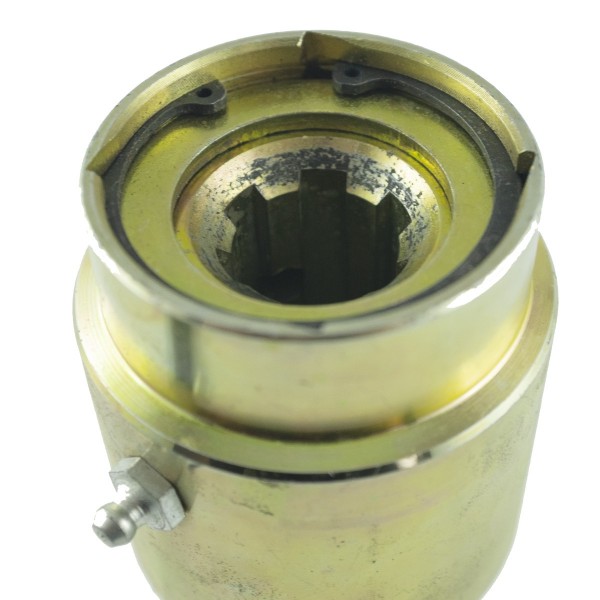

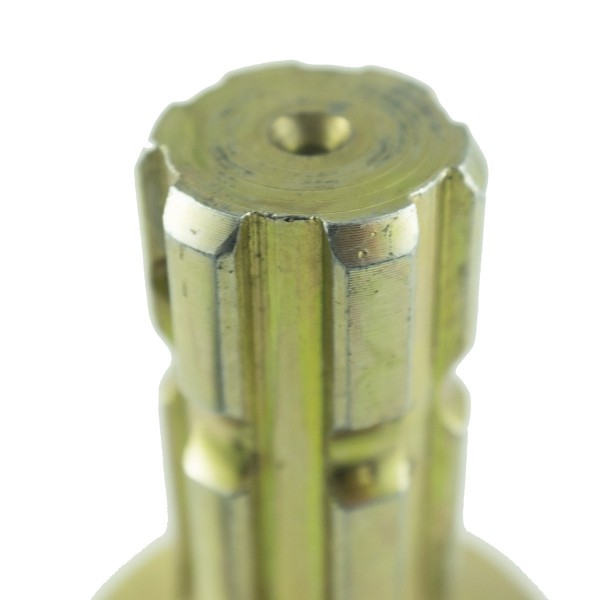

PTO backstop 1.1 / 8 "- 1.3 / 8" / PTO / PTO adapter / 70KM / s. 15451
s.15451
Do you have any questions?
PTO backstop 1.1 / 8 "- 1.3 / 8" / PTO / PTO adapter / 70KM / s. 15451
PTO / PTO backstop for a tractor with a maximum power of 70 HP + adapter reducing the dimensions of the PTO shaft with the dimensions 1.1 / 8 "(female) / 1.3 / 8" (male).
What is a directional clutch?
The overload clutch is designed to instantly disconnect the drive shafts to prevent damage or failure of the machine, device or tractor. Overload couplings are present in all branches of industry and differ from each other in the manner of assembly, the type of coupling and the torque limit value, and most importantly, the directional clutch is not destroyed after the task is completed (drive disconnection after excessive load).
The main task of the one-way PTO / PTO clutch is to transmit the torque and connect and disconnect the drive shafts. The backstop is widely used in agriculture. Machines and devices using the PTO shaft rotation operate at very high revolutions. For the safety of the machine and the tractor, a PTO / PTO shaft adapter with a clutch is used as a protection.
Dimensions :
- total length: 165 mm,
- working length: 55 mm (male external part), 50 mm (female internal part),
- outer diameter: 28.40 mm (measured between the teeth), 34.60 mm (measured with the cutter) / 1.3 / 8 "x 6 (male),
- Inside Diameter: 28.60 mm (measured between the teeth), 23.80 mm (measured with the cutter) / 1.1 / 8 "x 6 (female),
- number of teeth: 6T / 6T,
- maximum allowable tractor power: 70HP,
- weight: 3 kg.
When do we use a single direction clutch?
Japanese cultivators of various manufacturers and brands, where the adapter can be mounted between the tractor PTO shaft or the PTO shaft and the device. During the operation of the device, the rotation direction may change or the machine may suddenly stop, and at this point our clutch disengages and works in idle mode without the need to turn off the PTO drive in the tractor.
Before each use of the adapter, it is recommended to properly lubricate it using the kalimitki attached to the adapter .
Warehouse :
M01: A64
Specification
Magazyn: M01:A05:S01
Condition
New
Production
OEM
Number of teeth (pcs/T-teeth)
6T / 6T
Length (mm)
165
Outer diameter (mm)
28.40
34.60
34.60
Inner Diameter (mm)
23.80
28.60
28.60
working length (mm)
50 / 55
Weight (kg)
3
Recommended tractor power (hp)
to 70
4FARMER
The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.
The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.
Wide offer of 4FARMER:
The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .
The most important advantages of the 4FARMER brand?
- Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
- Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
- Professional support and access to spare parts.
4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
