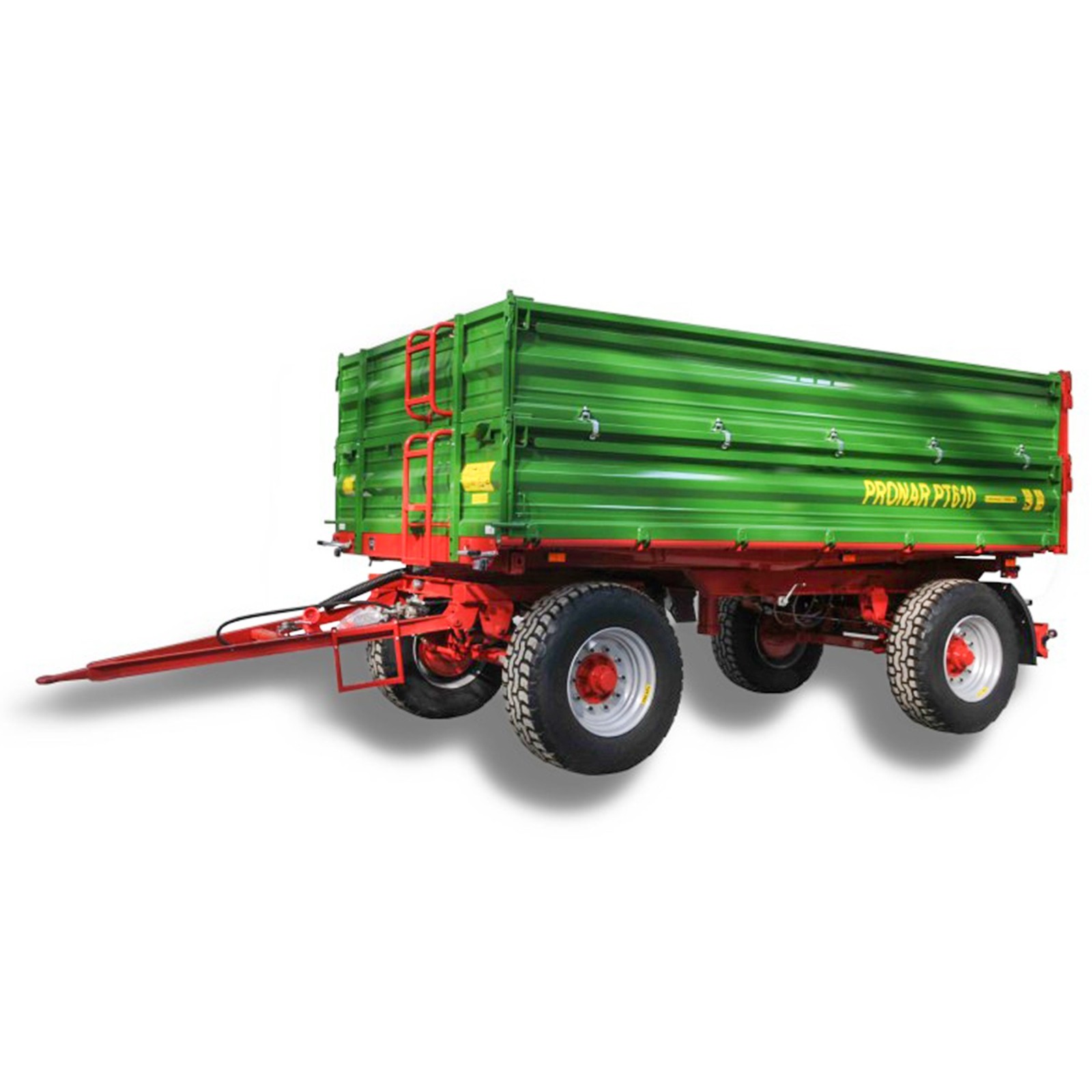

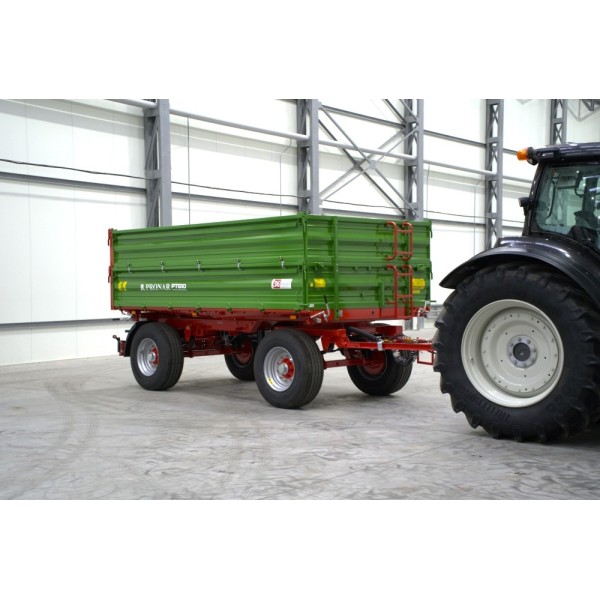

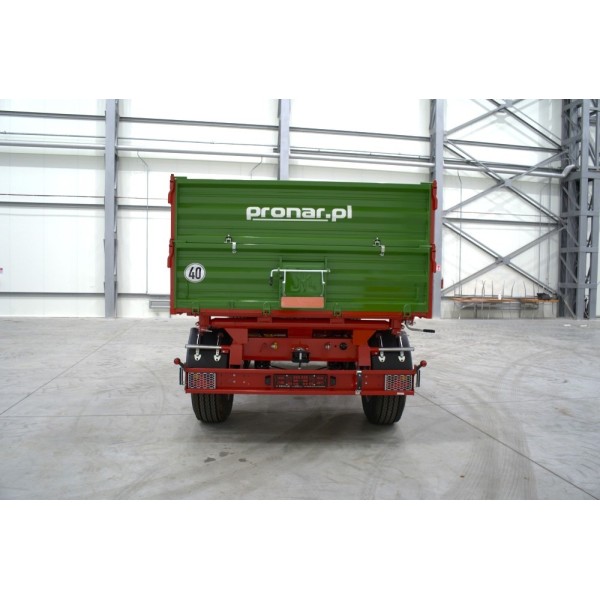

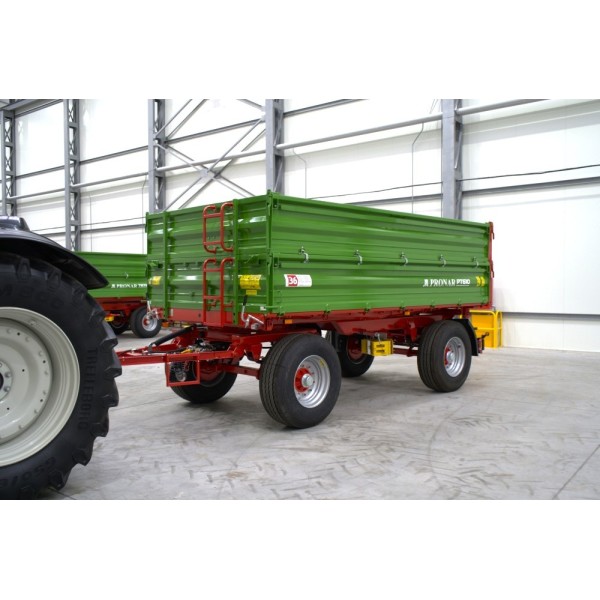

Two-axle agricultural trailer 10T with a tipper PT610 Pronar

Agricultural trailers are an essential transport tool on a farm, used to transport crops, feed and materials necessary for agricultural production. There are various models available on the market - both universal and specialist - differing not only in size, but also in purpose and technical parameters. Trailers equipped with a tandem chassis, i.e. with two axles placed in parallel, are becoming increasingly popular. This solution is offered by leading manufacturers of agricultural equipment. When choosing the right model, it is worth adapting it to the specifics and size of the farm to ensure maximum functionality.

PT610 Pronar trailer – versatility and solidity

The PT610 Pronar trailer is a model with a rectangular box, adapted to transport euro pallets. Its design makes it perfect for transporting boxes from plantations to storage or reloading areas, as well as for transporting 1.2 m wide bales. Thanks to the appropriately designed shape of the box, in addition to bulk materials, the trailer can also transport many other products.

In the production process of the PT610, Pronar uses modern technologies, such as precise sheet metal profiling and laser welding, which guarantees high quality and durability of the structure. This model is characterized by a permissible total weight of 14,200 kg and a three-way tipping mechanism, ensuring comfort of use. The cargo box allows for the transport of up to 10 euro pallets, and the design speed of the trailer is 40 km/h.

Standard equipment includes, among others, pneumatic, hydraulic and electrical system outputs, which increases the vehicle's functionality. The group of pallet trailers, to which the PT610 belongs, was distinguished by the Minister of Agriculture and Rural Development in 2012.

Optional extensions allow for increasing the volume of the box, which makes this model ideal for transporting chopped green fodder, corn and biomass.

Advantages of the PRONAR PT610 trailer

• Universal : thanks to the internal width of the body of 2.42 m, the PRONAR PT610 trailer is perfect for transporting both bulk materials and Europallets and box pallets.

• Aesthetic : the use of forged hinges and locks on both sides of the sides and an increased number of hinges ensures precise closing of the sides and increases the aesthetics of the trailer.

• Easy to load : the low-set cargo bed makes it easier to access the load, and tensioning strips (instead of tie-down cables) make cargo layout simpler and more efficient.

• Solid : the PT610 trailer has a rectangular chassis frame made of high-strength closed profiles, which provides a rigid and resistant structure. The use of parabolic springs, which are lighter and stronger than traditional leaf springs, increases its stability and durability.

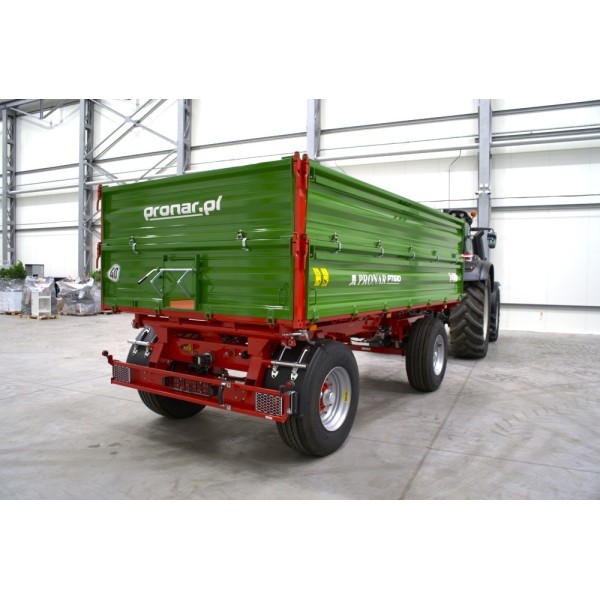

• Richly equipped ; the standard equipment of the trailer includes, among others, wheel chocks placed in pockets, rear wheel mudguards, ladders and side steps facilitating access to the cargo box, rear electrical, hydraulic and pneumatic sockets and protective grilles for the lamps on the rear beam.

Standard equipment of the PT510 Pronar trailer

• Cargo box with swing universal wall opening system

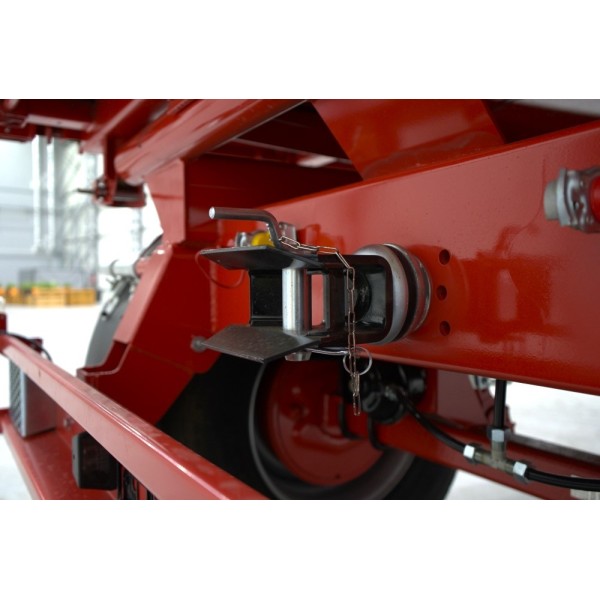

• Three-way body tipping system with rear ball joints with shock absorption
• Selection of the tipping direction by means of two pins with protection against incorrect operation
• Loading box adapted to transport EUROPALLETS, with a reinforced floor plate
• Central locking at the floor of the side walls and rear wall
• Walls with side tensioning strips: made of high-quality, strong, laser-welded PF600mm profiles, made of profiled sheets; with stable rear posts; with forged hinges
• Grain discharge damper with lock, in the rear wall

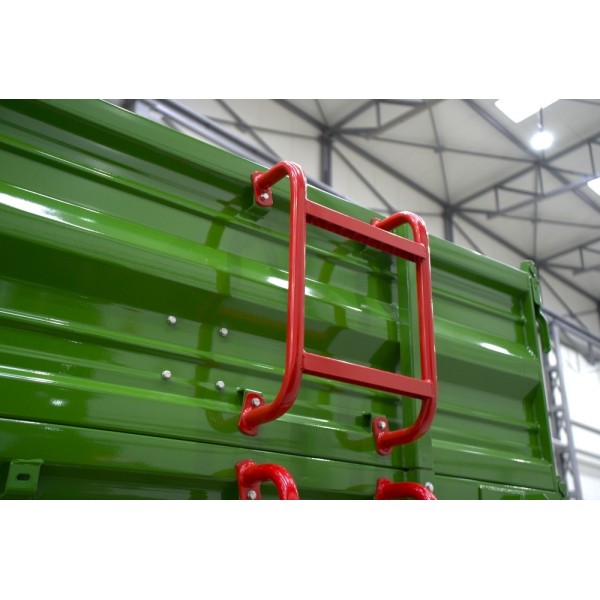

• Ladder and side steps for easy access to the cargo box
• Chassis frame welded from rectangular closed profiles of high-strength structural steel
• V-type drawbar with rigid eye hitch Æ40mm
• Steering system: ball turntable with rotating frame
• Driving axles with drum brakes Æ400x80mm
• Dual-line pneumatic brake system with manual brake force regulator (with rear outlet)
• Parking handbrake with crank
• 12V lighting installation (bulbs), with rear electrical socket, with airtight connections, with side lights

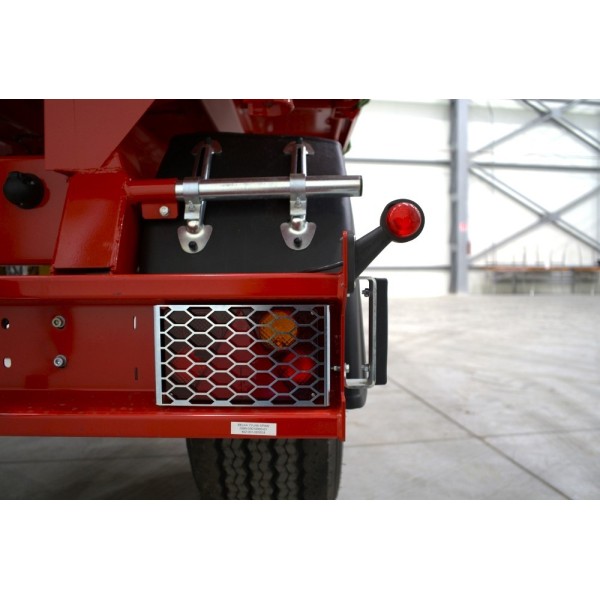

• Rear lights with protective grilles to prevent damage
• Spiral connecting cable for lighting installation
• Hydraulic tipping system with automatic shut-off valve to limit tipping (with rear outlet)
• Telescopic three-way tipping cylinder with articulated suspension
• Cargo box service support

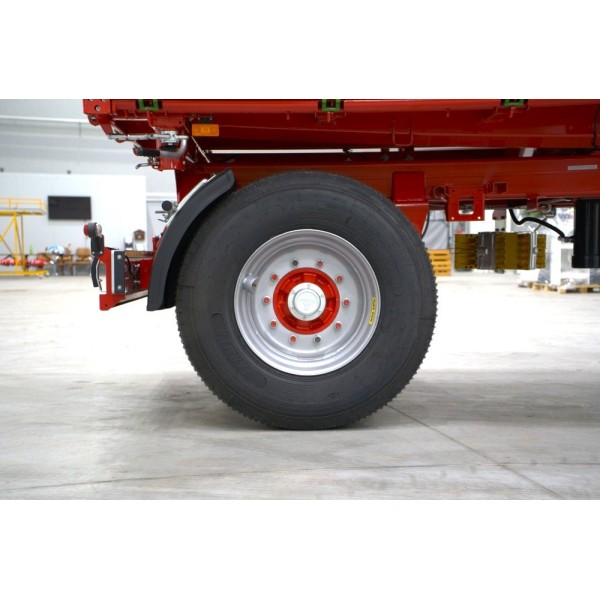

• Plastic mudguards - behind the rear wheel

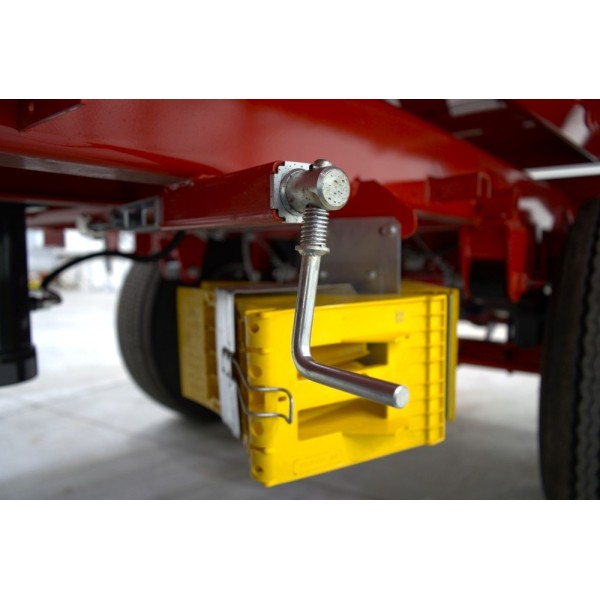

• Two wheel chocks placed in galvanized pockets

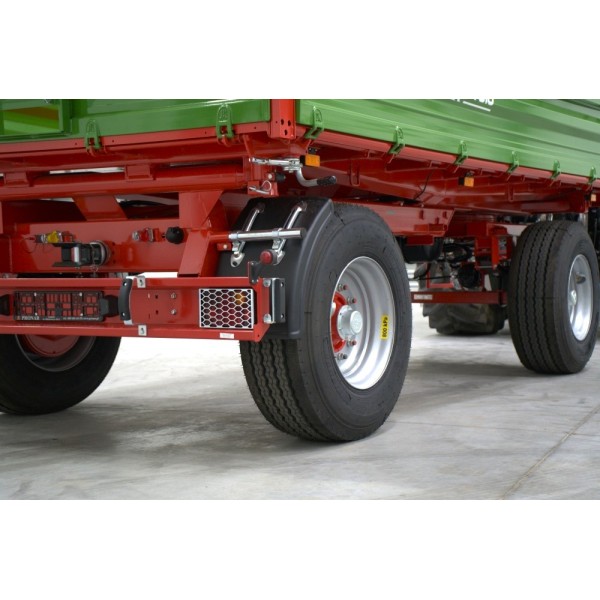

• Rear protective device (bumper) - homologated
• A paint system with high anti-corrosion resistance using two-component chemically hardened paint materials that provide high durability of paint coatings and UV resistance
• The chassis painting color is red RAL3000 PRONAR, the walls painting color is green RAL6010 PRONAR

Additional equipment

• extensions
• tarpaulin with frame
• working platform
• chute
• automatic hitch
• at the rear, hydraulics for a second trailer, power socket, 2-circuit pneumatic installation.

* The data includes the completion of the trailer with walls 600+600mm high.

**The width of the cargo box inside is adapted to the transport of EUROPALLETS

***Illustrative photos.
