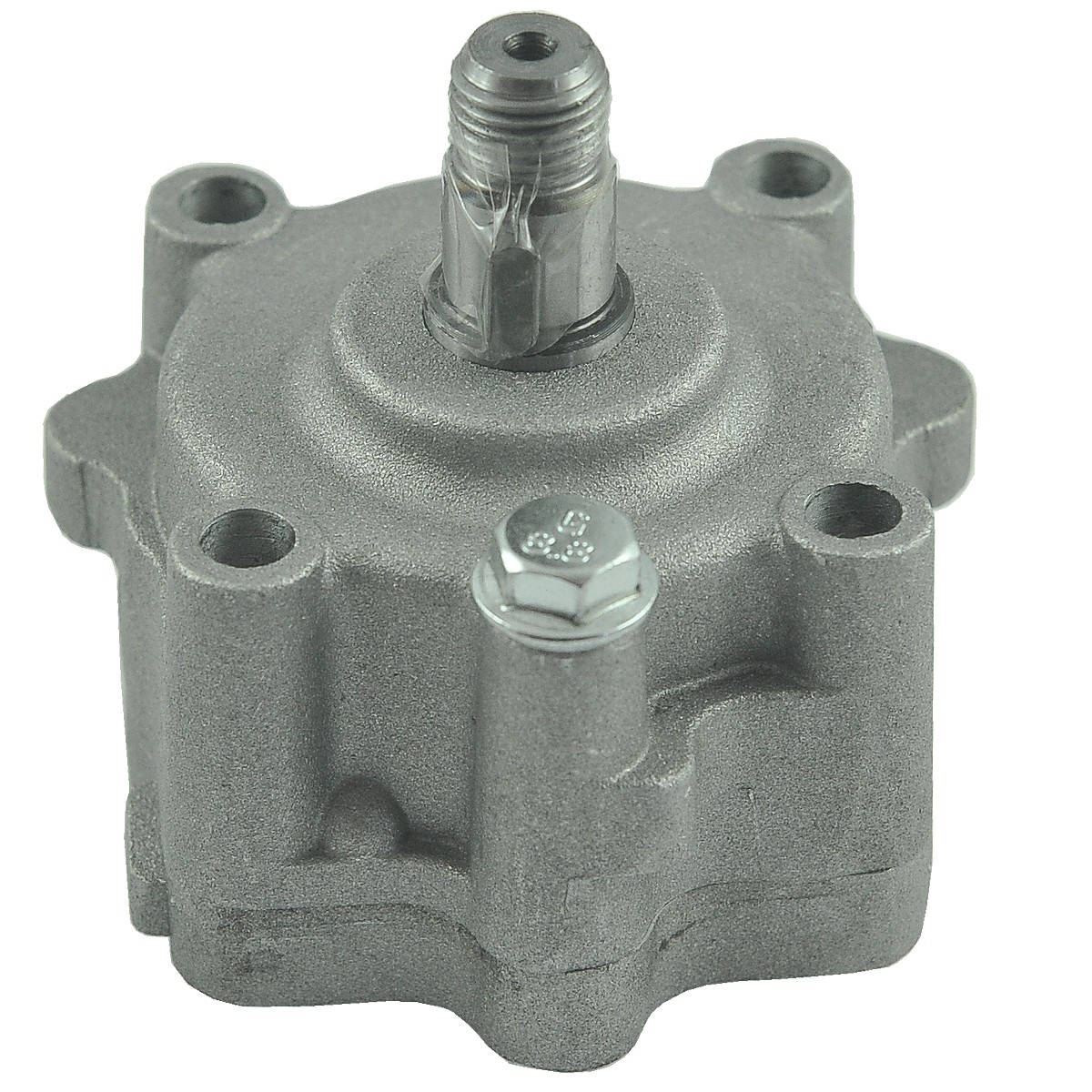

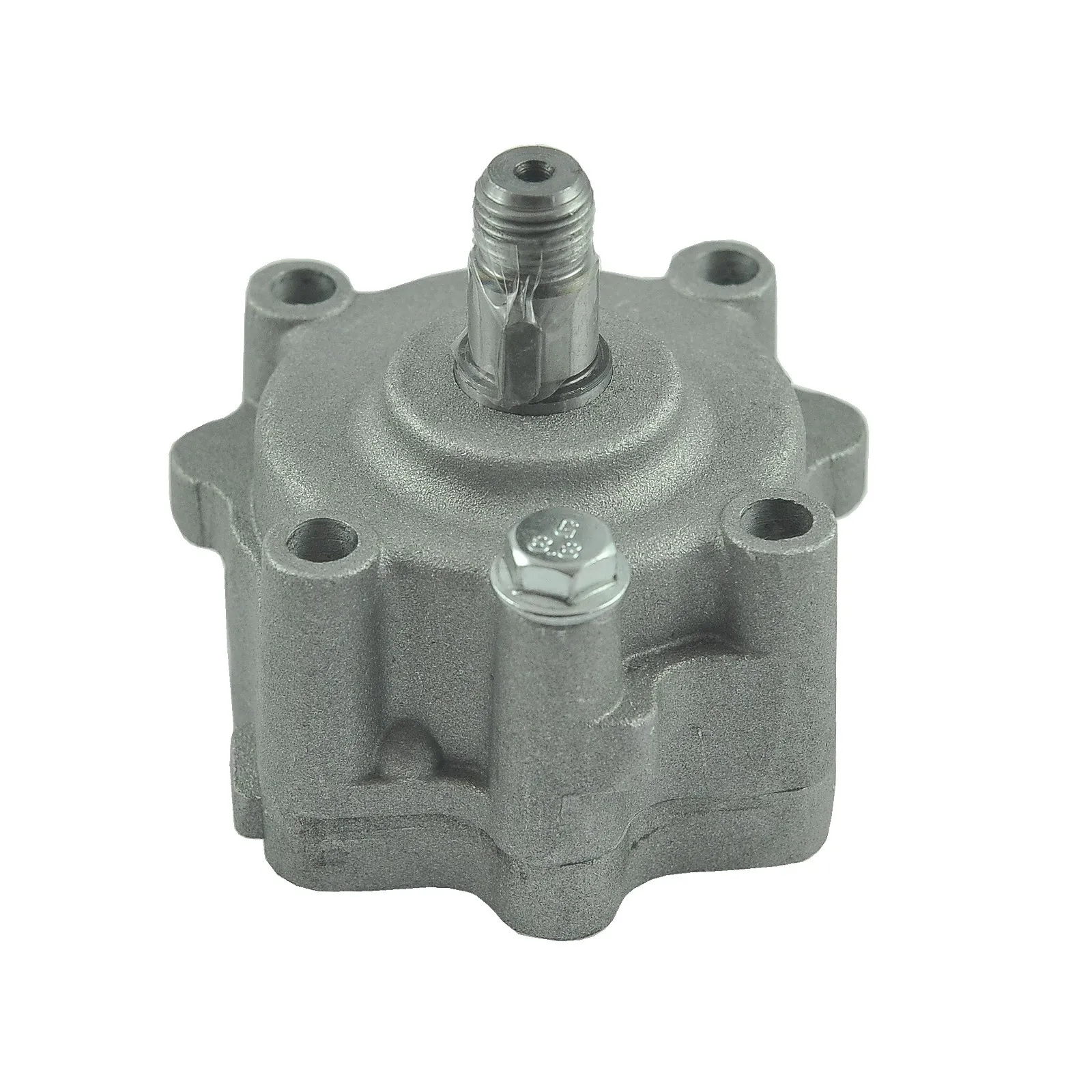

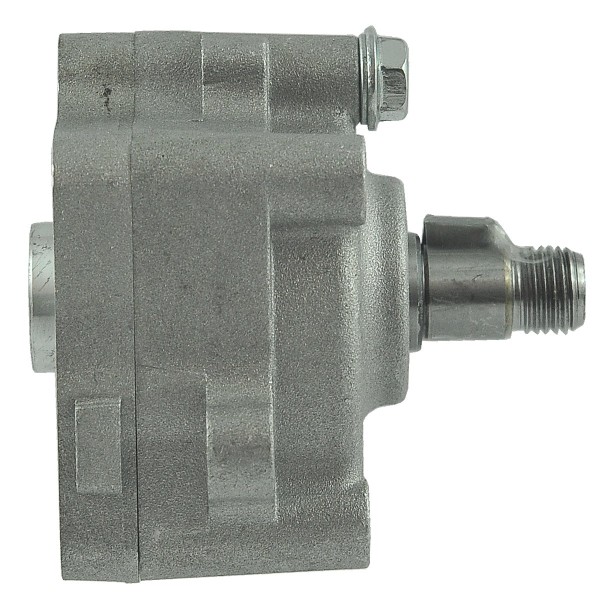

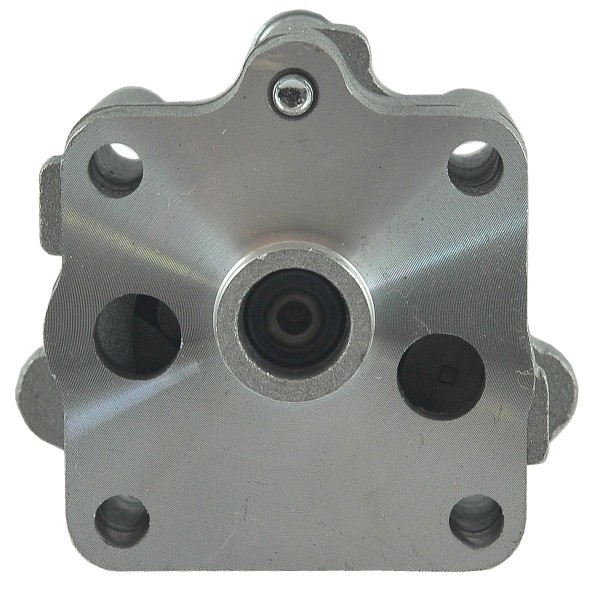

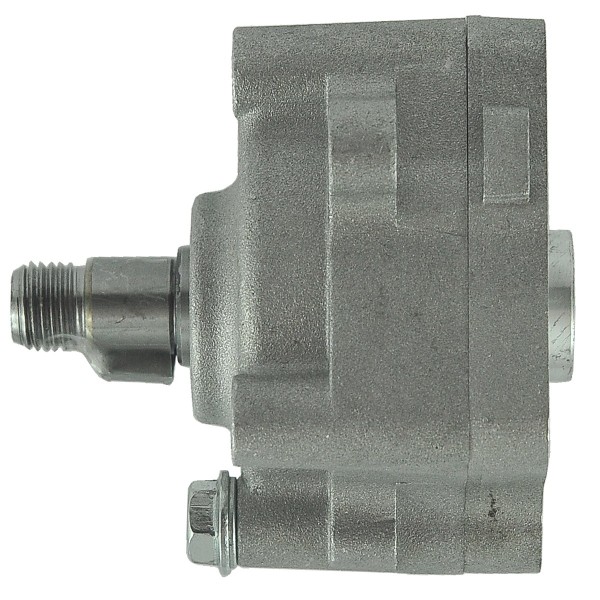

Oil pump / Kubota L1-18 / L1-22 / L1-24 / L1-225 / L1-235 / L1-245 / L1-255 / L1-275 / L2000 / 6-15-112-03

Product code: 6-15-112-03
Brand 4FARMER
View other model
zł234.96 netto
zł289.00
Includes VAT 23%

Lowest price from 30 days: No snapshot data yet.

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
1 pieces
Delivery See details Leasing & financing for businesses See details

Product description

Engine oil pump (rotor 6-19-100-01, oil pump sprocket 5-19-118-02, seal 31381-76390) with dimensions 75 x 65 x 45 mm (measured without shaft) for Kubota tractors and machines of the Kubota L1-18, Kubota L1-22, Kubota L1-24, Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L1-275, Kubota L2000 series with Kubota D1302-DI, Kubota D1402-DI, Kubota D1462, Kubota Z850 and other engines.

The engine oil pump is responsible for delivering and pumping oil at the correct pressure and volume required for proper operation to the engine. The engine oil pump is most often driven by the engine's crankshaft or a V-belt. The oil pump draws oil from the oil pan and distributes it throughout all the engine's channels in the form of a microfilm.

Dimensions :

  • dimensions: 75 x 45 x 70 mm (measured without roller),
  • shaft length: 22 mm,
  • thread: M12 x 1.25,
  • thread length: 7 mm,
  • mounting screw hole spacing: 45 mm (measured from each other), 64 mm (measured diagonally),
  • original part numbers: 15321-35010, 15221-35011, 17331-35011,
  • comparison numbers: 5-15-212-02 ,
  • part numbers: 6-15-112-03.

Engine models :

Kubota :

  • Kubota D1302-DI,
  • Kubota D1402-DI,
  • Kubota D1462,
  • Kubota Z850,

Tractor models :

Kubota :

  • Kubota L1-18,
  • Kubota L1-22,
  • Kubota L1-24,
  • Kubota L1-225,
  • Kubota L1-235,
  • Kubota L1-245,
  • Kubota L1-255,
  • Kubota L1-275,
  • Kubota L2000.

A damaged or improperly functioning oil pump can lead to engine seizure. The first signs of damaged oil pumps are reduced oil pressure indicated by a light on the dashboard.

Warehouse:
 K18:F22

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
* Gasket included with the pump.

Specifications

Bolt hole spacing (mm)
64
Engine model
Kubota D1462
Bolt hole spacing (mm)
64
Production
Substitute
Parts
Engine
Tractor models
Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-275, Kubota L1-22, Kubota L1-24, Kubota L1-255, - Kubota L2000, Kubota L1-18
Dimensions (mm)
75 x 45 x 70
Thread(s) length (mm)
7
Shaft length (mm)
22
Thread
M12 x 1.25
Comparison numbers
5-15-212-02
Original Part Number (OEM)
17331-35011, 15321-35010, 15221-35011
Part number
6-15-112-03
