Engine piston / Ø 80 mm / Iseki 3ΑF1 / 3AE1 / Iseki TL1900 / TL1901 / TL2100 / TL2300 / TL2301 / TL2500 / TE4270

Product code: 9-98-100-05
Brand
View other model
2 people purchased this product
zł117.89 netto
zł145.00
Includes VAT 23%

Lowest price from 30 days: zł145.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Unavailable
0 pcs
On order See details Leasing & financing for businesses See details

Product description

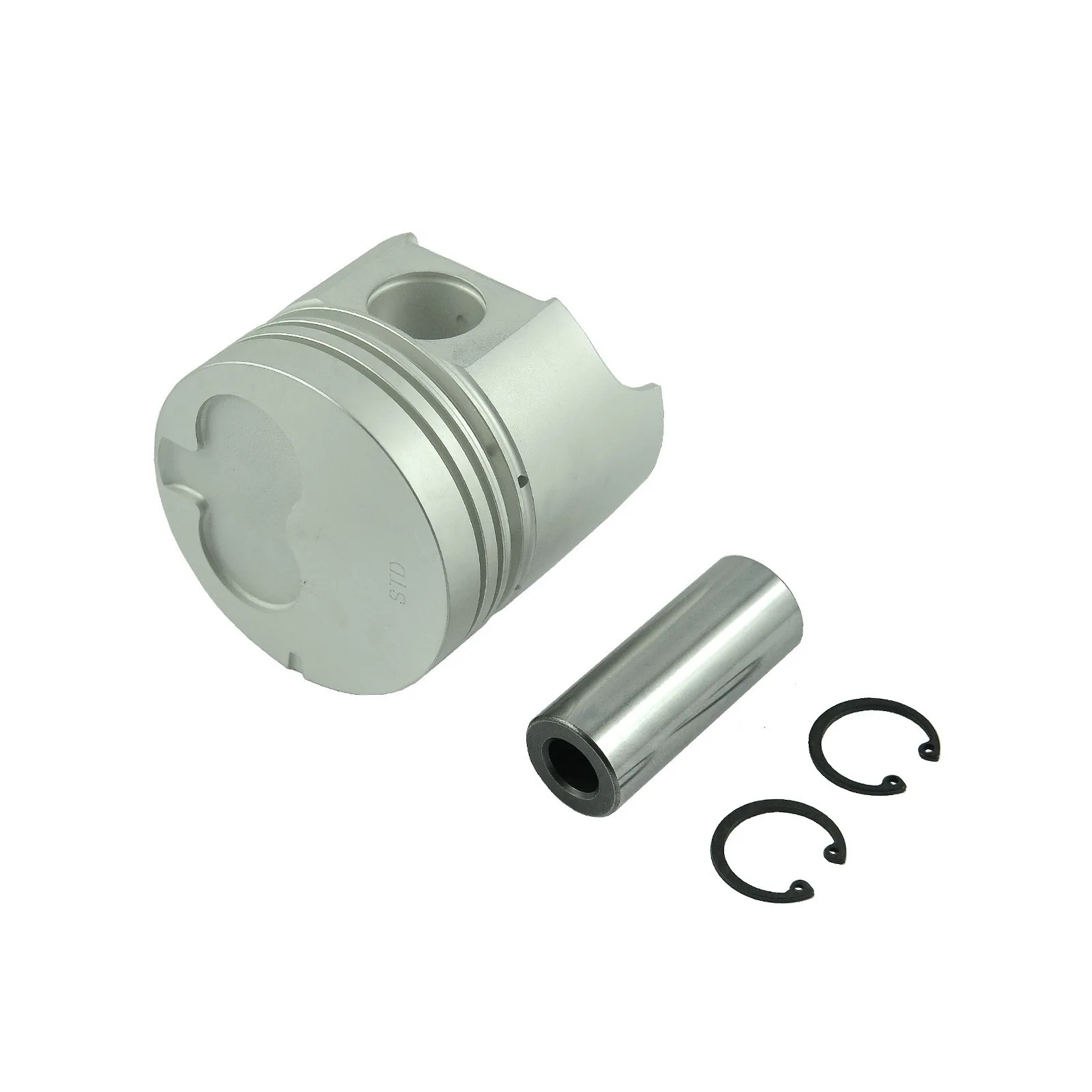

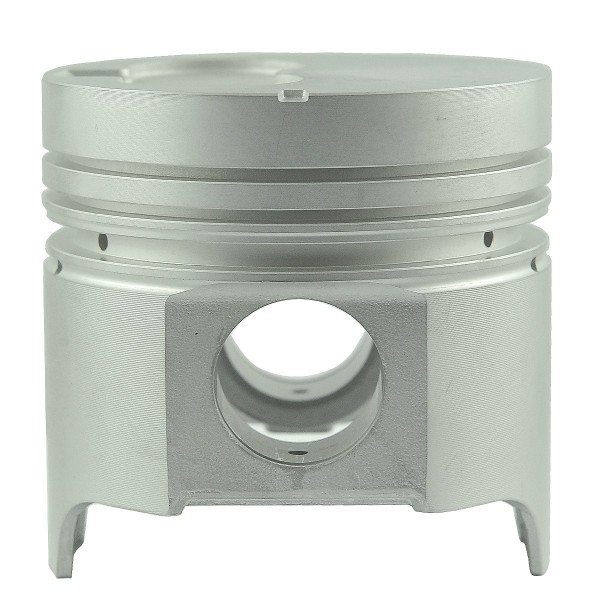

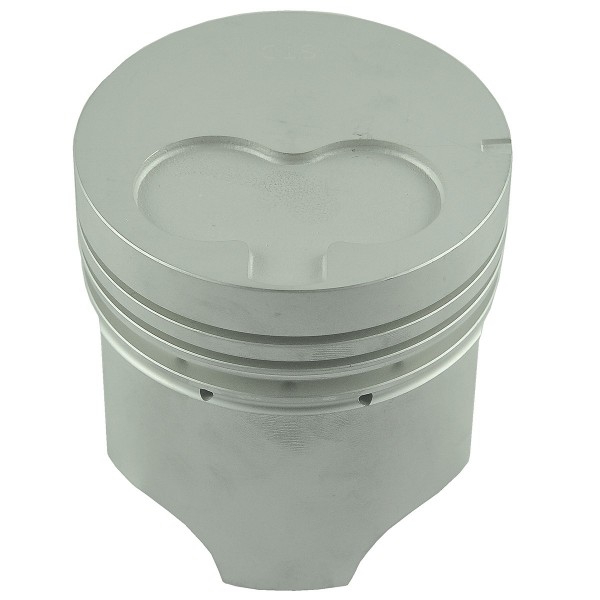

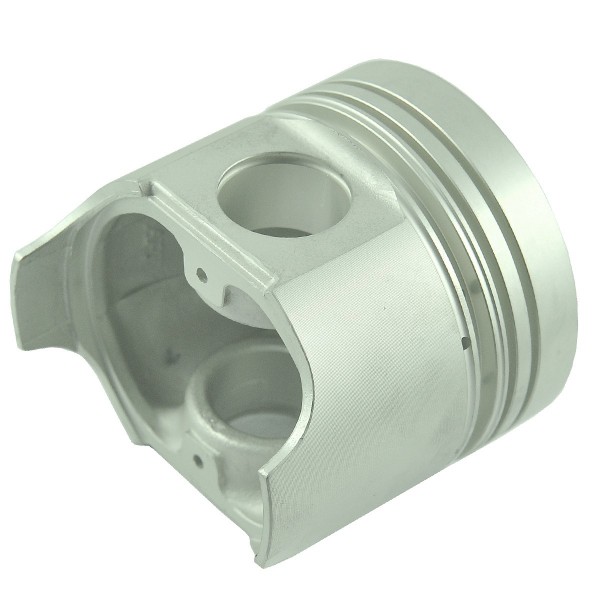

Engine piston (rings 9-99-101-01, 5681-212-1011-0) with an outer diameter of 80 mm and a total height of 78 mm for Iseki tractors with indirect fuel injection of the Iseki TL1900 , Iseki TL1901 , Iseki TL2100, Iseki TL2300, Iseki TL2301, Iseki TL2500, Iseki TE4270, Iseki TU220, Iseki TU225, Iseki TU240, Iseki TU245 series with Iseki 3ΑF1, Iseki 3AE1 and other engines. The engine piston is a moving element responsible for converting gas and energy produced during combustion to the crankshaft, and thus further into engine power. The piston is connected to the crankshaft by a component called a connecting rod with pin connections. At the top of the piston are annular channels for mounting the piston rings, and inside is a hub for connecting to the connecting rod. At the top is the so-called crown, which can vary in shape depending on the engine type. Due to the harsh operating conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

  • outer diameter: 80 mm,
  • height: 78 / 62 mm,
  • pin hole diameter: 25 mm,
  • pin diameter: 24.80 mm,
  • pin length: 60 mm,
  • valve seat depth: 2 mm,
  • distance from the end of the pin hole to the lower edge of the piston: 6 mm.
  • distance from the edge of the pin hole to the top edge of the piston: 30.50 mm.
  • width of ring grooves from the top of the piston: 2 / 2 / 4 mm.
  • original part number: 5681-211-1169-0,
  • comparison numbers: 9-23-106-03,
  • part number: 9-98-100-05.

Engine models :

Iseki :

  • Iseki 3AE1,
  • Iseki 3ΑF1.

Tractor models :

Iseki :

  • Iseki TL1900,
  • Iseki TL1901,
  • Iseki TL2100,
  • Iseki TL2300,
  • Iseki TL2301,
  • Iseki TL2500,
  • Iseki TE4270,
  • Iseki TU220,
  • Iseki TU225,
  • Iseki TU240,
  • Iseki TU245.

Magazine : K18:F17:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Engine model
Iseki 3AE1
Height (mm)
78
Width (mm)
4.00
Production
Substitute
Parts
Engine
Tractor models
Iseki TU225, Iseki TU245, Iseki TL1900, Iseki TL1901, Iseki TL2100, Iseki TL2300, Iseki TL2301, Iseki TL2500, Iseki TE4270, - Iseki TU220, - Iseki TU240
Outer diameter (mm)
80
Depth (mm)
2.00
Diameter of pin hole(s) (pins/pins / mm)
25
Pin diameter (a) (mm)
24.80
Pin length (a) (mm)
60
Comparison numbers
9-23-106-03
Original Part Number (OEM)
5681-211-1169-0
Part number
9-98-100-05
