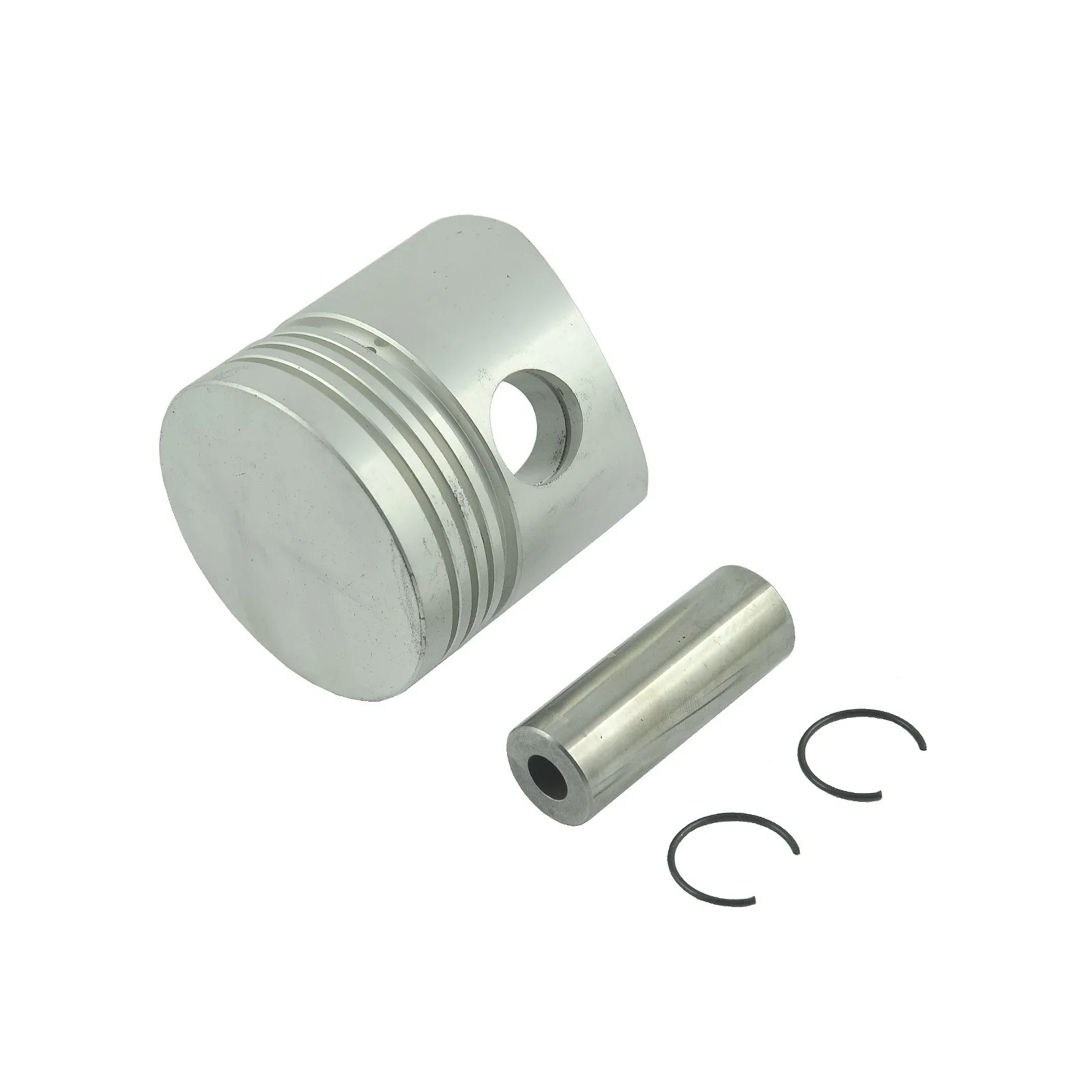

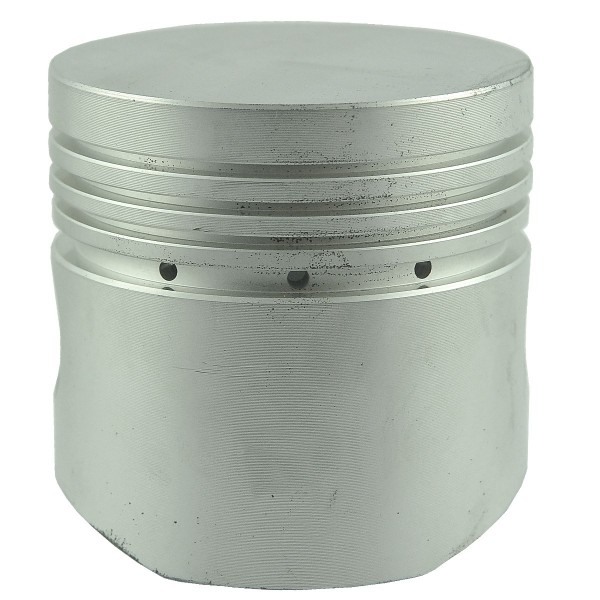

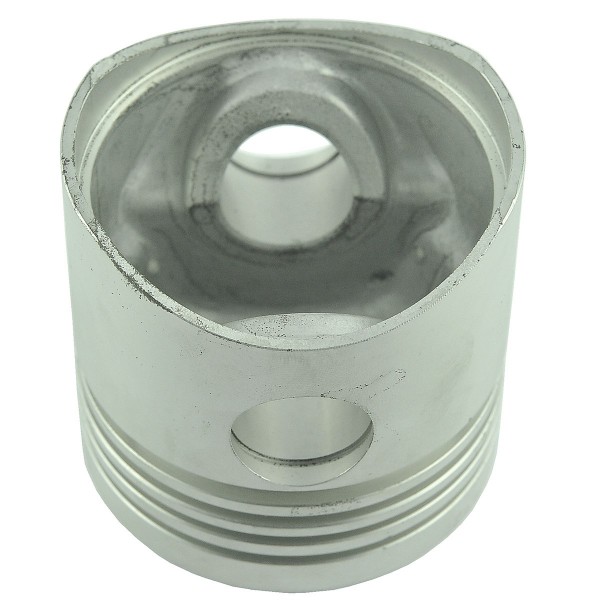

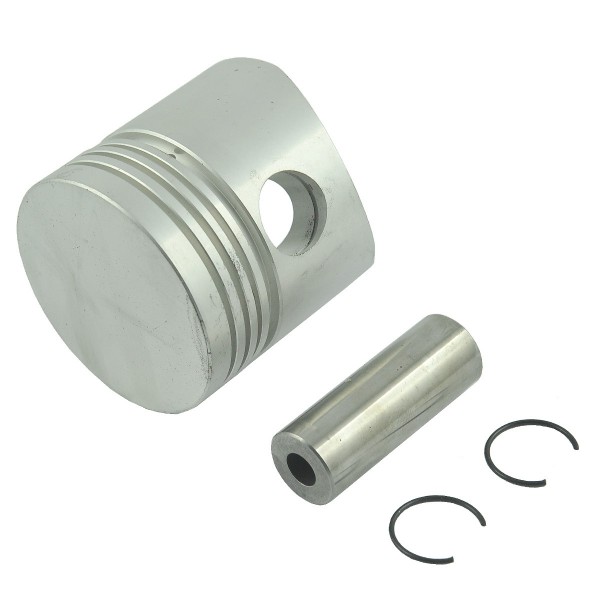

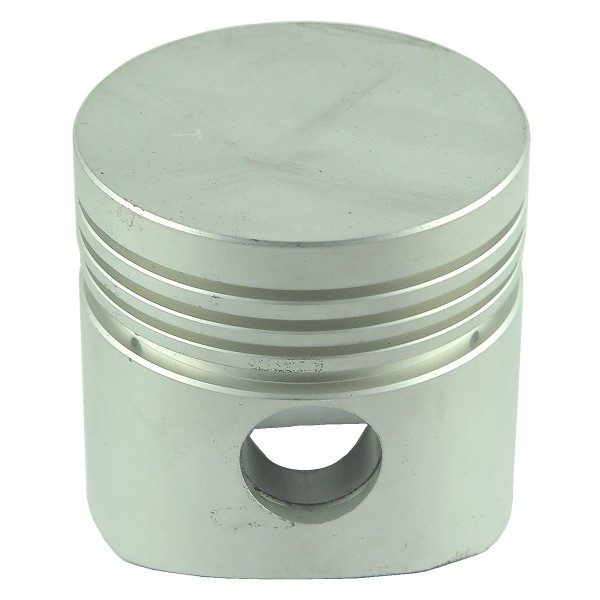

Engine piston / Ø 75mm / Yanmar 2TR13 / Yanmar YM155 / YM165 / YM1300

Engine piston (rings 6-26-100-64) with an outer diameter of 76 mm and a total height of 72 mm for Yanmar tractors of the Yanmar YM155, Yanmar YM165 , Yanmar YM1300 series with Yanmar 2TR13 engines and others. An engine piston is a moving component responsible for converting gas and the energy generated during combustion into the crankshaft, and thus, engine power. The piston is connected to the crankshaft by a component called a connecting rod with pin connections. At the top of the piston are annular channels for mounting the piston rings, and inside is a hub for connecting to the connecting rod. At the top is the so-called crown, which can have a different shape depending on the engine type. Due to its harsh operating conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 76 mm,
• height: 64.70 / 72 mm,
• pin hole diameter: 23 mm,
• pin diameter: 22.90 mm,
• pin length: 64 mm,
• distance from the end of the pin hole to the lower edge of the piston: 11 mm,
• distance from the edge of the pin hole to the top edge of the piston: 31 mm.
• ring groove width (6-26-100-64) from the top of the piston: 2.00 / 2.00 / 2.00 / 4.00 mm,
• original part number: 124060-22090,
• reference numbers: 724060-22722,
• part numbers: 6-23-100-20.

Tractor models :

Yanmar :

• Yanmar YM155,
• Yanmar YM165,
• Yanmar YM1300.

Engine models :

Yanmar :

• Yanmar 2TR13.

Magazine : K18:F32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
