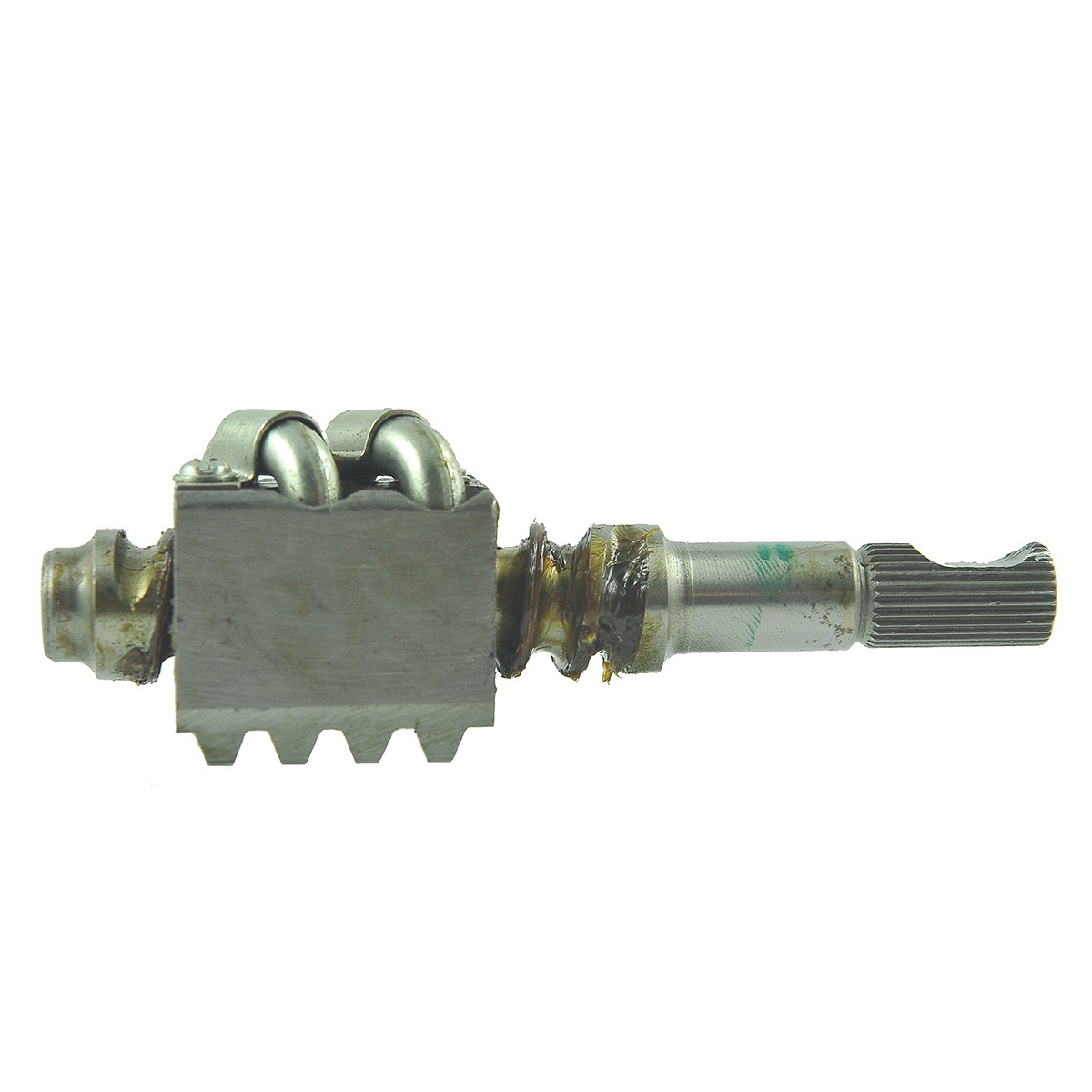

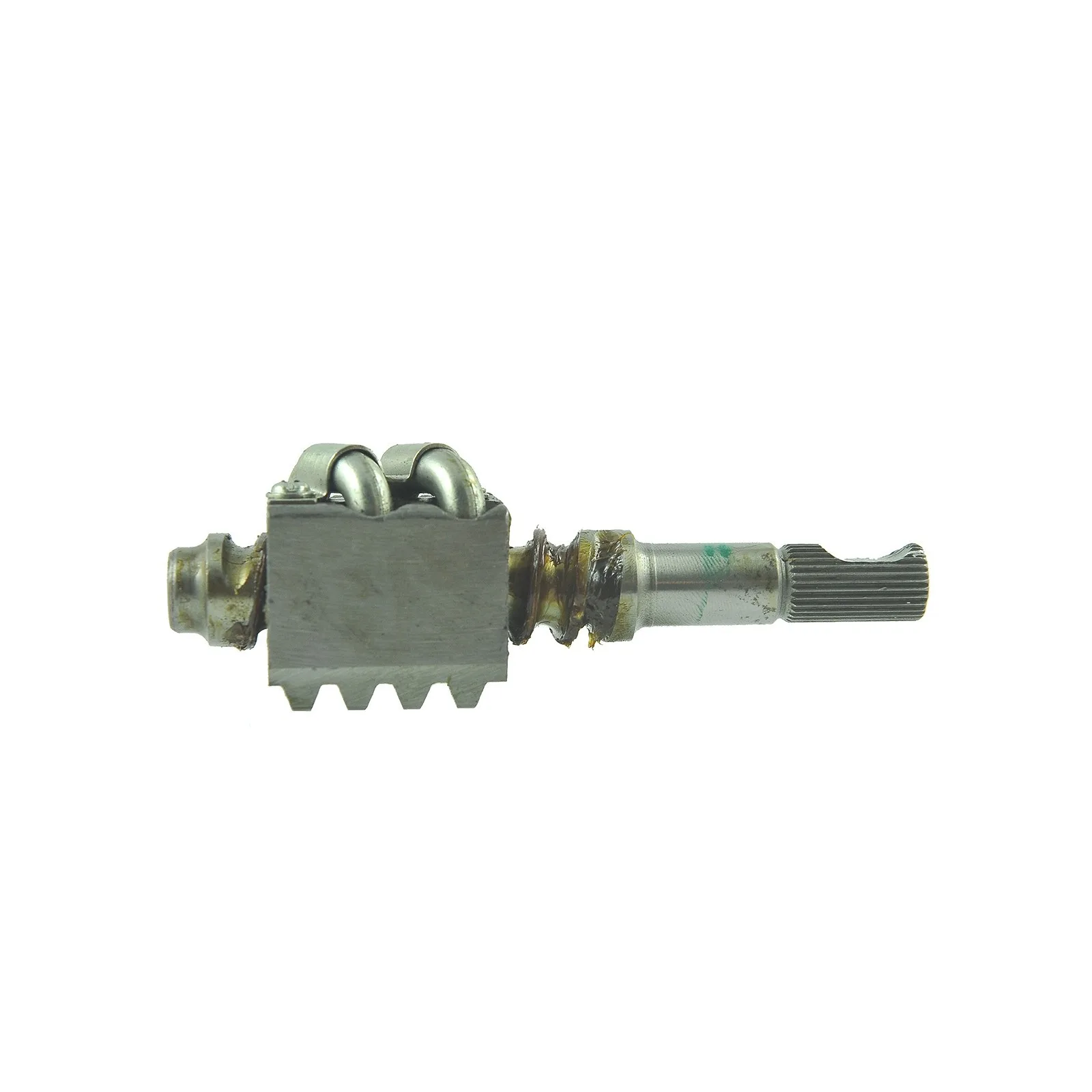

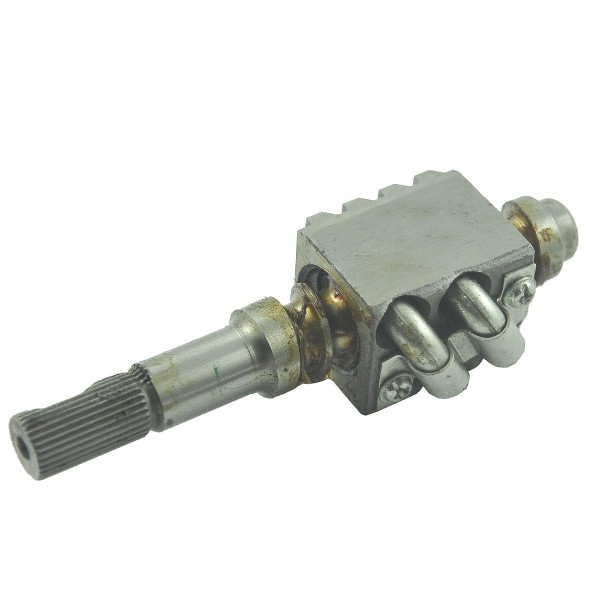

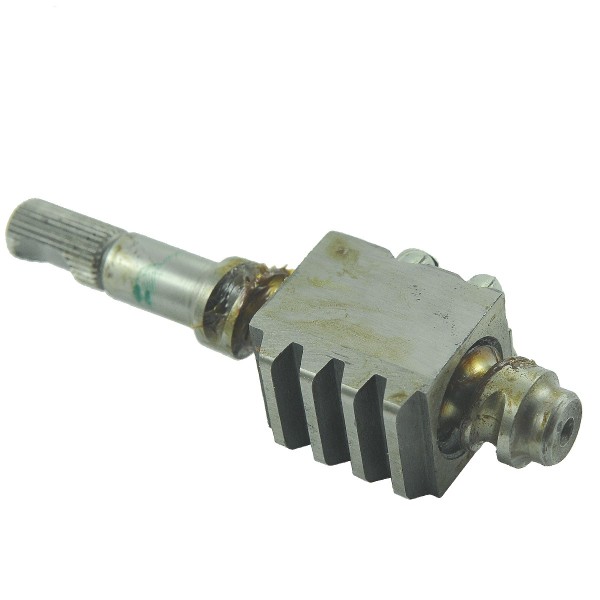

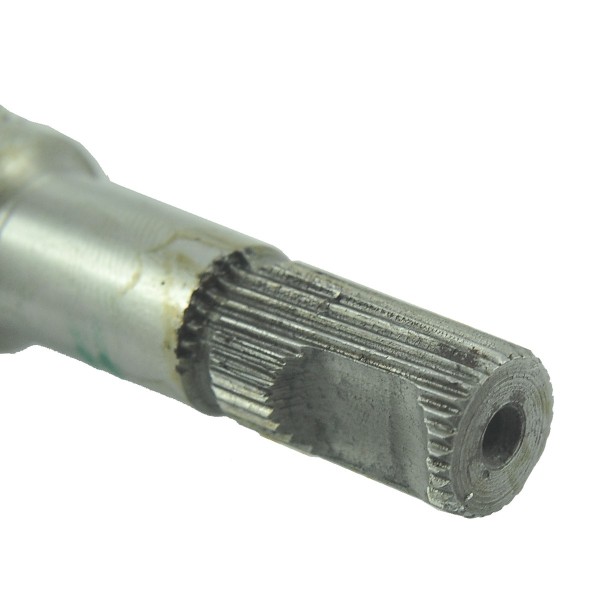

Steering column shaft / 134 mm / Yanmar YM1300

Steering gear shaft with a total length of 134 mm and a cutter diameter of 13 / 14 mm for Yanmar tractors of the Yanmar YM1300 series and others.

The steering column worm gear is a component of the steering system, sometimes called the rack and pinion, responsible for steering the tractor. The shaft is directly bolted to the steering wheel on one end, while its worm section on the other moves the steering rods connected to the front axle's steering rods during steering wheel rotation. The worm gear is a component of the steering column, which consists of a shaft with a worm gear, responsible for steering the tractor.

Dimensions :

• length: 134 mm,
• cutter diameter: 13 mm (measured between cutter teeth), 14 mm (measured together with the cutter),
• cube dimensions: 41 x 35 x 32 mm (length x width x height),
• number of teeth: 30T
• cutter length: 24 mm,
• original part numbers: - ,
• comparative numbers: - ,
• part numbers: KUSS-417.

The worm shaft is responsible for transferring the steering wheel's movement to the tie rod ends, and then to the steering wheels. This connection should be as smooth and free of play as possible. At the end of the shaft is a so-called steering column worm with a screw-like thread, directly integrated into which is a gear or other surface connected to the tie rod ends.

Warehouse: K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
